ABB 3HAC037638-003 Maintenance-Ready Spare for IRB Automation

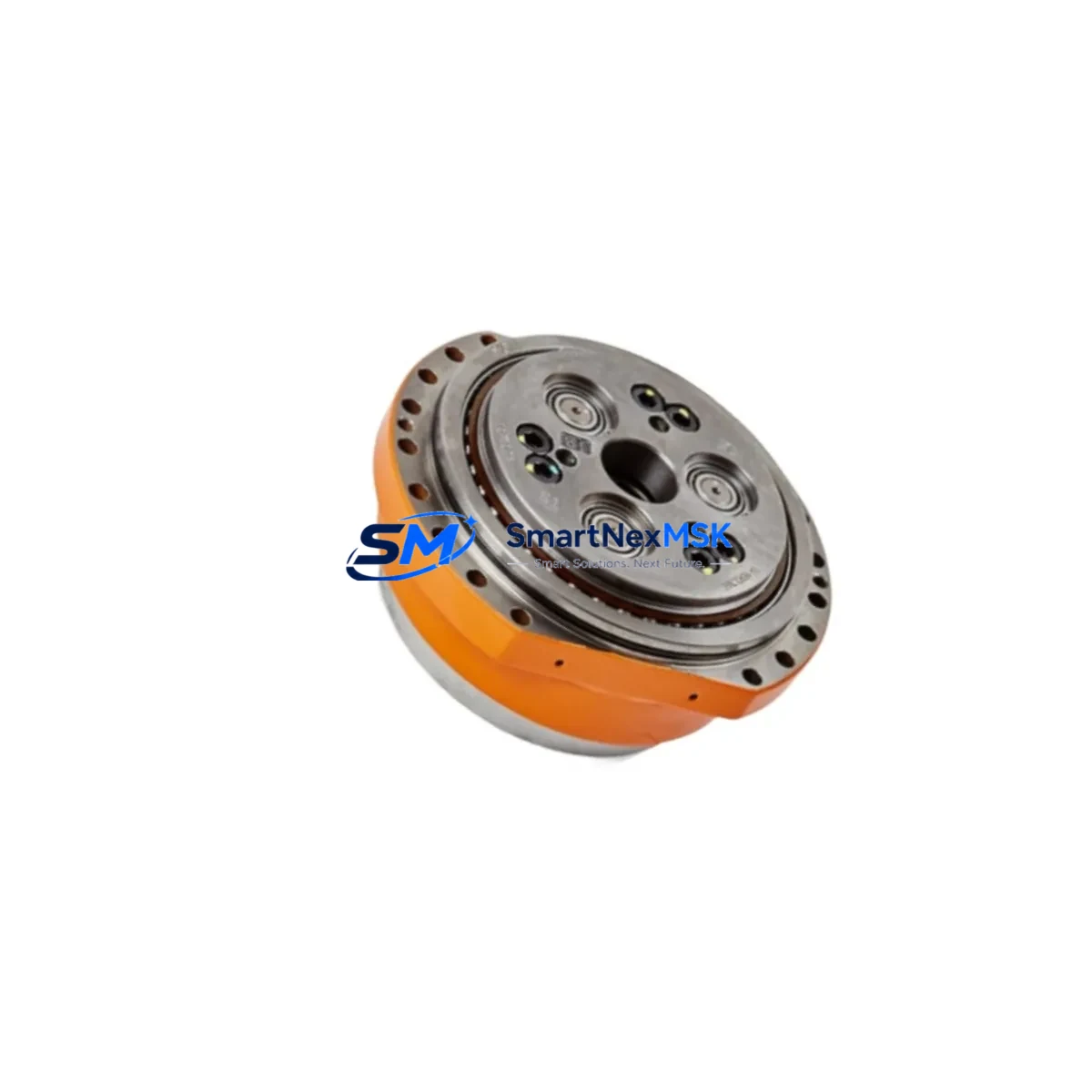

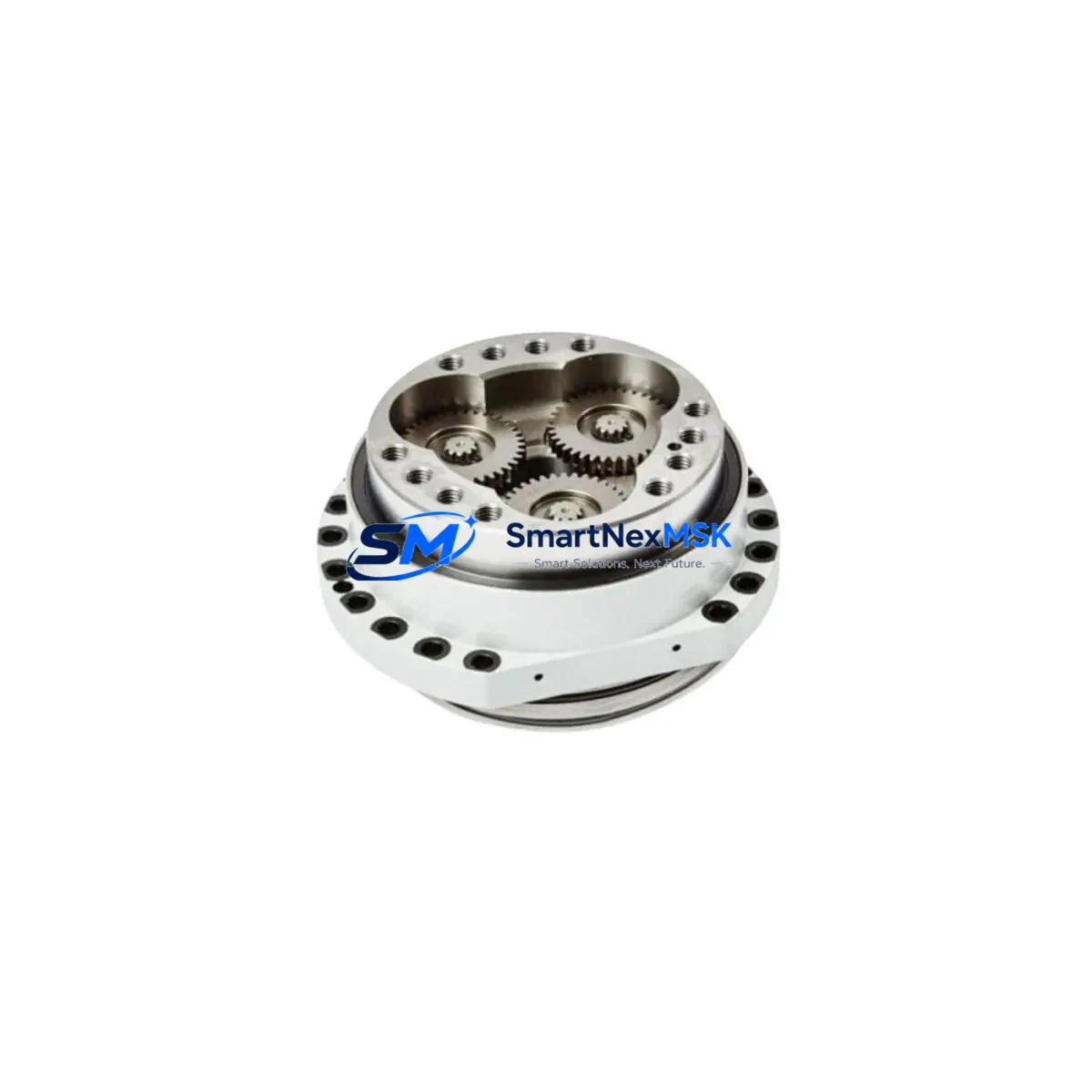

The ABB 3HAC037638-003 is an original axis reduction gearbox engineered for ABB IRB industrial robot series, including the IRB 6600, IRB 6640, IRB 6650S, and IRB 7600 platforms. As a precision-machined mechanical transmission component, this gearbox governs the torque and positional accuracy of the robot’s primary axes — making it one of the most maintenance-critical spare parts in any robotic welding, material handling, or heavy-payload automation cell.
For maintenance engineers managing high-cycle robot installations, gearbox wear is a predictable failure mode. Increased backlash, abnormal vibration signatures, oil leakage at the seal interface, and axis positional drift are all early indicators that the 3HAC037638-003 requires inspection or replacement. Proactive spare parts stocking of this unit directly reduces mean time to repair (MTTR) and protects production uptime in facilities where robot downtime translates to measurable line losses.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 3HAC037638-003 |
| Brand | ABB Robotics |
| Compatible Series | IRB 6600 / IRB 6640 / IRB 6650S / IRB 7600 |
| Component Type | Axis Reduction Gearbox (Mechanical Transmission) |
| Application Axis | Axis 1 / Axis 2 / Axis 3 (confirm per robot BOM) |
| Origin | Sweden |
| Condition | Original OEM — New / Tested Surplus |
| Pre-shipment Test | Yes — functional and dimensional inspection |
| Installation Environment | Industrial robot cell, welding bay, press-tending, palletizing |
| Lubrication | Factory-filled; verify ABB grease specification (3HAC032140-004 or equivalent) on reinstallation |
| Maintenance Interval | Per ABB robot maintenance manual — typically 8,000–12,000 operating hours |
| Warranty | 12 Months from date of shipment |
| Lead Time | In-stock: ships within 2 business days |
Maintenance Planning for Continuous Operation
When scheduling a planned replacement of the 3HAC037638-003 gearbox, experienced maintenance engineers treat the intervention as an opportunity to inspect the entire mechanical and electrical ecosystem of the affected robot axis. A gearbox replacement that is performed in isolation — without auditing adjacent components — frequently results in repeat downtime within weeks.
Begin by verifying the condition of the ABB motor unit driving the affected axis (commonly a 3HAC17484-1 or 3HAC026253-001 servo motor depending on the IRB variant). Gearbox wear often correlates with motor bearing fatigue or resolver drift. Simultaneously, inspect the axis brake assembly and confirm brake release voltage is within specification using the robot controller’s I/O diagnostic panel.
On the electrical side, check the SMB (Serial Measurement Board) — part numbers such as 3HAC14550-2 or 3HAC031670-001 — which handles encoder feedback for all axes. A worn gearbox that has been operating with elevated backlash may have introduced cumulative resolver errors that require SMB recalibration or replacement. The axis computer board (DSQC 668 / 3HAC025338-001) inside the IRC5 controller cabinet should also be inspected for fault logs related to axis following errors or motor current overloads.
Do not overlook the power distribution module and drive unit within the IRC5 cabinet — units such as the DSQC 374 drive module or 3HAC025338-001 axis computer. Sustained mechanical resistance from a degraded gearbox places elevated current demand on the drive, which can accelerate capacitor aging in the drive unit. Inspect the teach pendant cable (3HAC028357-001) and FlexPendant unit for any fault history that may have been dismissed as transient during the gearbox degradation period.
For facilities running older IRB 6600 or IRB 7600 installations, this maintenance window is also the right time to assess the upper arm harness (3HAC025562-001) and lower arm cable bundle for insulation fatigue, particularly at flex points near the axis 2 and axis 3 joints. Replacing the gearbox while the robot is disassembled to this level avoids a second shutdown for cable replacement within the same maintenance cycle.
Finally, confirm that the robot base and frame mounting bolts are torqued to ABB specification and that the axis calibration pendulum or calibration tool is available on-site before reassembly. Post-installation fine calibration is mandatory for axis accuracy recovery.
Site Replacement Workflow
Step 1 — Isolation and Lockout: De-energize the IRC5 controller and apply LOTO (Lockout/Tagout) per site safety procedure. Confirm all axis brakes are engaged before approaching the robot mechanical unit.
Step 2 — Oil Drain and Disassembly: Drain gearbox oil per ABB product manual (3HAC16831-1 or applicable IRB variant manual). Remove the axis motor, brake, and gearbox cover in sequence. Document torque values and shim positions photographically.
Step 3 — Component Inspection: Inspect the mating flange, output shaft bearing, and seal housing for wear or damage. Replace seals and O-rings as a matter of course — do not reuse old seals on a new gearbox.
Step 4 — Installation of 3HAC037638-003: Install the new gearbox using ABB-specified torque values. Apply fresh gearbox grease (3HAC032140-004 or equivalent) per the lubrication chart. Reinstall the motor and brake assembly.
Step 5 — Electrical Reconnection and Axis Calibration: Reconnect all motor power and resolver cables. Power up the IRC5 controller and perform axis calibration using the FlexPendant calibration routine. Verify axis mastering values against the robot’s calibration data plate.
Step 6 — Functional Test: Run the robot through its full working envelope at reduced speed (10–25%) for a minimum of 30 minutes. Monitor axis current, temperature, and position error via the IRC5 event log before returning to production speed.
This structured workflow minimizes re-work risk and ensures the replacement 3HAC037638-003 is commissioned correctly, restoring full positional accuracy and rated payload capacity.
Spare Parts Support FAQ
Q1: Is the 3HAC037638-003 compatible with all IRB 6640 variants?
The 3HAC037638-003 is designed for specific axis positions within the IRB 6600/6640/6650S/7600 family. Compatibility depends on the robot’s manufacturing date and BOM revision. Always cross-reference the part number against your robot’s spare parts catalog (available via ABB Library) or provide your robot serial number to our sales team for confirmation before ordering.
Q2: What is your pre-shipment inspection process?
Every 3HAC037638-003 unit undergoes dimensional inspection, visual examination for seal integrity and surface condition, and functional verification where applicable. Units are shipped in protective packaging with inspection documentation. Our 12-month warranty covers defects in material and workmanship from the date of shipment.
Q3: Can this gearbox replace an older or superseded ABB part number?
ABB periodically issues part number revisions for mechanical components. The 3HAC037638-003 may serve as a direct or form-fit-function replacement for earlier gearbox revisions in the same axis position. Our technical team can verify cross-reference compatibility — contact us with your existing part number and robot model for confirmation.
Q4: What is your recommended inventory strategy for this part?
For facilities operating 3 or more IRB 6600/6640/7600 robots, we recommend maintaining at least one 3HAC037638-003 unit in on-site buffer stock. Gearbox lead times from OEM channels can extend to 8–16 weeks during peak demand periods. Holding a tested spare eliminates this exposure and supports a same-shift replacement capability for unplanned failures.
