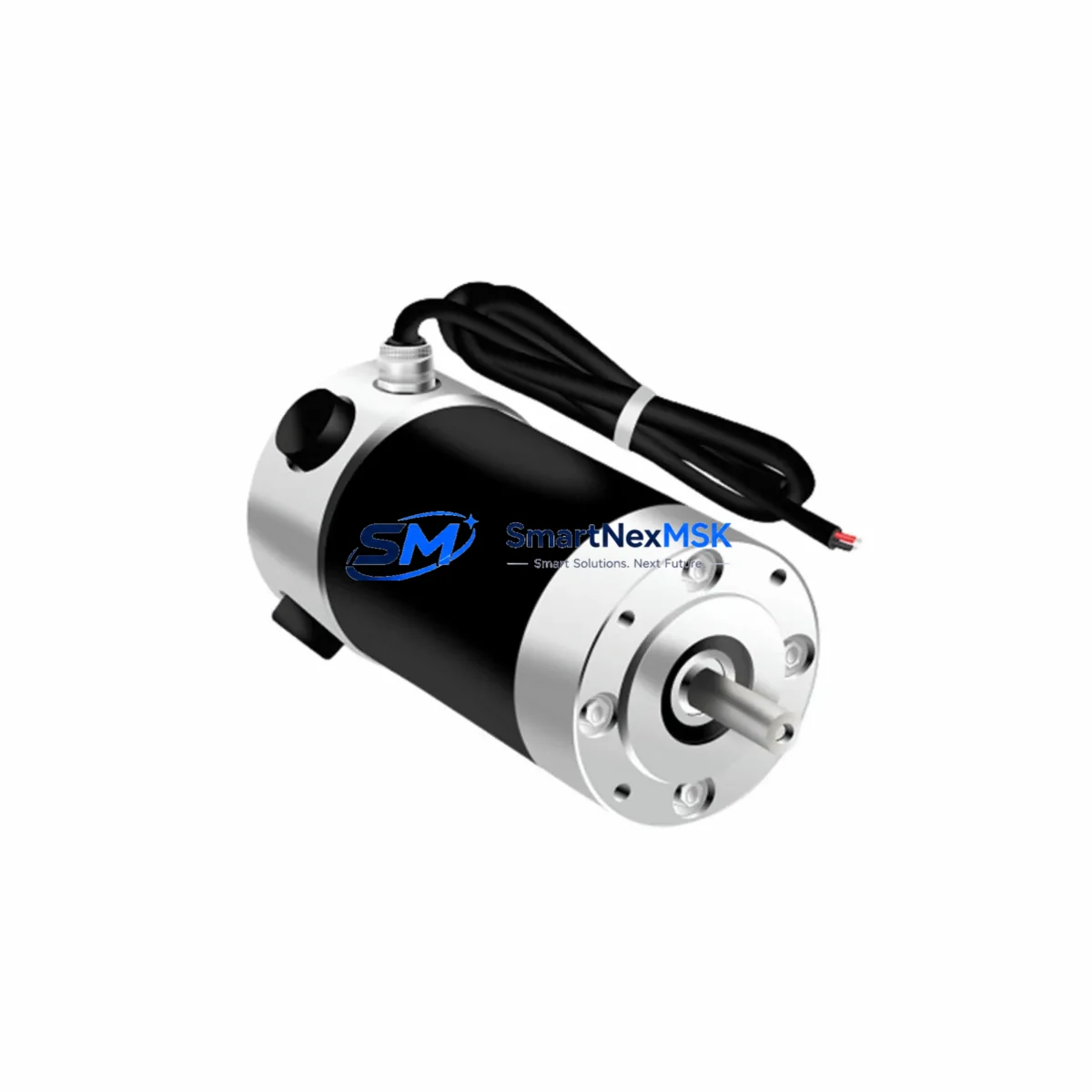

ELECTRO-CRAFT E650 Retrofit-Ready Brushed DC Servo Motor for E-Series Control Systems
The ELECTRO-CRAFT E650 is a brushed DC servo motor engineered for seamless integration into legacy E-Series motion control architectures. As original E650 units approach end-of-life and OEM support is discontinued, industrial facilities operating E-Series servo drives, motion controllers, and multi-axis positioning systems face increasing pressure to source verified replacement hardware without disrupting production continuity. This listing addresses that need directly: each E650 unit is sourced, inspected, and dispatched with a 12-month warranty, providing procurement teams and maintenance engineers with a reliable, traceable supply path for ongoing operations and planned retrofit projects.
The E650 motor is commonly paired with ELECTRO-CRAFT E-Series servo amplifiers and drive controllers in CNC machining centers, packaging lines, printing presses, and precision assembly equipment. Its brushed DC architecture delivers predictable torque response and straightforward commutation, making it a preferred choice for retrofit engineers who need to maintain compatibility with existing motion programs, encoder feedback loops, and drive tuning parameters without rewriting control logic or replacing the entire servo system.
When planning a retrofit or replacement around the E650, engineers must verify several critical interface parameters before installation. Power supply capacity at the servo drive cabinet must be confirmed against the E650’s rated voltage and continuous current draw. Terminal wiring assignments — including armature leads, field winding connections, and encoder signal lines — must be mapped against the existing cable harness to avoid miswiring during changeover. The backplane interface between the servo drive and the motion controller must be inspected for connector compatibility, particularly in multi-axis rack configurations where the ELECTRO-CRAFT E-Series drive modules share a common backplane bus. Module addressing, if configured via DIP switches or drive parameter tables, must be documented from the outgoing unit and replicated on the replacement E650 to ensure the motion controller recognizes the axis without requiring a full re-commissioning cycle.
Program compatibility is a key concern in any servo motor replacement. If the host controller — whether a dedicated ELECTRO-CRAFT motion controller or a third-party PLC platform — stores axis configuration parameters referencing the E650’s encoder resolution, gear ratio, or torque constant, those parameters must be verified against the replacement unit’s nameplate data before enabling the drive. HMI screens displaying axis position, velocity feedback, or fault status should be reviewed to confirm that tag mappings remain valid after the motor swap. Communication links between the servo drive and the supervisory control layer, whether via analog reference signals, step/direction inputs, or serial fieldbus connections, must be tested under no-load conditions before returning the axis to automatic operation.
Field commissioning after an E650 replacement typically involves a controlled jog sequence to verify encoder direction, a torque limit test to confirm drive protection settings, and a full-speed positioning run to validate following error thresholds. Downtime can be minimized by pre-staging the replacement motor with all wiring adapters, encoder connectors, and mounting hardware prepared in advance, allowing the physical swap to be completed within a single planned maintenance window.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Model | E650 |
| Brand | ELECTRO-CRAFT |
| Series | E-Series |
| Motor Type | Brushed DC Servo Motor |
| Replacement Status | Drop-in replacement for discontinued E650 units |
| Drive Compatibility | Compatible with ELECTRO-CRAFT E-Series servo amplifiers and drive modules |
| Encoder Interface | Verify encoder resolution and signal type against existing drive configuration |
| Mounting | Confirm frame size, shaft diameter, and flange pattern before installation |
| Communication | Analog reference / Step-Direction / Serial (verify per drive model) |
| Commissioning Requirement | Jog test, torque limit verification, following error validation |
| Warranty | 12-Month Warranty — tested prior to dispatch |
| Origin | United States |
Retrofit Planning for Existing Automation Systems
A successful E650 retrofit begins with a thorough audit of the existing control cabinet. In a typical E-Series installation, the servo drive rack may house multiple ELECTRO-CRAFT E-Series drive modules alongside a shared power supply module and a motion controller card. Before removing the E650, engineers should document the drive module’s parameter table — including current limits, velocity loop gains, and position loop bandwidth settings — using the ELECTRO-CRAFT programming software or a compatible handheld programmer. This data serves as the baseline for re-tuning the replacement motor if its electrical characteristics differ slightly from the original unit.
Terminal blocks and cable harnesses in legacy E-Series cabinets are often labeled according to original machine documentation that may be decades old. Cross-referencing the existing wiring diagram against the E650 replacement unit’s terminal layout is essential, particularly for field winding polarity and encoder shield grounding. In systems where the servo axis is coordinated with other motion axes — for example, a gantry system using two E-Series drive modules on a shared rack — the replacement sequence must account for the interaction between axes to avoid position mismatch faults during the first powered test.
Beyond the motor itself, a complete retrofit often involves inspecting adjacent components in the control system. The servo drive power supply module should be load-tested to confirm it can sustain peak current demand during acceleration. Encoder feedback cables, particularly in older installations, may show insulation degradation that can cause intermittent position errors after the motor replacement — replacing the encoder cable as part of the retrofit is a low-cost step that prevents future unplanned downtime. In systems where the E-Series drive communicates with a PLC via an analog velocity reference, the analog output module on the PLC rack should be calibrated to confirm its output range matches the drive’s input scaling. If the system uses a serial communication link — for example, RS-232 or RS-485 — between the motion controller and a supervisory SCADA or HMI panel, the communication parameters must be verified after the motor swap to ensure the HMI continues to receive valid axis status data.
For facilities planning a broader control system upgrade alongside the E650 replacement, the retrofit window is an opportunity to evaluate whether the existing ELECTRO-CRAFT E-Series drive modules, backplane rack, and motion controller card should be retained or replaced with a current-generation servo platform. In either case, the E650 motor replacement provides an immediate path to restoring machine availability while longer-term modernization plans are developed.
Downtime Control During System Migration
Minimizing unplanned downtime during an E650 replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement motor should be fully inspected, its nameplate data recorded, and all mounting hardware, shaft couplings, and wiring adapters staged at the work site. The existing drive parameter table should be exported or manually transcribed so that re-commissioning can begin immediately after the physical installation is complete.
During the outage, the sequence of operations should follow a defined checklist: isolate the servo drive from the power supply, discharge the DC bus capacitors, disconnect the motor leads and encoder cable, remove the E650 from its mounting, install the replacement unit, reconnect all wiring in the documented sequence, and restore power in a controlled step-up procedure. The drive’s fault log should be cleared before the first jog test to ensure that any new faults generated during commissioning are clearly distinguishable from pre-existing fault history.
After the jog test confirms correct encoder direction and motor rotation, a velocity ramp test at reduced speed verifies that the drive’s current limiting and velocity loop are functioning correctly before the axis is returned to full-speed automatic operation. If the machine’s PLC program includes a homing routine, the homing sequence should be executed and the home position verified against a known reference mark before releasing the machine to production. Maintaining a written commissioning record — including the date, technician name, drive parameter values, and test results — provides traceability for future maintenance events and supports warranty claims if a component issue is identified within the 12-month warranty period.
Retrofit Support FAQ
Q: Is the E650 a direct drop-in replacement for the original ELECTRO-CRAFT E650?
A: The replacement E650 is sourced to match the original unit’s frame size, shaft configuration, and electrical ratings. However, customers should verify encoder resolution, winding resistance, and terminal assignments against their existing drive configuration before installation, as minor production variations may exist between manufacturing batches.
Q: What commissioning steps are required after installing the replacement E650?
A: At minimum, perform a controlled jog test to verify encoder direction, confirm the drive’s current limit settings against the motor’s rated current, and execute a full-speed positioning run to validate following error thresholds. If the drive uses auto-tuning, re-run the tuning routine with the replacement motor installed.
Q: How do I verify wiring compatibility between the replacement E650 and my existing E-Series drive?
A: Compare the replacement motor’s terminal diagram against your existing wiring documentation. Pay particular attention to armature lead polarity, field winding connections, encoder signal pinout, and shield grounding. If original wiring documentation is unavailable, contact our technical support team with your drive model number for assistance.
Q: What does the 12-month warranty cover, and how is the unit tested before dispatch?
A: Each E650 unit undergoes functional testing prior to dispatch, including insulation resistance checks, no-load rotation verification, and encoder signal output confirmation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with dispatch documentation and test records.
