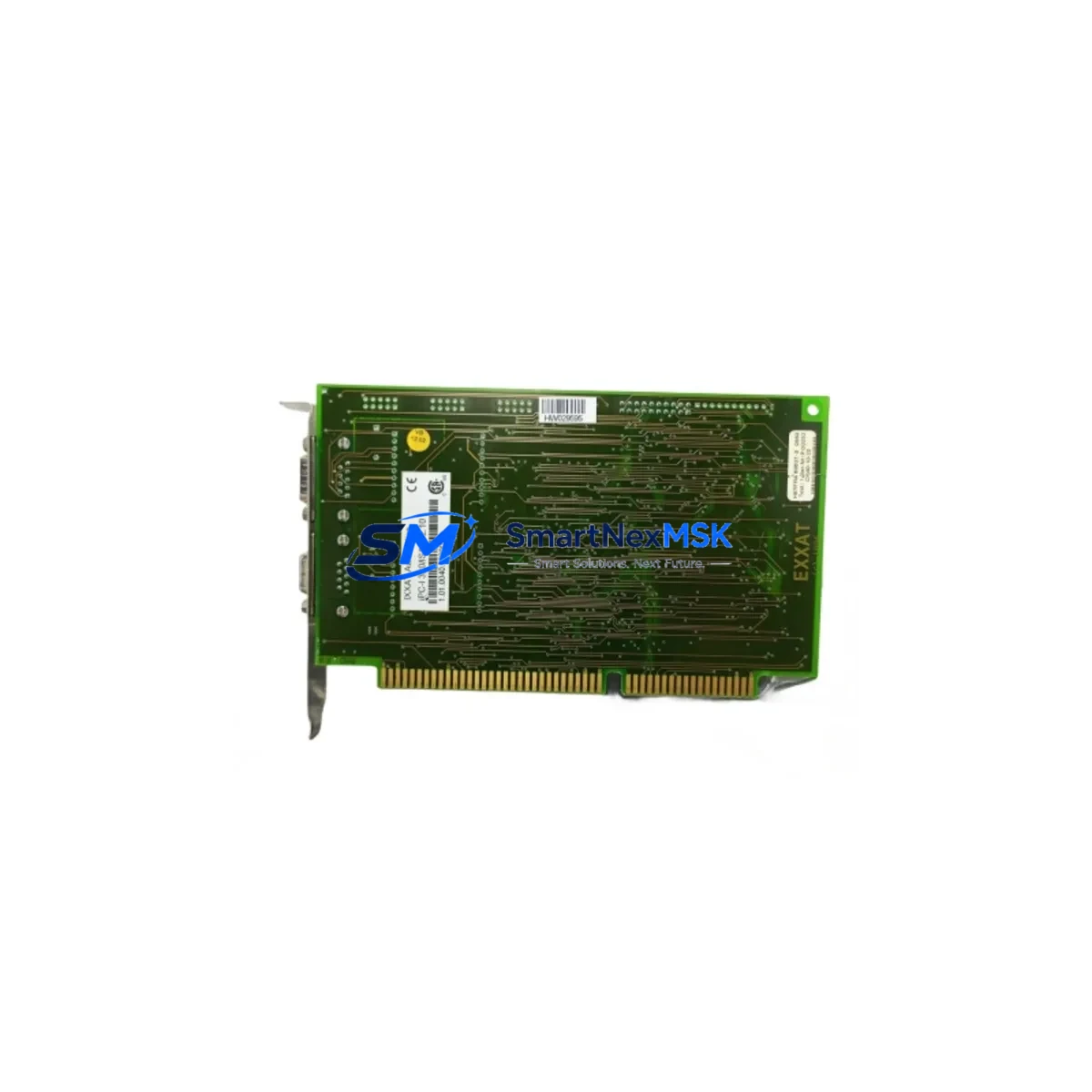

IXXAT IPC-I 320/ISA V2.10 Retrofit-Ready CAN Interface

IXXAT IPC-I 320/ISA V2.10 Retrofit-Ready CAN Interface for IPC-I Series Control Systems

The IXXAT IPC-I 320/ISA V2.10 is a high-performance CAN bus interface card designed for ISA-slot industrial PCs and legacy automation control systems. As a retrofit-ready replacement for discontinued IPC-I Series hardware, this card enables engineers and system integrators to restore, upgrade, or migrate CAN communication layers in aging control cabinets without redesigning the host platform. Whether you are replacing a failed card in a running production line or planning a phased modernization of a legacy DCS or PLC-based control system, the IPC-I 320/ISA V2.10 delivers proven compatibility and reliable field performance.

Sourced directly from authorized supply channels and subject to full functional testing prior to shipment, each unit is backed by a 12-month warranty covering hardware defects and communication failures under normal operating conditions. Stock is maintained for immediate dispatch, minimizing unplanned downtime during emergency replacement scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the IPC-I 320/ISA V2.10 into an existing control architecture requires careful pre-installation planning. In most retrofit scenarios, the host industrial PC will be running a legacy SCADA or HMI application — commonly built on platforms such as Siemens WinCC, Wonderware InTouch, or a custom VB/C++ front-end — that communicates with field devices over a CAN network. Before removing the existing interface card, engineers should document the current IRQ assignment, I/O base address, and any DIP switch or jumper settings, as these parameters must be replicated on the replacement unit to avoid address conflicts with other ISA peripherals such as serial communication cards or legacy fieldbus adapters.

In control cabinets where the IPC-I 320/ISA V2.10 serves as the gateway between the host PC and a CANopen network, the connected field devices may include CANopen I/O modules, servo drives with CAN interfaces, distributed temperature controllers, and remote sensor nodes. During the card swap, it is critical to maintain the CAN bus termination integrity: if the original card included an onboard termination resistor that was active, the replacement must be configured identically to prevent signal reflection errors that can corrupt communication across the entire network segment.

For systems where the IPC-I 320/ISA V2.10 interfaces with a DeviceNet master or slave topology, the node address and baud rate settings stored in the original driver configuration must be preserved. The IXXAT VCI (Virtual Communication Interface) driver stack supports configuration export, which should be performed before the old card is removed. After installing the replacement card, the VCI driver must be reinstalled and the saved configuration imported to restore the original node mapping without requiring a full network re-commissioning.

In multi-card IPC configurations — where the host PC also carries an IXXAT PC-I 04/PCI for PCI-slot CAN channels, or an IXXAT USB-to-CAN V2 adapter for portable diagnostics — the ISA card’s IRQ must be manually assigned in the BIOS to avoid conflicts. Legacy ISA bus systems do not support plug-and-play IRQ negotiation, so this step is non-negotiable. System integrators should also verify that the host IPC’s power supply provides sufficient headroom for the additional ISA card load, particularly in densely populated backplanes where multiple ISA and PCI cards share the same 5V rail.

Where the retrofit involves migrating from an older IXXAT CAN-ISA/331 or similar first-generation ISA CAN card, the IPC-I 320/ISA V2.10 represents a direct functional upgrade with improved EMC performance and a more robust DB9 connector interface. The wiring from the existing CAN cable harness — typically using a standard 9-pin D-Sub connector with CAN_H on pin 7, CAN_L on pin 2, and shield on pin 3 — can be reused without modification, reducing field wiring time during the replacement window.

Downtime Control During System Migration

Minimizing production downtime during a CAN interface card replacement requires a structured hot-swap protocol, even though the ISA bus itself does not support live insertion. The recommended approach is to schedule the replacement during a planned maintenance window and prepare all materials in advance: the replacement IPC-I 320/ISA V2.10 unit, the correct VCI driver installation package, a laptop with the IXXAT configuration backup, and a CAN bus analyzer such as the IXXAT USB-to-CAN FD for post-installation verification.

Before powering down the host IPC, operators should place all connected CAN field devices — including remote I/O nodes, drive controllers, and any CANopen safety modules — into a safe hold state using the SCADA or PLC supervisory layer. If the control system includes a Siemens S7-300 or S7-400 PLC communicating over a parallel Profibus or MPI network, that layer can remain active during the IPC maintenance, preserving the core machine control logic while the CAN communication layer is temporarily offline.

After the card is installed and the VCI driver is restored, a systematic bus scan using the IXXAT canAnalyser or equivalent tool should confirm that all expected node IDs are responding at the correct baud rate before the SCADA application is restarted. This verification step typically adds 10–15 minutes to the replacement window but eliminates the risk of restarting production with a misconfigured network. Total planned downtime for a straightforward card swap — including IPC shutdown, card replacement, driver restoration, and bus verification — is typically 45 to 90 minutes for an experienced technician.

For systems where even a 45-minute outage is unacceptable, a parallel commissioning approach can be used: a second IPC with the replacement card pre-installed and pre-configured is brought online in shadow mode, with the CAN network switched over at the connector level during a brief 2–3 minute transfer window. This approach requires an additional IPC chassis but reduces the live outage to the minimum possible duration.

Retrofit Support FAQ

Q: Is the IPC-I 320/ISA V2.10 a direct drop-in replacement for earlier IPC-I ISA variants?
A: Yes, the IPC-I 320/ISA V2.10 is physically and electrically compatible with earlier IPC-I ISA CAN interface cards. The DB9 connector pinout and ISA bus interface are unchanged. However, if the host system is running an older VCI driver version (below VCI 3.x), a driver update is recommended to ensure full compatibility with the V2.10 firmware. The updated driver package is available from IXXAT’s official support resources.

Q: What wiring changes are required when replacing the existing CAN interface card?
A: In most cases, no wiring changes are required. The IPC-I 320/ISA V2.10 uses the same DB9 CAN connector pinout as previous IPC-I ISA variants. Verify that the existing cable uses CAN_H on pin 7 and CAN_L on pin 2. If the original card had the onboard 120Ω termination resistor enabled, configure the same setting on the replacement unit using the onboard jumper before installation.

Q: How is compatibility with the existing CANopen or DeviceNet network verified after installation?
A: After installing the card and restoring the VCI driver configuration, use the IXXAT canAnalyser or a compatible CAN bus diagnostic tool to perform a network scan. Confirm that all expected node IDs respond at the configured baud rate. For CANopen networks, verify the NMT state machine transitions correctly. For DeviceNet, confirm that the master-slave scan list is intact. This verification should be completed before restarting the SCADA or HMI application.

Q: What does the 12-month warranty cover, and is a functional test report available?
A: The 12-month warranty covers hardware defects and communication failures under normal operating conditions, including ISA bus interface faults, CAN transceiver failures, and connector integrity issues. Each unit undergoes functional testing prior to shipment. A functional test report confirming CAN communication performance can be provided on request. Warranty claims are processed directly through our sales team at sales@smartnexmsk.com.
