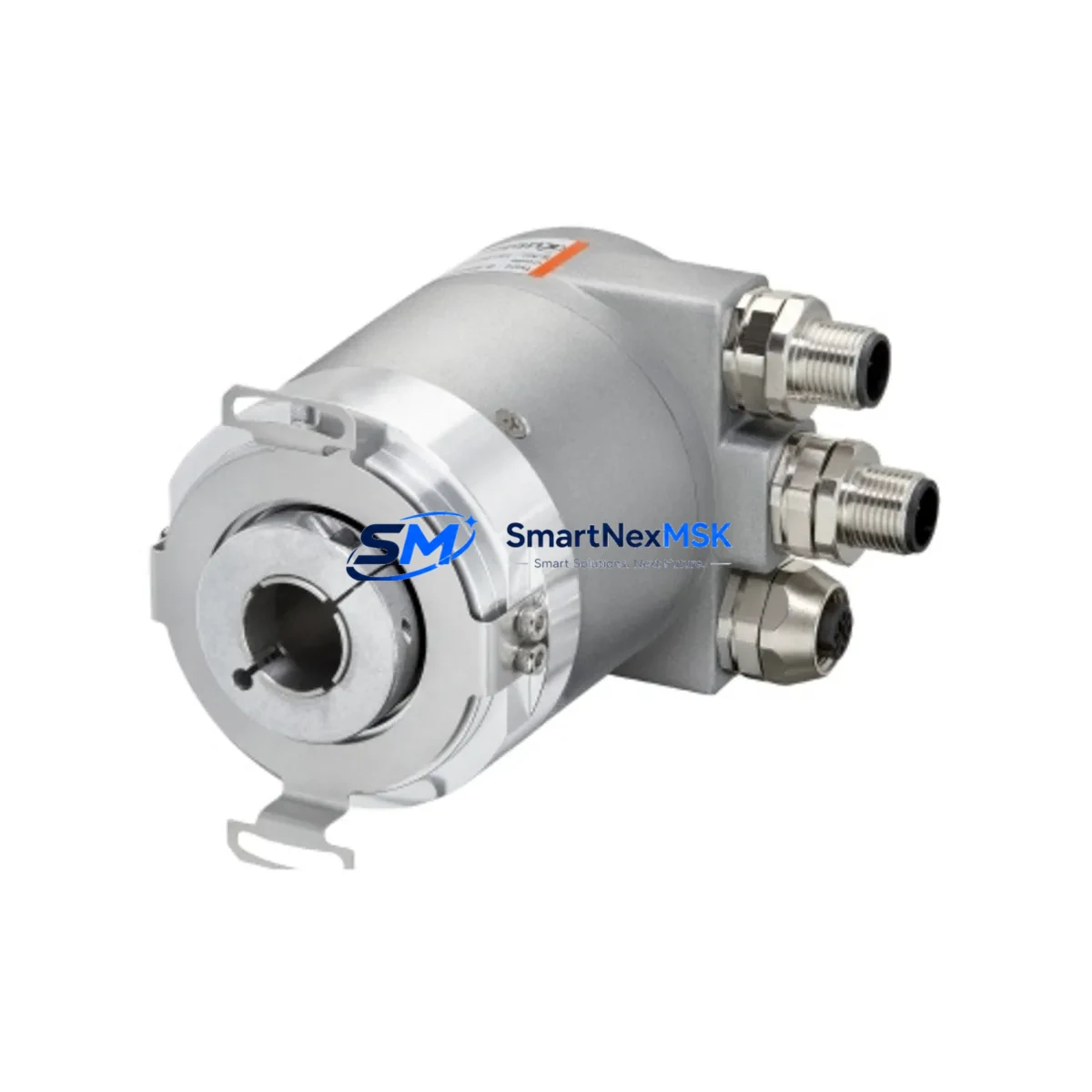

KUBLER 8.5888.5431.3112 Safety-Enhanced Incremental Encoder

KUBLER 8.5888.5431.3112 Safety-Enhanced Incremental Encoder for Harsh Industrial Sites

The KUBLER 8.5888.5431.3112 is a ruggedized incremental encoder engineered for mission-critical industrial control applications where signal integrity, mechanical durability, and continuous uptime are non-negotiable. Designed within KUBLER’s proven 8.5888 Series, this encoder delivers precise rotational feedback in environments characterized by high vibration, electromagnetic interference, aggressive dust and moisture ingress, and extreme thermal cycling — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, port crane systems, and continuous manufacturing environments.

In safety-critical control architectures, encoder failure is not merely a performance issue — it is a safety event. Signal drift, pulse loss, or mechanical seizure in a feedback loop can trigger uncontrolled axis movement, conveyor runaway, or motor overcurrent, all of which carry serious risk to personnel and equipment. The 8.5888.5431.3112 addresses these failure modes through its reinforced bearing assembly, shielded signal output stage, and sealed housing construction, ensuring that position and velocity data remain accurate and stable even under sustained mechanical and electrical stress.

Within a typical industrial control cabinet, this encoder integrates directly with servo drives, variable frequency drives (VFDs), and PLC motion control modules. When paired with a KUBLER 8.A02 signal conditioner or compatible line driver interface, the encoder’s differential output signals are protected against common-mode noise and long-cable attenuation — a critical consideration in large-scale installations where encoder cables may run tens of meters alongside high-current power conductors. The encoder’s EMI-shielded cable and robust connector interface further reduce susceptibility to transient surges generated by contactors, solenoid valves, and variable-speed drives operating in the same panel.

For control systems built around Siemens SIMATIC S7-300/S7-400 PLCs or Siemens SINAMICS drive systems, the 8.5888.5431.3112 provides a fully compatible incremental pulse train that interfaces cleanly with high-speed counter modules such as the FM 350-1 or FM 450-1. In Rockwell Automation environments, it pairs effectively with Allen-Bradley 1756-HSC high-speed counter modules and PowerFlex 755 drive encoder feedback cards. The encoder’s 12-bit resolution variant (3112 suffix) delivers 4096 pulses per revolution, providing the positional granularity required for precise speed regulation in winding, extruding, and web-tension control applications.

Power supply stability is equally important to encoder reliability. Voltage fluctuations on the 5 VDC or 10–30 VDC supply rail — caused by inrush currents from motor starters or inadequate panel power distribution — can corrupt encoder output pulses or damage internal electronics. It is strongly recommended to power the 8.5888.5431.3112 through a dedicated PHOENIX CONTACT QUINT-PS/1AC/24DC/10 or equivalent DIN-rail power supply with active buffering, isolating the encoder supply from the main 24 VDC bus shared with output modules and relay coils. Surge protection devices such as the DEHN DEHNguard DG M TNC 275 should be installed upstream of the encoder supply circuit in outdoor or exposed installations.

In safety interlock and emergency stop circuits, the encoder’s feedback signal is often used to confirm zero-speed conditions before permitting access to hazardous zones. Integration with a Pilz PNOZ X3 or Schmersal SRB-E-301ST safety relay module — monitoring encoder pulse continuity as a standstill verification input — adds a validated layer of personnel protection compliant with IEC 62061 and ISO 13849 safety integrity requirements. For applications requiring SIL 2 or PLd compliance, the encoder output should be cross-checked against a secondary feedback device or monitored by a dedicated safe motion module.

Mechanical installation in harsh environments demands attention to shaft coupling selection and housing mounting rigidity. The use of a KUBLER flexible bellows coupling or equivalent zero-backlash coupling compensates for shaft misalignment without transmitting bending loads to the encoder bearing — a common cause of premature bearing failure in high-vibration applications such as crushers, vibrating screens, and reciprocating compressors. The encoder’s IP67-rated housing withstands wash-down procedures and temporary immersion, making it suitable for food-adjacent processing and outdoor exposed installations.

SMARTNEXMSK maintains verified stock of the KUBLER 8.5888.5431.3112 and related 8.5888 Series variants, with each unit subject to pre-shipment functional verification including pulse output integrity testing, supply voltage tolerance checks, and housing seal inspection. All units are supplied with a 12-month warranty covering manufacturing defects and premature component failure under normal operating conditions. Expedited dispatch is available for urgent maintenance and unplanned downtime scenarios, with global logistics support to minimize mean time to repair (MTTR) in critical production environments.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet design for applications using the KUBLER 8.5888.5431.3112 must address signal integrity, power quality, and thermal management simultaneously. The encoder’s differential RS422 output should be terminated with a matched 120 Ω resistor at the receiver input of the PLC counter module to eliminate signal reflections on cable runs exceeding 10 meters. Cable routing should maintain physical separation from 230 VAC power conductors and motor output cables — ideally using dedicated metallic cable trays with grounded separators.

The 24 VDC supply rail feeding the encoder should be sourced from a dedicated PHOENIX CONTACT QUINT-PS or PULS PIANO PI100.241 power supply with active output buffering, preventing voltage dips during motor start sequences from corrupting encoder pulse trains. A WAGO 787-602 or equivalent electronic circuit breaker on the encoder supply branch provides overcurrent protection without the contact bounce of a conventional fuse, eliminating nuisance trips caused by capacitive inrush.

For installations in areas with high surge exposure — outdoor substations, pump stations, or crane control panels — a DEHN DEHNguard Type 2 SPD on the incoming supply and a Phoenix Contact TRABTECH signal-level surge protector on the encoder cable shield connection provide coordinated protection against lightning-induced transients. The encoder housing ground connection must be bonded directly to the cabinet PE busbar using a short, low-impedance conductor to ensure effective surge current dissipation.

In safety interlock circuits, the encoder pulse output can be monitored by a Pilz PMCprimo DriveP safe motion module or a Siemens SINAMICS S120 Safety Integrated drive function to implement STO (Safe Torque Off) and SS1 (Safe Stop 1) functions. Complementary safety components in the same cabinet — including Schmersal AZM 200 solenoid interlocks, SICK M4000 safety light curtains, and Rockwell 440C-CR30 safety relay controllers — form a layered protection architecture that ensures the encoder’s position feedback is cross-validated before any hazardous motion is permitted.

Critical Industrial Safety Applications

The KUBLER 8.5888.5431.3112 is deployed across a wide range of heavy industrial environments where encoder reliability directly impacts operational safety and production continuity.

In petrochemical and refinery plants, the encoder provides speed and position feedback for rotating equipment including compressor trains, agitator drives, and valve actuators operating in Zone 2 classified areas. Its sealed IP67 housing resists hydrocarbon vapors and wash-down fluids, while its wide operating temperature range accommodates the thermal extremes of outdoor process units.

In power generation facilities — including thermal, hydro, and wind installations — the encoder monitors turbine shaft speed and generator rotor position, feeding critical data to governor control systems and grid synchronization logic. Signal loss or drift in this application can trigger emergency shutdown sequences, making the encoder’s EMI immunity and bearing reliability paramount.

In underground and surface mining operations, the encoder is used on conveyor drive systems, hoist winding machines, and crusher feed controls. The combination of high vibration, coal dust, and water ingress in these environments demands the IP67 protection and reinforced bearing assembly that the 8.5888 Series provides. Encoder failure on a mine hoist is a Category 1 safety event, making verified stock availability and rapid replacement capability essential.

In water and wastewater treatment plants, the encoder monitors pump speed, screen drive position, and sludge conveyor velocity. Continuous 24/7 operation in humid, chemically aggressive environments places sustained demands on encoder sealing and bearing life. The 8.5888.5431.3112’s corrosion-resistant housing and IP67 rating make it a reliable choice for these long-cycle, low-maintenance applications.

In metallurgical and steel processing lines — including rolling mills, continuous casters, and annealing furnaces — the encoder operates in environments with intense electromagnetic fields from large induction motors and arc furnaces, high ambient temperatures, and mechanical shock from rolling impacts. The differential output and shielded cable construction of the 8.5888.5431.3112 maintain signal integrity under these extreme conditions, supporting precise speed synchronization across multi-stand rolling mill drives.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the KUBLER 8.5888.5431.3112?
The 12-month warranty covers manufacturing defects, premature component failure, and housing seal integrity under normal operating conditions as specified in the product datasheet. Warranty claims are processed with priority support, and replacement units are dispatched from verified stock to minimize downtime. Physical damage resulting from incorrect installation, overvoltage, or mechanical overload is assessed case by case.

Q2: What pre-shipment testing is performed on each unit?
Each KUBLER 8.5888.5431.3112 unit undergoes functional verification prior to dispatch, including pulse output integrity testing across the full PPR count, supply voltage tolerance verification at both minimum (10 VDC) and maximum (30 VDC) input levels, housing seal inspection, and connector contact resistance check. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the 8.5888.5431.3112 compatible with my existing PLC or drive system?
The encoder’s RS422 differential line driver output is compatible with the vast majority of industrial PLC high-speed counter modules and drive encoder feedback interfaces, including Siemens SIMATIC, Allen-Bradley ControlLogix/CompactLogix, Schneider Electric Modicon, Mitsubishi MELSEC, and Omron NJ/NX series. Confirm your counter module’s input voltage level (5 V or 5–30 V universal) and termination requirements before installation. Technical support is available to assist with interface verification.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts planning?
SMARTNEXMSK maintains dedicated buffer stock of the KUBLER 8.5888.5431.3112 and key 8.5888 Series variants to support planned maintenance schedules and unplanned breakdown replacement. For customers with critical infrastructure requirements, standing purchase agreements and reserved inventory allocations are available upon request. All units are sourced through verified supply channels with full traceability documentation.
