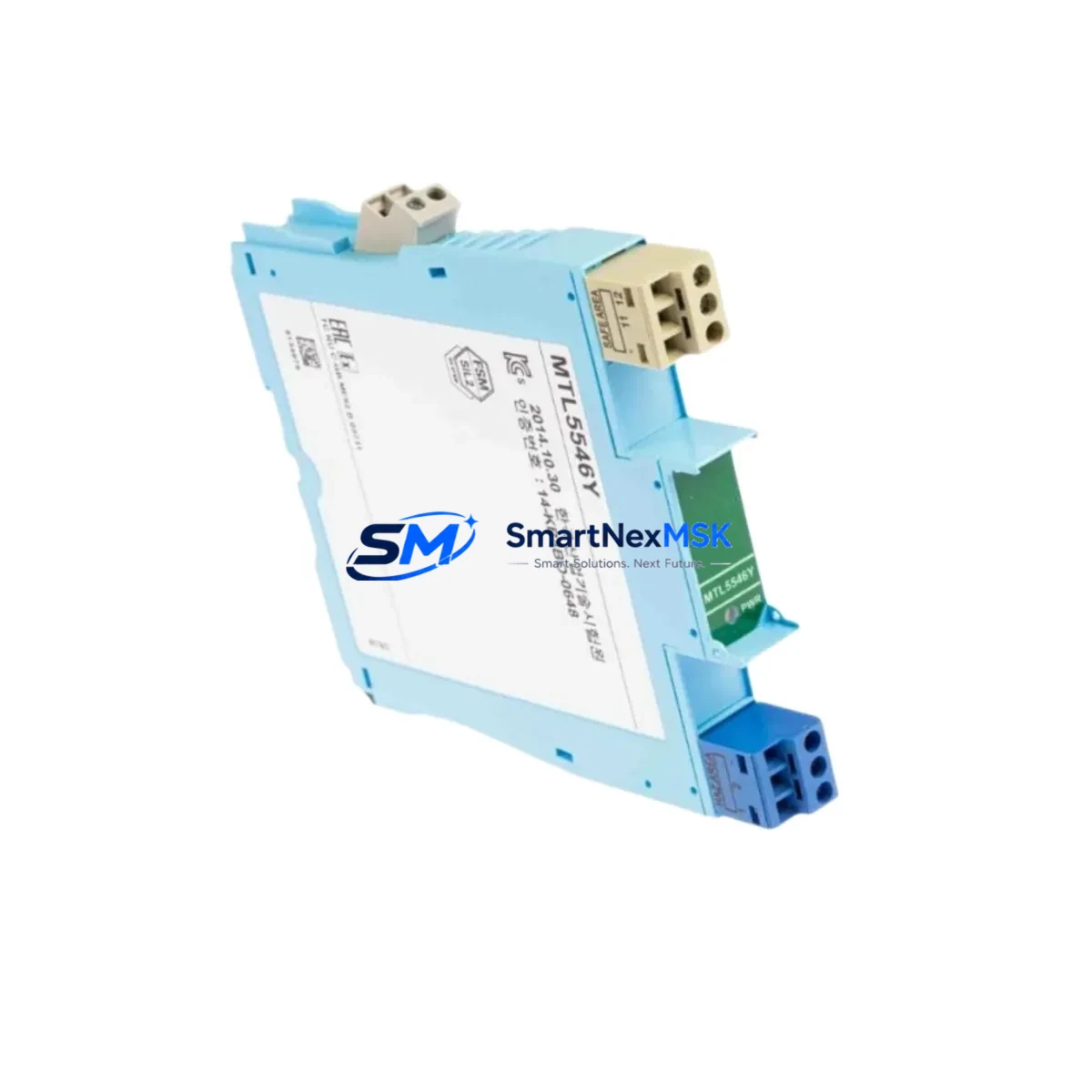

MTL MTL5546Y Retrofit-Ready Isolating Driver for MTL5000 Control Systems
The MTL5546Y is a high-integrity isolating driver designed for intrinsically safe (IS) field instrument loops in hazardous area automation systems. As a direct retrofit solution for aging MTL5000 Series installations, the MTL5546Y delivers drop-in mechanical compatibility, identical terminal assignments, and full ATEX/IECEx certification — enabling plant engineers to modernize legacy control cabinets without rewriting PLC logic, rewiring field terminals, or reconfiguring DCS I/O mappings.
Whether you are replacing a discontinued MTL5541, MTL5544, or MTL5546 module in an existing MTL5000 DIN-rail assembly, or upgrading a full control cabinet to meet current SIL 2 functional safety requirements, the MTL5546Y provides a validated, in-stock replacement path with a 12-month warranty and pre-shipment functional testing on every unit.
Upgrade Compatibility Table
| Parameter | MTL5546Y (Replacement) | Legacy MTL5541 / MTL5546 |
|---|---|---|
| Mounting | DIN-rail, MTL5000 Series backplane | DIN-rail, MTL5000 Series backplane |
| Terminal Assignment | Identical — no rewiring required | Standard MTL5000 pinout |
| Hazardous Area Certification | ATEX / IECEx Zone 0/1/2 | ATEX Zone 1/2 |
| Communication Compatibility | 4–20 mA IS loop; HART transparent | 4–20 mA IS loop |
| Installation Requirement | No backplane modification needed | Standard MTL5000 backplane |
| Replacement Recommendation | Direct drop-in for MTL5541/5544/5546 | Discontinued / End-of-Life |
| Commissioning Focus | Verify loop current, IS barrier parameters, HART polling address | — |
| Warranty | 12 Months — all units tested before shipment | — |
Retrofit Planning for Existing Automation Systems
Successful MTL5546Y integration into a live plant begins with a structured pre-retrofit audit. Engineers should first document the existing MTL5000 backplane layout, confirming the slot positions of all installed modules — including adjacent MTL5544 analog input isolators, MTL5048 switch/proximity detector interfaces, and any MTL5053 solenoid driver modules sharing the same power rail. The combined current draw of all modules on a single MTL5000 power bus must be recalculated to confirm that the existing MTL5995 or MTL5995A power supply unit can support the new configuration without derating.
Terminal block wiring should be photographed and mapped before removal. The MTL5546Y uses the same 8-terminal footprint as its predecessors, so field cable connections — typically 0.5 mm² to 1.5 mm² twisted-pair IS cables routed from the junction box in the hazardous area — can be reconnected to identical terminal numbers without modification. If the installation uses MTL5000 Series plug-in terminal assemblies, these can be transferred directly to the replacement module.
For systems where the MTL5000 rack interfaces with a Rockwell Automation ControlLogix or CompactLogix PLC via a remote I/O adapter, or with a Honeywell Experion or Yokogawa CENTUM DCS via HART multiplexer, the module address and I/O channel mapping in the controller program do not require modification — the MTL5546Y occupies the same logical slot and presents the same 4–20 mA signal range. HART Device Descriptions (DDs) for field instruments connected through the MTL5546Y remain valid, and HART-capable asset management systems such as those using the MTL HART Multiplexer or a standalone HART modem will continue to poll field devices without reconfiguration.
Where the control system includes an HMI panel — whether a Siemens TP700 Comfort, a Weintek cMT series, or a legacy Proface GP series — no screen object rebinding is required, as the process variable scaling and engineering unit conversion remain unchanged at the PLC/DCS level. Alarm setpoints, PID tuning parameters, and interlock logic referencing the affected I/O channel are fully preserved.
If the retrofit scope extends beyond a single module replacement to a full MTL5000 rack upgrade, consider sequencing the work by functional loop group — replacing all isolators associated with a single process unit (e.g., a reactor feed skid or a compressor lube oil system) before moving to the next, allowing partial system restoration between shifts and minimizing the number of IS loops simultaneously out of service.
Downtime Control During System Migration
Minimizing unplanned downtime during an MTL5546Y swap-out requires a disciplined hot-swap protocol. Although the MTL5000 platform does not support live module insertion under power in all configurations, the physical replacement of a single isolating driver can typically be completed within a planned 15–30 minute maintenance window per loop, provided that the replacement module has been pre-tested, the field loop has been placed in manual mode at the DCS or PLC, and the control room operator has acknowledged the temporary loss of automatic control for the affected instrument.
Before de-energizing the slot, place the associated PLC or DCS channel into a safe fallback state — typically a fixed manual output or a hold-last-value mode — to prevent spurious actuator movement downstream. If the loop drives a control valve positioner or a solenoid-operated valve, confirm with the process safety team that the valve can be held in its current position or driven to a safe state before the IS barrier is removed.
After installing the MTL5546Y, restore power to the backplane segment and verify the loop current at the safe-area terminals using a calibrated loop calibrator before returning the channel to automatic control. Confirm HART communication by polling the field device from the asset management workstation. Document the as-found and as-left loop current readings, the module serial number, and the date of replacement in the plant maintenance management system (CMMS) to satisfy functional safety audit requirements under IEC 61511.
All MTL5546Y units supplied by SMARTNEXMSK are functionally tested prior to shipment, with test records available on request. Units are shipped in anti-static packaging with original or equivalent documentation. Standard lead time from confirmed order is 1–3 business days for in-stock units, with express courier options available for emergency shutdowns.
Retrofit Support FAQ
Q1: Is the MTL5546Y a direct drop-in replacement for the MTL5546 and MTL5541?
Yes. The MTL5546Y is mechanically and electrically compatible with the MTL5000 Series backplane and uses the same terminal numbering as the MTL5541 and MTL5546. No rewiring or backplane modification is required. Verify that the IS entity parameters of the connected field instrument fall within the MTL5546Y’s certified output parameters before energizing the loop.
Q2: Will my existing PLC program and DCS configuration need to be modified?
No. The MTL5546Y presents the same 4–20 mA signal interface to the safe-area control system. I/O channel addresses, scaling, and alarm limits in the PLC or DCS are unaffected. HART polling addresses for connected field devices are also preserved.
Q3: What wiring checks should be performed before commissioning?
Confirm terminal tightness on all eight terminals, verify IS cable screen continuity and earthing at the safe-area end only, measure loop resistance to confirm it falls within the MTL5546Y’s specified load range, and check that the field instrument’s supply voltage at its terminals meets the minimum operating requirement under worst-case loop resistance conditions.
Q4: What warranty and testing documentation is provided?
Every MTL5546Y unit supplied by SMARTNEXMSK carries a 12-month warranty from the date of shipment. Pre-shipment functional test records are available on request. Units are supplied with original manufacturer documentation where available, or with equivalent technical data sheets. Warranty claims are processed within 5 business days of receipt of the returned unit.
