PERSKE KNS 51.14-2D Spare for KNS 51 Series Automation

PERSKE KNS 51.14-2D Spare for KNS 51 Series Automation: Spindle Replacement & Downtime Recovery

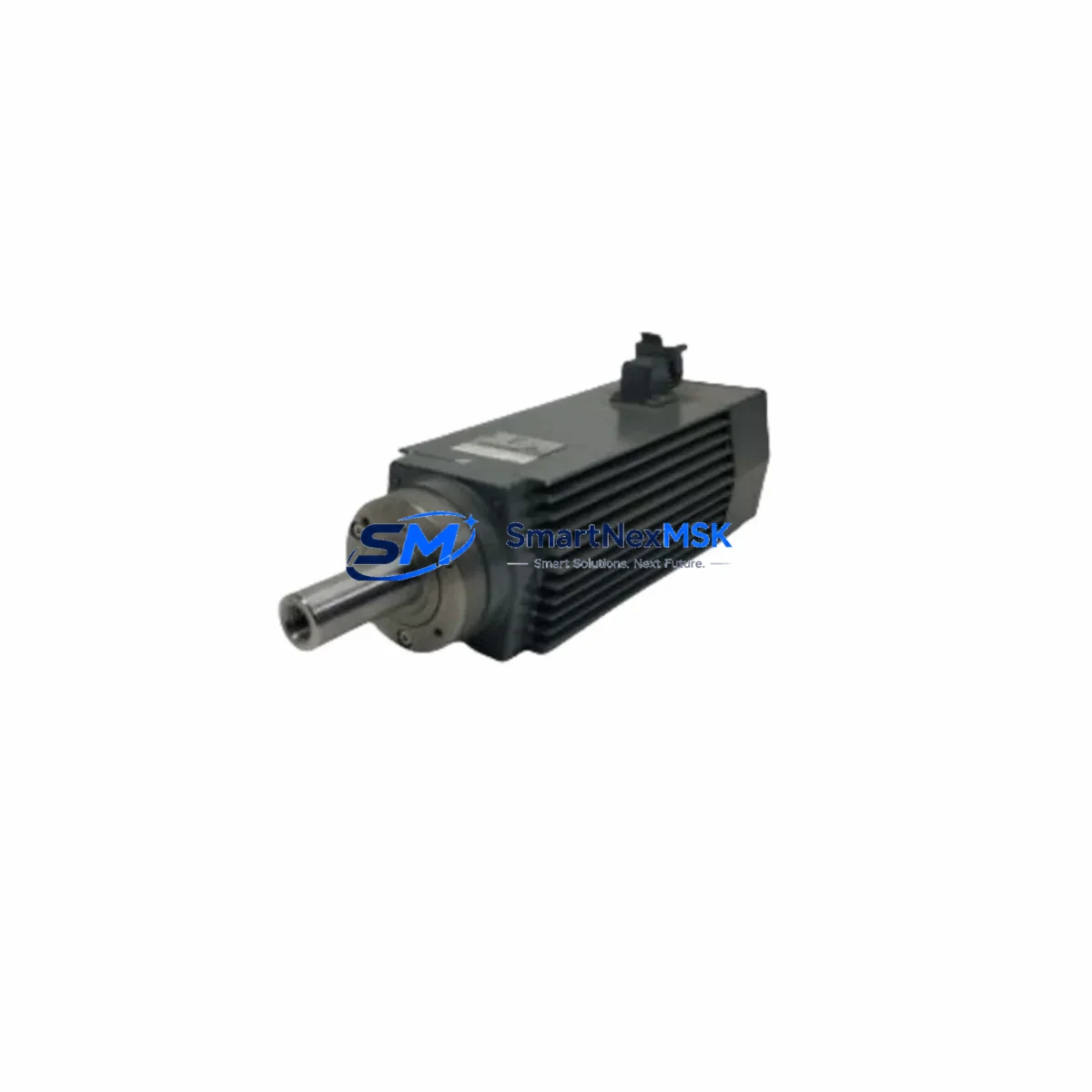

The PERSKE KNS 51.14-2D is an original air-cooled high-frequency spindle motor engineered for continuous-duty CNC routing, woodworking, and industrial machining centers. When a spindle failure occurs on a KNS 51 series machine, every hour of unplanned downtime translates directly into lost production capacity. Sourcing a verified, tested replacement unit — rather than a generic substitute — is the fastest path to restoring full operational output while maintaining spindle-to-drive compatibility and avoiding secondary damage to the inverter or toolholder interface.

This listing covers the KNS 51.14-2D variant: a 2-pole, air-cooled configuration rated for high-speed operation, commonly paired with PERSKE-compatible frequency inverters in automated panel processing and furniture manufacturing lines. The unit ships fully tested, with dimensional and electrical parameters verified against OEM specifications. A 12-month warranty is included from date of shipment.

For maintenance engineers managing aging CNC infrastructure, the KNS 51.14-2D represents a direct-fit solution that eliminates the need for mechanical adaptation or drive parameter reconfiguration. For procurement engineers, it provides a documented, traceable spare with a clear warranty baseline — critical for ISO-compliant maintenance records and spare parts lifecycle management.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A spindle replacement event is rarely isolated. When the KNS 51.14-2D is removed from service, a disciplined maintenance engineer will use the opportunity to inspect and — where necessary — replace adjacent components that share the same electrical circuit, control cabinet, or mechanical load path.

Begin with the frequency inverter (VFD) that drives the spindle. A failed spindle bearing or winding short can send voltage spikes back through the drive output stage; inspect the inverter’s output IGBTs and DC bus capacitors before reconnecting a new spindle. If the machine uses a PERSKE-compatible spindle controller card or dedicated spindle drive module, verify its firmware version and parameter set against the KNS 51.14-2D’s rated speed and current profile.

Check the spindle power cable and connector assembly — high-cycle flex cables on CNC gantries develop micro-fractures at the drag chain entry points. A degraded cable can cause intermittent phase loss that damages a new spindle within weeks. Similarly, inspect the EMC shielding and grounding braid on the spindle cable; poor shielding on high-frequency spindle circuits is a common source of encoder interference and drive fault codes.

On the control cabinet side, verify the main contactor and motor protection relay for the spindle circuit. Thermal overload relays that have tripped repeatedly may have degraded trip curves. Replace the spindle circuit fuses or circuit breaker as a precaution — these are low-cost items relative to a second spindle failure. If the cabinet uses a 24 VDC control power supply for spindle enable signals and safety relays, check its output voltage under load; a sagging supply can cause spurious spindle enable faults.

For machines with tool length sensors or spindle orientation encoders, recalibrate after spindle replacement — even a direct-fit unit may have minor shaft runout differences that affect tool offset compensation. If the system uses a pneumatic tool clamping unit integrated into the spindle nose, inspect the drawbar spring pack and collet chuck for wear before reassembly.

Finally, review the cooling air filter and duct for the spindle compartment. Blocked airflow is the leading cause of premature KNS 51 series spindle bearing failure. A clean filter and unobstructed exhaust path are the lowest-cost insurance for the new unit’s service life.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the spindle drive and apply LOTO (Lockout/Tagout) per site safety procedure. Discharge the VFD DC bus before disconnecting the spindle power cable.

Step 2 — Documentation: Photograph the existing cable routing, connector orientation, and any shim or alignment fixtures before removal. Record the drive parameter set (P-codes or equivalent) from the inverter HMI or PLC data block.

Step 3 — Removal: Disconnect the spindle power and signal cables. Remove the spindle clamp or flange mounting bolts. Extract the KNS 51.14-2D unit carefully — do not use the cable as a pull handle.

Step 4 — Inspection: Inspect the spindle bore, collet seat, and mounting flange on the machine head for wear, corrosion, or debris. Clean all mating surfaces before installing the replacement unit.

Step 5 — Installation: Mount the replacement KNS 51.14-2D to the specified torque. Reconnect power and signal cables per the original routing. Verify EMC bonding continuity with a multimeter.

Step 6 — Commissioning: Restore drive parameters. Run the spindle at low speed (10–20% of rated RPM) for 5 minutes and monitor for vibration, abnormal current draw, or fault codes. Gradually ramp to full speed and confirm stable operation before returning the machine to production.

This workflow minimizes total downtime and reduces the risk of repeat failure caused by overlooked upstream or downstream faults — a critical discipline for facilities operating multiple KNS 51 series spindles across a production floor.

Spare Parts Support FAQ

Q1: Is the KNS 51.14-2D a direct replacement for other KNS 51 variants?
The KNS 51 series includes multiple speed and power configurations. The KNS 51.14-2D is a 2-pole variant; confirm your existing unit’s nameplate data (voltage, frequency, power rating) before ordering. Cross-referencing the original spindle’s part number against the KNS 51 series datasheet ensures compatibility. Contact us with your nameplate data if you need confirmation before purchase.

Q2: How is the unit tested before shipment?
Each KNS 51.14-2D unit undergoes electrical insulation resistance testing, no-load run testing, and dimensional verification of the shaft and mounting flange prior to packaging. A test report is available on request. Units are packed in anti-static, vibration-dampened packaging to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions. It does not cover damage caused by incorrect installation, mismatched drive parameters, contamination, or operation outside the rated speed and power envelope. Warranty claims are supported with a return and replacement process; contact sales@smartnexmsk.com to initiate a claim.

Q4: Can you support long-term or blanket spare parts orders for fleet maintenance?
Yes. For facilities operating multiple KNS 51 series machines, we support scheduled spare parts programs with reserved stock, priority lead times, and consolidated shipment options. Long-term supply agreements help maintenance teams maintain a minimum on-hand quantity without tying up excessive capital in slow-moving inventory. Contact our team to discuss volume pricing and replenishment schedules.
