STEC SEC-4400 SGDV-OCB01A Maintenance-Ready Spare SEC Series: Spare Replacement & Industrial Downtime Risk Control

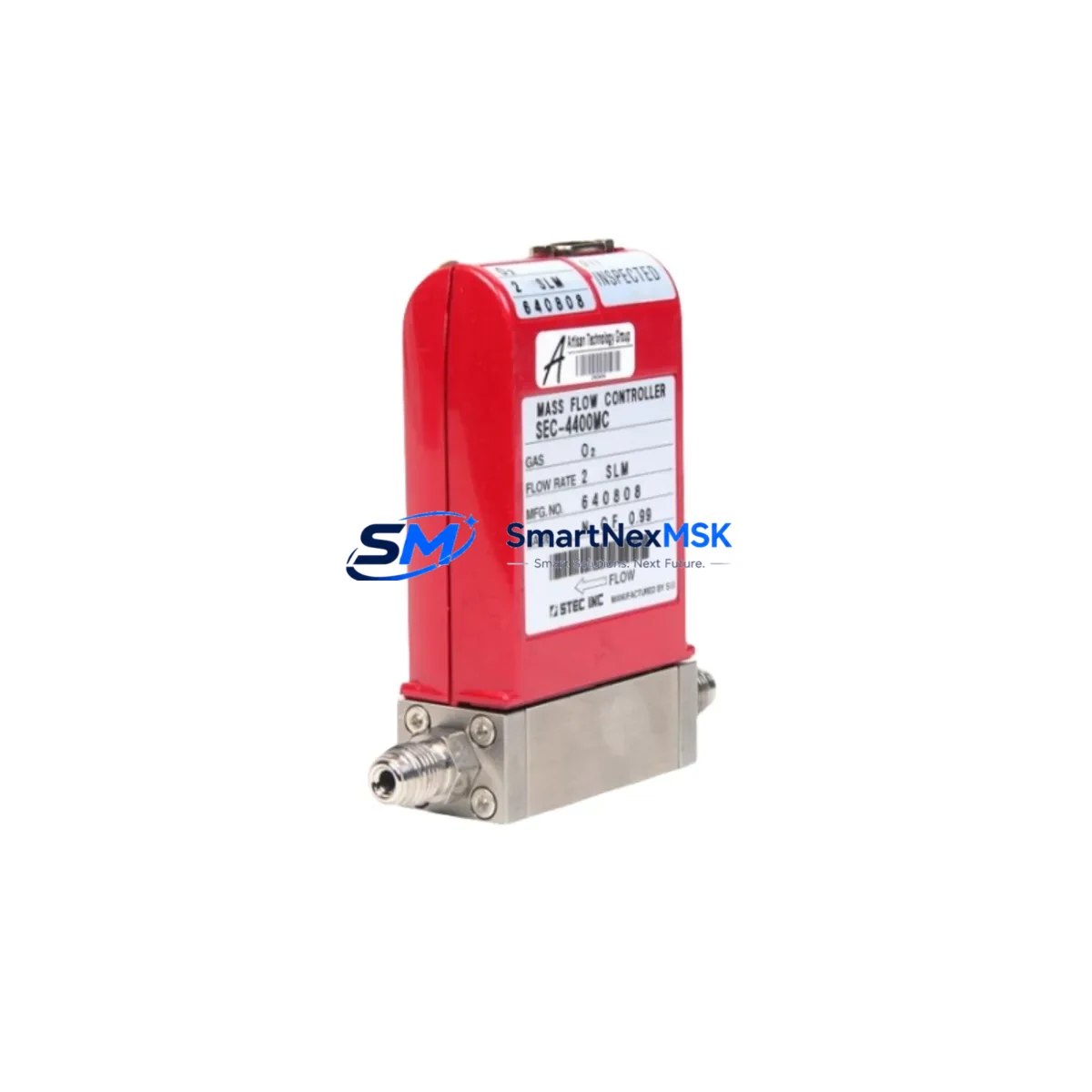

The STEC SEC-4400 SGDV-OCB01A (cross-reference: SGDV-2R8AE1A, P/N 410126-711) is an original mass flow controller (MFC) engineered for precision gas delivery in semiconductor fabrication, chemical vapor deposition (CVD), and advanced process automation systems. Rated at 5000 SCCM for Helium (He), this SEC Series unit delivers stable, repeatable flow control critical to process yield and equipment uptime. Sourced directly from verified supply channels, each unit is inspection-tested prior to dispatch and backed by a 12-month warranty.
For maintenance engineers and procurement teams managing aging process tools, securing a qualified spare of the SEC-4400 SGDV-OCB01A is a foundational step in any planned maintenance or emergency recovery strategy. Unplanned MFC failure is one of the leading causes of unscheduled downtime in gas-delivery-dependent process equipment. Having a tested, shelf-ready replacement eliminates the lead-time risk associated with OEM procurement channels, which can extend to weeks for legacy SEC Series components.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | SEC-4400 SGDV-OCB01A |
| Cross Reference | SGDV-2R8AE1A / 410126-711 |
| Series | SEC Series (STEC) |
| Device Type | Mass Flow Controller (MFC) |
| Full-Scale Flow Range | 5000 SCCM |
| Calibration Gas | Helium (He) |
| Control Signal | 0–5 VDC analog / RS-485 (model-dependent) |
| Power Supply | ±15 VDC (typical SEC Series) |
| Valve Type | Normally Closed (NC) solenoid |
| Fitting Type | VCR / Swagelok-compatible face-seal |
| Operating Temperature | 5–50°C ambient |
| Accuracy | ±1% F.S. (typical) |
| Compatibility | SEC Series MFC slots; replaces SGDV-OCB01A variants |
| Origin | Japan (STEC / Horiba) |
| Condition | Original spare, pre-shipment tested |
| Warranty | 12 Months |
| Maintenance Recommendation | Replace at first sign of drift >2% F.S. or valve response delay |
Maintenance Planning for Continuous Operation
When replacing the SEC-4400 SGDV-OCB01A in a live process tool, a disciplined inspection of the surrounding gas delivery and control circuit is essential to prevent repeat failures and ensure process stability. Maintenance engineers should treat MFC replacement as a system-level event, not an isolated component swap.
Begin upstream: verify the gas panel pressure regulators and inlet isolation valves are functioning within spec. Contaminated or over-pressured inlet conditions are a common root cause of premature MFC valve wear. Inspect the VCR face-seal fittings and gaskets at both inlet and outlet ports — any micro-leak at the process connection will compromise flow accuracy and may trigger false alarms in the process controller.
On the electrical side, confirm the ±15 VDC power supply rail feeding the MFC is within tolerance. SEC Series controllers are sensitive to power supply ripple; a degraded DC power distribution module or failing bulk power supply in the equipment rack can cause erratic setpoint tracking even with a new MFC installed. Use a calibrated multimeter to verify supply voltage at the MFC connector, not just at the power supply output.
Check the analog signal wiring (0–5 VDC setpoint and readback lines) for continuity and shielding integrity. In older tools, oxidized terminal blocks or loose D-sub connector pins on the MFC interface board introduce noise that mimics MFC malfunction. If the tool uses a digital MFC communication protocol (RS-485 or DeviceNet), verify the termination resistors and bus address configuration match the replacement unit’s factory settings.
For tools with multi-zone gas delivery, simultaneously inspect adjacent MFC channels — particularly any SEC-4400 variants calibrated for N₂, Ar, or O₂ — as thermal and mechanical stress from a failed channel can accelerate wear in neighboring units. Also review the MFC driver card or flow ratio controller (FRC) module in the equipment’s gas control subsystem; a faulty driver card will damage a replacement MFC within hours of installation.
Finally, confirm the process recipe setpoints in the tool’s control software (typically a PLC or embedded process controller) are correctly mapped to the replacement MFC’s channel address and engineering units. Mismatched scaling between the controller and the MFC’s full-scale range is a frequent commissioning error that results in out-of-spec flow delivery and failed process qualification runs.
Site Replacement Workflow
Step 1 — Isolation & Purge: Close upstream and downstream isolation valves. Purge the gas line with inert gas (N₂) to atmospheric pressure. Confirm zero flow on the process controller readback before breaking any fittings.
Step 2 — Electrical Disconnect: Power down the MFC via the equipment’s gas panel interlock or E-stop circuit. Disconnect the signal and power connector. Label the connector orientation if the harness is not keyed.
Step 3 — Mechanical Removal: Loosen VCR fittings at inlet and outlet. Remove the MFC from the mounting bracket. Cap all open fittings immediately to prevent contamination.
Step 4 — Replacement Unit Verification: Confirm the SEC-4400 SGDV-OCB01A replacement unit matches the original’s full-scale range (5000 SCCM He), valve type (NC), and connector pinout. Verify the unit’s factory calibration certificate if available.
Step 5 — Installation & Leak Check: Install new VCR gaskets. Torque fittings to specification. Perform a helium leak check or pressure-decay test on the gas circuit before re-energizing.
Step 6 — Electrical Reconnect & Zero/Span Verification: Reconnect signal and power. Power up the MFC and allow a 15-minute warm-up period. Verify zero output at closed valve and confirm full-scale output at maximum setpoint using a reference flow meter or the tool’s built-in calibration routine.
Step 7 — Process Qualification: Run a qualification recipe to confirm flow stability and process repeatability before returning the tool to production. Document the replacement in the equipment maintenance log with the new unit’s serial number and calibration date.
This workflow minimizes tool downtime to typically under 2 hours for a trained technician and ensures the replacement SEC-4400 SGDV-OCB01A is fully validated before production re-engagement.
Spare Parts Support FAQ
Q1: Is this SEC-4400 SGDV-OCB01A an original STEC unit or a remanufactured part?
This is an original STEC SEC-4400 SGDV-OCB01A spare sourced from verified supply channels. Each unit undergoes pre-shipment functional inspection covering valve actuation, zero/span response, and connector integrity. It is not a remanufactured, refurbished, or third-party substitute. The 12-month warranty covers functional defects under normal operating conditions.
Q2: How do I confirm compatibility with my existing SEC Series tool configuration?
Compatibility is confirmed by matching three parameters: (1) full-scale flow range — 5000 SCCM; (2) calibration gas — Helium (He); and (3) connector and communication type (analog 0–5 VDC or RS-485). Cross-reference the original unit’s label against part numbers SEC-4400 SGDV-OCB01A, SGDV-2R8AE1A, or P/N 410126-711. If your tool uses a different gas species or flow range, contact our technical team before ordering to confirm the correct SEC Series variant.
Q3: What is your recommended spare parts inventory strategy for SEC Series MFCs?
For facilities operating multiple tools with SEC Series gas delivery systems, we recommend maintaining a minimum of one SEC-4400 SGDV-OCB01A per tool cluster as a hot spare. MFCs in continuous-duty semiconductor or CVD environments typically exhibit a service life of 3–7 years depending on gas chemistry and duty cycle. Proactive replacement at the first sign of flow drift (>2% F.S.) or increased valve response time prevents unplanned downtime. Bulk spare procurement for multi-tool sites is available — contact sales@smartnexmsk.com for volume pricing.
Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, including valve failure, signal output drift beyond ±2% F.S., and connector/seal defects present at time of shipment. It does not cover damage resulting from incorrect installation, over-pressure events, incompatible gas species, or contamination. To initiate a warranty claim, contact sales@smartnexmsk.com with the unit serial number, purchase date, and a description of the observed failure. Replacement units are dispatched within 3 business days of claim approval.
