Stepping 281-500464 Spare for Micro Series Automation: Backup-Ready Stepper Driver for Industrial Downtime Control

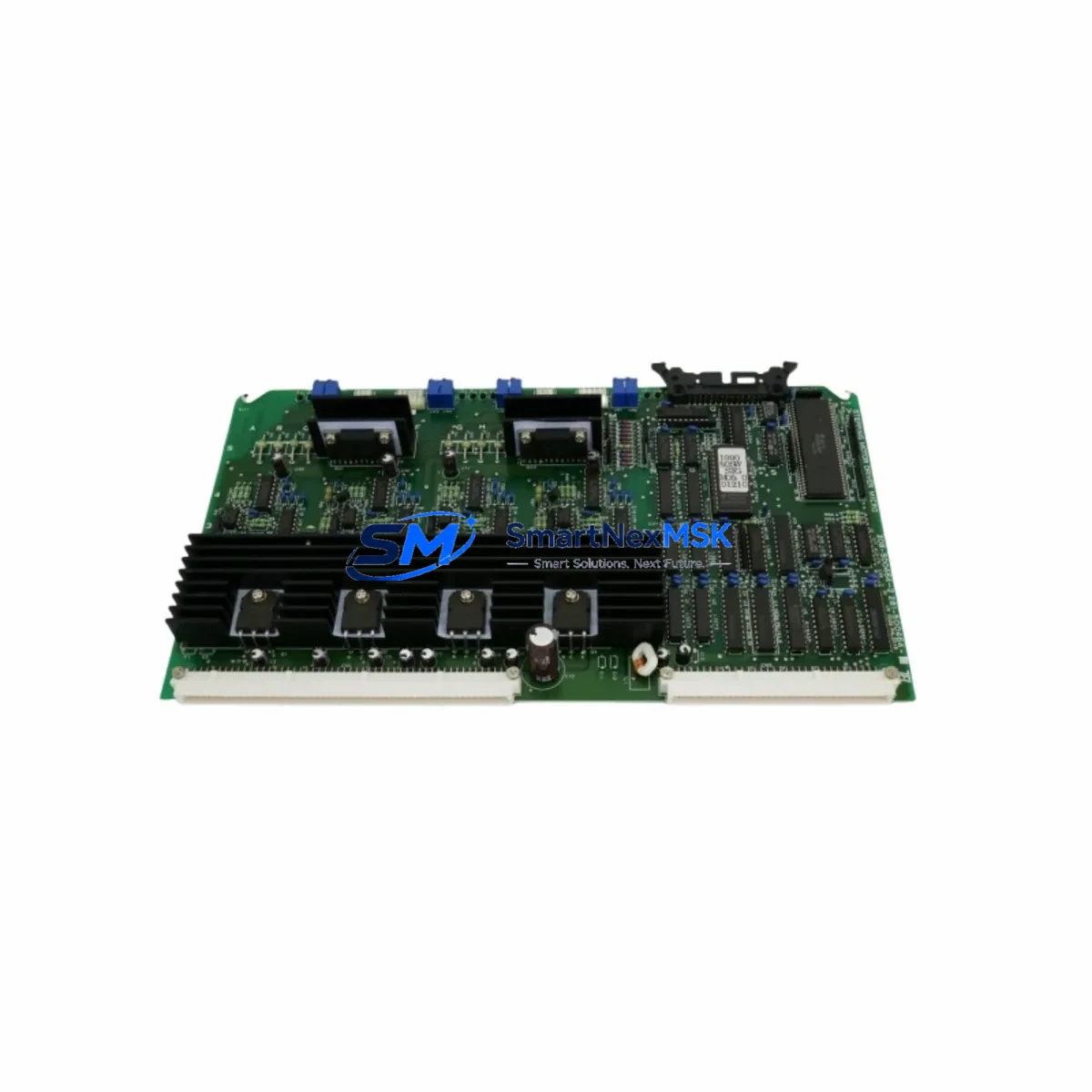

The Stepping 281-500464 is an original stepper motor driver engineered for the Micro Series motion control platform. Cross-referenced under part numbers 208-500464-2, 281-501049-A, 208-501049-5, and 30-106684A19, this driver is a critical motion axis component in CNC, packaging, textile, and general industrial automation systems. Maintaining a verified spare on the shelf eliminates unplanned downtime caused by driver failure — one of the most common causes of production line stoppages in stepper-based motion systems.
Each unit is sourced from authorized supply channels, inspected against original factory specifications, and tested prior to shipment. A 12-month warranty is included with every order, backed by long-term supply continuity for legacy and active Micro Series installations alike.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Primary SKU | 281-500464 |
| Cross-Reference SKUs | 208-500464-2 / 281-501049-A / 208-501049-5 / 30-106684A19 |
| Brand | Stepping |
| Series | Micro Series |
| Product Type | Stepper Motor Driver |
| Function | Motion axis drive control for stepper motors in industrial automation |
| Compatibility | Micro Series motion controllers; multi-axis CNC and automation panels |
| Installation | Panel-mount / DIN-rail compatible; direct drop-in replacement for listed cross-reference SKUs |
| Application Environment | Industrial control cabinets, CNC machines, packaging lines, textile equipment |
| Origin | CN (China) |
| Condition | Original spare — new or equivalent-to-new, factory-spec |
| Pre-Shipment Testing | Yes — electrically tested before dispatch |
| Warranty | 12 Months |
| Maintenance Recommendation | Replace at first sign of axis fault, overheating, or missed-step errors; inspect wiring and motor phase connections during replacement |
Maintenance Planning for Continuous Operation
When a 281-500464 stepper driver fails or is flagged during a scheduled inspection, the replacement procedure should be treated as a full motion-axis audit — not a simple swap. Maintenance engineers should use the downtime window to inspect all interconnected components in the same control cabinet and motion loop.
Begin by verifying the 24VDC or 48VDC logic power supply feeding the driver. A degraded power supply is a leading cause of premature driver failure and will damage a replacement unit if not addressed. Check the motor phase wiring (A+/A−/B+/B−) for insulation breakdown, loose terminals, or corroded connectors — particularly in high-vibration environments. Inspect the step/direction signal cable from the motion controller; signal integrity issues can cause missed steps that are often misdiagnosed as driver faults.
If the system uses a Micro Series motion controller or a compatible multi-axis controller board, verify that the controller’s axis output parameters (step frequency, current limit, microstep resolution) are correctly configured for the replacement driver. Mismatched parameters will cause erratic motion even with a fully functional spare installed.
For multi-axis panels, inspect adjacent axis drivers of the same series — if one driver has failed, thermal stress or power quality issues may have degraded neighboring units. Checking DIN-rail terminal blocks and signal distribution boards at this stage prevents repeat failures. Where opto-isolated I/O modules or signal isolators are used between the controller and driver, verify isolation integrity and check for leakage current that could corrupt step signals.
Procurement engineers building a spare parts inventory for Micro Series installations should consider stocking the 281-500464 alongside complementary components: the matching Micro Series power supply module, a set of motor phase connectors and terminal ferrules, a spare step/direction signal cable assembly, and at least one replacement fuse or circuit breaker rated for the driver’s input circuit. For systems with encoder feedback or closed-loop stepper configurations, a spare encoder cable and feedback interface module should also be included in the maintenance kit.
In aging installations where the original Micro Series hardware is no longer in active production, maintaining a buffer stock of 2–3 units of the 281-500464 is strongly recommended. Long-lead procurement cycles for legacy motion components can extend to 8–16 weeks; on-hand spares eliminate this risk entirely and support system life extension beyond the original design horizon.
Site Replacement Workflow
Step 1 — Isolation: De-energize the control cabinet. Lock out / tag out (LOTO) the main power feed. Confirm zero voltage at the driver’s power input terminals using a calibrated multimeter.
Step 2 — Documentation: Photograph the existing wiring, DIP switch settings (microstep and current configuration), and any parameter labels on the original unit before removal. This ensures the replacement is configured identically.
Step 3 — Removal: Disconnect motor phase cables, step/direction signal wires, enable signal, and power supply leads in sequence. Remove the driver from its mounting position (panel mount screws or DIN-rail clip).
Step 4 — Inspection: Inspect the mounting surface, wiring harness, and connector pins for damage, corrosion, or heat discoloration. Replace any suspect wiring before installing the new unit.
Step 5 — Installation: Mount the 281-500464 replacement. Reconnect all wiring per the original documentation. Set DIP switches to match the documented configuration. Verify torque on all terminal screws.
Step 6 — Commissioning: Re-energize the cabinet. Perform a low-speed jog test on the affected axis before returning to full production speed. Confirm smooth motion, correct direction, and absence of fault codes on the motion controller.
This workflow applies equally to cross-reference replacements using SKUs 208-500464-2, 281-501049-A, 208-501049-5, or 30-106684A19 — all are electrically and mechanically compatible drop-in substitutes.
Spare Parts Support FAQ
Q1: Is the 281-500464 compatible with all Micro Series motion controllers?
Yes. The 281-500464 and its cross-reference variants (208-500464-2, 281-501049-A, 208-501049-5, 30-106684A19) are designed for the Micro Series platform and are compatible with standard step/direction signal interfaces used across the Micro Series controller range. Always verify DIP switch settings match your axis configuration before commissioning.
Q2: What pre-shipment testing is performed on each unit?
Every 281-500464 unit undergoes electrical continuity testing, power-on functional verification, and output signal integrity checks before dispatch. Units that do not meet factory-equivalent performance standards are not shipped. A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions.
Q3: How should I manage spare inventory for legacy Micro Series installations?
For systems where the Micro Series platform is no longer in active production, we recommend maintaining a minimum buffer of 2–3 units of the 281-500464 on-site. Pair this with spares for the power supply module, motor phase connectors, and signal cables. This strategy supports uninterrupted operation and system life extension without dependency on spot-market procurement during emergencies.
Q4: Can this driver replace older cross-reference SKUs without reconfiguration?
In most cases, yes. The 281-500464 is a direct drop-in replacement for 208-500464-2, 281-501049-A, 208-501049-5, and 30-106684A19. However, always compare DIP switch configurations and verify motor phase wiring polarity before powering up. If the original unit’s configuration was not documented, perform a low-speed jog test at reduced current before returning to full production parameters.
