ABB 3GAA051001-A Spare for M2AA Series Automation

ABB 3GAA051001-A Spare for M2AA Series Automation: Spare Replacement & Industrial Downtime Risk Control

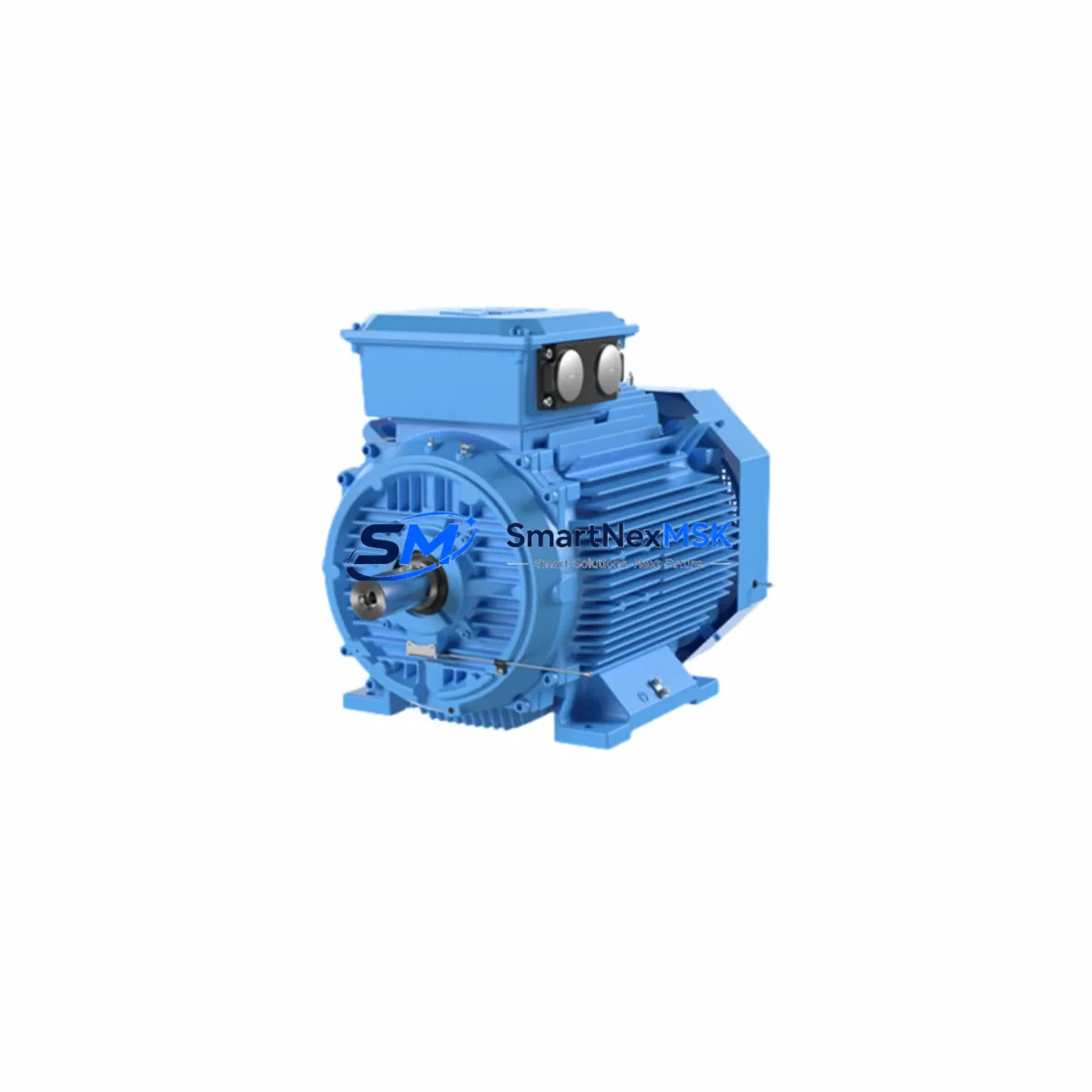

The ABB 3GAA051001-A is a low-voltage AC induction motor from ABB’s M2AA series — one of the most widely deployed motor platforms in industrial automation, process control, and continuous manufacturing environments. When this unit fails or reaches end-of-service life, unplanned downtime can cascade across conveyor lines, pump stations, compressor banks, and ventilation systems. Sourcing a verified, maintenance-ready spare is the fastest path to restoring normal operation without compromising system integrity.

At SMARTNEXMSK, the ABB 3GAA051001-A is stocked as an original-grade industrial spare, pre-tested before dispatch, and backed by a 12-month warranty. Whether you are executing a planned overhaul, responding to an emergency fault, or building a strategic spare parts buffer for aging ABB motor installations, this unit ships ready for immediate site installation.

Maintenance engineers working on M2AA-series motor circuits should treat the 3GAA051001-A replacement as a trigger point for a broader inspection of the surrounding electrical and mechanical subsystem. A motor failure rarely occurs in isolation — associated components including the motor starter contactor, thermal overload relay, motor circuit breaker, and soft-starter or variable frequency drive (VFD) input terminals should all be inspected for signs of thermal stress, contact wear, or insulation degradation before the replacement motor is energized.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3GAA051001-A in a live production environment requires more than a motor swap. A disciplined maintenance engineer will use this replacement event as an opportunity to audit the full motor control circuit. Begin with the upstream power supply: verify that the incoming three-phase supply voltage is within ±10% of rated, and check the main isolator switch and fuse links for signs of overheating or contact erosion. If the motor is controlled via an ABB ACS355 or ACS580 variable frequency drive, inspect the drive’s output terminals, DC bus capacitors, and cooling fan for accumulated dust or moisture ingress — these are common failure precursors in high-cycle industrial environments.

At the motor control center (MCC) level, inspect the motor starter contactor (such as ABB A-series contactors) for contact pitting and coil resistance drift. The associated thermal overload relay should be recalibrated to match the replacement motor’s full-load current rating. If the circuit uses a soft-starter, verify that the bypass contactor is functioning correctly and that the soft-starter’s current limit settings are appropriate for the new motor’s inrush characteristics.

On the I/O and signal side, check the motor running feedback signal wired back to the PLC digital input module. In ABB AC500 or S500 PLC systems, a stale or missing motor-run feedback can trigger false fault states that mask the actual cause of downtime. Inspect the signal cable shielding and terminal block connections at both the MCC and the PLC I/O rack. If the motor drives a pump or compressor, also verify the pressure transmitter or flow sensor signal integrity — a failed motor often causes secondary process alarms that can mislead fault diagnosis.

For installations where the M2AA motor is part of a redundant drive pair, confirm that the standby motor’s insulation resistance is within acceptable limits (typically >100 MΩ at 500 VDC megger test) before relying on it as a backup. Spare parts inventory best practice recommends holding at least one 3GAA051001-A unit on-site for every three to five installed motors of the same frame size, particularly in facilities operating 24/7 continuous processes where motor replacement lead times exceed acceptable downtime windows.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the motor circuit at the MCC, apply LOTO, and verify absence of voltage at the motor terminal box using a calibrated voltage tester.

Step 2 — Mechanical Disconnection: Disconnect the motor coupling or belt drive. Record the existing shaft alignment measurements using a dial indicator or laser alignment tool before removal — this data is required for reinstallation.

Step 3 — Electrical Disconnection: Label and photograph all terminal connections before removal. Note the winding configuration (star or delta) and verify it matches the replacement unit’s nameplate.

Step 4 — Replacement Motor Verification: Before installation, perform an insulation resistance test on the 3GAA051001-A replacement unit (minimum 100 MΩ at 500 VDC). Confirm frame size, shaft diameter, and mounting hole pattern match the original installation.

Step 5 — Installation & Alignment: Mount the replacement motor, restore shaft alignment to within manufacturer tolerance (typically <0.05 mm TIR), and reconnect terminals per the original wiring diagram.

Step 6 — Commissioning: Re-energize under no-load conditions first. Verify rotation direction, measure running current on all three phases, and confirm motor-run feedback signal is received at the PLC. Gradually restore process load and monitor bearing temperature and vibration for the first 30 minutes of operation.

Step 7 — Documentation: Update the maintenance log with the replacement date, new motor serial number, and post-installation test results. Schedule the next bearing lubrication interval based on the replacement motor’s operating hours counter.

Spare Parts Support FAQ

Q1: Is the ABB 3GAA051001-A a direct drop-in replacement for older M2AA frame motors?
Yes. The 3GAA051001-A follows the IEC standard M2AA frame dimensions, making it a direct mechanical and electrical replacement for earlier M2AA variants of the same frame size. Verify shaft diameter, mounting configuration (B3/B35), and winding voltage before installation. Minor nameplate differences between production batches are normal and do not affect interchangeability.

Q2: What pre-shipment checks are performed on each unit?
Every 3GAA051001-A unit shipped by SMARTNEXMSK undergoes insulation resistance testing, no-load energization, terminal continuity verification, and visual inspection for mechanical damage. A test report is available upon request. Units are packed in anti-static, moisture-resistant packaging suitable for long-distance freight.

Q3: How should this spare be stored if not immediately installed?
Store in a dry, vibration-free environment at 10–40°C with relative humidity below 60%. Rotate the shaft manually every 3 months to prevent bearing brinelling. If storage exceeds 12 months, perform a full insulation resistance test and bearing inspection before installation. The 12-month warranty period begins from the date of shipment, not the date of installation.

Q4: Can SMARTNEXMSK support long-term supply for M2AA series motors across multiple sites?
Yes. SMARTNEXMSK maintains ongoing stock of M2AA series motors and associated ABB automation components. For multi-site maintenance contracts or annual blanket purchase orders, contact our technical sales team to discuss volume pricing, reserved stock arrangements, and priority dispatch agreements. Long-term supply continuity is a core part of our spare parts support model for industrial customers managing aging ABB installations.
