ABB 3HAC021731-001 Maintenance-Ready Spare IRC5 Automation: Spare Replacement & Industrial Downtime Risk Control

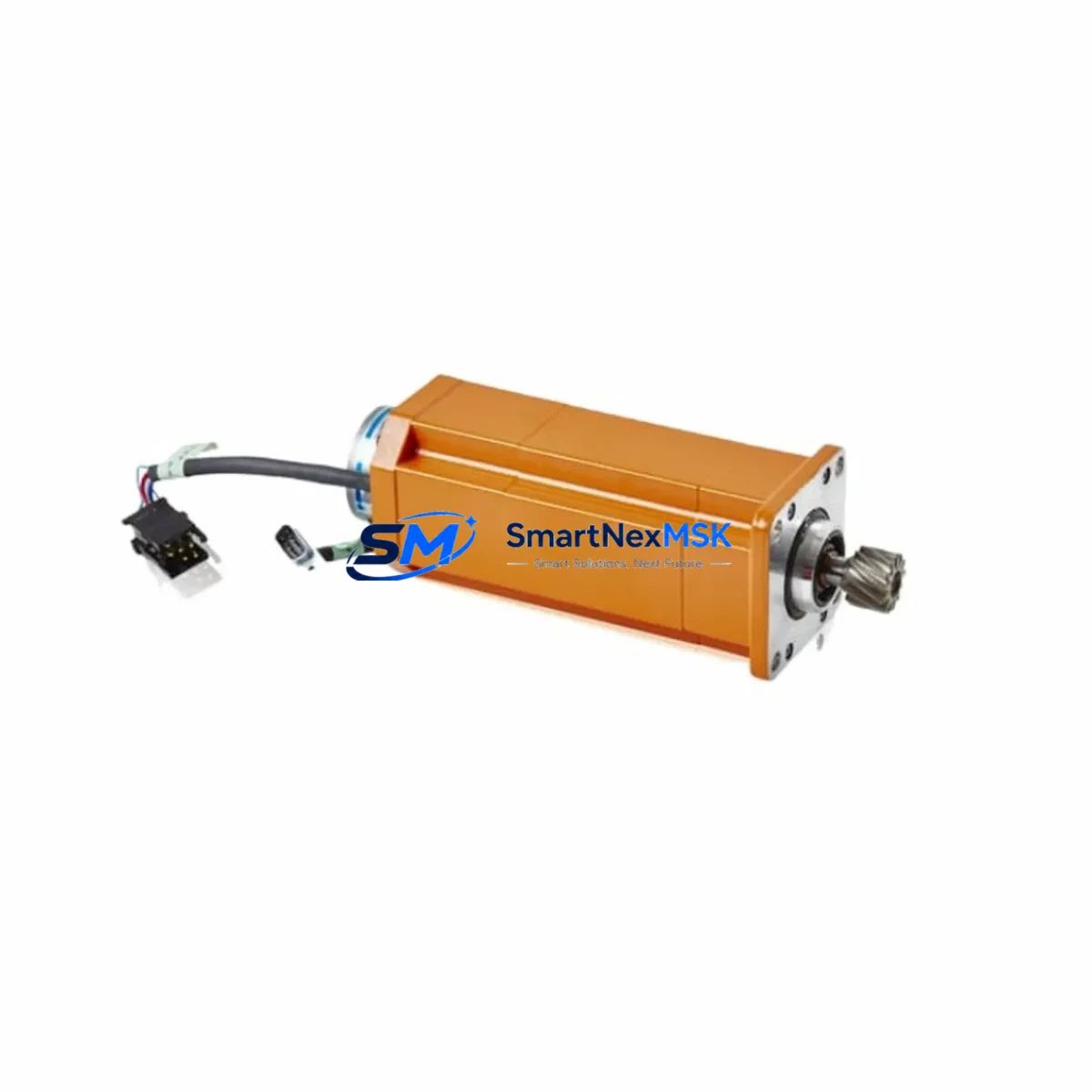

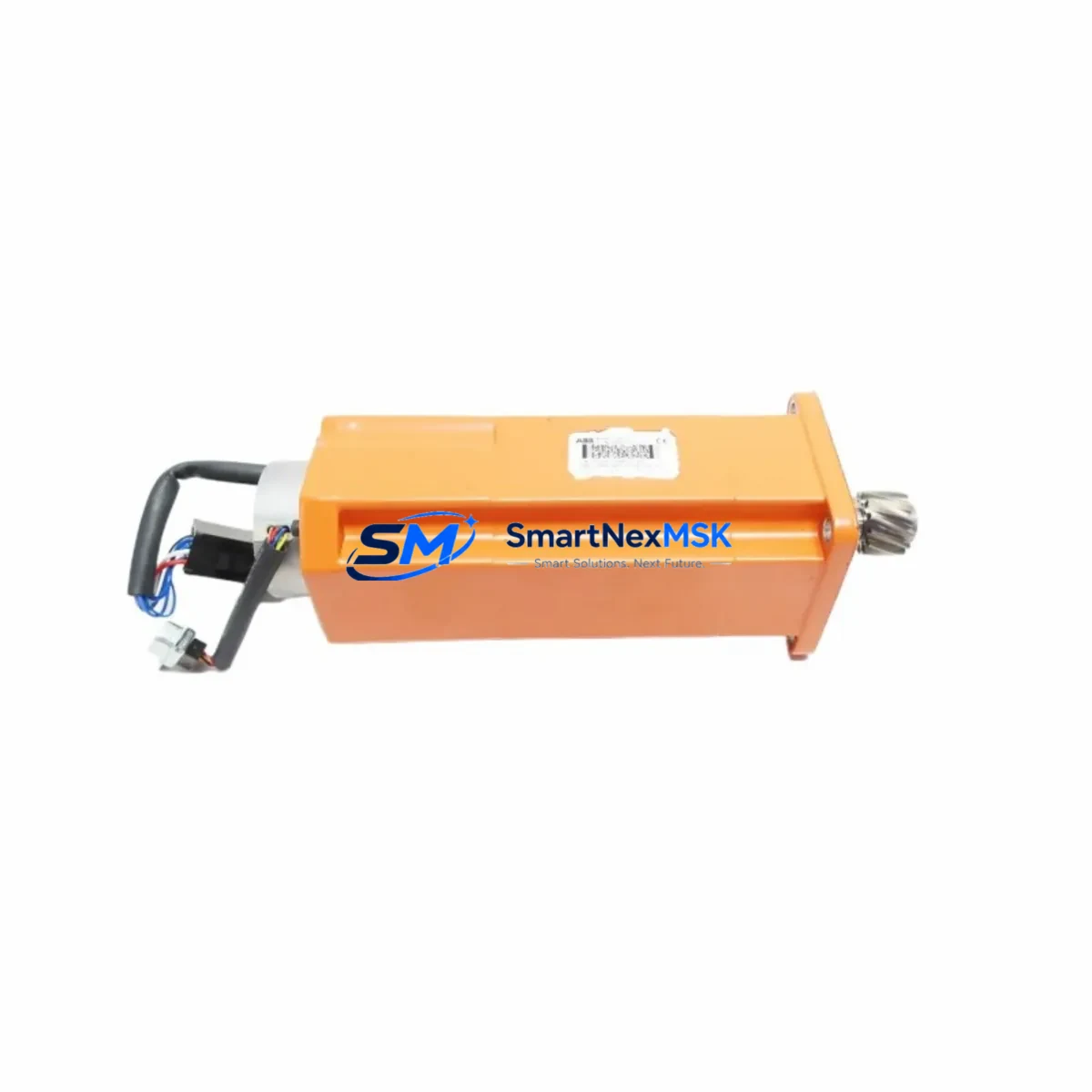

The ABB 3HAC021731-001 is an original servo motor unit designed for the IRC5 robot controller platform, widely deployed across IRB 1600, IRB 2400, IRB 4400, and IRB 6600 series industrial robots. In high-throughput manufacturing environments — automotive body shops, metal fabrication cells, electronics assembly lines, and palletizing stations — an unplanned servo failure on any robot axis can cascade into hours of unscheduled downtime. Stocking a verified, tested 3HAC021731-001 spare is the single most effective measure a maintenance team can take to compress mean time to repair (MTTR) and protect production continuity.
This unit ships fully tested against ABB factory electrical specifications. Each spare undergoes pre-shipment inspection covering winding resistance, insulation integrity, encoder signal output, and mechanical shaft runout before dispatch. A 12-month warranty covers all units against manufacturing defects and electrical failure under normal operating conditions.
Spare Maintenance Table
| Parameter | Specification / Value |
|---|---|
| Part Number | 3HAC021731-001 |
| Brand | ABB Robotics |
| Series / Platform | IRC5 Controller — IRB 1600 / 2400 / 4400 / 6600 |
| Component Type | AC Servo Motor (Axis Drive Unit) |
| Origin | Sweden (ABB OEM) |
| Rated Voltage | Per IRC5 drive module specification (typically 200–480 V AC) |
| Encoder Type | Resolver / Absolute encoder (axis-dependent) |
| Mounting Interface | Direct axis flange — IRC5 mechanical interface standard |
| Weight | 2.94 kg |
| Compatibility | IRC5 Single Cabinet, IRC5 Compact, IRC5 Panel Mounted Controller |
| Application Environment | Industrial robot cells, welding stations, assembly lines, palletizing |
| Maintenance Recommendation | Replace at first sign of axis position error, abnormal vibration, or thermal alarm |
| Pre-Shipment Testing | Winding resistance, insulation, encoder output, shaft runout |
| Warranty | 12 Months — defects in materials and workmanship |
| Lead Time | In-stock — ships within 1–3 business days |
Maintenance Planning for Continuous Operation
Replacing the 3HAC021731-001 servo motor in an IRC5 robot cell is rarely an isolated task. A disciplined maintenance engineer will treat the servo replacement as a trigger for a broader cabinet and axis inspection. Before returning the robot to production, the following associated components and systems should be verified or replaced as part of the same maintenance window:
The DSQC661 or DSQC662 drive module (axis computer / drive unit) that powers the servo should be inspected for capacitor bulge, thermal discoloration, and firmware version alignment. A degraded drive module is frequently the root cause of premature servo failure and will destroy a new 3HAC021731-001 if left in service. Similarly, the DSQC639 main computer board and DSQC643 I/O unit should be checked for communication faults logged in the IRC5 event log — unresolved I/O errors can mask axis-level problems that stress the servo unnecessarily.
Inspect the servo power cable harness and resolver/encoder feedback cable (typically 3HAC026518-001 or equivalent axis cable set) for insulation cracking, connector pin corrosion, and shield continuity. A damaged feedback cable produces erratic position data that mimics servo failure and is a common misdiagnosis in the field. The SMB (Serial Measurement Board), often 3HAC14550-2 or 3HAC031670-001 depending on robot generation, should also be tested — it processes encoder signals from all axes and a failing SMB will generate false axis errors across multiple joints simultaneously.
At the cabinet level, verify the IRC5 power supply unit (PSU) output voltages under load. An under-voltage condition on the 24 VDC logic rail or the servo bus rail will cause intermittent axis faults that are difficult to reproduce during static testing. Check the main contactor and brake relay for contact wear — sticky contacts cause delayed brake release and can generate mechanical shock loads on the new servo at startup. The teach pendant (FlexPendant) cable and connector should be inspected for continuity; a degraded pendant connection can prevent proper axis enable commands from reaching the drive system.
For robots operating in dusty or humid environments, inspect the cabinet door seals and filter mats and verify that the cooling fan units are operating at rated speed. Thermal stress is the leading cause of premature servo winding failure in IRC5 installations. Finally, review the axis brake test results in the IRC5 service routine — a brake that does not hold rated torque will allow axis drift under gravity load and accelerate wear on the replacement servo.
Site Replacement Workflow
When replacing the 3HAC021731-001 on-site, begin by downloading the current robot configuration backup (RAPID programs, system parameters, and calibration data) from the IRC5 FlexPendant or RobotStudio before any hardware is disturbed. This backup is essential for restoring axis calibration offsets after the new servo is installed.
Power down the IRC5 cabinet using the main switch and verify zero-energy state with a lockout/tagout procedure. Discharge the drive capacitor bank — allow a minimum of 5 minutes after power-off before opening the drive compartment. Remove the axis cable set and resolver/encoder connector before unbolting the servo from the robot arm structure. Note the axis position (joint angle) before removal to simplify re-calibration.
Install the replacement 3HAC021731-001 using the correct torque values specified in the IRB series mechanical maintenance manual. Reconnect the axis cable set and encoder feedback connector, verifying pin alignment and locking collar engagement. Restore power and perform the ABB fine calibration routine using the calibration pendulum or Levelmeter 2000 tool to re-establish axis zero position. Run the axis through its full range of motion at reduced speed (10% jog) before returning to production speed. Log the replacement in the robot maintenance record with date, part number, and calibration offset values.
This workflow minimizes downtime by eliminating re-work loops caused by missed calibration steps or incorrectly seated connectors — the two most common causes of extended repair time in IRC5 servo replacements.
Spare Parts Support FAQ
Q1: Is the 3HAC021731-001 compatible with all IRC5 cabinet variants?
The 3HAC021731-001 is designed for the IRC5 platform and is compatible with IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller configurations. Compatibility is axis-position and robot-model specific — confirm the axis number and IRB model from your robot nameplate before ordering. Our technical team can verify compatibility against your robot serial number on request.
Q2: What is the recommended spare parts inventory strategy for IRC5 servo motors?
For production lines with 3 or more IRC5 robots, maintaining at least one 3HAC021731-001 unit on-site is standard practice. For critical 24/7 operations, a two-unit buffer is recommended to cover simultaneous failures or back-to-back replacement cycles during planned shutdowns. Shelf life for stored servo units is 3–5 years when stored in original packaging at 15–25°C with humidity below 70% RH.
Q3: How is each unit tested before shipment?
Every 3HAC021731-001 spare undergoes a pre-shipment inspection protocol covering winding resistance measurement across all phases, insulation resistance test at 500 VDC, encoder/resolver signal output verification, and mechanical shaft runout check. Units that do not meet ABB OEM electrical tolerances are rejected. A test report is available on request for quality-critical procurement processes.
Q4: What does the 12-month warranty cover and how is a claim processed?
The 12-month warranty covers defects in materials and workmanship under normal industrial operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, mechanical impact, or operation outside rated parameters. To initiate a warranty claim, contact our technical support team with the order number, robot model, axis number, fault description, and IRC5 event log extract. Replacement units are dispatched within 3 business days of claim approval.
