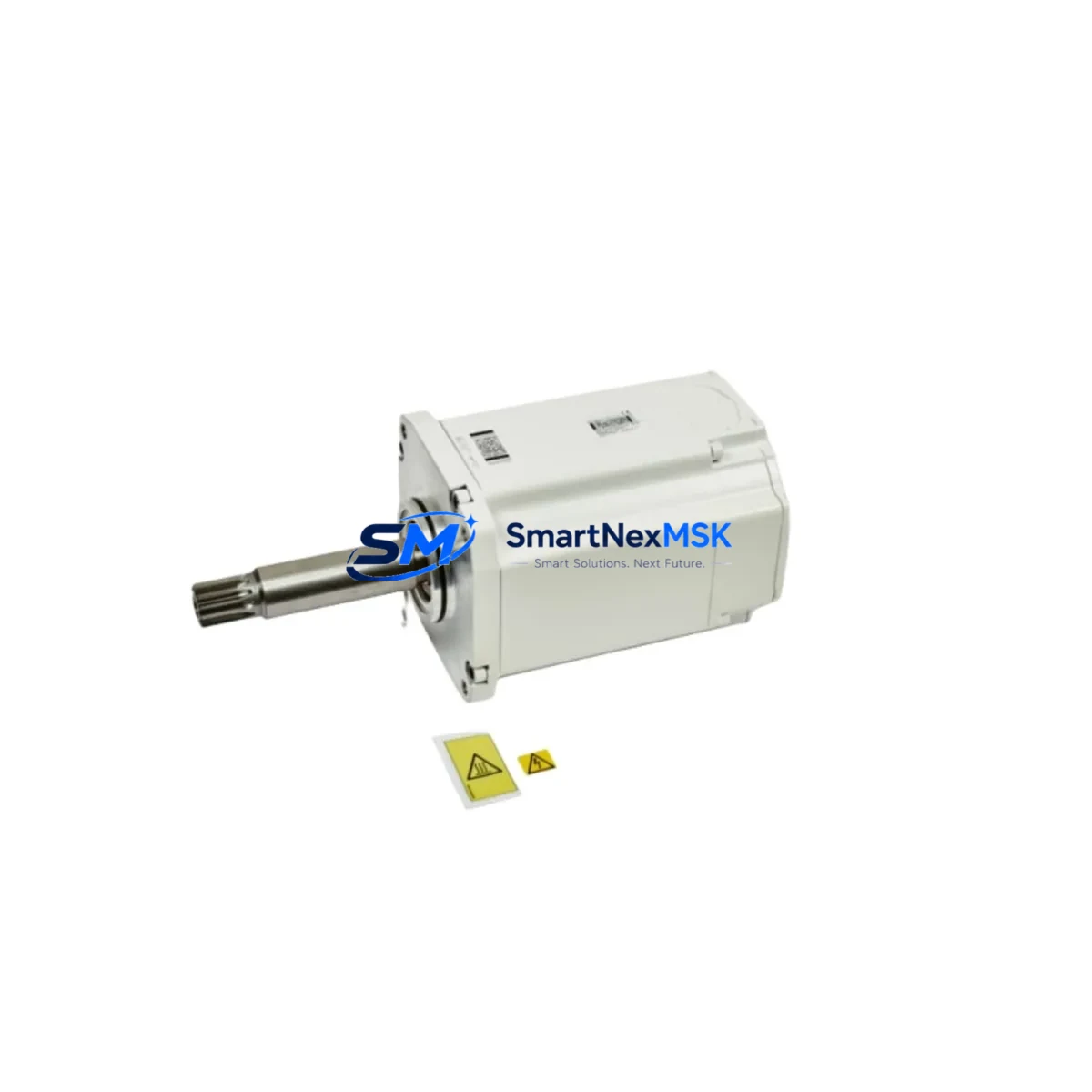

ABB 3HAC038210-002 Retrofit-Ready Motor Drive for MTD500 Control Systems

ABB 3HAC038210-002 Retrofit-Ready Motor Drive for MTD500 Control Systems

The ABB 3HAC038210-002 is a servo drive module engineered for the MTD500 series robot control platform, widely deployed across ABB IRB 6600, IRB 6650, and IRB 7600 industrial robot installations. As legacy MTD500 drive units approach end-of-service life and OEM spare parts become increasingly scarce, the 3HAC038210-002 serves as the definitive retrofit-ready replacement — offering direct mechanical fit, identical connector pinout, and full compatibility with existing IRC5 controller backplane architecture without requiring firmware re-flashing or hardware modification to the control cabinet.

For maintenance engineers managing aging robot cells, the 3HAC038210-002 addresses the most critical pain point in unplanned downtime scenarios: sourcing a verified, tested drive module that can be swapped in without rewriting motion programs or reconfiguring axis parameters. This module integrates directly with the IRC5 drive system bus, communicating with the DSQC661 main computer board and DSQC662 axis computer via the standard internal Ethernet drive network — preserving all existing RAPID program logic, tool data, and work object definitions stored on the controller.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3HAC038210-002 into an active production line begins well before the physical swap. Engineers should first audit the IRC5 cabinet’s power distribution to confirm the DSQC609 power supply unit is delivering stable 24 VDC logic power and that the three-phase AC input to the drive section is within the 380–480 VAC tolerance band. Voltage sags or phase imbalance are a common root cause of premature drive failure and must be corrected before installing the replacement module.

Terminal wiring on the 3HAC038210-002 follows the same resolver and motor power connector layout as the outgoing unit. Technicians should photograph and label all motor cable connections — particularly the axis 1–3 or axis 4–6 motor power leads and resolver feedback cables — before disconnection. The motor power connectors use ABB’s standard X1/X2 format, and the resolver connectors are keyed to prevent miswiring, but physical inspection of pin condition and cable insulation is recommended before reconnection.

The IRC5 backplane slot assignment must match the original drive position. The DSQC661 main computer identifies each drive module by its physical slot address on the internal drive bus; installing the 3HAC038210-002 in the correct slot ensures the axis mapping in the RAPID motion configuration remains valid without requiring a system parameter edit. If the cabinet also houses a DSQC378 I/O module or DSQC652 digital I/O unit for field device interfacing, these modules are unaffected by the drive swap and do not require reconfiguration.

For installations where the robot communicates with a Siemens S7-300 or S7-1500 PLC via PROFIBUS-DP through a DSQC667 fieldbus adapter, the drive replacement has no impact on the fieldbus node address or GSD configuration — the IRC5 controller maintains its PROFIBUS identity independently of the drive hardware. Similarly, if the cell uses an Allen-Bradley ControlLogix PLC communicating via EtherNet/IP through a DSQC688 adapter, no EDS file update or tag remapping is required after the drive module swap.

Before returning the robot to production, a full axis brake test and motor current signature check should be performed using the FlexPendant service routine. If the installation involves an IRB 7600 with high-inertia payload, a load identification run using RobotStudio’s LoadIdentify routine is recommended to verify that the new drive module’s current loop tuning matches the mechanical load. The 3HAC038210-002 ships pre-configured with ABB factory default drive parameters, which are compatible with standard MTD500 axis configurations without manual tuning in the majority of retrofit scenarios.

Downtime Control During System Migration

Minimizing production downtime during a drive module replacement on an IRC5 robot system requires a structured pre-swap preparation protocol. The most effective approach is to perform a full system backup via the FlexPendant or RobotStudio before any hardware is touched — this captures the complete RAPID program, system parameters, tool data, work objects, and I/O configuration in a single compressed backup file that can be restored in under ten minutes if needed.

With the 3HAC038210-002 pre-staged and verified against the outgoing module’s part number, the physical swap can typically be completed within 30–45 minutes by a qualified ABB-certified technician. The IRC5 controller does not require a cold boot after a drive module replacement in most configurations — a warm restart from the FlexPendant is sufficient to re-initialize the drive bus and confirm axis communication. This approach keeps the RAPID program resident in the DSQC661 main computer memory, eliminating the need for a full program reload and reducing the risk of configuration drift.

For critical production environments where even a 30-minute outage is unacceptable, a hot-standby strategy using a pre-configured spare IRC5 cabinet with the 3HAC038210-002 already installed allows a complete cabinet swap rather than an in-situ drive replacement — reducing robot downtime to the time required for mechanical disconnection and reconnection of motor cables and the teach pendant. All RAPID programs and system parameters are transferred via USB backup restore, and the robot can be returned to automatic mode within 15–20 minutes of the cabinet swap.

Post-swap, a structured commissioning checklist should cover: drive bus communication confirmation on the FlexPendant event log, axis brake release test, manual jog through full range of motion on all axes, and a dry-run cycle of the production program at reduced speed (25%) before returning to full automatic operation. This protocol protects both the new drive module and the mechanical system from stress caused by undetected wiring errors or parameter mismatches.

Retrofit Support FAQ

Q: Is the 3HAC038210-002 a direct drop-in replacement for the legacy 3HAC025338-001 drive unit?
A: Yes, in the majority of IRC5 cabinet configurations. The 3HAC038210-002 uses the same backplane connector, slot dimensions, and motor/resolver cable connectors as the 3HAC025338-001. In rare cases involving early IRC5 firmware versions (prior to RobotWare 5.12), a firmware update via RobotStudio may be required to ensure full drive bus compatibility. We recommend confirming your RobotWare version before ordering.

Q: What wiring changes are required when installing the 3HAC038210-002?
A: No wiring changes are required for standard MTD500 axis configurations. The motor power connectors (X1/X2) and resolver feedback connectors are pin-compatible with the outgoing drive unit. Technicians should inspect connector pins and cable insulation for wear before reconnection, but no rewiring or adapter harnesses are needed.

Q: How is the 3HAC038210-002 tested before shipment?
A: Every unit undergoes a multi-point functional test prior to shipment, including drive bus communication verification, power stage integrity check, and resolver interface continuity test. New and surplus-new units are tested against ABB factory acceptance criteria. Refurbished units additionally undergo a full load cycle test. A test report is available upon request.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, component failure under normal operating conditions, and drive bus communication faults attributable to the module itself. It does not cover damage caused by incorrect installation, overvoltage events, or mechanical impact. Warranty claims are processed within 5 business days of receipt of the returned unit, with a replacement shipped immediately upon fault confirmation.
