ABB 3HAC057546-003 Retrofit-Ready Servo Motor for IRC5

ABB 3HAC057546-003 Retrofit-Ready Servo Motor for IRC5 Control Systems

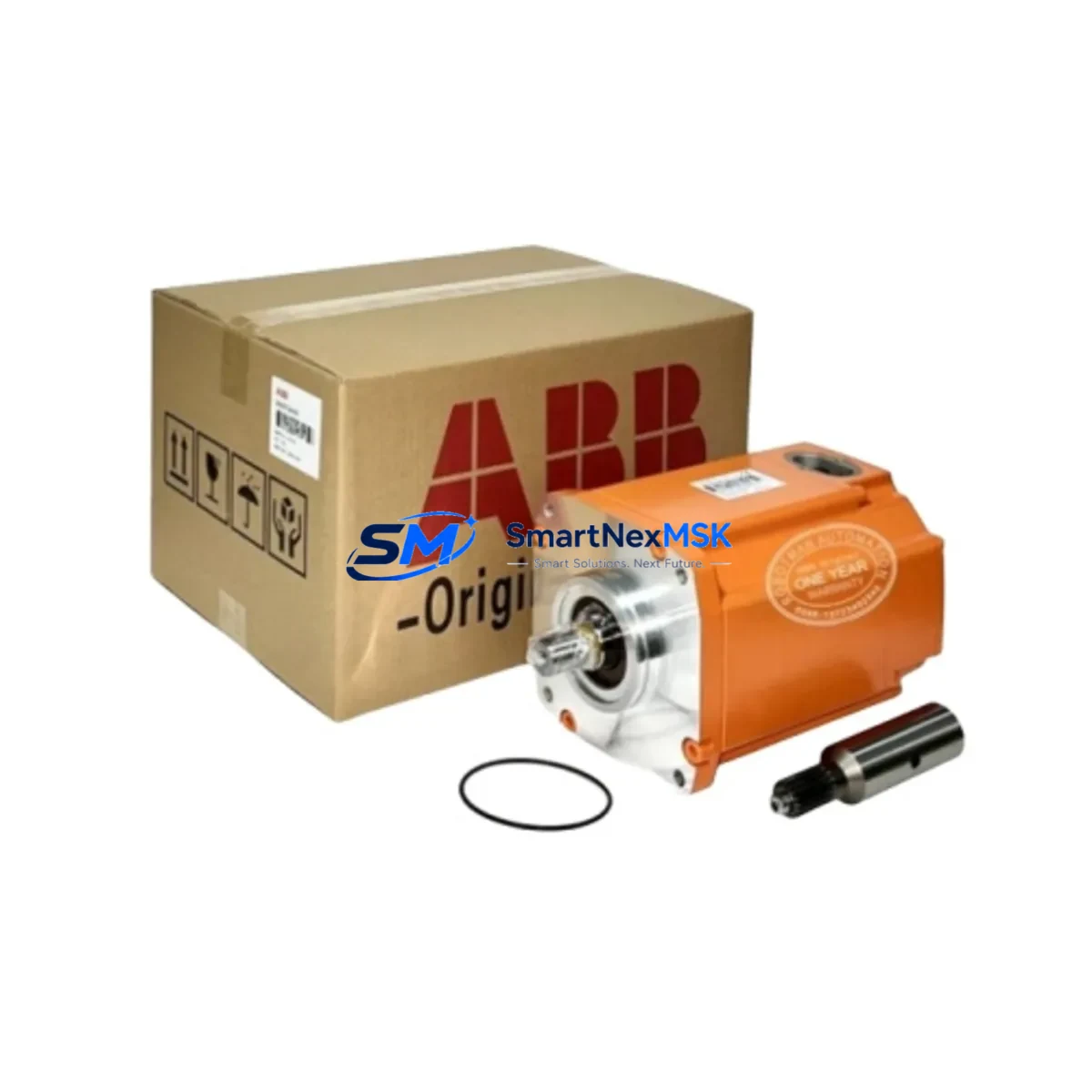

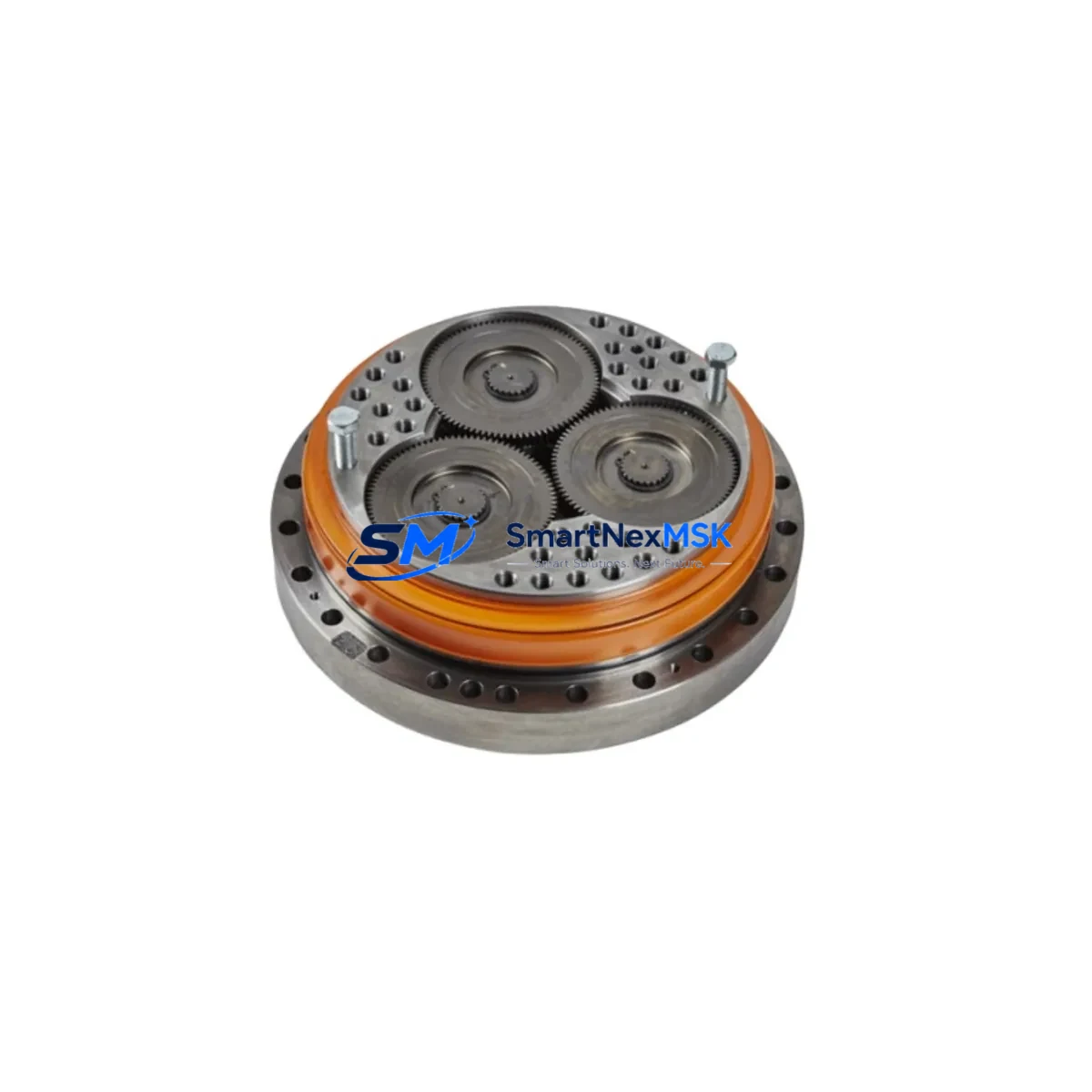

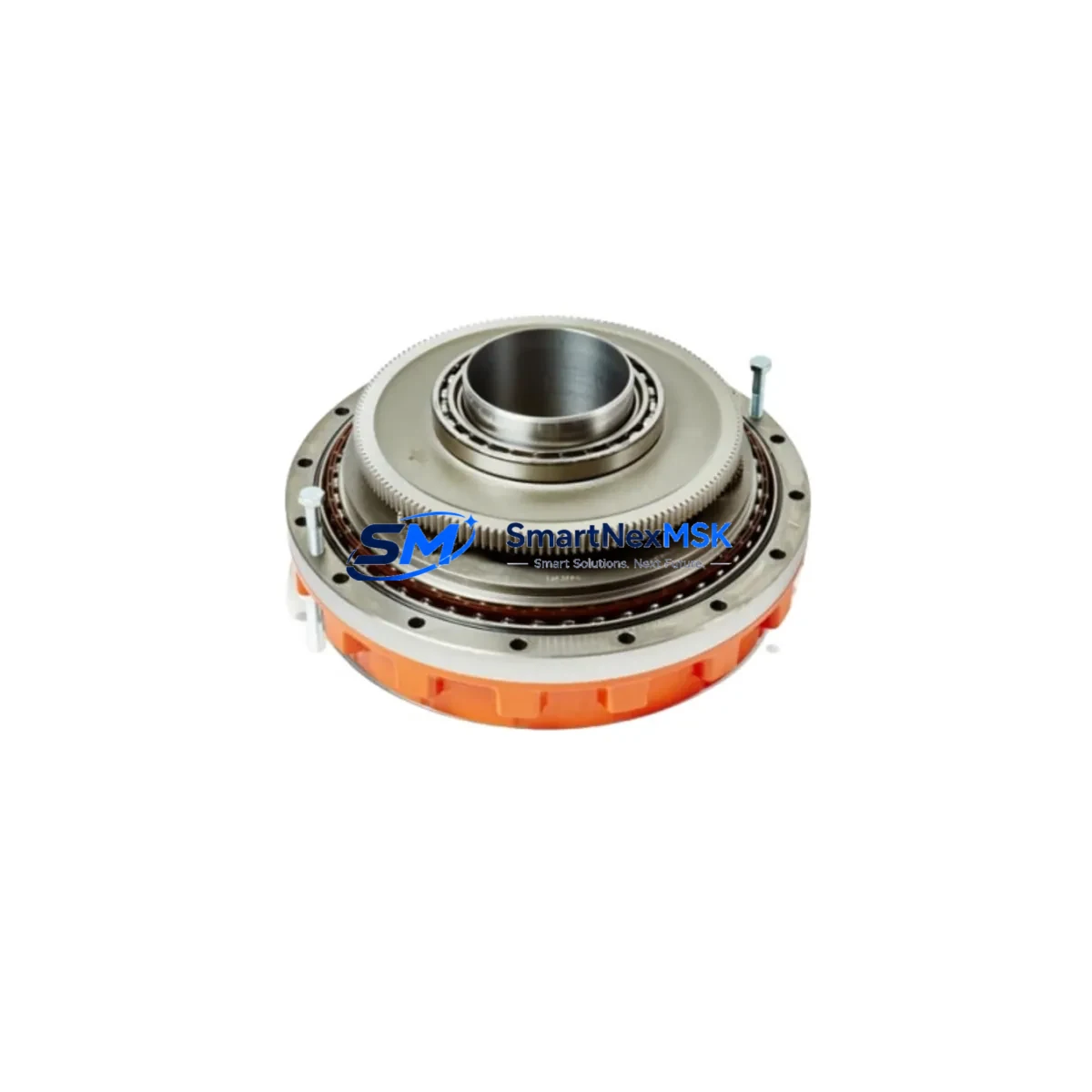

The ABB 3HAC057546-003 is a precision servo motor assembly engineered for seamless integration into ABB IRC5 robot controller platforms. As legacy automation lines age and OEM support windows close, this unit serves as a verified retrofit-ready replacement for discontinued servo motor variants across the IRC5 family — including single-cabinet, dual-cabinet, and panel-mounted IRC5 configurations. Whether you are managing a planned upgrade cycle or responding to an unplanned axis failure, the 3HAC057546-003 is stocked, tested, and ready for immediate dispatch with a 12-month warranty covering both parts and workmanship.

This servo motor is designed to maintain full compatibility with the ABB IRC5 motion control architecture, including the drive unit interface, resolver feedback signal chain, and motor power connector pinout. Engineers replacing a failed axis motor on a 6-axis IRB series robot will find that the 3HAC057546-003 preserves the original wiring topology, eliminating the need to re-engineer cable harnesses or modify the control cabinet layout. The motor’s mechanical envelope — including the pinion gear interface and flange mounting pattern — matches the original IRC5 axis motor specification, allowing direct installation without machining or adapter plates.

Before committing to installation, retrofit planners should verify several critical parameters. First, confirm the power supply capacity of the existing IRC5 drive module, particularly if the replacement is being performed on an older IRC5 variant where the DSQC 661 or DSQC 662 drive boards are in service. Second, inspect the terminal block wiring at the motor connector and cross-reference against the IRC5 wiring diagram for the specific robot model — axis numbering and connector keying can vary between IRB 1600, IRB 2600, and IRB 6640 platforms. Third, validate the resolver offset calibration value stored in the IRC5 system parameters, as this value must be updated in the robot configuration file after motor replacement to ensure accurate position feedback.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRC5 servo motor retrofit requires coordinated planning across mechanical, electrical, and software domains. When the 3HAC057546-003 arrives on-site, the retrofit team should begin by isolating the affected robot axis and documenting the current resolver offset value from the IRC5 system parameters — this is stored in the MOC.cfg file and must be backed up before any hardware change. The IRC5 controller’s DSQC 604 computer board retains the robot configuration, but resolver calibration data is axis-specific and will need to be re-entered or re-measured after the motor swap.

On the mechanical side, the pinion gear interface on the 3HAC057546-003 must be inspected for tooth engagement with the gearbox input shaft. In high-cycle applications — particularly on IRB 2600 and IRB 6640 wrist axes — the gearbox itself may show wear that becomes apparent only after the motor is removed. It is advisable to have a compatible ABB gearbox unit on standby, or at minimum to inspect the gearbox input bearing and seal condition before closing the robot arm.

Electrically, the motor power cable and the SMB (Serial Measurement Board) cable should both be inspected for insulation integrity. The SMB board, typically a DSQC 233 or equivalent, manages resolver signal conditioning for all six axes; a degraded SMB cable can produce axis calibration errors that mimic motor faults. Replacing the motor without addressing a marginal SMB cable will result in recurring alarms post-commissioning. Similarly, the IRC5 axis computer — often a DSQC 668 or DSQC 609 — should be confirmed as fault-free before the new motor is energized.

For sites running ABB RobotWare 5.x or 6.x, the commissioning sequence after motor replacement involves loading the updated MOC.cfg, performing a fine calibration using the calibration pendulum or Levelmeter 2000 tool, and verifying axis limits against the robot’s original installation data. If the robot is integrated with an external PLC — such as a Siemens S7-300, S7-1500, or Allen-Bradley ControlLogix — the PLC program’s robot status monitoring logic should be placed in manual bypass during the calibration window to prevent nuisance fault responses from the line controller. After calibration, a full cycle test at reduced speed (typically 25% of rated TCP speed) should be completed before returning the robot to production.

Sites that also need to address broader IRC5 infrastructure during the same maintenance window may consider concurrent replacement of the IRC5 teach pendant cable, the FlexPendant unit itself, or the IRC5 main computer battery — all of which are common wear items on systems with more than five years of continuous operation. Having these components staged alongside the 3HAC057546-003 minimizes the number of planned outage windows required.

Downtime Control During System Migration

Minimizing production downtime during an IRC5 servo motor replacement begins with pre-staging all required components and documentation before the maintenance window opens. The 3HAC057546-003 should be unboxed and visually inspected at least 24 hours before the planned outage, with the resolver connector, motor flange, and pinion gear verified against the robot’s axis specification sheet. Any discrepancy should be identified and resolved before the robot is taken offline.

The IRC5 controller’s system backup — including the RAPID program, system parameters, and I/O configuration — must be saved to an external USB drive or network share before power is removed from the cabinet. This backup protects the production program logic, including any custom RAPID routines, tool data, work object definitions, and safety zone configurations that have been developed over the robot’s operational life. Restoring from a verified backup is significantly faster than reconstructing program logic from memory or paper records.

During the physical swap, the IRC5 cabinet should remain powered down and locked out per site LOTO procedures. The motor replacement itself — including cable reconnection and mechanical fastening — typically requires 60 to 90 minutes for an experienced technician. The subsequent calibration sequence adds another 30 to 60 minutes depending on the calibration method used. Total planned downtime for a single-axis motor replacement on an IRC5 robot should therefore be budgeted at 3 to 4 hours, inclusive of pre-checks, swap, calibration, and test cycling.

To further protect control continuity, sites with redundant robot cells should consider routing production to the backup cell during the maintenance window rather than halting the line entirely. For single-robot lines, coordinating the motor replacement with a scheduled production break — such as a shift change or planned preventive maintenance interval — reduces the impact on overall equipment effectiveness (OEE).

Retrofit Support FAQ

Q: Is the 3HAC057546-003 a direct drop-in replacement for the original IRC5 axis servo motor?
A: Yes. The 3HAC057546-003 matches the OEM mechanical envelope, connector pinout, and resolver interface of the original IRC5 axis motor. No wiring modifications or adapter hardware are required. A resolver offset calibration must be performed after installation using RobotStudio or the FlexPendant calibration routine.

Q: What commissioning steps are required after installing the 3HAC057546-003?
A: After mechanical installation and cable reconnection, restore the system backup to the IRC5 controller, update the resolver offset value in MOC.cfg, and perform a fine calibration using the robot’s calibration tool. Run a reduced-speed cycle test before returning to full production speed. Confirm that all axis limits and safety zones are active and verified.

Q: How do I verify wiring compatibility before installation?
A: Cross-reference the motor connector pinout against the IRC5 wiring diagram for your specific robot model (IRB 1600, IRB 2600, IRB 4600, or IRB 6640). Inspect the motor power cable and SMB cable for insulation damage. Confirm that the DSQC drive unit (661, 662, or 663) is fault-free before energizing the new motor.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and workmanship failures under normal operating conditions. Each unit undergoes pre-shipment functional testing prior to dispatch. Warranty claims are supported by our technical team — contact sales@smartnexmsk.com with your order reference and fault description for rapid resolution.
