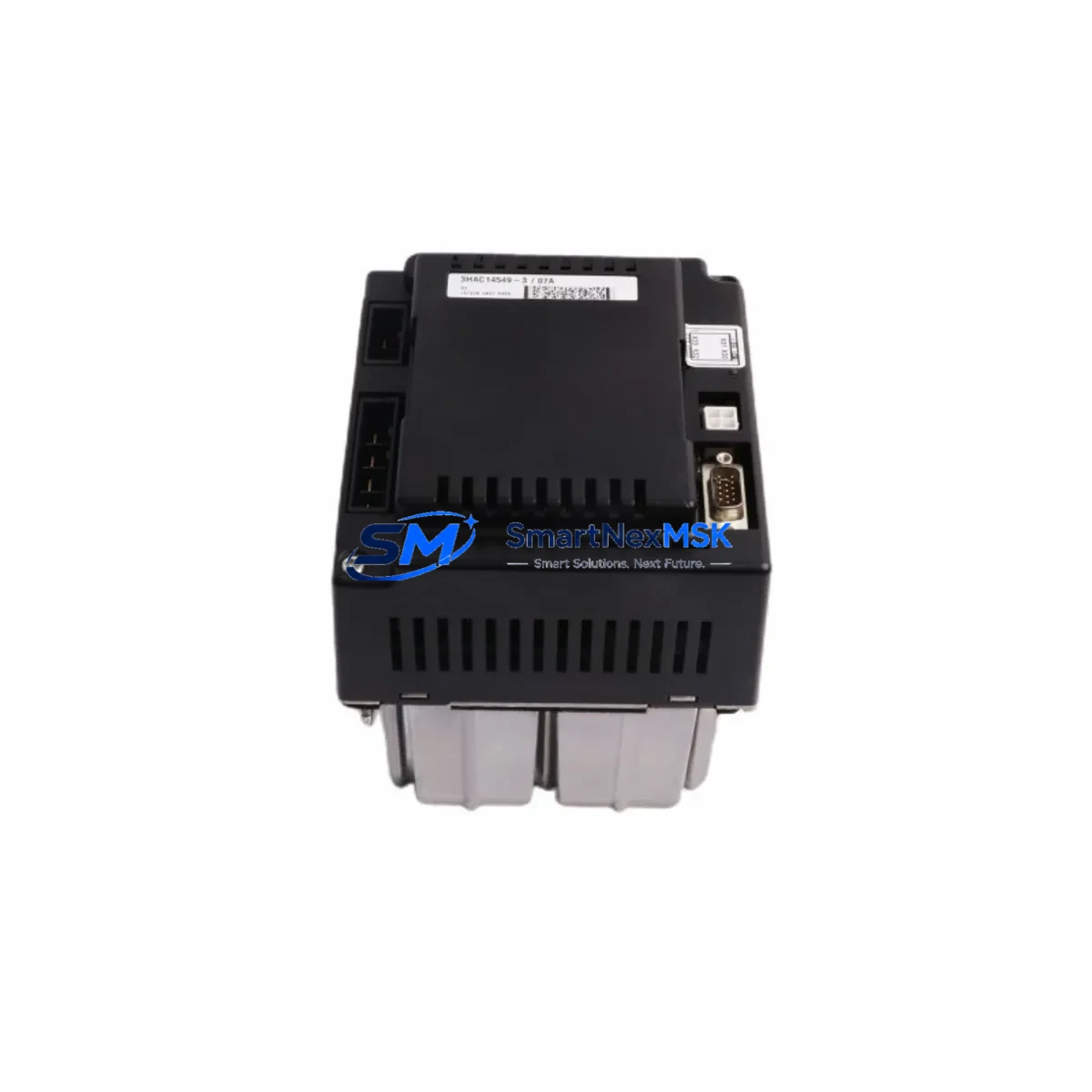

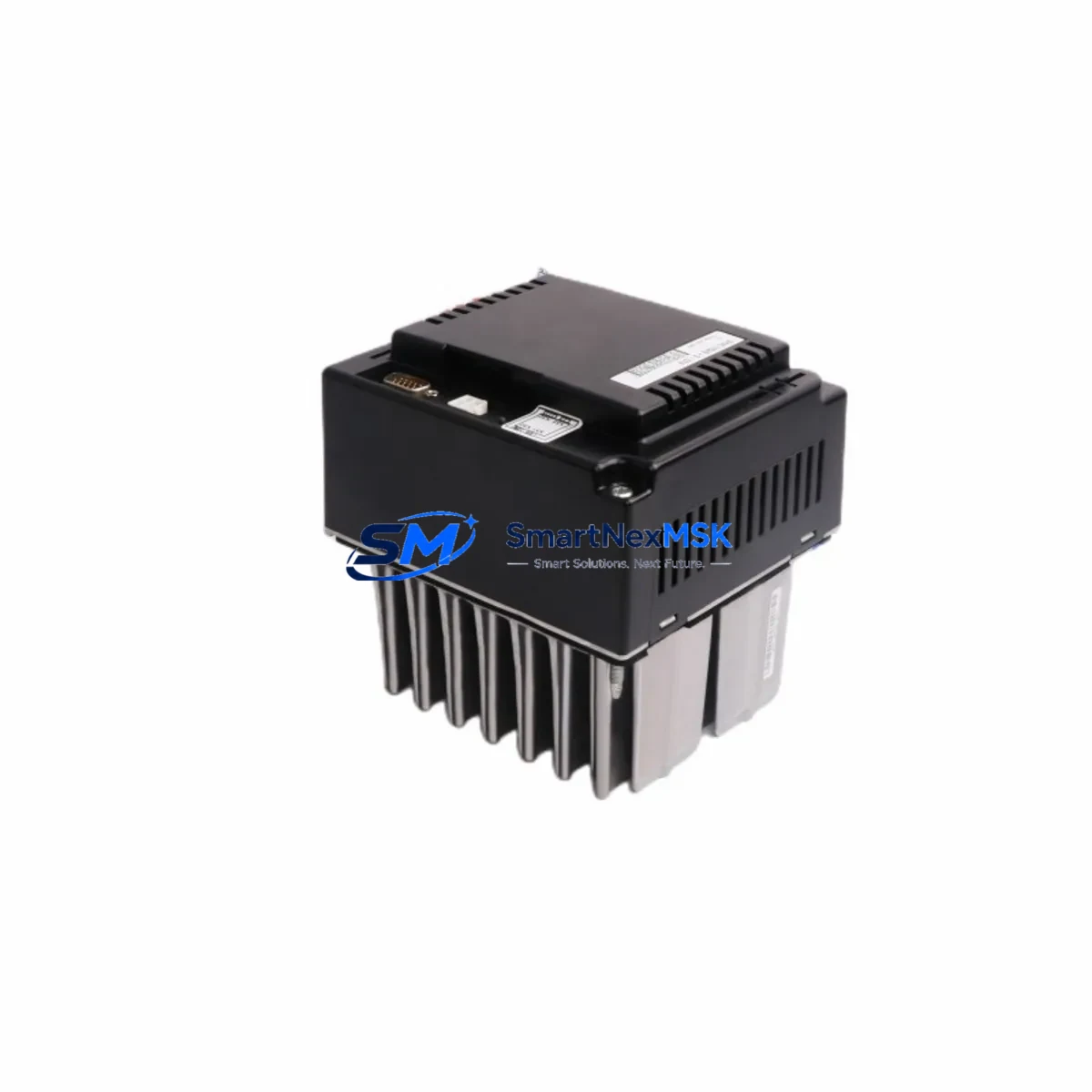

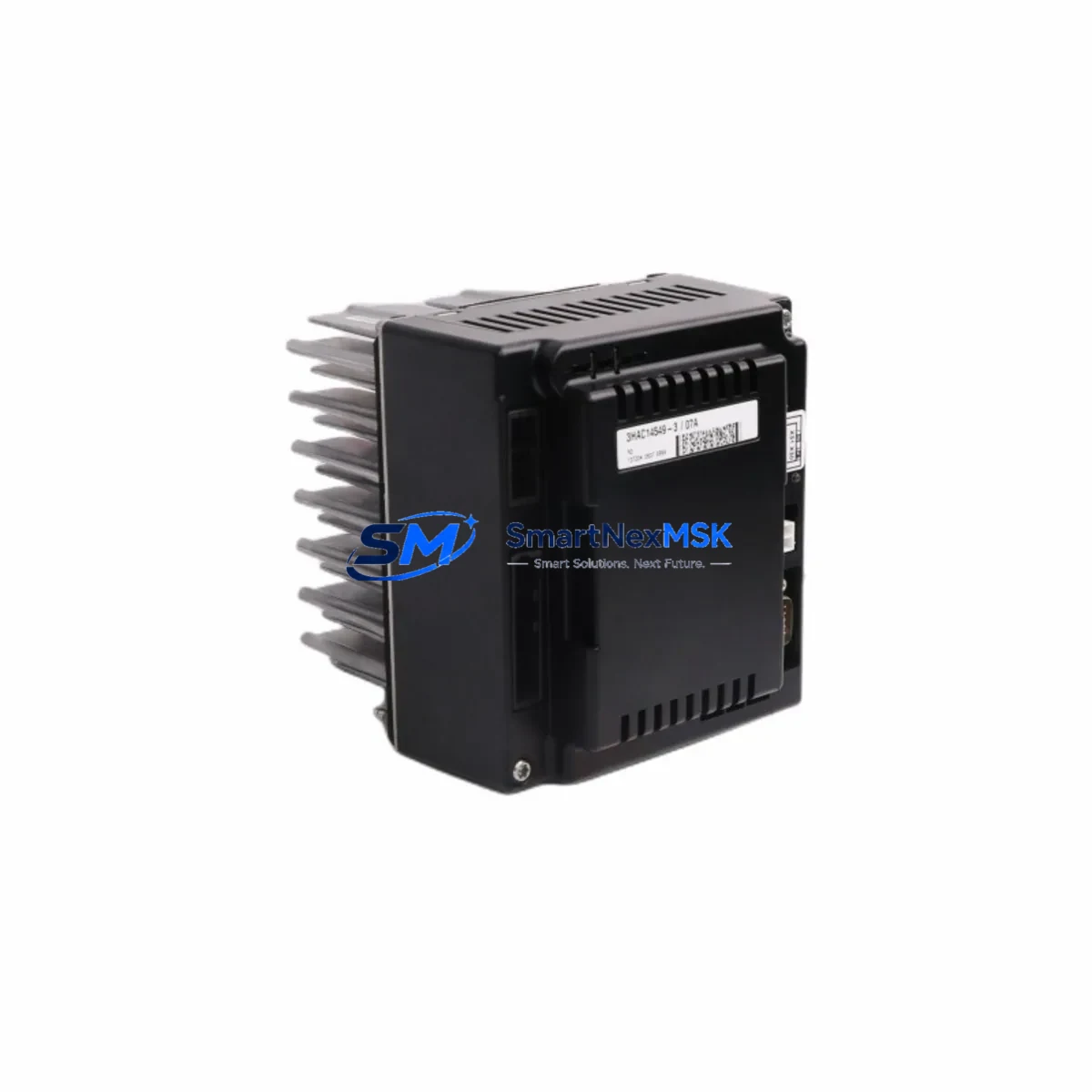

ABB 3HAC14549-3/07A Retrofit-Ready Rectifier for IRC5 Control Systems: Seamless Compatibility and Legacy System Upgrade
The ABB 3HAC14549-3/07A is a high-performance rectifier module engineered for the ABB IRC5 robot controller platform — one of the most widely deployed industrial robot control systems in automotive, electronics, and general manufacturing environments worldwide. As original IRC5 drive units age and OEM spare parts become increasingly scarce, the 3HAC14549-3/07A has become a critical component in both planned maintenance programs and emergency system recovery scenarios. This module converts AC mains input into the regulated DC bus voltage required by the IRC5 drive system, directly supporting axis drive modules such as the DSQC 661 and DSQC 662 series, and maintaining the power integrity that the IRC5 controller demands for precise motion control.
Whether you are replacing a failed rectifier in an active production cell, upgrading an aging IRC5 cabinet to extend its service life, or migrating a legacy S4C+ line to the IRC5 platform, the 3HAC14549-3/07A provides a verified drop-in solution. Our inventory is sourced from authorized channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty covering both component integrity and electrical performance.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Controller | ABB IRC5 Single Cabinet, Dual Cabinet, Panel Mounted Controller |
| Replaces / Supersedes | 3HAC14549-3/06A, 3HAC14549-3/05A (earlier hardware revisions) |
| Mounting Interface | Standard IRC5 drive unit backplane; DIN rail compatible bracket |
| Input Voltage | 3-phase AC 200–600 V, 50/60 Hz |
| DC Bus Output | Regulated DC bus for IRC5 axis drive modules |
| Communication Compatibility | Integrated with IRC5 drive communication bus; no protocol reconfiguration required |
| Installation Requirement | Verify mains fuse rating, DC bus capacitor condition, and drive unit firmware version before swap |
| Retrofit Recommendation | Inspect DSQC 661 / DSQC 662 axis drive modules and 3HAC025338-001 power supply unit simultaneously |
| Commissioning Focus | DC bus voltage verification, earth fault check, IRC5 FlexPendant boot sequence confirmation |
| Warranty | 12 months from date of shipment; covers electrical and mechanical defects |
Retrofit Planning for Existing Automation Systems
A successful IRC5 rectifier replacement begins well before the module arrives on-site. Engineers planning a retrofit should first audit the full drive cabinet to assess the condition of adjacent components. The 3HAC025338-001 main computer power supply unit, the DSQC 661 single-axis drive module, and the DSQC 662 dual-axis drive module all share the same DC bus rail as the rectifier. If the rectifier has failed due to sustained overvoltage or thermal stress, these downstream modules should be inspected for secondary damage before the new 3HAC14549-3/07A is energized.
Terminal wiring on the IRC5 rectifier follows ABB’s standard three-phase input labeling (L1, L2, L3) with a dedicated PE earth terminal. Confirm that the incoming mains cable cross-section matches the rated current draw of the installed axis configuration — a six-axis robot cell with extended-reach axes may draw significantly more than a compact three-axis welding cell. The mains contactor and associated fusing in the cabinet base should be verified against the 3HAC14549-3/07A input specifications before commissioning.
For sites migrating from the older S4C+ platform to IRC5, the rectifier replacement is typically part of a broader cabinet upgrade that also involves swapping the DSQC 500 computer board for the IRC5 main computer (DSQC 639), re-terminating I/O signals to the DSQC 652 digital I/O module, and updating the robot program using RobotStudio offline simulation. The IRC5 FlexPendant (3HAC028357-001) must be confirmed compatible with the installed IRC5 system software version, as older teach pendant firmware may not support newer drive configurations. Communication links — whether DeviceNet, PROFIBUS-DP, or EtherNet/IP — must be re-mapped in the IRC5 configuration files, and field device addresses verified against the original S4C+ I/O map to prevent signal conflicts during first power-on.
Backplane slot addressing in the IRC5 drive unit is fixed by physical position; the 3HAC14549-3/07A occupies the rectifier slot and does not require software address assignment. However, if the cabinet includes an additional axis computer (DSQC 668) for external axes or a conveyor tracking application, the drive communication sequence must be validated in the IRC5 system parameters after the rectifier swap to ensure all axes are recognized correctly at startup.
All units are dispatched with pre-shipment electrical testing documentation. Stock is maintained for immediate dispatch, supporting both planned maintenance windows and unplanned emergency replacements. 12-month warranty coverage applies from the date of shipment.
Downtime Control During System Migration
Minimizing production downtime during an IRC5 rectifier replacement requires a structured approach that protects both the robot program and the surrounding control logic. Before de-energizing the cabinet, create a full system backup using the IRC5 FlexPendant backup function — this captures the RAPID program, system parameters, I/O configuration, and safety controller settings in a single archive. Store this backup on an external USB drive and verify the file integrity before proceeding.
With the cabinet isolated and the DC bus fully discharged (allow a minimum of five minutes after mains isolation for capacitor discharge), the 3HAC14549-3/07A can be removed by releasing the drive unit locking mechanism and disconnecting the mains input terminals and DC bus connectors. The replacement module slots into the same position without mechanical modification. Reconnect terminals in reverse order, torque to ABB specification, and perform an insulation resistance check on the mains input before re-energizing.
On first power-up, monitor the IRC5 controller boot sequence via the FlexPendant. The system should complete its self-diagnostic routine and report drive unit status without fault codes. If axis drive faults appear — particularly error codes in the 38xxx series related to drive communication — verify that the DC bus voltage has stabilized within the specified range and that all drive module connectors are fully seated. A controlled jog test on each axis at reduced speed should be completed before returning the cell to automatic production mode. This structured commissioning sequence typically allows a trained engineer to complete a rectifier swap and return the robot to production within two to four hours, keeping unplanned downtime to a minimum.
Retrofit Support FAQ
Q1: Is the 3HAC14549-3/07A a direct replacement for earlier hardware revisions such as 3HAC14549-3/06A?
Yes. The /07A revision is the current production hardware revision and is backward compatible with earlier /05A and /06A variants installed in IRC5 cabinets. No mechanical or wiring modifications are required. Confirm the IRC5 system software version is at minimum RobotWare 5.12 for full compatibility with the /07A hardware revision.
Q2: What pre-shipment testing is performed on each unit?
Each 3HAC14549-3/07A undergoes DC bus output voltage verification, insulation resistance testing, and visual inspection for connector and PCB integrity before dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.
Q3: Can this module be used in an IRC5 Compact or Panel Mounted Controller variant?
The 3HAC14549-3/07A is designed for the standard IRC5 single and dual cabinet configurations. IRC5 Compact and Panel Mounted Controller variants use a different drive architecture and require separate rectifier part numbers. Contact our technical team with your full cabinet type and serial number to confirm the correct replacement module for non-standard IRC5 variants.
Q4: What should be checked if the replacement module triggers a drive fault on first power-up?
First, verify that the DC bus has fully discharged before installation and that all connectors are fully seated. Check that the mains input phase sequence is correct (L1-L2-L3) and that the incoming voltage is within the 200–600 V AC specification. If fault codes in the 38xxx series persist, inspect the DSQC 661 or DSQC 662 axis drive modules for secondary damage and verify the IRC5 system parameter configuration for drive unit slot assignments. Our technical support team is available to assist with remote commissioning guidance.
