ABB 3HAC14551-2 Retrofit-Ready Capacitor Unit for IRC5 Control Systems

ABB 3HAC14551-2 Retrofit-Ready Capacitor Unit for IRC5 Control Systems

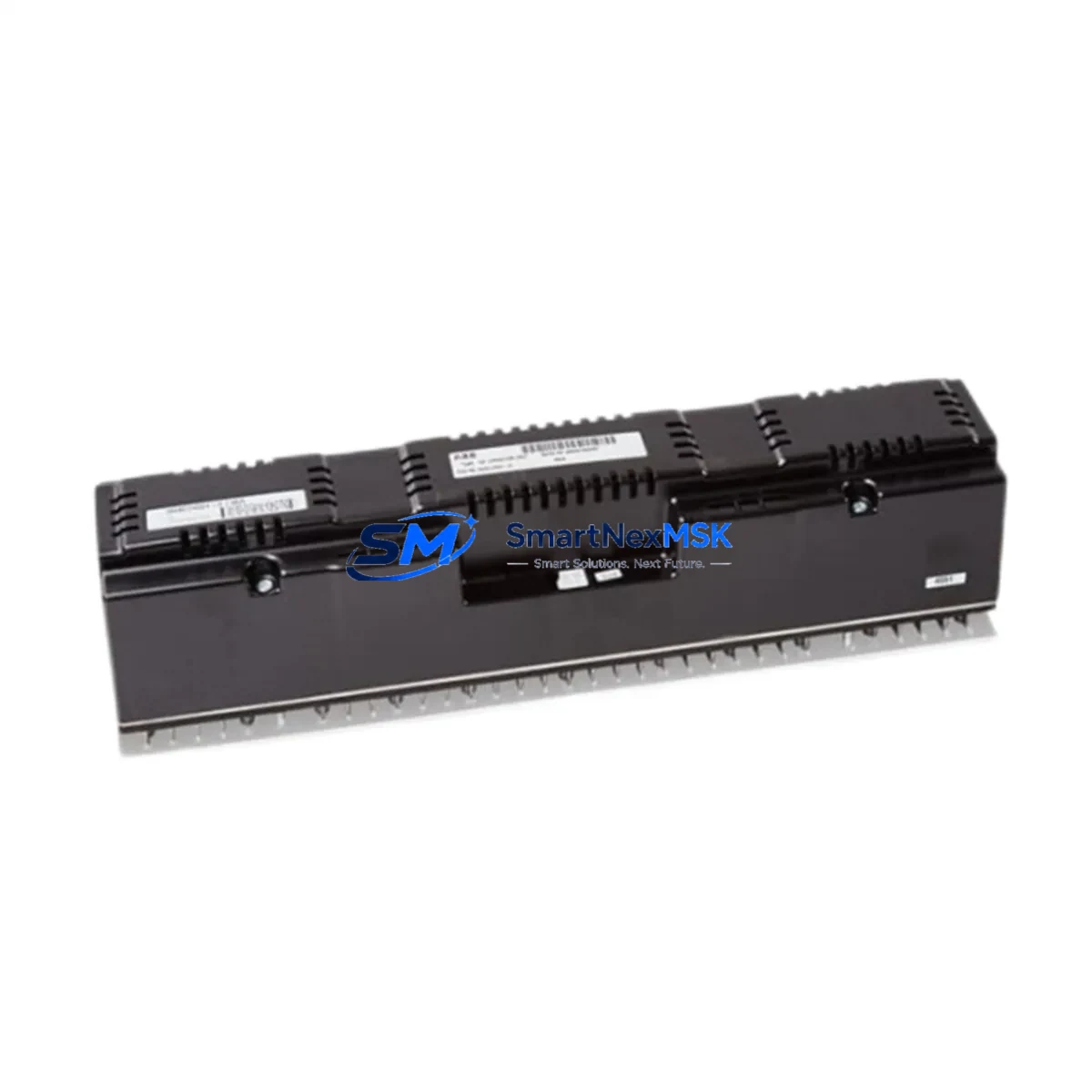

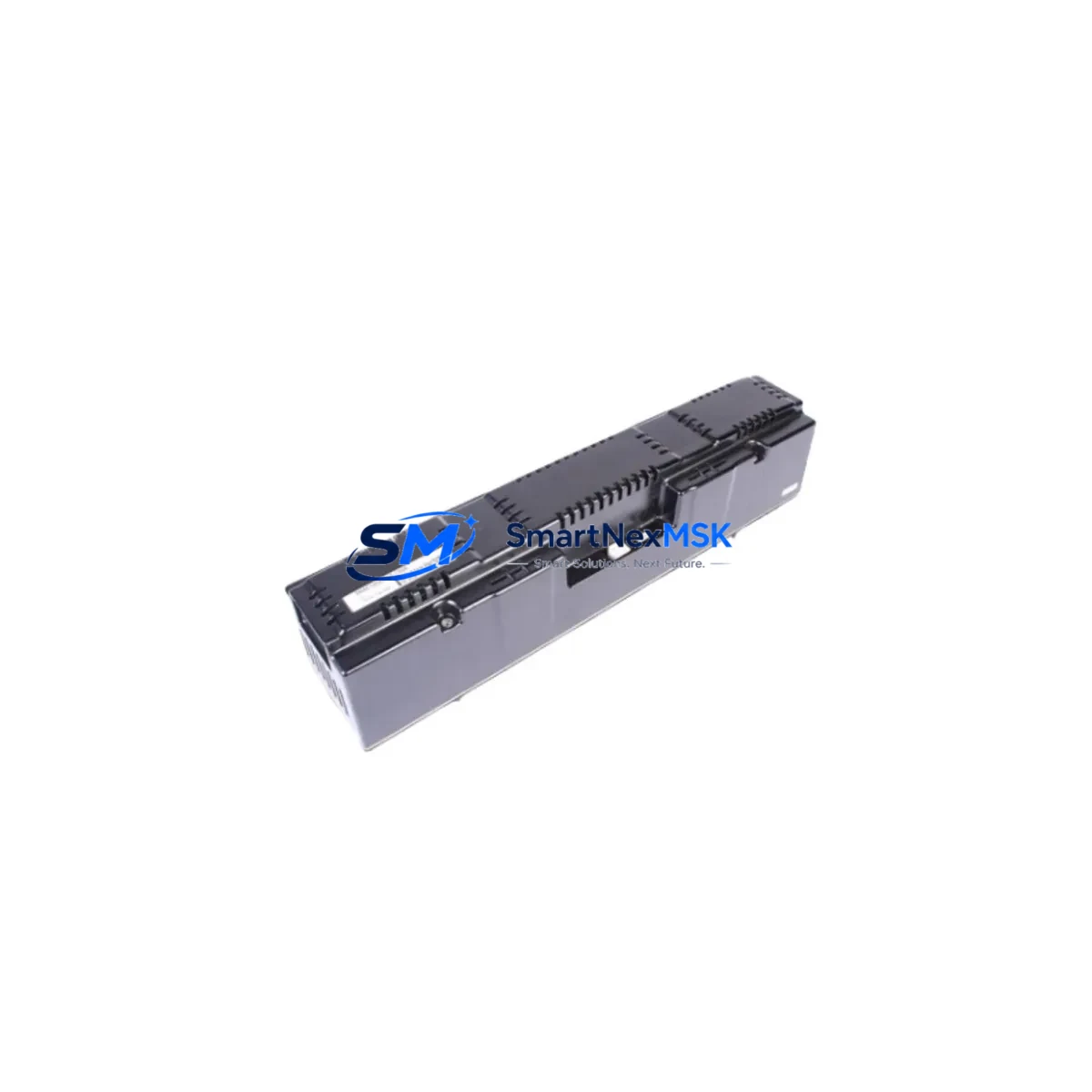

The ABB 3HAC14551-2 is a factory-specification capacitor unit designed for the IRC5 robot controller platform — one of ABB’s most widely deployed industrial robot control architectures. As production lines age and original spare parts become increasingly difficult to source, the 3HAC14551-2 serves as a critical retrofit component for facilities seeking to extend the operational life of their IRC5-based automation systems without committing to a full controller replacement.

This capacitor unit provides the energy buffering function essential to the IRC5 drive system, ensuring that the servo drives and axis computers maintain stable power delivery during transient load conditions and controlled shutdown sequences. When the original unit degrades — typically indicated by axis fault alarms, uncontrolled deceleration errors, or E-stop recovery failures — a direct replacement with the 3HAC14551-2 restores full system integrity with no firmware changes required.

For retrofit engineers managing multi-robot cells, the 3HAC14551-2 is compatible across the IRC5 single-cabinet and IRC5 panel-mounted controller variants. It interfaces directly with the drive unit assembly, typically mounted alongside the DSQC 661 or DSQC 662 drive modules, and connects via the standard backplane harness without requiring custom wiring adapters. Before installation, engineers should verify the capacitor bay dimensions against the existing mounting bracket and confirm that the DC bus voltage rating matches the drive configuration in use — particularly in systems that have been upgraded from M2000 or M2004 controller generations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRC5 retrofit begins well before the 3HAC14551-2 arrives on-site. The first step is a full audit of the controller cabinet: inspect the DSQC 400 power supply unit for output voltage stability, check the DSQC 508 I/O module for any latent communication faults, and review the axis computer — typically a DSQC 668 or DSQC 679 — for logged error histories that may indicate cascading power issues beyond the capacitor unit itself.

In multi-axis robot cells, the capacitor unit interacts directly with the drive chain. Engineers should document the current axis configuration in RobotStudio before any hardware swap, ensuring that the RAPID program, tool data, and work object definitions are backed up to an external storage device. If the cell includes a FlexPendant (IRC5 teach pendant), verify that the pendant firmware version is compatible with the controller software revision currently in use — mismatched firmware can cause unexpected behavior during the post-replacement commissioning sequence.

For facilities running DeviceNet or PROFIBUS communication between the IRC5 and external PLCs or SCADA systems, the DSQC 652 DeviceNet master/slave module or the DSQC 656 PROFIBUS adapter should be inspected for node address conflicts before the controller is powered down. Replacing the capacitor unit requires a full controller shutdown, which creates a window to audit these communication links and update node configurations if needed.

Where the IRC5 cabinet is integrated into a larger control architecture — for example, interfacing with a Siemens S7-300 or Allen-Bradley ControlLogix PLC via EtherNet/IP — the network topology should be documented and the PLC program placed in a safe hold state before the robot controller is de-energized. This prevents unintended machine motion or conveyor faults during the replacement window.

Finally, if the retrofit is part of a broader upgrade path toward IRC5 Compact or OmniCore controller migration, the 3HAC14551-2 provides a cost-effective bridge solution that keeps the existing IRC5 platform operational while the migration plan is finalized, budgeted, and scheduled — avoiding unplanned downtime and protecting the capital investment already made in the current robot cell.

Downtime Control During System Migration

Minimizing production downtime during a capacitor unit replacement requires a structured pre-shutdown checklist. Before de-energizing the IRC5 controller, confirm that all active RAPID tasks are in a stopped or idle state, that the robot is parked in its home position, and that the safety PLC or safety relay chain has been placed in a controlled safe state. This prevents the robot from attempting a recovery motion when power is restored.

The physical replacement of the 3HAC14551-2 is straightforward: disconnect the DC bus harness, remove the mounting fasteners, slide out the old unit, and install the replacement in reverse order. However, the post-installation commissioning steps are where most retrofit delays occur. After power-up, the IRC5 system manager will perform a self-test sequence — monitor the FlexPendant for any axis fault codes, particularly fault 50024 (capacitor charge timeout) or fault 50025 (DC bus undervoltage), which would indicate an installation or connection issue.

Once the self-test passes, perform a manual jog of each axis at low speed to verify that the drive system is responding correctly. Run the existing RAPID program in step mode for the first cycle to confirm that all tool paths, speed profiles, and I/O handshakes with external equipment are functioning as expected. Document the commissioning results and update the maintenance log before returning the cell to automatic production mode.

For facilities with strict OEE targets, pre-staging the 3HAC14551-2 as a verified spare — tested and confirmed compatible before the failure event — is the most effective downtime control strategy. Our pre-shipment testing protocol confirms DC bus capacitance, leakage current, and connector integrity before dispatch, ensuring that the unit is ready for immediate installation upon arrival.

Retrofit Support FAQ

Q1: Is the 3HAC14551-2 a direct drop-in replacement for the original ABB capacitor unit in my IRC5 cabinet?
Yes. The 3HAC14551-2 is manufactured to ABB factory specification and is a direct mechanical and electrical replacement for the original capacitor unit in IRC5 single-cabinet and panel-mounted controllers. No wiring modifications or firmware updates are required. Verify the DC bus voltage rating matches your drive configuration before installation.

Q2: What commissioning steps are required after installing the 3HAC14551-2?
After installation, power up the IRC5 controller and monitor the FlexPendant for self-test results. Check for axis fault codes related to DC bus voltage or capacitor charge. Perform a manual jog of all axes at low speed, then run the RAPID program in step mode for the first production cycle. Update the maintenance log with the installation date and unit serial number.

Q3: Can I use the 3HAC14551-2 in an IRC5 controller that has been upgraded from an M2000 or M2004 platform?
The 3HAC14551-2 is compatible with IRC5 M2004 and later controller revisions. For systems migrated from M2000 hardware, verify that the DC bus voltage configuration and drive module firmware are aligned with IRC5 specifications before installation. Contact our technical team with your controller serial number for a compatibility confirmation.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects, component failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact our sales team with the order number, installation date, and a description of the fault. Replacement units are dispatched within 3 business days of claim approval.
