ABB 3HAC17484-8 Retrofit-Ready AC Servo Motor for IRB

ABB 3HAC17484-8 Retrofit-Ready AC Servo Motor for IRB Control Systems

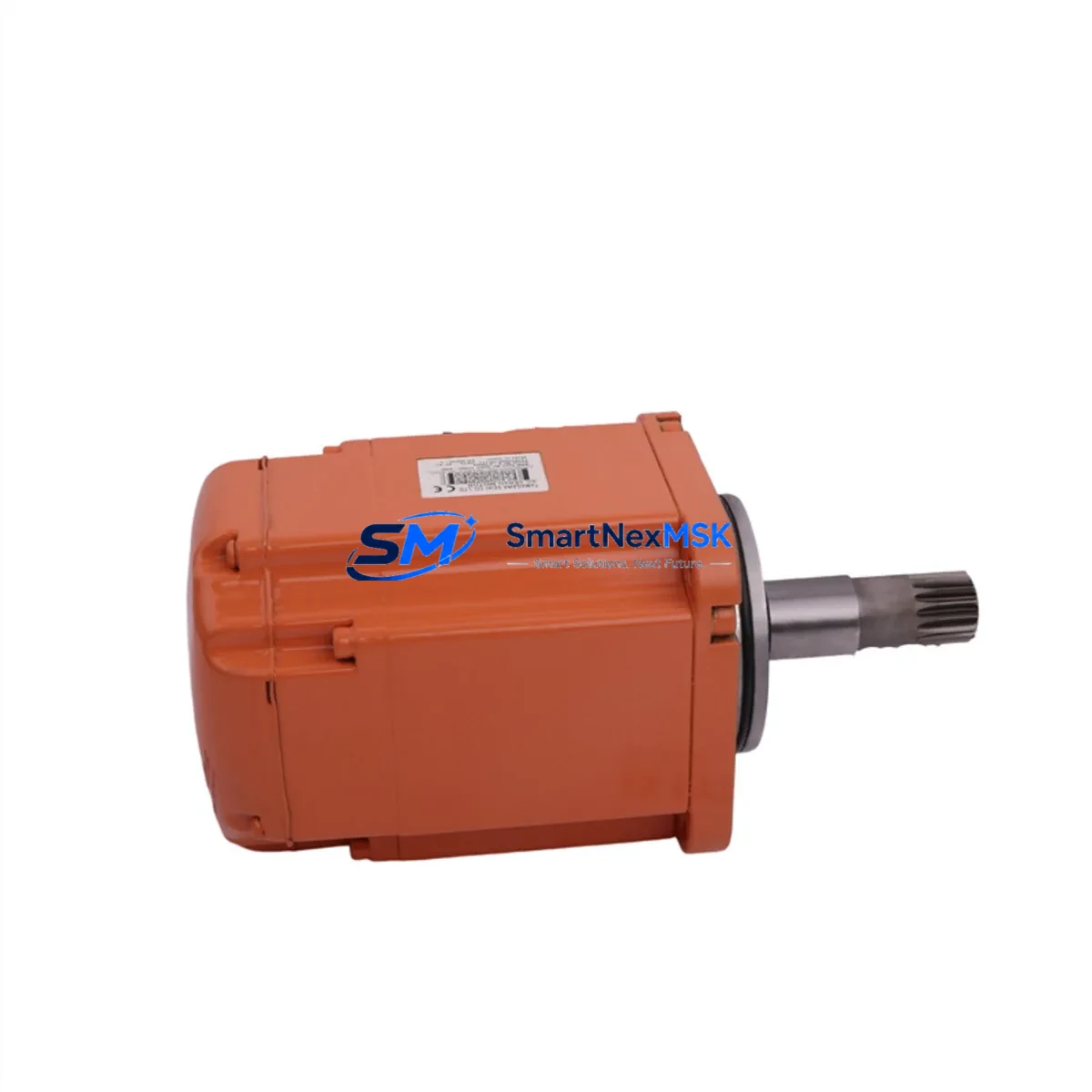

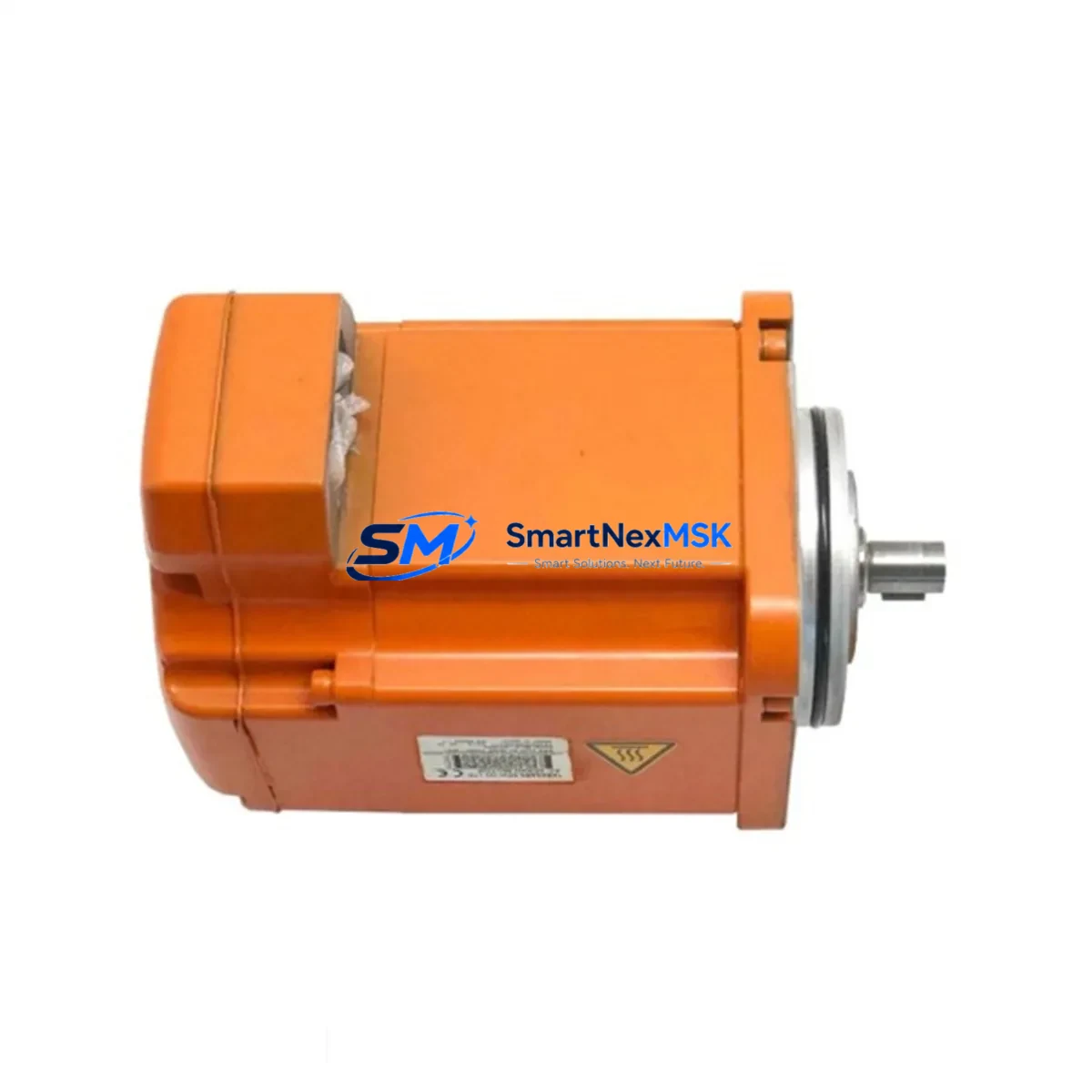

The ABB 3HAC17484-8 is a precision AC servo motor engineered for seamless integration into ABB IRB robot series control architectures. As legacy IRB units approach end-of-service milestones and OEM spare parts become increasingly scarce, the 3HAC17484-8 serves as a verified drop-in replacement that preserves existing wiring harnesses, encoder feedback loops, and drive parameter configurations without requiring full-system re-engineering. Whether you are managing a planned retrofit, responding to an unplanned motor failure, or executing a phased control-cabinet upgrade, this unit is pre-tested and ready for immediate installation.

Before committing to a replacement, engineers should verify the following compatibility parameters against the existing installation: supply voltage and phase configuration at the drive output stage, peak and continuous torque ratings relative to the original motor nameplate, encoder resolution and signal protocol (typically EnDat or resolver-based on ABB IRB platforms), shaft diameter and keyway dimensions, and the mounting flange standard (IEC B5 or B14). The 3HAC17484-8 retains the same mechanical envelope as the original factory-fitted motor, which eliminates the need to modify the robot arm casting or cable management channels during swap-out.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ABB 3HAC17484-8 into an active production line requires systematic pre-work across mechanical, electrical, and software domains. Begin by auditing the existing control cabinet layout: confirm that the ABB IRC5 controller (or legacy S4C+ controller) has available axis drive slots and that the DSQC 627 or DSQC 628 servo drive module assigned to the affected axis is functioning correctly. A faulty drive module will cause repeated motor failures regardless of the replacement unit installed.

On the electrical side, inspect the motor power cable and signal cable for insulation degradation, particularly at the cable entry gland and along any sections routed through the robot arm. Reusing damaged cables with a new motor introduces ground fault risk and can corrupt encoder feedback signals, leading to axis position errors or E-stop faults on the IRC5 teach pendant. If the cables show wear, replace them with ABB-rated flex cables rated for the robot’s full range of motion.

For sites running multiple IRB units on a shared DeviceNet or PROFIBUS DP network, verify that the node address assigned to the affected robot’s I/O module — typically an ABB DSQC 651 or DSQC 652 distributed I/O unit — is not duplicated on the network segment. Address conflicts can cause intermittent communication faults that are difficult to distinguish from motor-related alarms during post-installation testing.

If the robot is integrated with a Siemens S7-300 or S7-1500 PLC via PROFIBUS or PROFINET for cell-level sequencing, coordinate the motor swap with the PLC programmer to ensure that the robot’s “Ready” and “Fault” status signals are correctly suppressed in the PLC logic during the maintenance window. Failure to do so may trigger upstream conveyor stops or safety PLC faults on a Pilz PNOZ or equivalent safety relay module.

HMI screens — whether running on a Siemens TP700 Comfort panel, a Weintek cMT series display, or an ABB CP600 operator panel — should be reviewed to confirm that any axis-specific alarm messages referencing the motor serial number or axis designation are updated to reflect the replacement unit. This is particularly important in facilities where maintenance logs are pulled directly from HMI alarm history for compliance reporting.

Finally, if the robot cell uses an ABB SafeMove2 safety module for speed and position monitoring, the safety configuration must be re-validated after the motor replacement. SafeMove2 stores axis-specific parameters that are tied to the motor’s encoder characteristics; an unconfigured safety module will prevent the robot from entering automatic mode after the swap.

Downtime Control During System Migration

Minimizing unplanned downtime during a servo motor replacement on an ABB IRB robot requires a structured approach that begins well before the maintenance window opens. The most effective strategy is to pre-stage the replacement 3HAC17484-8 unit alongside all required consumables — including new cable ties, terminal ferrules, and a calibration tool set — so that the physical swap can be completed within a single shift.

Before powering down the robot, use RobotStudio to back up the full system configuration, including RAPID program modules, system parameters, I/O configuration, and SafeMove2 safety data. Store the backup on an external USB drive and verify the archive integrity before proceeding. This ensures that if the IRC5 controller experiences a memory fault during the power cycle, the system can be restored to its pre-maintenance state without re-programming.

During the motor swap, keep the robot in a mechanically locked position using the axis brake release tool to prevent uncontrolled arm movement. After installing the 3HAC17484-8 and reconnecting the power and encoder cables, perform a controlled power-on sequence: energize the IRC5 controller first, confirm that the drive module initializes without fault codes, then release the axis brakes and execute a slow-speed jog to verify encoder feedback continuity before running any automatic program.

Post-installation calibration should be performed using the ABB calibration pendulum or equivalent calibration fixture to re-establish the axis zero position. Document the new calibration offset values and update the robot’s system parameters accordingly. Once calibration is confirmed, run the production program in manual reduced-speed mode for at least one full cycle before returning the robot to automatic operation. This staged return-to-service approach protects both the equipment and the surrounding production infrastructure from the consequences of an undetected configuration error.

Retrofit Support FAQ

Q1: Is the ABB 3HAC17484-8 a direct drop-in replacement for the original factory motor on all IRB axis configurations?
In most IRB configurations where the 3HAC17484-8 was originally specified, it is a direct mechanical and electrical replacement. However, you should verify the axis number, motor mounting orientation, and encoder type against your robot’s original parts list before ordering. Contact our technical team with your robot serial number for confirmation.

Q2: What commissioning steps are required after installing the replacement motor?
After physical installation and cable reconnection, you must perform an axis calibration using the ABB FlexPendant or RobotStudio calibration routine. Update the motor offset parameters in the IRC5 system configuration, and if SafeMove2 is active, re-validate the safety configuration before enabling automatic mode. A full test cycle at reduced speed is recommended before resuming production.

Q3: Can the existing wiring and connectors be reused with the 3HAC17484-8?
Yes — the 3HAC17484-8 retains the OEM connector pinout for both the power cable and the encoder signal cable. Existing cables can be reused provided they pass a visual and continuity inspection. If cables show signs of insulation damage, chafing, or connector corrosion, replacement is strongly recommended to avoid encoder signal errors after installation.

Q4: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, a description of the fault, and any available fault codes from the IRC5 controller. Replacement or repair will be arranged promptly upon verification.
