ABB 6637827G1 Maintenance-Ready Spare for Mark V Automation

ABB 6637827G1 Maintenance-Ready Spare for Mark V Automation

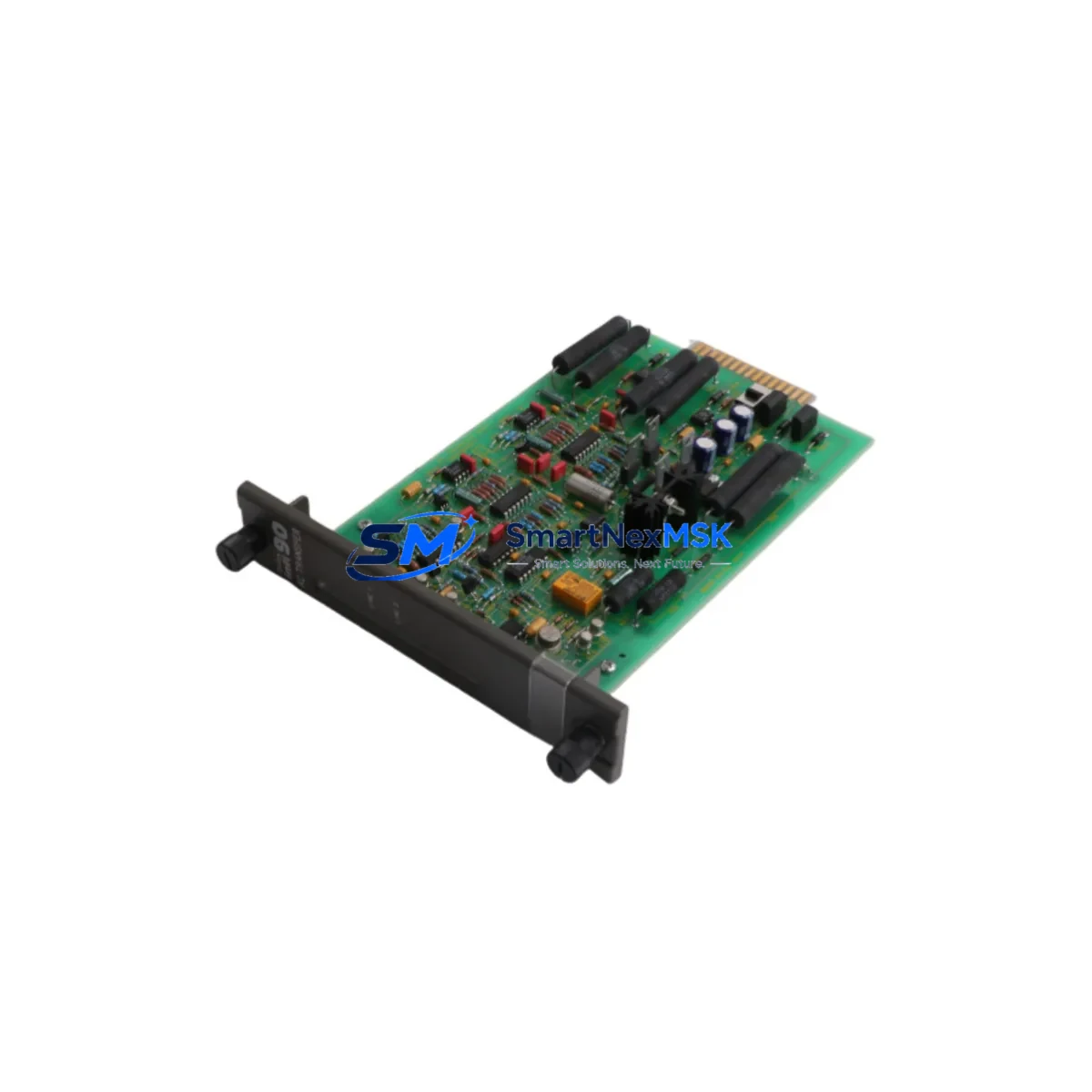

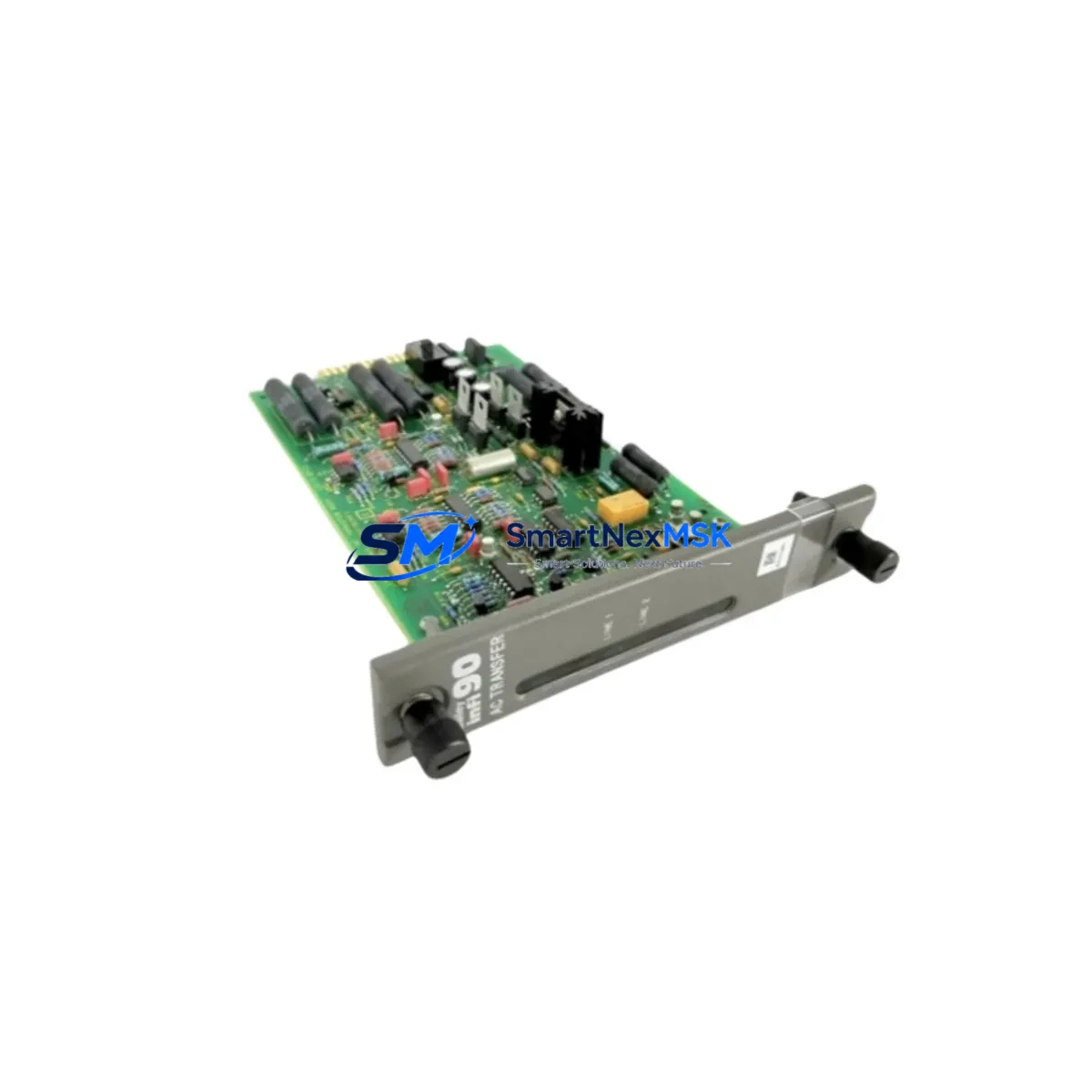

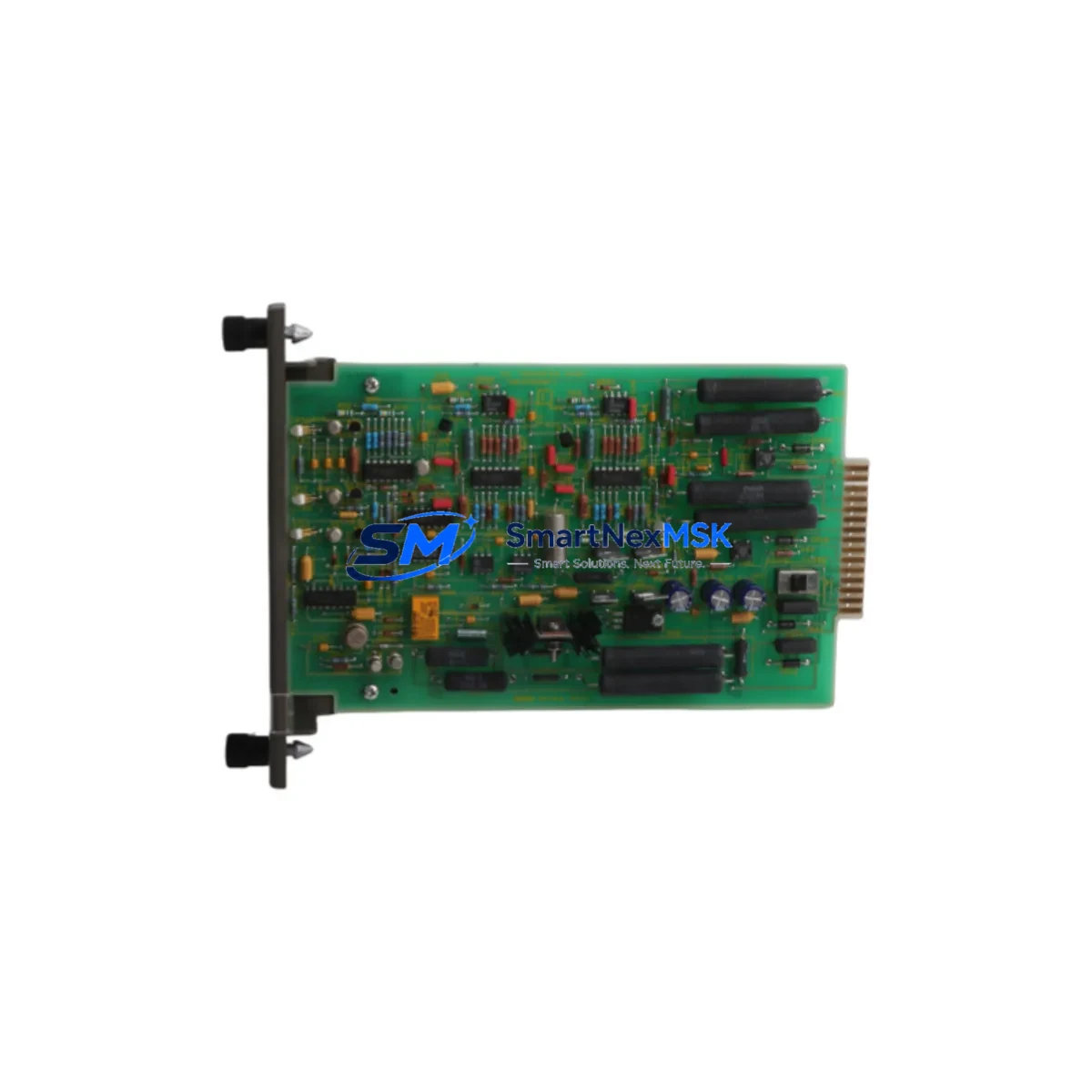

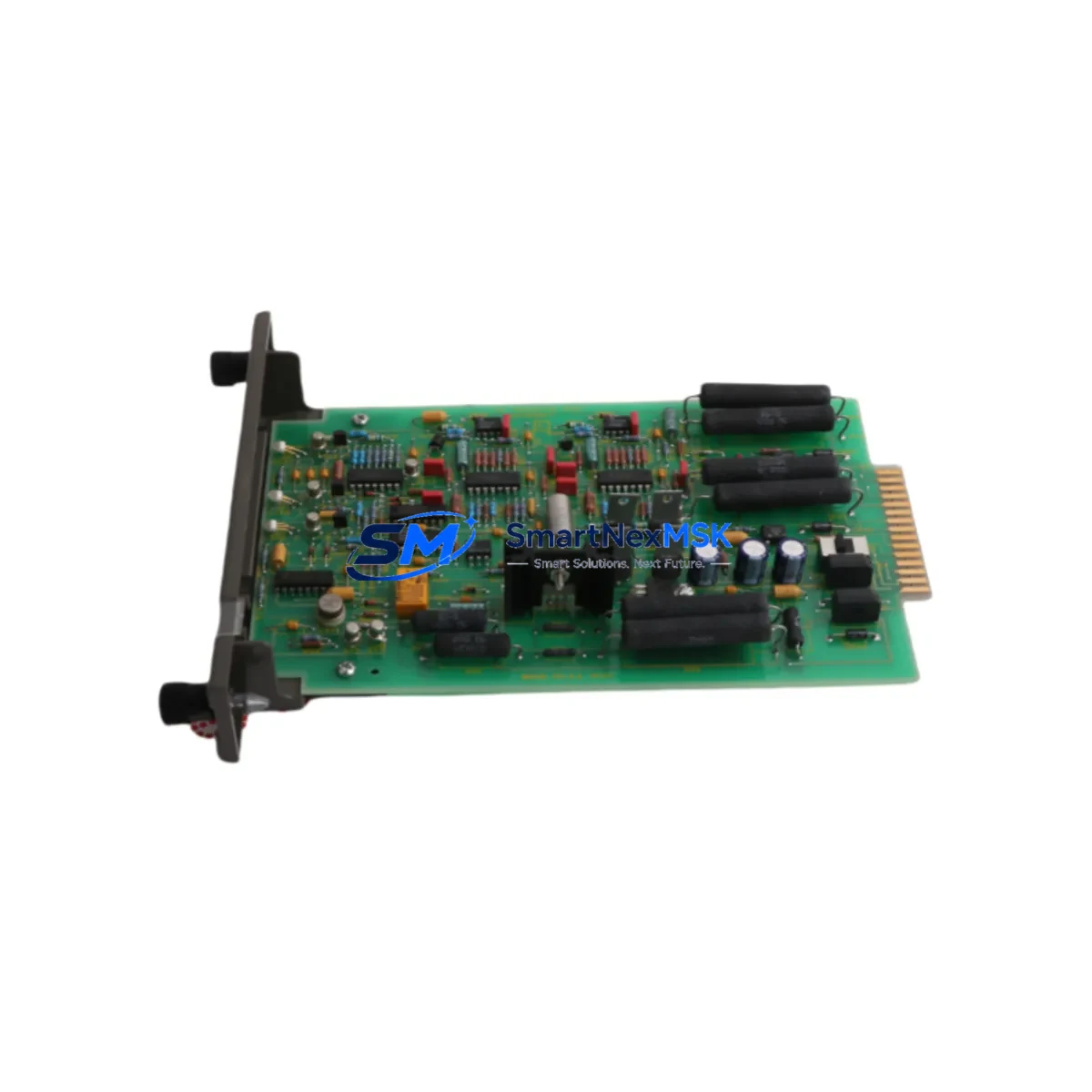

The ABB 6637827G1 AC Transfer Module is a critical spare part for GE Mark V turbine control systems deployed across power generation, oil & gas, and heavy industrial facilities worldwide. When this module fails or degrades, the consequences extend far beyond a single component — the entire turbine control loop is at risk of unplanned shutdown. Sourcing a verified, pre-tested replacement unit is the fastest path to restoring operational continuity and minimizing costly downtime.

At SMARTNEXMSK, we supply the ABB 6637827G1 as an original-grade industrial spare, fully inspected and function-tested prior to dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and functional integrity. Our inventory is maintained specifically to support maintenance engineers and procurement teams managing aging Mark V control architectures, where OEM lead times are no longer viable and system continuity depends on reliable aftermarket sourcing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 6637827G1 AC Transfer Module is rarely an isolated task. In a Mark V turbine control cabinet, the AC transfer circuit interfaces directly with the power distribution backbone and the I/O subsystem. A thorough maintenance plan should address the full electrical loop to prevent repeat failures and ensure the replacement module operates within its rated parameters from day one.

During a planned outage or emergency replacement, maintenance engineers should simultaneously inspect the Mark V power supply modules (such as the IS200 series power conditioners) that feed the AC transfer circuit. Degraded or out-of-tolerance supply voltage is a leading cause of premature AC transfer module failure. Alongside the power supply, the terminal blocks and wiring harnesses connecting the 6637827G1 to the control bus should be checked for oxidation, loose crimps, and insulation breakdown — particularly in high-humidity or high-vibration environments.

The Mark V I/O boards (such as VMIO or VCMI cards) that receive status signals from the AC transfer module should be verified for correct signal levels after the replacement is installed. A faulty I/O board can mask a successful module swap or generate false alarms. Similarly, relay output modules in the same cabinet that share the AC distribution rail should be tested for contact integrity and coil resistance.

For facilities running extended Mark V lifecycles, it is advisable to maintain a minimum buffer stock of signal isolators and surge protection devices on the AC input lines. These components absorb transient energy that would otherwise stress the transfer module’s internal switching elements. Communication interface cards — such as the Mark V TCCA or TCCB serial communication boards — should also be checked if the replacement triggers any unexpected HMI alarms, as communication faults can appear symptomatically similar to power transfer errors.

Procurement engineers building a comprehensive Mark V spare parts kit should consider pairing the 6637827G1 with fuse holders and DIN-rail fuse blocks rated for the AC transfer circuit, Mark V backplane connectors, and HMI interface modules used for operator panel communication. Keeping these components in the same spare parts inventory ensures that a single-component failure does not cascade into a multi-day sourcing delay.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the Mark V control cabinet section containing the 6637827G1. Apply LOTO procedures per site safety standards. Confirm zero-energy state with a calibrated voltage tester on both the AC input and output terminals of the module.

Step 2 — Documentation: Photograph the existing wiring configuration and record terminal assignments before disconnecting any conductors. Cross-reference with the Mark V wiring diagram for the specific turbine unit. Note the current firmware or configuration version displayed on the HMI if applicable.

Step 3 — Module Removal: Disconnect the wiring harness from the 6637827G1. Release the module from its mounting position (DIN rail clip or panel fasteners). Inspect the vacated slot for debris, corrosion, or signs of thermal stress that may indicate a root cause beyond the module itself.

Step 4 — Replacement Installation: Seat the new ABB 6637827G1 into the mounting position. Reconnect all conductors per the documented terminal assignments. Verify torque on all screw terminals to manufacturer specification to prevent intermittent contact faults.

Step 5 — Energization and Verification: Restore power in sequence per the Mark V startup procedure. Monitor the HMI for alarm clearance and confirm that the AC transfer status signal is correctly reported. Perform a functional transfer test if the system configuration permits.

Step 6 — Documentation Closure: Record the replacement in the maintenance management system (CMMS) with the new module’s serial number, installation date, and warranty expiry. Update the spare parts inventory to trigger reorder of a replacement buffer unit.

Spare Parts Support FAQ

Q1: Is the ABB 6637827G1 a direct drop-in replacement for the original Mark V AC Transfer Module position?
Yes. The 6637827G1 is designed for direct installation into the Mark V AC transfer circuit position without modification to wiring or configuration. Confirm the AC input voltage range matches your site’s distribution standard (120 VAC or 240 VAC) before installation, as some Mark V configurations use site-specific voltage taps.

Q2: What pre-shipment testing does SMARTNEXMSK perform on the 6637827G1?
Each unit undergoes functional switching tests, insulation resistance checks, and a burn-in cycle under rated load conditions before dispatch. A test report is available upon request. Units that do not meet functional thresholds are quarantined and not shipped.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers functional failure under normal operating conditions, including internal relay contact failure, switching circuit faults, and connector integrity issues. To initiate a claim, contact sales@smartnexmsk.com with the order reference, installation date, and a description of the fault. SMARTNEXMSK will arrange return logistics and dispatch a replacement unit upon fault verification.

Q4: Can SMARTNEXMSK support long-term supply agreements for Mark V spare parts?
Yes. We support scheduled procurement programs for maintenance teams managing multiple Mark V turbine units or multi-site operations. Long-term supply agreements include reserved inventory allocation, priority dispatch, and consolidated documentation packages. Contact our technical sales team to discuss volume and scheduling requirements.
