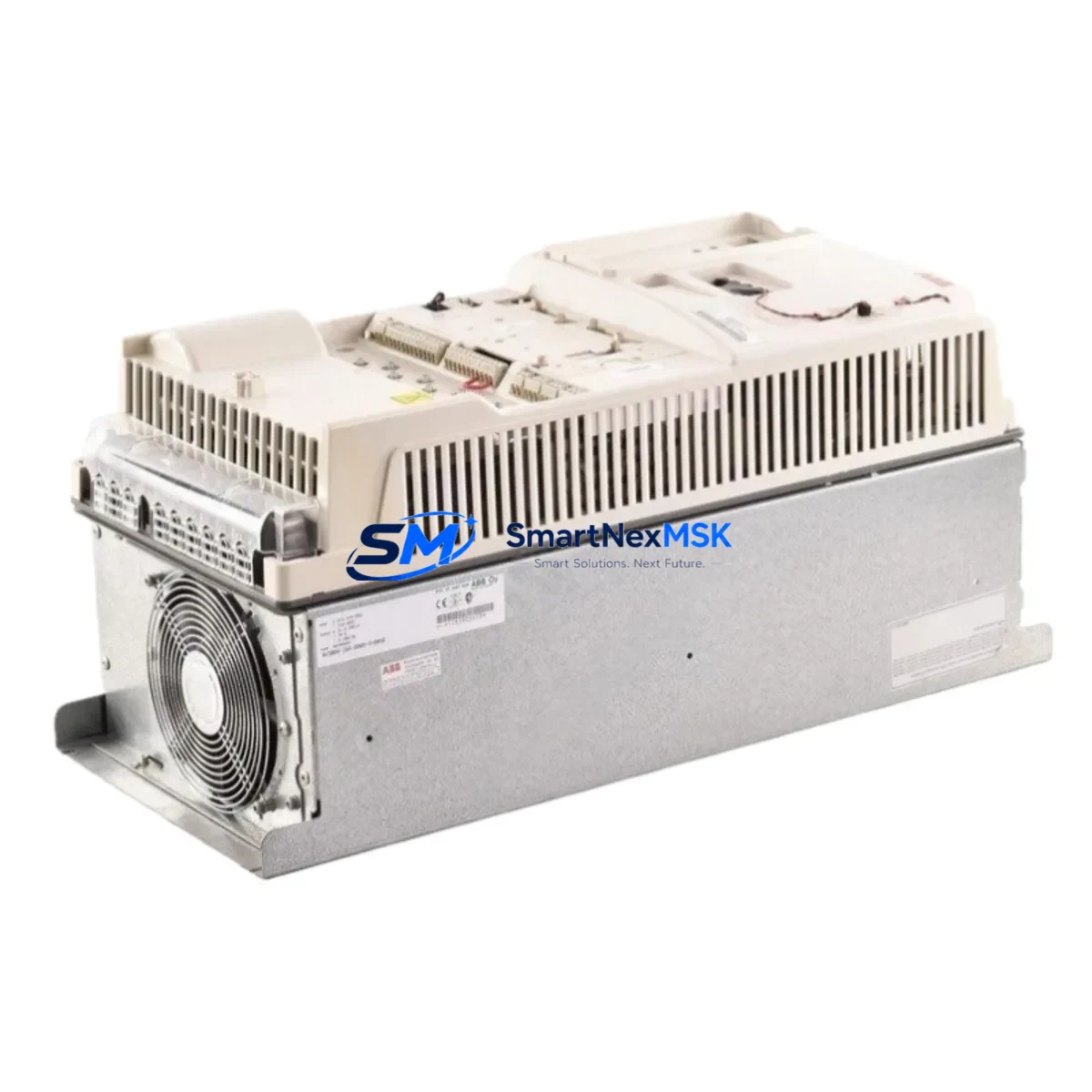

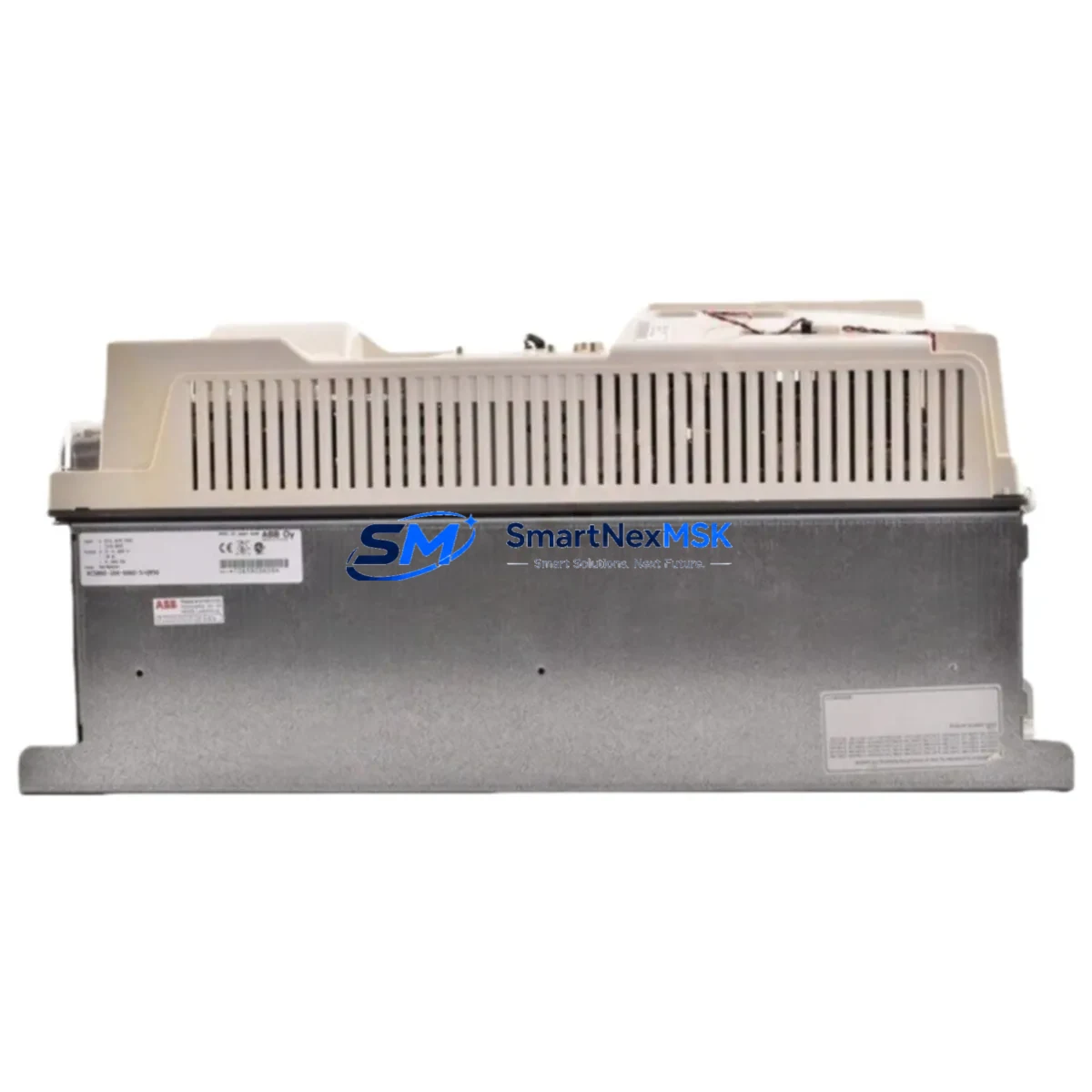

ABB ACS800-104-0060-5+Q950 Retrofit-Ready AC Drive for ACS800

ABB ACS800-104-0060-5+Q950 Retrofit-Ready AC Drive for ACS800 Control Systems

The ABB ACS800-104-0060-5+Q950 is a cabinet-mount AC drive engineered for demanding industrial environments where legacy system continuity and smooth migration are critical. As a direct retrofit solution for the ACS800 series, this unit addresses the growing need to replace discontinued or end-of-life drives without redesigning the surrounding control architecture. Whether you are upgrading an aging production line, restoring a failed drive in a critical process, or modernizing a control cabinet to meet current safety and efficiency standards, the ACS800-104-0060-5+Q950 delivers the compatibility, reliability, and field-proven performance that industrial engineers require.

This drive is rated for high-power cabinet installations and ships pre-configured with the +Q950 option, which provides an integrated cabinet assembly suitable for direct panel integration. The unit supports both PROFIBUS-DP and Modbus RTU communication protocols, making it compatible with a wide range of existing PLC platforms including ABB AC500, Siemens S7-300, and Allen-Bradley ControlLogix systems. Before installation, engineers should verify the existing fieldbus adapter — typically an RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter — to confirm protocol alignment and node addressing.

Power supply verification is a mandatory first step in any ACS800 retrofit. The incoming supply voltage, phase configuration, and cable cross-section must match the drive’s input specifications. The existing motor cable routing, EMC shielding continuity, and grounding topology should be inspected and documented before the old unit is removed. Terminal block layouts between legacy ACS800 units and the replacement drive are generally compatible, but engineers should cross-reference the I/O terminal assignments — particularly analog input AI1/AI2 for speed reference, digital inputs DI1–DI6 for run/stop and fault reset, and relay outputs RO1/RO2 for status signaling — against the existing wiring diagram.

Backplane and rack integration is straightforward for cabinet-mount configurations. The ACS800-104-0060-5+Q950 uses standard DIN rail and mounting plate arrangements consistent with the broader ACS800 product family. If the installation includes an ACS800 multidrives cabinet with a shared DC bus, the DC link connections and pre-charge circuit must be carefully managed during the swap to avoid inrush damage to adjacent drives or the common DC bus capacitor bank.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS800-104-0060-5+Q950 retrofit begins with a thorough audit of the existing control cabinet. Engineers typically encounter a combination of legacy components that must be evaluated for compatibility: the ACS800 control unit (RMIO board), I/O extension modules such as the RAIO-01 analog I/O extension or RDIO-01 digital I/O extension, and the existing power supply module feeding the control electronics. If the installation uses an RDCO-01 or RDCO-02 DDCS fiber optic communication module for master-follower configurations, the fiber routing and channel assignments must be preserved during the swap.

For sites running ABB Drives fieldbus control via an RPBA-01 PROFIBUS adapter, the GSD file version and PLC hardware configuration must be verified before the new drive is brought online. Mismatched GSD files are a common source of commissioning delays. Similarly, if the system uses an RMBA-01 Modbus adapter, the baud rate, parity, and slave address settings stored in the drive parameters must be re-entered on the replacement unit — these are not automatically transferred from the old drive’s memory.

HMI integration is another area requiring careful attention. If the existing operator panel is an ACS800 CDP312R control panel or a remote panel connected via the panel bus, the panel bus cable and connector type should be inspected for wear. In systems where the HMI is a third-party panel (Siemens TP700, Weintek MT8000, or similar) communicating via Modbus TCP or PROFIBUS, the drive’s communication parameters must be re-commissioned to match the HMI’s polling configuration. Screen templates and alarm mappings referencing drive fault codes should be reviewed against the new drive’s fault code list to ensure alarm display accuracy.

Program logic compatibility is generally high within the ACS800 family. However, if the original drive was running a custom application macro or an ABB DriveAP application program, the program file should be backed up using DriveWindow Light 2 before the old unit is decommissioned. The backup file can then be loaded into the replacement drive after basic commissioning is complete. Parameter sets should be exported and compared side-by-side to identify any parameter index differences between firmware versions.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 drive replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, the full parameter set of the existing drive should be uploaded and saved. All terminal wiring should be photographed and labeled. The motor nameplate data — voltage, current, frequency, power factor, and speed — should be recorded and entered into the replacement drive’s motor data parameters before the unit arrives on site.

During the outage, the sequence should follow: isolate and lock out the incoming supply, discharge the DC bus capacitors (minimum 5 minutes after isolation), remove the old drive, mount and wire the replacement unit, restore the fieldbus adapter and I/O extension modules, power up in local control mode for initial checks, run a motor identification (ID run) if required by the application, then transfer control back to the PLC and verify all digital and analog I/O signals before resuming production. This structured approach typically allows a cabinet-mount ACS800 replacement to be completed within a 4–8 hour maintenance window, depending on cabinet complexity.

All units supplied by SMARTNEXMSK are tested prior to shipment and covered by a 12-month warranty. Stock availability is confirmed at time of order, and expedited shipping is available for urgent breakdown situations.

Retrofit Support FAQ

Q: Is the ACS800-104-0060-5+Q950 a direct drop-in replacement for my existing ACS800-104 unit?
A: Yes, within the ACS800-104 cabinet-mount series, the mechanical footprint, terminal layout, and fieldbus adapter slots are consistent. Minor wiring adjustments may be required depending on the firmware version and I/O configuration of the original unit. Always cross-reference the terminal diagram before installation.

Q: Do I need to re-commission the PROFIBUS or Modbus communication after replacement?
A: Yes. Communication parameters including node address, baud rate, and protocol settings are stored in the drive’s parameter memory and must be re-entered on the replacement unit. If using PROFIBUS, verify the GSD file version matches the PLC hardware configuration.

Q: Can I reuse the existing RPBA-01 or RMBA-01 fieldbus adapter from the old drive?
A: In most cases, yes. The fieldbus adapter slots on the ACS800-104 series are compatible across units. Inspect the adapter for physical damage and verify firmware compatibility before reuse. SMARTNEXMSK can supply replacement adapters if required.

Q: What warranty and pre-shipment testing does SMARTNEXMSK provide?
A: Every unit is function-tested before dispatch. A 12-month warranty covers manufacturing defects and operational failures under normal industrial use conditions. Warranty support includes technical consultation, replacement unit dispatch, and field commissioning guidance.
