ABB AI950S 3KDE175521L9500 Retrofit-Ready Temp Input for AC800M

ABB AI950S 3KDE175521L9500 Retrofit-Ready Temperature Input for AC800M S800 I/O Control Systems

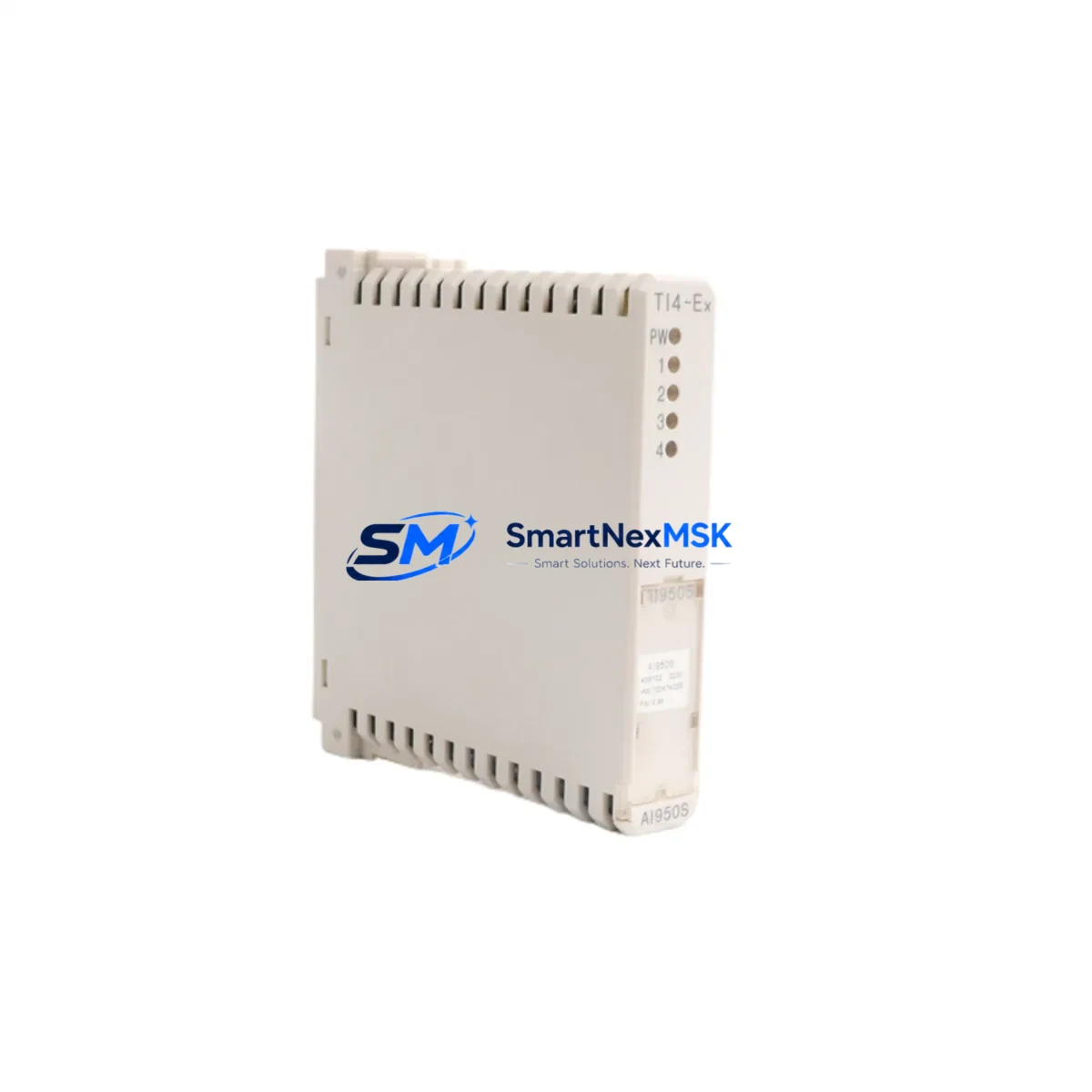

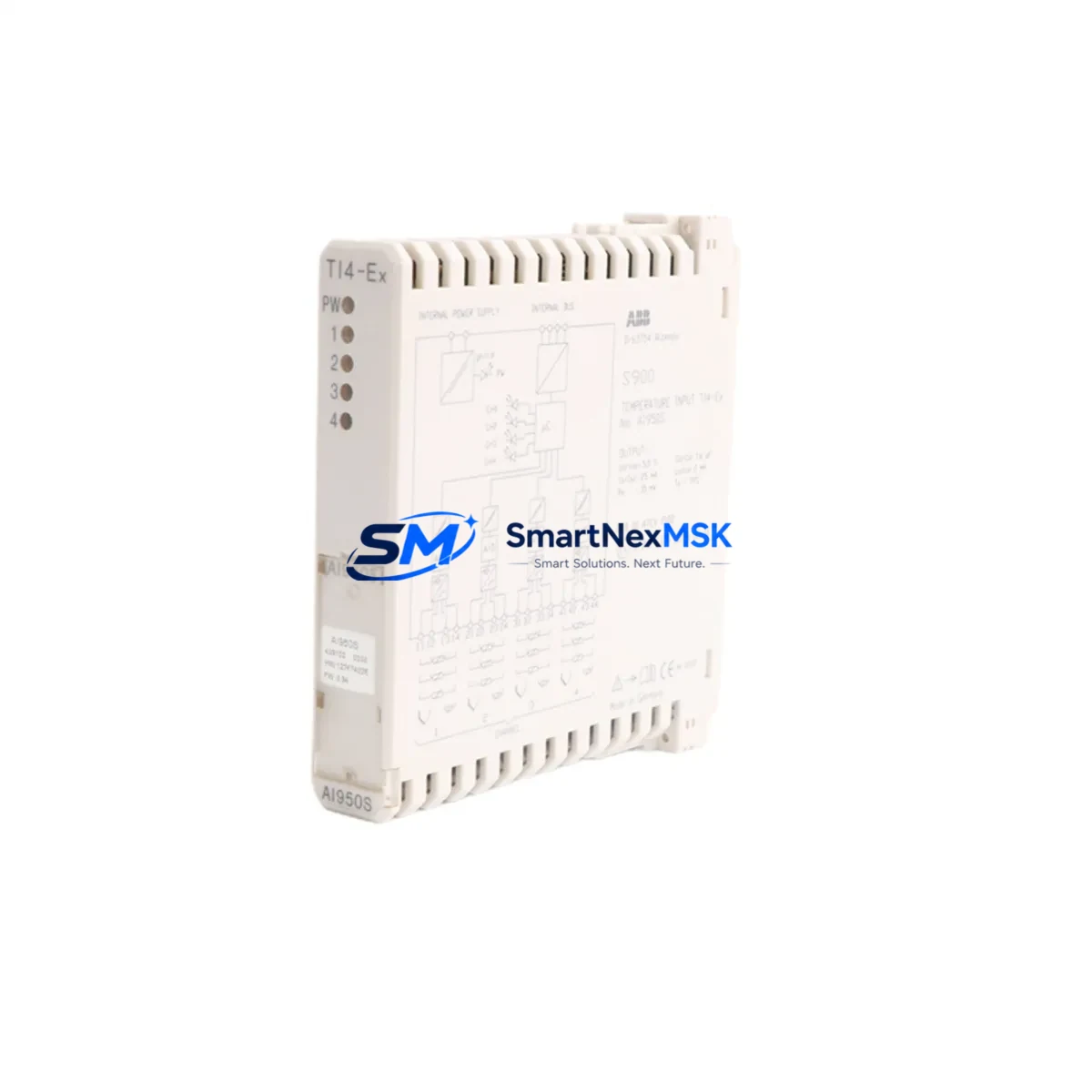

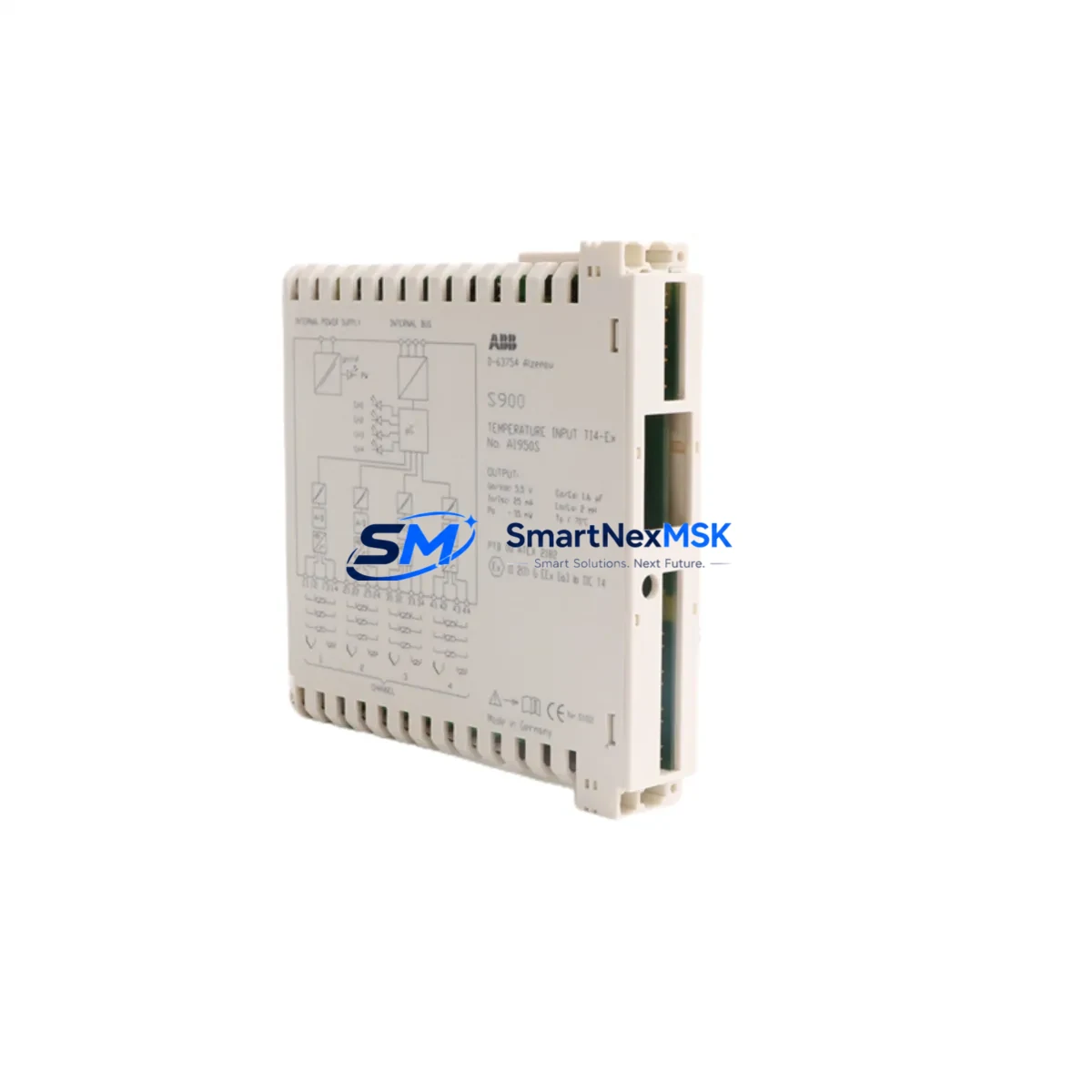

The ABB AI950S (3KDE175521L9500) is an 8-channel RTD and thermocouple temperature input module engineered for the ABB AC800M distributed control system platform and the S800 I/O family. As legacy DCS installations age and original spare parts become increasingly difficult to source, the AI950S represents a proven, drop-in retrofit solution for facilities managing aging process control infrastructure. Whether you are replacing a failed unit, upgrading a discontinued module, or modernizing a control cabinet as part of a broader system migration, the AI950S delivers full backward compatibility with existing S800 I/O bus architecture, preserving your investment in field wiring, terminal blocks, and control logic.

Industrial facilities running ABB Advant OCS, MOD 300, or early-generation AC800M controllers frequently encounter obsolescence challenges when sourcing temperature input modules. The AI950S addresses this directly: it supports Pt100, Pt1000, Ni100, and standard thermocouple types (J, K, T, E, R, S, B), making it suitable for a wide range of process temperature measurement applications including boiler control, heat exchanger monitoring, reactor temperature loops, and HVAC plant automation. Each channel is individually configurable, and the module communicates over the S800 I/O bus without requiring firmware changes to the AC800M controller or modifications to the Control Builder M application program.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AI950S retrofit begins well before the module arrives on site. Engineers should start by auditing the existing S800 I/O station layout: confirm the number of occupied slots on the S800 baseplate or rail-mount carrier, verify that the TB820 or TB840 bus interface unit firmware is at a revision compatible with the AI950S, and document the current channel-to-tag mapping in the Control Builder M hardware configuration. In many legacy installations, the original AI810 or AI830 modules were configured with fixed channel types; the AI950S allows per-channel flexibility, which must be reflected in the updated hardware configuration before download.

Terminal wiring is typically the most time-sensitive element of the retrofit. The AI950S uses the same S800 I/O terminal unit footprint, so existing field cables connected to a TU810 or TU830 terminal unit can remain in place. However, engineers should verify wire labeling against the original loop drawings, particularly for 3-wire and 4-wire RTD connections where lead compensation is critical to measurement accuracy. If the installation uses a CI854 PROFIBUS communication interface or a CI856 PROFIBUS DP/V1 module for remote I/O communication, no changes to the fieldbus segment are required — the AI950S is transparent to the communication layer.

For sites running ABB System 800xA as the supervisory layer, the AI950S integrates without modification to the Aspect Object structure. Existing faceplate graphics, trend displays, and alarm configurations in the 800xA HMI remain valid after the module swap, provided the hardware configuration in Control Builder M is updated and downloaded to the controller. If the plant uses a standalone ABB Panel 800 operator terminal or a third-party SCADA system communicating via OPC DA or OPC UA, no HMI screen changes are required — signal tags and addresses are preserved.

Power budget verification is an important pre-retrofit step that is often overlooked. Each S800 I/O module draws power from the S800 power supply unit (PSU), typically an SD821 or SD822. Adding or replacing modules changes the total current draw on the 24 VDC bus. Before installation, calculate the aggregate current consumption of all modules in the station and confirm it remains within the PSU rated output. If the existing PSU is operating near capacity, consider installing an additional SD821 power supply or redistributing modules across a second S800 baseplate.

Module address configuration is handled automatically by the S800 I/O bus — the AI950S does not require manual DIP switch addressing. However, the slot position within the baseplate determines the module’s logical address in Control Builder M. If the AI950S is installed in a different slot than the module it replaces (for example, due to physical damage to the original slot), the hardware configuration must be updated accordingly and a new program download performed. Coordinate this with the control room operator to schedule a brief controller restart window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any live-plant retrofit. The recommended approach for an AI950S swap is a hot-standby preparation strategy: pre-configure the replacement module offline using a spare AC800M controller and a test S800 I/O station if available, validate channel types and scaling against the original loop documentation, and prepare the updated Control Builder M project file before the maintenance window opens.

During the maintenance window, the sequence is: isolate the affected I/O station from the process (place loops in manual at the DCS), power down the S800 station, remove the failed or obsolete module, insert the AI950S into the same slot, restore power, and verify module status LEDs. The AI950S self-initializes on the S800 bus within seconds. Download the updated hardware configuration from Control Builder M, confirm channel diagnostics are clear, and perform a point-by-point loop check against the field instruments before returning loops to automatic. Total elapsed time for a single-module swap in a well-prepared environment is typically 30 to 60 minutes.

For sites where continuous process operation prevents a full station shutdown, consider a phased approach: migrate non-critical temperature loops first, validate performance over one production cycle, then proceed with critical loops during the next scheduled maintenance interval. This approach is particularly effective in facilities where the CI854 or CI856 communication interface supports redundant PROFIBUS segments — one segment can remain active while the other is serviced. All modules supplied by SMARTNEXMSK are pre-tested prior to shipment, reducing the risk of commissioning delays caused by infant-failure defects.

Retrofit Support FAQ

Q1: Is the ABB AI950S a direct drop-in replacement for the AI810 or AI830?
Yes, the AI950S is physically and electrically compatible with the same S800 I/O slot and TU810/TU830 terminal unit used by the AI810 and AI830. The primary difference is that the AI950S supports both RTD and thermocouple inputs on all 8 channels, whereas the AI810 is RTD-only and the AI830 is thermocouple-only. After physical installation, update the module type in the Control Builder M hardware configuration and download to the AC800M controller. No field wiring changes are required for like-for-like sensor type replacements.

Q2: What commissioning steps are required after installing the AI950S?
After physical installation, open the Control Builder M hardware editor, replace the old module type with AI950S in the correct slot position, configure each channel’s input type and measurement range to match the original loop specification, and perform a hardware configuration download to the AC800M controller. Verify the module status LED shows green (healthy) on the S800 station. Conduct a loop check on each channel by comparing the AI950S reading against a calibrated reference instrument. For thermocouple inputs, confirm cold junction compensation is enabled and the reference junction temperature source is correctly configured.

Q3: Does the AI950S require any changes to the PROFIBUS or Ethernet communication setup?
No. The AI950S communicates over the S800 I/O optical bus to the TB820, TB840, or TB845 bus interface unit. The upstream communication — whether PROFIBUS DP via CI854, PROFIBUS DP/V1 via CI856, or Industrial Ethernet via CI873 — is handled entirely by the bus interface unit and is unaffected by the module swap. No changes to the fieldbus configuration, GSD files, or network topology are required.

Q4: What does the 12-month warranty cover, and what is the return process?
All AI950S modules supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault. SMARTNEXMSK will arrange a replacement dispatch or repair, with the goal of minimizing your plant downtime. Warranty does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling.
