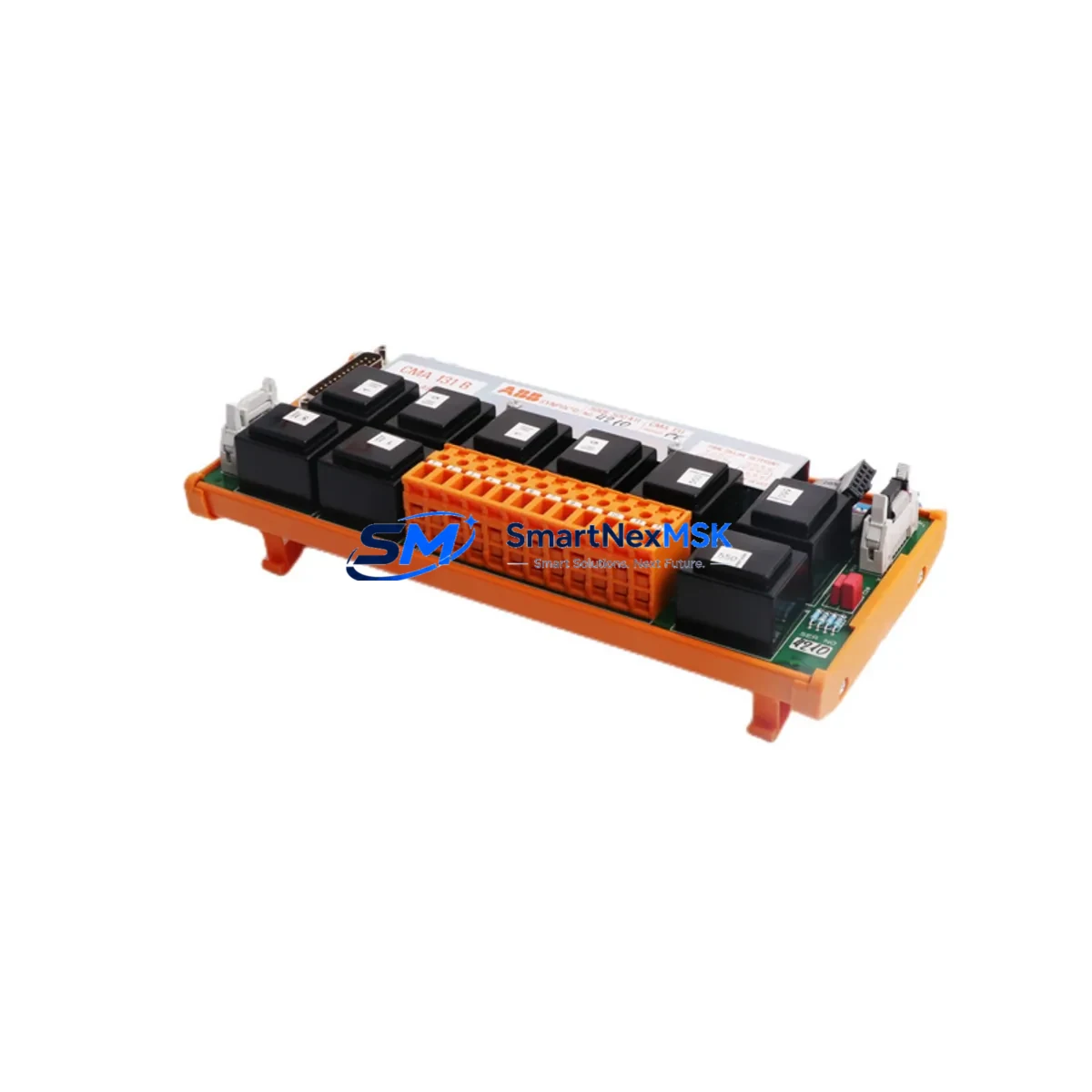

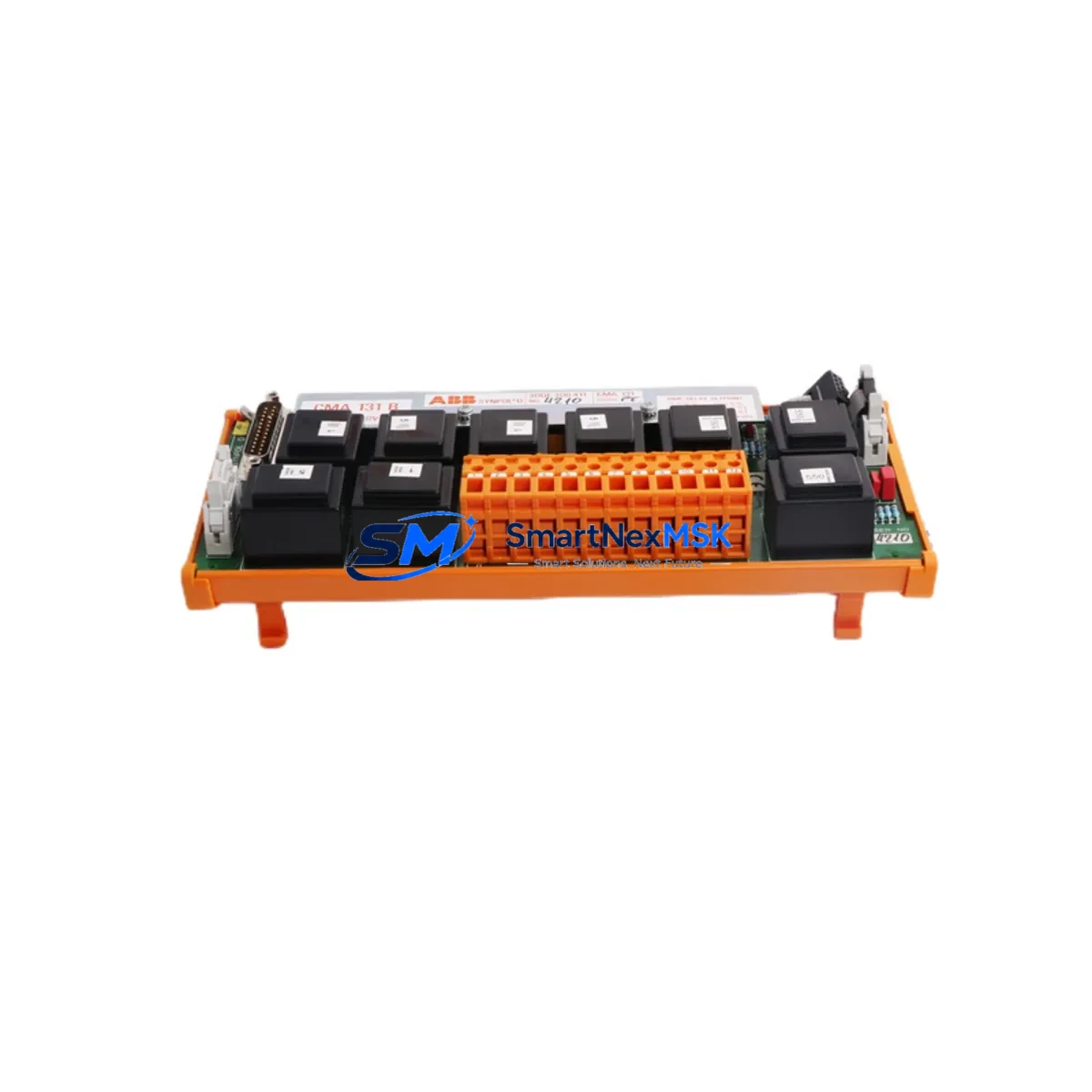

ABB CMA131 3DDE300411 Retrofit-Ready Servo Encoder for IRC5 Control Systems
The ABB CMA131 (part number 3DDE300411) is a servo encoder module engineered for direct retrofit and drop-in replacement within ABB IRC5 robot controller platforms and legacy DSQC-series control cabinets. As ABB progressively phases out older DSQC encoder variants, the CMA131 3DDE300411 has become the preferred upgrade path for maintenance engineers managing aging robotic cells, servo drive systems, and multi-axis motion control installations. SMARTNEXMSK maintains verified stock of this module with full functional testing, a 12-month warranty, and rapid international dispatch to minimize unplanned downtime on your production line.
Whether you are replacing a failed DSQC 633, DSQC 643, or DSQC 662 encoder interface board, or upgrading an entire IRC5 cabinet during a planned shutdown, the CMA131 3DDE300411 integrates directly into the existing backplane without requiring firmware re-flashing or axis parameter reconfiguration in most standard IRC5 M2004 and M2000A installations. Engineers migrating from older S4C+ controller generations should verify axis calibration offsets and resolver signal mapping before commissioning.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Module Part Number | CMA131 / 3DDE300411 |
| Compatible Controller | ABB IRC5 (M2004, M2000A), DSQC-series cabinets |
| Common Replaced Units | DSQC 633, DSQC 643, DSQC 662 encoder boards |
| Backplane Interface | IRC5 standard drive module slot — direct fit |
| Communication Protocol | ABB internal serial encoder bus (resolver/encoder signal) |
| Installation Requirement | Power-off, slot alignment, terminal re-termination per wiring diagram |
| Axis Parameter Reset | Required for S4C+ migration; typically not required for IRC5-to-IRC5 swap |
| Firmware Compatibility | RobotWare 5.x and 6.x verified |
| Commissioning Check | Resolver offset calibration, fine calibration via FlexPendant |
| Warranty | 12 Months — covers functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
A successful CMA131 3DDE300411 retrofit begins well before the module arrives on site. Start by auditing the existing IRC5 cabinet layout: confirm the drive module bay assignment, document the current axis configuration stored in the DSQC 1000 computer unit, and photograph all terminal wiring on the encoder connector block before disconnection. In multi-robot cells sharing a common IRC5 panel, isolate the affected axis drive section using the cabinet’s internal 24 VDC distribution rail before removing the legacy encoder board.
For installations where the original DSQC 643 or DSQC 662 has been in service for more than five years, it is advisable to simultaneously inspect the DSQC 609 power supply module and the DSQC 652 I/O board for capacitor aging and connector oxidation. Replacing these alongside the CMA131 during a single planned outage is far more cost-effective than scheduling a second shutdown. If the cabinet also houses a DSQC 378 fieldbus adapter for DeviceNet or PROFIBUS communication, verify that the encoder replacement does not affect the fieldbus node address table stored in the system parameters.
Terminal wiring on the CMA131 follows the standard ABB resolver cable pinout. Confirm cable shielding continuity from the motor junction box back to the cabinet earth bar — degraded shielding is a common root cause of encoder count errors that are often misdiagnosed as module failure. After physical installation, use the ABB RobotStudio offline environment or the FlexPendant service routine to perform a fine calibration sequence on each retrofitted axis. For systems running Conveyor Tracking or MultiMove configurations, re-validate the synchronization parameters against the original backup before returning the cell to production.
If the retrofit scope extends to upgrading the operator interface, the ABB CP600 or CP635 HMI panels connected via the IRC5 service port will retain their screen logic without modification, provided the axis naming convention in the RAPID program remains unchanged. Similarly, any DSQC 688 PROFINET adapter or DSQC 679 teach pendant interface installed in the cabinet will continue to operate normally after the encoder module swap.
Downtime Control During System Migration
Minimizing production interruption during an encoder module replacement requires a structured pre-shutdown checklist. Before powering down the IRC5 cabinet, create a full system backup using the FlexPendant backup function — this captures the RAPID program, system parameters, I/O configuration, and calibration data in a single archive. Store this backup on both the controller’s internal CompactFlash and an external USB drive to ensure redundancy.
Physical swap time for the CMA131 3DDE300411 in a standard IRC5 single-cabinet installation is typically 20 to 40 minutes for an experienced engineer. The majority of recommissioning time is spent on fine calibration and verification of axis limits rather than hardware installation. To further compress the maintenance window, pre-stage the replacement module at the correct torque settings, prepare the resolver cable with pre-crimped connectors, and have the calibration target fixture positioned at the robot base before shutdown begins.
For continuous-process lines where even a brief stop carries significant cost, consider a hot-standby strategy: configure a spare IRC5 drive section with the CMA131 pre-installed and pre-calibrated offline, then perform a rapid cabinet swap rather than an in-situ module replacement. This approach reduces live downtime to the time required for cable transfer and system restore — often under 15 minutes. After restart, run the robot through its full working envelope at reduced speed before resuming automatic production to confirm encoder signal integrity across all axis positions.
Retrofit Support FAQ
Q1: Is the CMA131 3DDE300411 a direct drop-in replacement for the DSQC 643 encoder board?
In most IRC5 M2004 installations, yes — the CMA131 occupies the same drive module slot and uses the same resolver cable connector pinout as the DSQC 643. However, axis calibration fine-tuning via the FlexPendant is always recommended after any encoder board replacement to confirm offset values match the stored calibration data.
Q2: What wiring checks are required before installing the CMA131?
Verify resolver cable shielding continuity, confirm terminal torque on the encoder connector block (typically 0.5–0.6 Nm for ABB IRC5 terminals), and check that the 24 VDC encoder supply rail is within ±5% tolerance before powering up the new module. Damaged or oxidized connectors should be replaced rather than cleaned to ensure long-term signal reliability.
Q3: Has the CMA131 3DDE300411 been tested before shipment?
Yes. Every unit dispatched by SMARTNEXMSK undergoes functional power-on verification and signal output testing prior to packaging. Each module ships with a test report and is covered by a 12-month warranty against functional failure under normal operating conditions. Units showing any anomaly during pre-shipment testing are quarantined and not dispatched.
Q4: Can this module be used in an S4C+ controller retrofit to IRC5?
The CMA131 3DDE300411 is designed for the IRC5 platform. When migrating from S4C+ to IRC5, the encoder module itself is compatible, but the axis parameter file, resolver offset values, and RAPID program must be re-validated and adapted for the IRC5 system architecture. SMARTNEXMSK recommends consulting the ABB migration guide for S4C+ to IRC5 conversions and performing a full calibration sequence after installation.
