ABB PM860K01 3BSE018100R1 Maintenance-Ready Spare AC800M: Spare Replacement & Industrial Downtime Risk Control

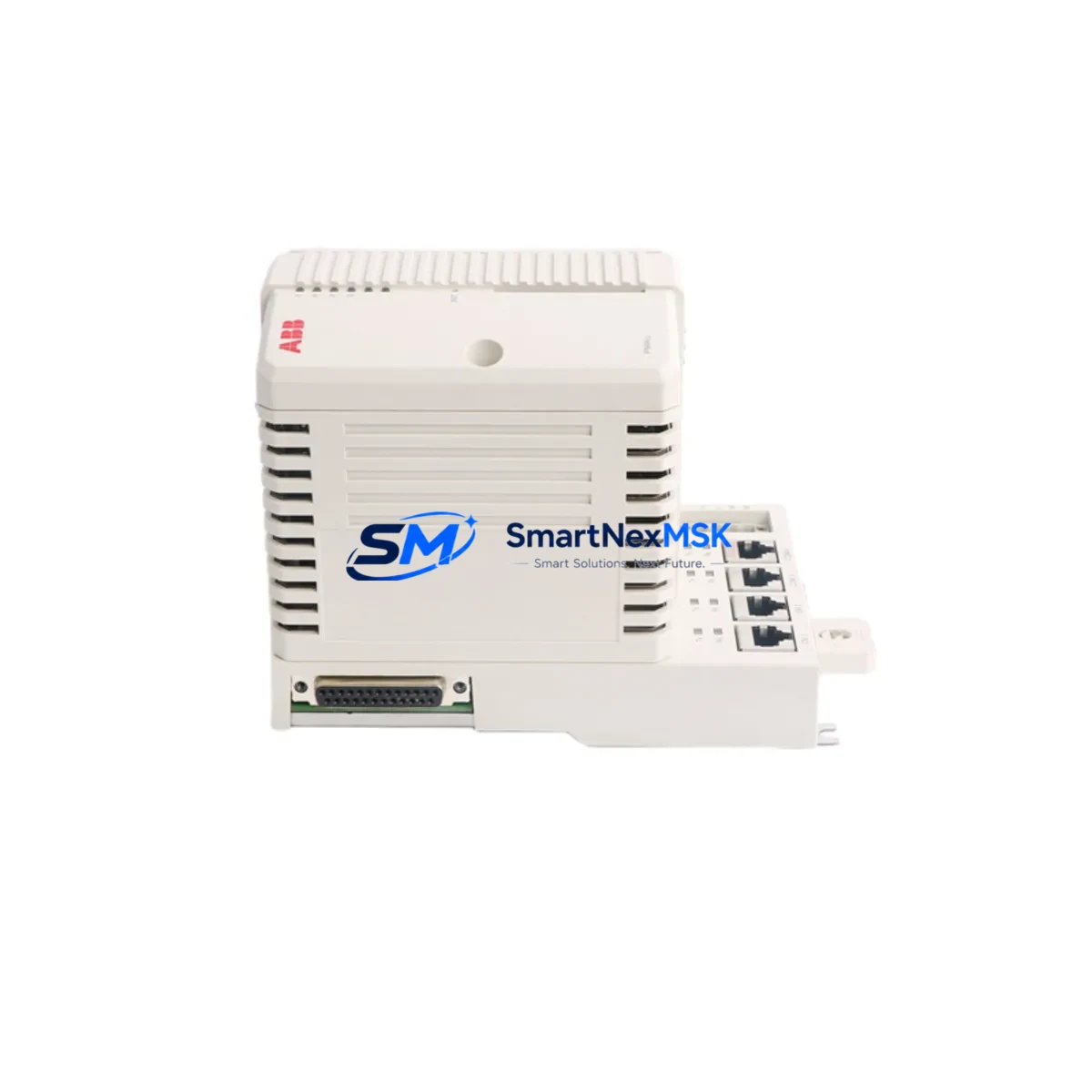

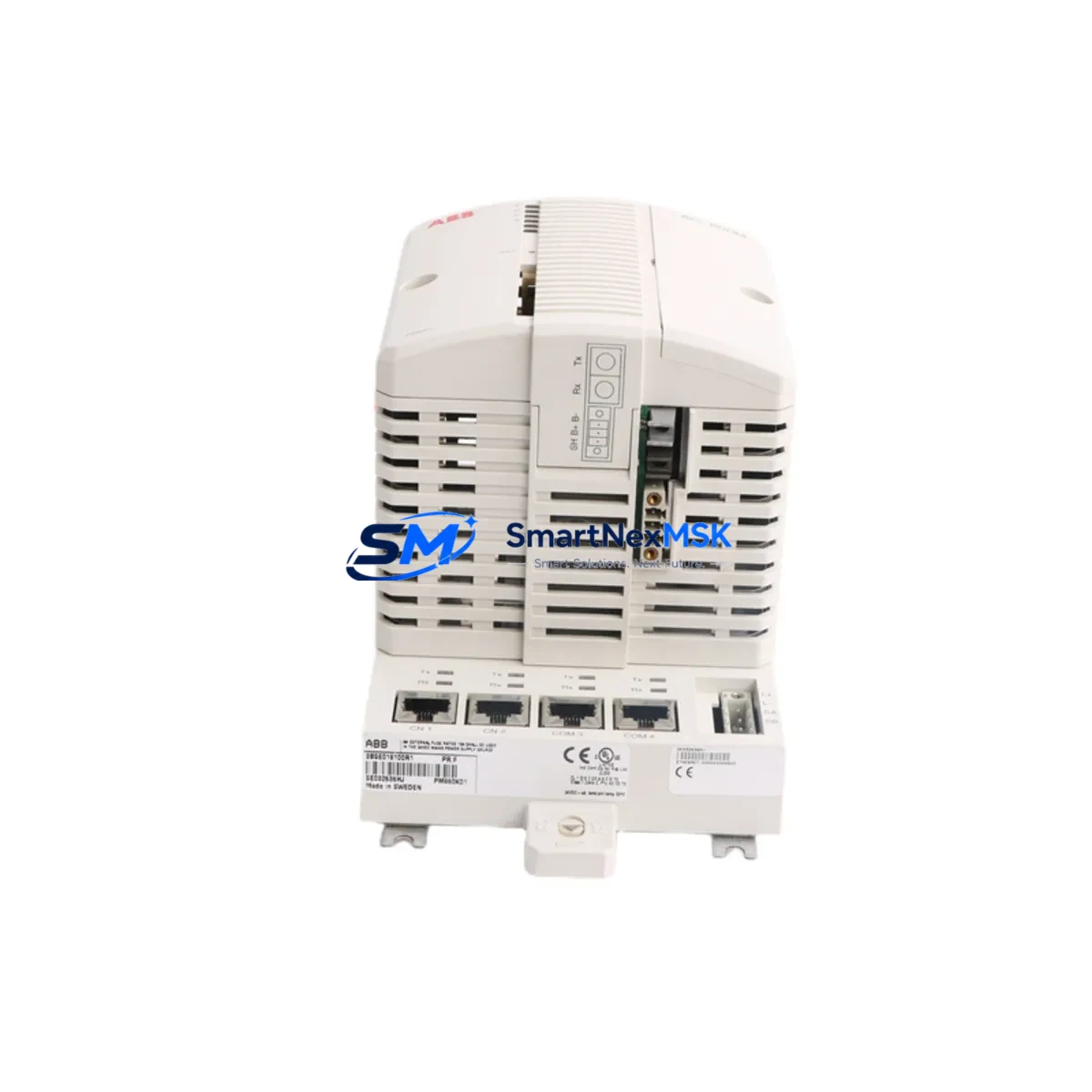

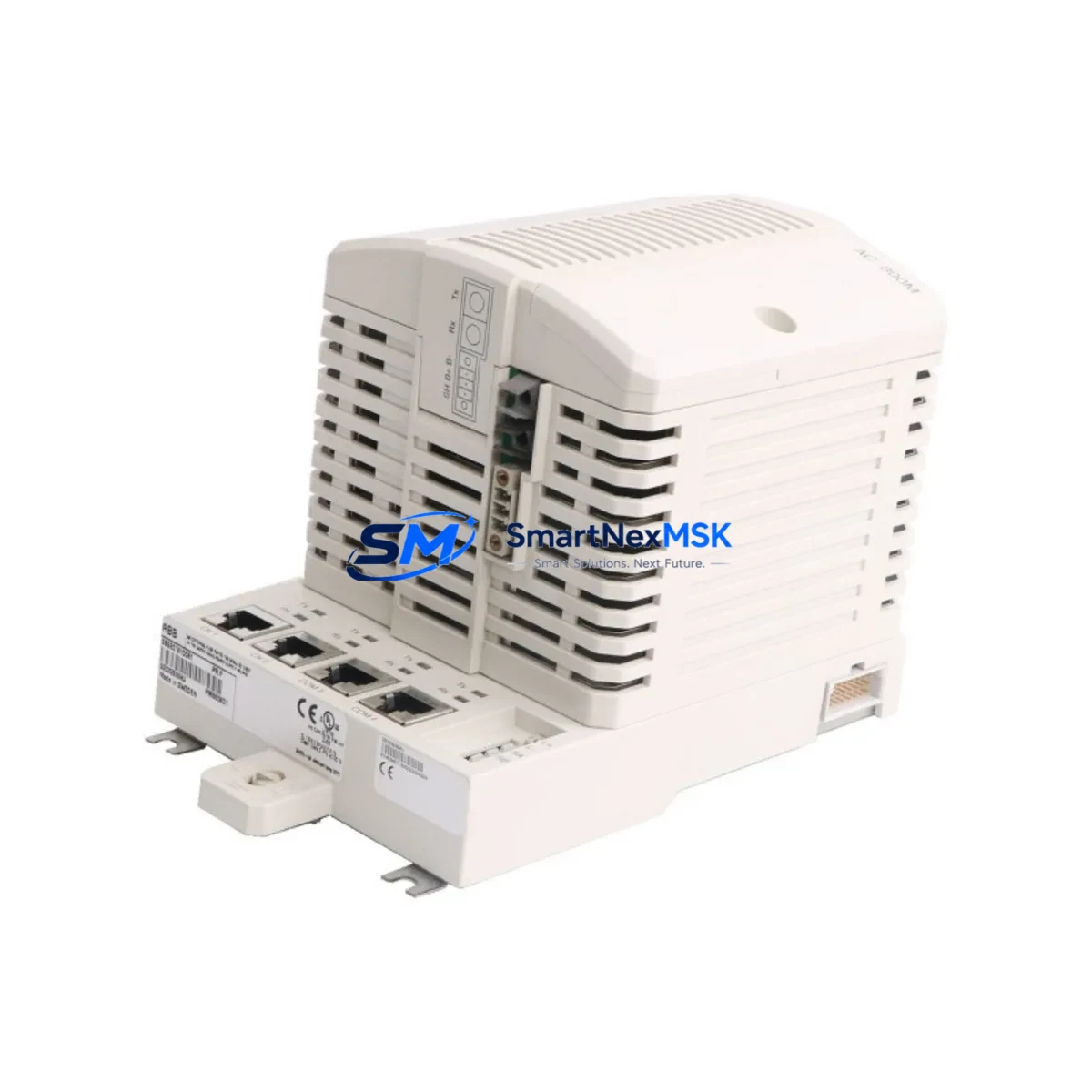

The ABB PM860K01 (order reference 3BSE018100R1) is a central processor module for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in power generation, oil & gas, chemical processing, and heavy manufacturing. When this module fails or degrades, the entire control loop it governs goes offline. Holding a verified, tested spare on-site is the single most effective strategy for minimizing unplanned downtime and protecting production continuity.

This listing supplies an original ABB PM860K01 3BSE018100R1 processor module, sourced from authorized industrial channels, individually tested prior to shipment, and backed by a 12-month warranty. Each unit is inspected for firmware integrity, connector condition, and communication bus functionality before dispatch. Whether you are executing a planned maintenance window, responding to an emergency fault, or building out your critical-spare inventory, this module ships ready to install.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A PM860K01 replacement rarely occurs in isolation. The AC800M architecture distributes control logic across a tightly coupled set of modules, and a fault in the processor often surfaces symptoms in adjacent components. Experienced maintenance engineers treat a CPU swap as an opportunity to audit the entire controller cabinet.

Begin with the TB840 or TB807 terminal base that seats the PM860K01. Inspect the backplane connector pins for oxidation or mechanical damage — a degraded terminal base can cause intermittent faults that survive a CPU replacement. Next, verify the PM856 or PM861 redundancy module if your system runs a redundant CPU pair; a failed redundancy partner is frequently the root cause of unexpected switchovers that appear as PM860K01 faults in the event log.

Check the CI854 or CI857 communication interface module on the same rack. These PROFIBUS DP and IEC 61850 communication modules share the CEX bus with the processor; a degraded CI module can generate bus errors that are misdiagnosed as CPU failures. Similarly, inspect the CI801 or CI810B FOUNDATION Fieldbus interface if your process uses FF segments — fieldbus communication errors are logged at the processor level and can trigger spurious CPU alarms.

On the power side, confirm that the SD821 or SD822 power supply module is delivering stable 24 V DC within tolerance. Voltage sag or ripple on the backplane rail is a leading cause of premature processor module failure and memory corruption. If the cabinet houses a BC810 battery unit, test its charge state — a depleted battery means application data and clock settings are lost on every power cycle, which complicates restart procedures after a CPU swap.

For I/O integrity, walk through the connected S800 I/O modules — particularly AI810 analog input, AO810V2 analog output, DI810 digital input, and DO810 digital output cards. Verify that ModuleBus communication to each I/O cluster is healthy before bringing the replacement PM860K01 online. A single faulted I/O module can prevent the new CPU from completing its startup sequence. If signal isolation is a concern in high-noise environments, check any installed signal isolators or barriers on analog loops connected to the S800 cluster.

Finally, confirm that the OPC server or DCS engineering workstation running ABB Control Builder M has a current backup of the application project. Restoring a PM860K01 without a verified application backup extends downtime significantly. A tested spare module combined with a current application backup is the minimum viable spare strategy for any AC800M installation.

Site Replacement Workflow

1. Pre-replacement preparation. Download the current application from the running PM860K01 using Control Builder M and verify the backup against the last known-good version in your document management system. Record the firmware version currently installed — the replacement module must run the same or a compatible firmware revision to avoid application incompatibilities.

2. Safe isolation. Follow your site’s lock-out/tag-out (LOTO) procedure. Place the DCS in manual mode at the supervisory level before removing the processor. If a redundant PM856/PM861 is present, confirm it has assumed control before proceeding.

3. Module swap. Remove the PM860K01 by releasing the front-panel locking lever. Seat the replacement module firmly into the TB840/TB807 terminal base until the connector engages. Do not force — misalignment damages the backplane connector on both the module and the base.

4. Firmware and application restore. Power on the module and allow it to complete its self-test sequence (indicated by the RUN LED). If the firmware version differs from the application requirement, update via the service port before downloading the application. Download the verified application project from Control Builder M and perform a cold start.

5. Functional verification. Confirm all S800 I/O modules report healthy status on the ModuleBus. Verify communication to CI854/CI857 fieldbus interfaces. Check analog loop values against field instruments before returning the loop to automatic control. Document the replacement in your maintenance management system (CMMS) and update the spare-parts inventory record.

This workflow is applicable whether you are replacing an end-of-life PM860K01 in a legacy AC800M installation or performing a scheduled swap as part of a predictive maintenance program. The goal is the same: restore control system availability with minimum disruption to the process.

Spare Parts Support FAQ

Q1: What is the expected service life of the PM860K01, and when should I plan a proactive replacement?
ABB rates the AC800M platform for long-term availability, but individual processor modules in continuous-duty industrial environments typically show increased fault rates after 10–15 years of operation due to capacitor aging and flash memory wear. We recommend scheduling a proactive swap during a planned shutdown if the module has been in service for more than 10 years, if you observe intermittent communication errors, or if the module has experienced multiple unexpected restarts within a 12-month period.

Q2: How do I verify compatibility between this PM860K01 and my existing AC800M cabinet?
Confirm the terminal base type (TB807 or TB840/TB840A) installed in your cabinet — the PM860K01 is compatible with both, but the TB840A revision introduced minor connector changes. Check the firmware version required by your Control Builder M application project; the replacement module must support that firmware version. If you are unsure, provide your cabinet serial number and application version when placing your order and our technical team will confirm compatibility before shipment.

Q3: What pre-shipment testing is performed on each unit, and what does the 12-month warranty cover?
Every PM860K01 we ship undergoes a power-on self-test, CEX bus communication verification, firmware version check, and physical inspection of connectors and front-panel indicators. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specification. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q4: Can I hold this module in long-term storage as a cold spare, and what storage conditions are required?
Yes. The PM860K01 is suitable for long-term cold-spare storage. Store the module in its original anti-static packaging in a dry environment at 0 °C to +40 °C with relative humidity below 75 %, non-condensing. Avoid storage near strong magnetic fields or in environments with corrosive gases. We recommend a functional power-on test every 24 months for modules held in storage longer than two years to confirm readiness before a critical deployment.

—
