ABB TB840 3BSE021456R1 Spare for AC800M Automation: Redundancy Replacement & Downtime Risk Control
The ABB TB840 (3BSE021456R1) is the dedicated redundancy module for the AC800M controller platform — one of ABB’s most widely deployed process automation controllers in power generation, oil & gas, chemical, and water treatment facilities. When this module fails or degrades, the entire redundancy architecture of the AC800M system is compromised, exposing the plant to unplanned single-point-of-failure risk. Maintaining a verified spare of the TB840 3BSE021456R1 in your on-site inventory is a fundamental requirement for any maintenance strategy targeting continuous operation and rapid downtime recovery.

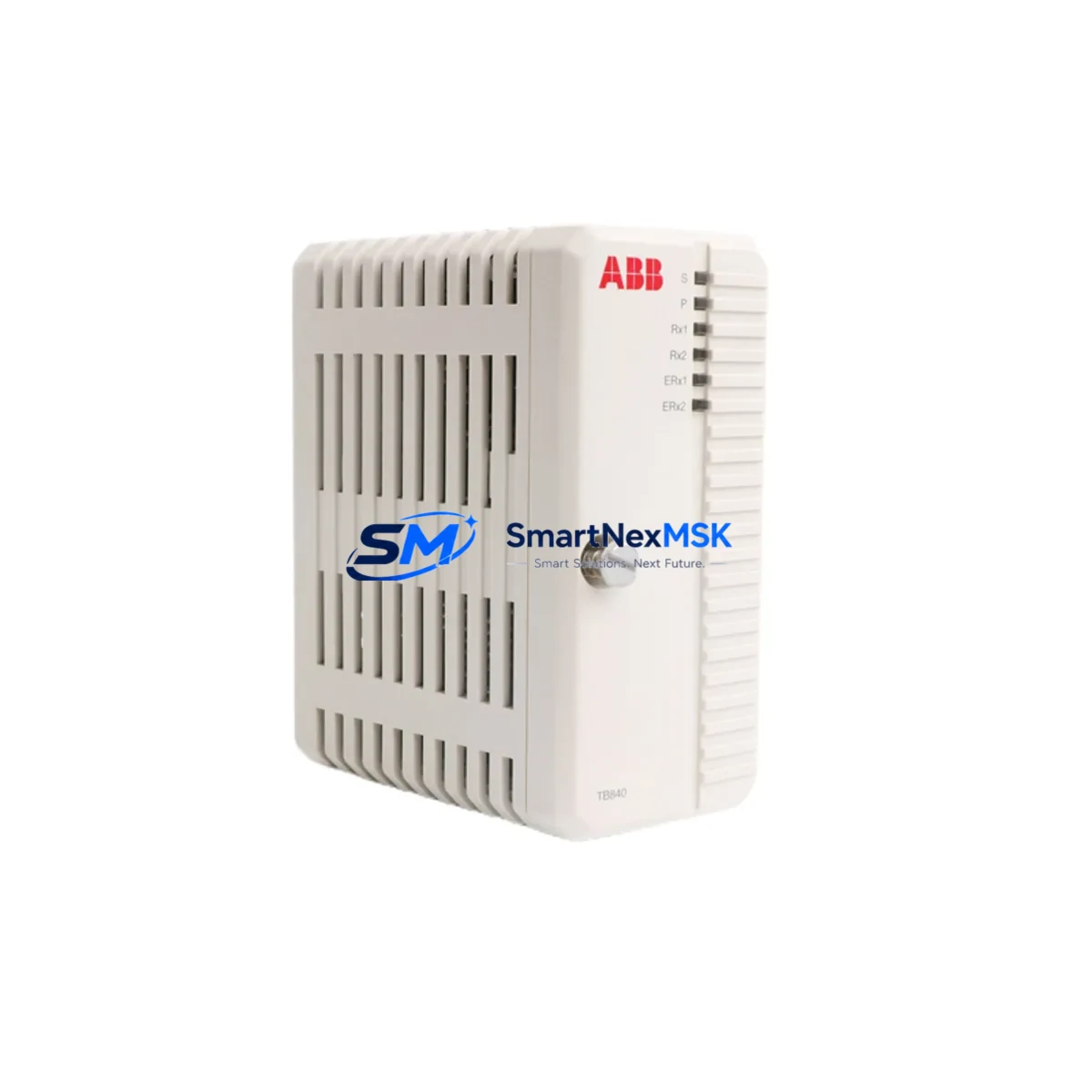

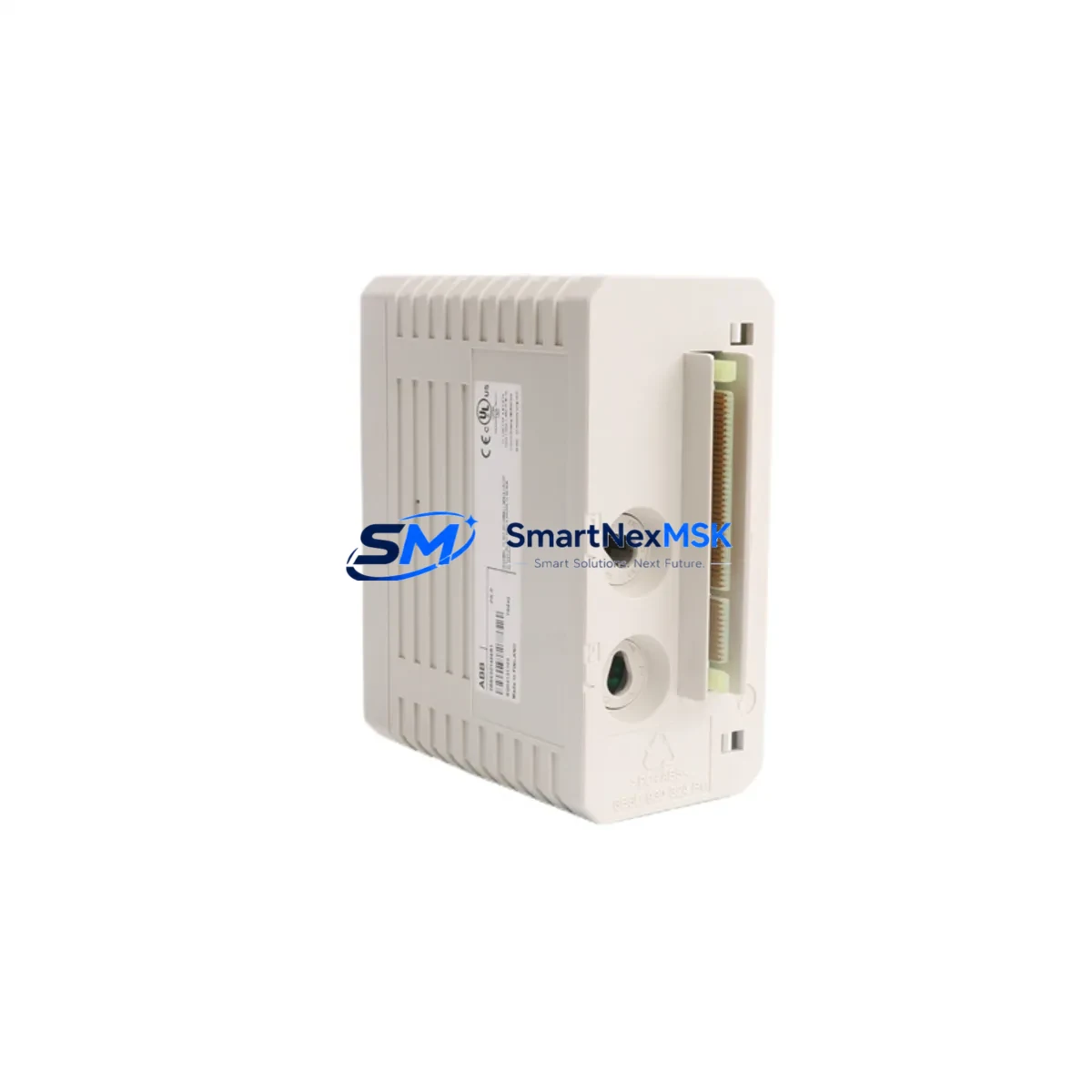

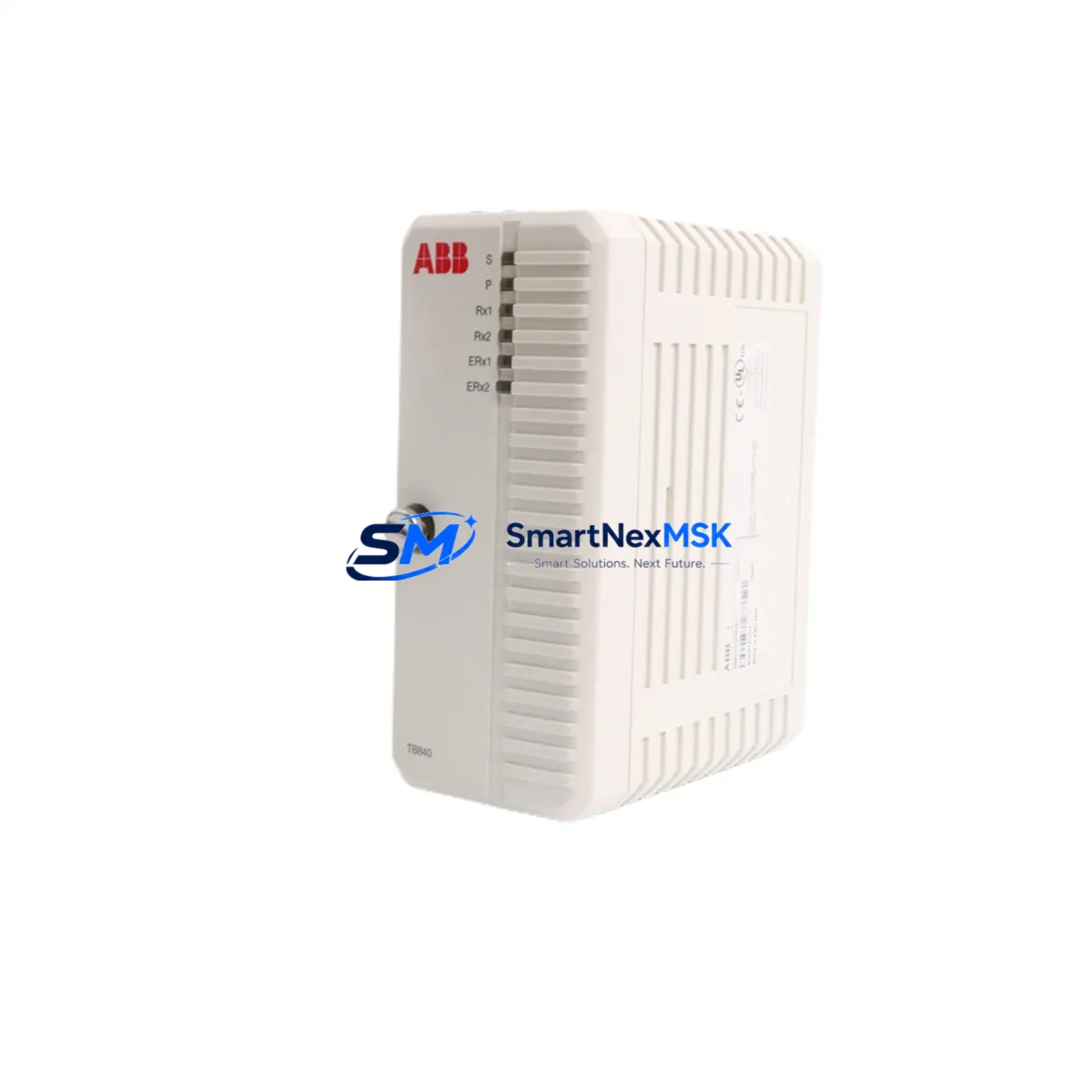

This listing supplies an original ABB TB840 3BSE021456R1 redundancy module — sourced, inspected, and tested prior to shipment. Each unit is backed by a 12-month warranty and ships with full functional verification documentation. Whether you are executing a planned replacement during a scheduled outage, responding to a redundancy fault alarm, or building a strategic spare parts buffer for aging AC800M infrastructure, this unit is ready for immediate deployment.
Spare Maintenance Table
| Parameter | Specification / Value |
|---|---|
| Part Number | TB840 / 3BSE021456R1 |
| Manufacturer | ABB |
| Compatible Platform | AC800M Controller (PM861, PM864, PM866, PM891 series) |
| Module Function | Controller Redundancy Unit — hot-standby synchronization |
| Communication Interface | Redundancy link via dedicated TB840 backplane port |
| Power Supply | Supplied via AC800M backplane (no external power required) |
| Operating Temperature | 0°C to +55°C |
| Mounting | AC800M controller rack / S800 I/O backplane compatible |
| Condition | Original ABB — tested before shipment |
| Warranty | 12 Months |
| Origin | Sweden (ABB) |
| Maintenance Recommendation | Replace immediately upon redundancy fault alarm; inspect every 24 months during planned outage |
Maintenance Planning for Continuous Operation
When a maintenance or reliability engineer identifies a TB840 3BSE021456R1 fault, the replacement workflow rarely ends with the redundancy module alone. The AC800M redundancy architecture depends on a tightly integrated set of components, and a thorough site inspection should accompany any TB840 swap to prevent repeat failures and confirm full system integrity.
Begin by verifying the PM864 or PM866 controller module paired with the TB840 — redundancy faults are sometimes caused by degraded controller firmware or a failing processor module rather than the TB840 itself. Confirm that the AC800M backplane and its inter-module connectors show no signs of oxidation, mechanical stress, or thermal damage. Inspect the SD821 or SD822 power supply modules feeding the controller rack; an unstable supply voltage is a common root cause of intermittent redundancy synchronization failures.
Check the CI854 or CI857 PROFIBUS/PROFINET communication interface modules installed in the same rack — communication module faults can generate misleading redundancy alarms. Review the DI810 and DO810 digital I/O modules in the associated S800 I/O stations for any latched fault LEDs that may indicate upstream wiring or field device issues unrelated to the redundancy module itself.
For systems using AF100 or MasterBus 300 fieldbus segments, verify that the fieldbus interface modules are operating within normal parameters. Inspect TB807 or TB811 termination units on the I/O backplane for secure seating and clean contacts. If the AC800M system interfaces with an 800xA operator station or HMI server, confirm that the OPC server connection and alarm historian are functioning correctly after the redundancy module replacement — a switchover event can occasionally leave stale alarm states in the HMI.
Finally, review the UPS or 24VDC distribution panel supplying the control cabinet. Redundancy modules are particularly sensitive to micro-interruptions in supply power. Replacing the TB840 3BSE021456R1 without addressing an unstable power source will result in recurring faults. A complete cabinet inspection — covering fuse condition, terminal block torque, cable routing, and earthing continuity — should be standard practice whenever a redundancy module is replaced.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the TB840 3BSE021456R1 part number against the existing module label and the AC800M hardware configuration in Control Builder M. Document the current redundancy status (Primary / Backup) before any physical intervention.
Step 2 — Safe removal: The TB840 supports hot-swap replacement when the AC800M is in redundant operation and the backup controller is healthy. Verify backup controller status in the system diagnostic view before removing the faulty TB840 from the primary controller. If the backup is also degraded, schedule replacement during a planned process hold.
Step 3 — Module installation: Insert the replacement TB840 3BSE021456R1 firmly into the controller rack slot. The module is keyed and cannot be inserted incorrectly. Confirm the redundancy link LED illuminates within 30 seconds of insertion.
Step 4 — Synchronization confirmation: Monitor the redundancy synchronization status in Control Builder M or the 800xA System Status display. Full synchronization typically completes within 2–5 minutes depending on application size. Do not perform a manual switchover until synchronization is confirmed at 100%.
Step 5 — Post-replacement documentation: Record the replacement date, new module serial number, and synchronization confirmation in the plant maintenance log. Update the spare parts inventory to trigger reorder of a replacement TB840 3BSE021456R1 for the next event.
This workflow minimizes process interruption, maintains system compatibility, and ensures the AC800M redundancy architecture is fully restored before the maintenance team leaves the control room.
Spare Parts Support FAQ
Q1: Is this TB840 3BSE021456R1 compatible with all AC800M controller variants?
The TB840 is designed for use with the AC800M controller family, including PM861, PM864, PM866, and PM891 processor modules. Compatibility depends on the firmware version of the controller and the hardware revision of the TB840. We recommend confirming your AC800M hardware revision before ordering. Our technical team can assist with compatibility verification prior to shipment.
Q2: What testing is performed before shipment?
Each TB840 3BSE021456R1 unit undergoes functional verification including power-on self-test, redundancy link interface check, and visual inspection for connector integrity and component condition. A test report is available upon request. Units that do not pass full functional verification are not listed for sale.
Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the ABB AC800M hardware documentation. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental parameters. Warranty claims are processed with return shipping support and priority replacement dispatch.
Q4: How should I manage TB840 spare parts inventory for long-term AC800M system support?
For plants operating multiple AC800M controllers, we recommend maintaining a minimum of one TB840 3BSE021456R1 per controller pair in on-site inventory. Given that ABB has transitioned the AC800M platform toward end-of-active-production for some variants, securing additional spare units now is advisable to protect against future supply constraints. We offer long-term supply agreements and can reserve stock against scheduled maintenance windows.
