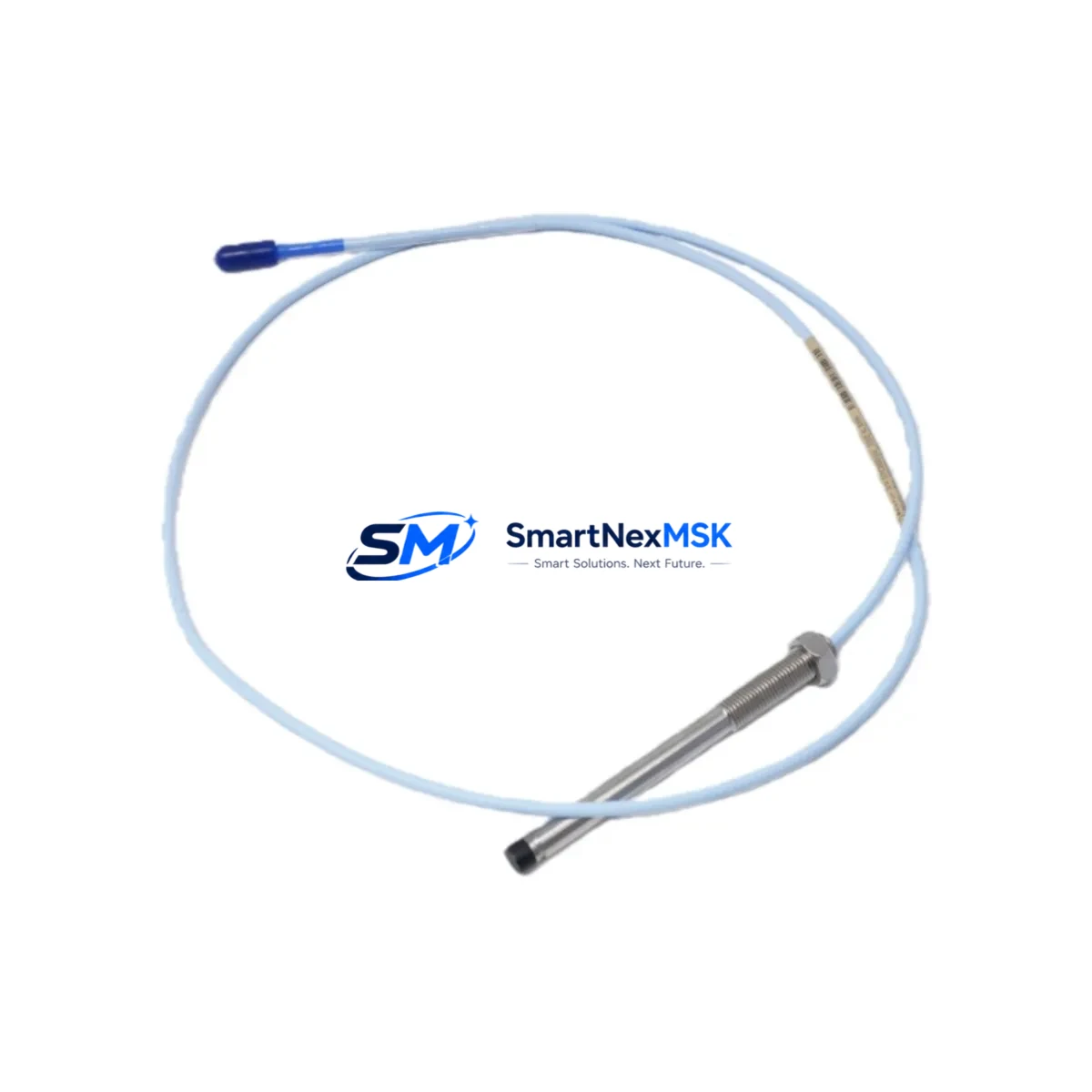

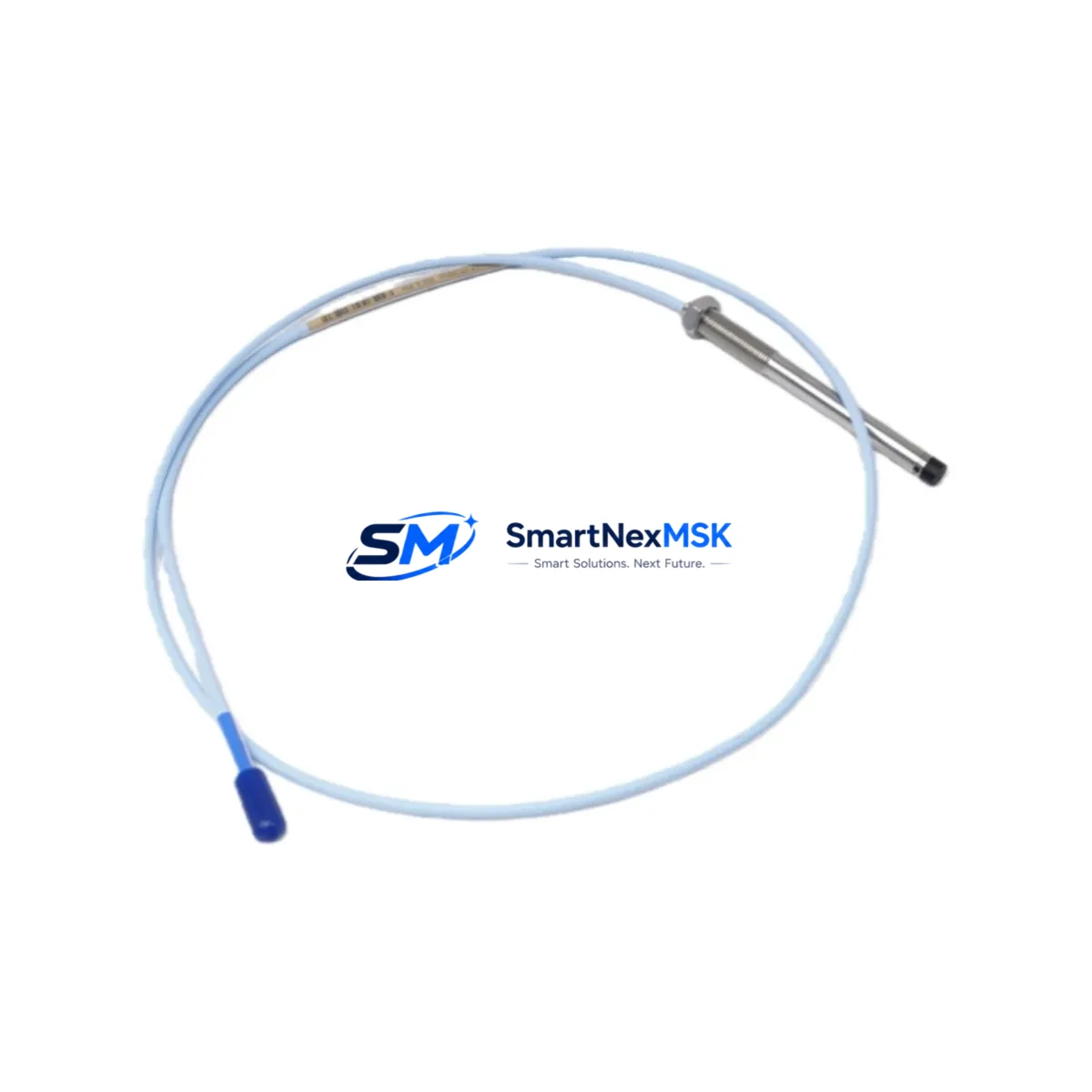

The Bently Nevada 330101-23-39-10-12-05 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is the primary sensing element for shaft radial vibration, axial position, and differential expansion measurement. When this component degrades or fails, the entire machinery protection loop is compromised, exposing critical assets to undetected mechanical faults and unplanned shutdown events.

At SMARTNEXMSK, every 330101-23-39-10-12-05 unit is sourced from verified supply channels, individually tested against Bently Nevada factory specifications, and shipped with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers who require fast, reliable spare parts to restore monitoring integrity and minimize downtime.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 330101-23-39-10-12-05 proximity probe does not operate in isolation. It is one node in a complete machinery protection chain, and a disciplined maintenance engineer will treat any probe replacement as an opportunity to audit the entire measurement loop. During scheduled outages or corrective maintenance events, the following associated components should be inspected or replaced concurrently to prevent repeat failures and ensure measurement accuracy is restored end-to-end.

The 330130-080-01-00 Extension Cable (or equivalent 3300 XL series extension) connects the probe to the Proximitor sensor and is subject to insulation degradation, connector corrosion, and mechanical damage in high-vibration environments. Resistance and capacitance should be verified before reinstalling. The 330180-X1-05 Proximitor® Sensor is the signal conditioning module that converts probe gap voltage to a usable output signal; if the probe is being replaced due to erratic readings, the Proximitor should be bench-tested in parallel to rule out driver-side faults.

Power supply integrity is equally critical. The 3500/15 Power Supply Module (or equivalent rack power unit) should be checked for output voltage stability at –24 VDC under load. Voltage sag or ripple will directly affect probe gap calibration and introduce false vibration readings. In systems using the 3500 Series Monitoring Rack, the backplane connectors and I/O module terminations — including the 3500/42M Proximitor®/Seismic Monitor — should be inspected for fretting corrosion and secure seating.

For installations where the 330101-23-39-10-12-05 feeds into a DCS or safety system, verify the 4–20 mA output signal isolator or Zener barrier in the intrinsically safe loop. Signal isolators from the MTL or P+F series are commonly found in these circuits and should be tested for drift. Relay output modules within the 3500 rack — such as the 3500/32 4-Channel Relay Module — should have their trip setpoints and relay contact integrity confirmed after any probe swap.

Where the monitoring system interfaces with a DeltaV, Ovation, or third-party DCS historian, confirm that the analog input card receiving the Proximitor output is reading within calibrated range after the replacement. Any terminal blocks or marshalling cabinet wiring associated with the probe circuit should be torque-checked and inspected for oxidation. Finally, if the installation is in a hazardous area, verify that the Ex-rated cable glands and conduit seals are intact and compliant with the site’s area classification documentation.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement unit part number matches 330101-23-39-10-12-05 exactly. Verify probe body thread size (M10 × 1.0), cable length (1.0 m / 39 in), and connector type against the installed configuration. Cross-reference with the machine’s API 670 probe data sheet if available.

Step 2 — Loop Isolation: Coordinate with the control room to place the affected channel in bypass or maintenance mode within the 3500 rack. This prevents spurious trips during the swap. Document the pre-removal gap voltage reading from the Proximitor output for baseline comparison.

Step 3 — Physical Removal: Using the correct probe spanner, remove the existing probe from the bearing housing. Inspect the probe tip for impact damage, the cable for kinking or abrasion, and the connector for pin corrosion. Retain the old probe for failure analysis if the root cause is unclear.

Step 4 — Installation and Gap Setting: Install the 330101-23-39-10-12-05 and set the probe gap to the manufacturer-specified linear range midpoint (typically 1.0–1.27 mm / 40–50 mil for 8mm probes on steel targets). Verify gap voltage at the Proximitor output matches the expected value (approximately –10 to –12 VDC at midpoint).

Step 5 — Loop Verification: Restore the channel from bypass. Confirm that the DCS or historian is receiving a stable, in-range signal. Perform a functional check by observing the vibration reading at known machine speed and comparing against historical baseline. Document the as-left gap voltage and vibration reading in the maintenance management system.

Step 6 — Spare Replenishment: After consuming a spare from stock, initiate a replenishment order immediately. For critical rotating machinery, a minimum of two 330101-23-39-10-12-05 probes per machine train should be maintained on-site to support emergency replacement without waiting for procurement lead times.

Spare Parts Support FAQ

Q1: Is the 330101-23-39-10-12-05 a direct replacement for older 330101 series probes?
The 330101-23-39-10-12-05 is part of the Bently Nevada 3300 XL 8mm probe family. It is dimensionally and electrically compatible with other 330101 variants sharing the same cable length and connector configuration. However, always verify the full part number — including the cable length and connector suffix — against your machine’s probe data sheet before installation, as subtle differences in suffix codes indicate different cable lengths or connector types that affect system calibration.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-23-39-10-12-05 supplied by SMARTNEXMSK undergoes electrical continuity verification, insulation resistance testing, and gap-voltage output confirmation against a calibrated steel target. Units that do not meet Bently Nevada factory output specifications are rejected. A test report is available upon request for critical applications.

Q3: How should this spare be stored if not immediately installed?
Store the probe in its original packaging in a dry, temperature-controlled environment (10°C to 40°C), away from strong magnetic fields and mechanical shock. The integral cable should not be coiled tighter than a 50 mm bend radius. Inspect the connector pins for oxidation before installation if the unit has been in storage for more than 12 months.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and out-of-specification output at the time of installation. It does not cover damage resulting from incorrect gap setting, mechanical impact, chemical exposure, or installation in systems outside the specified operating parameters. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.
