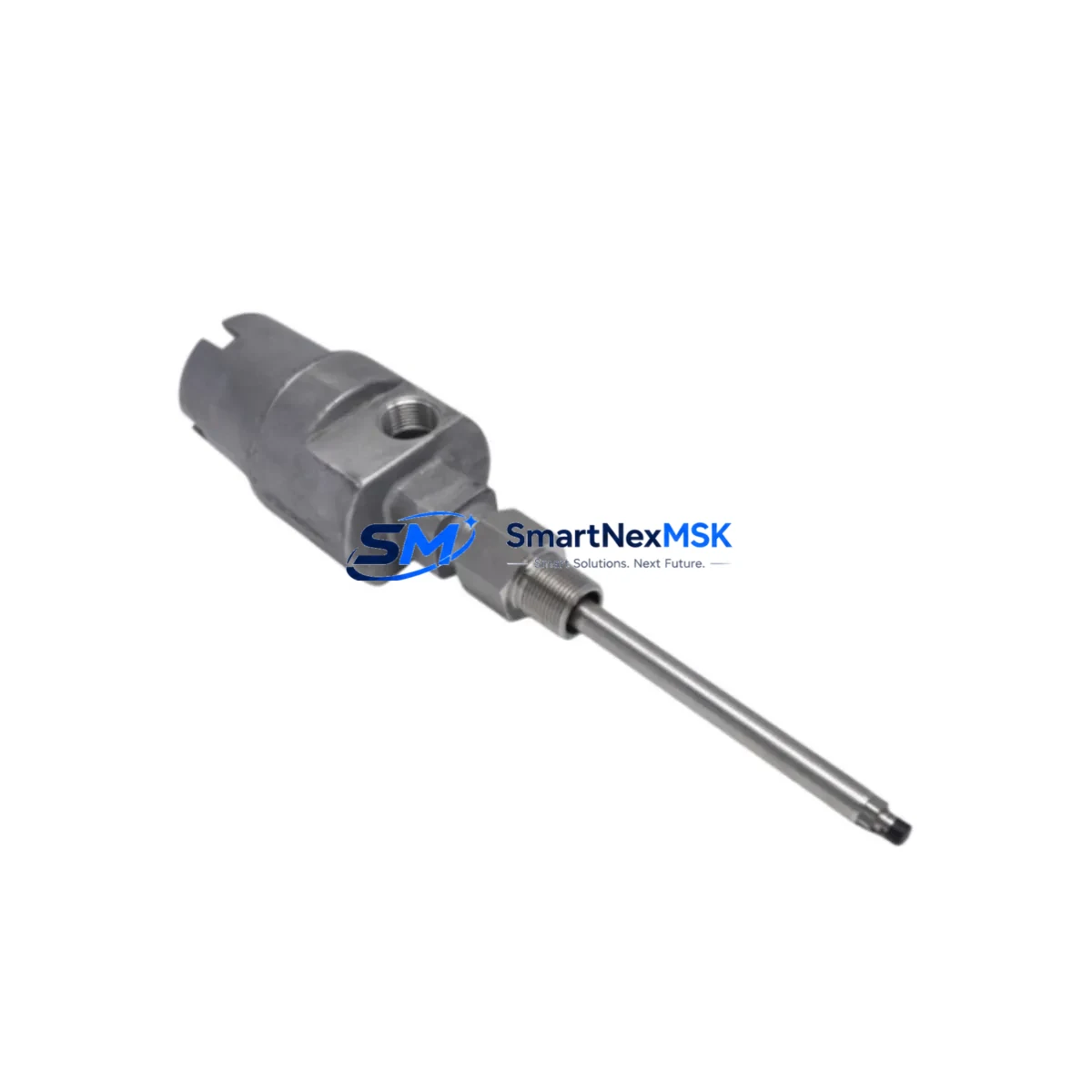

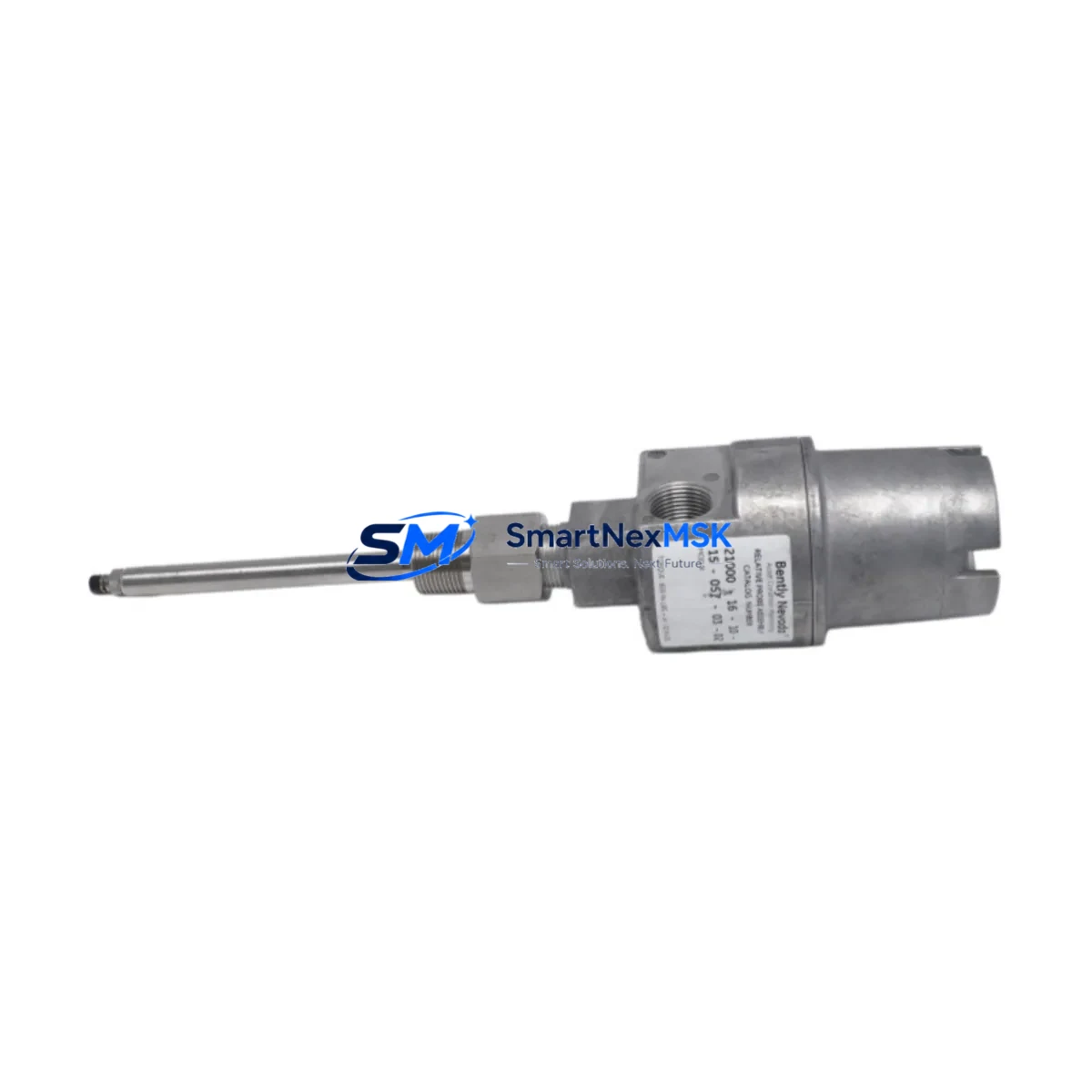

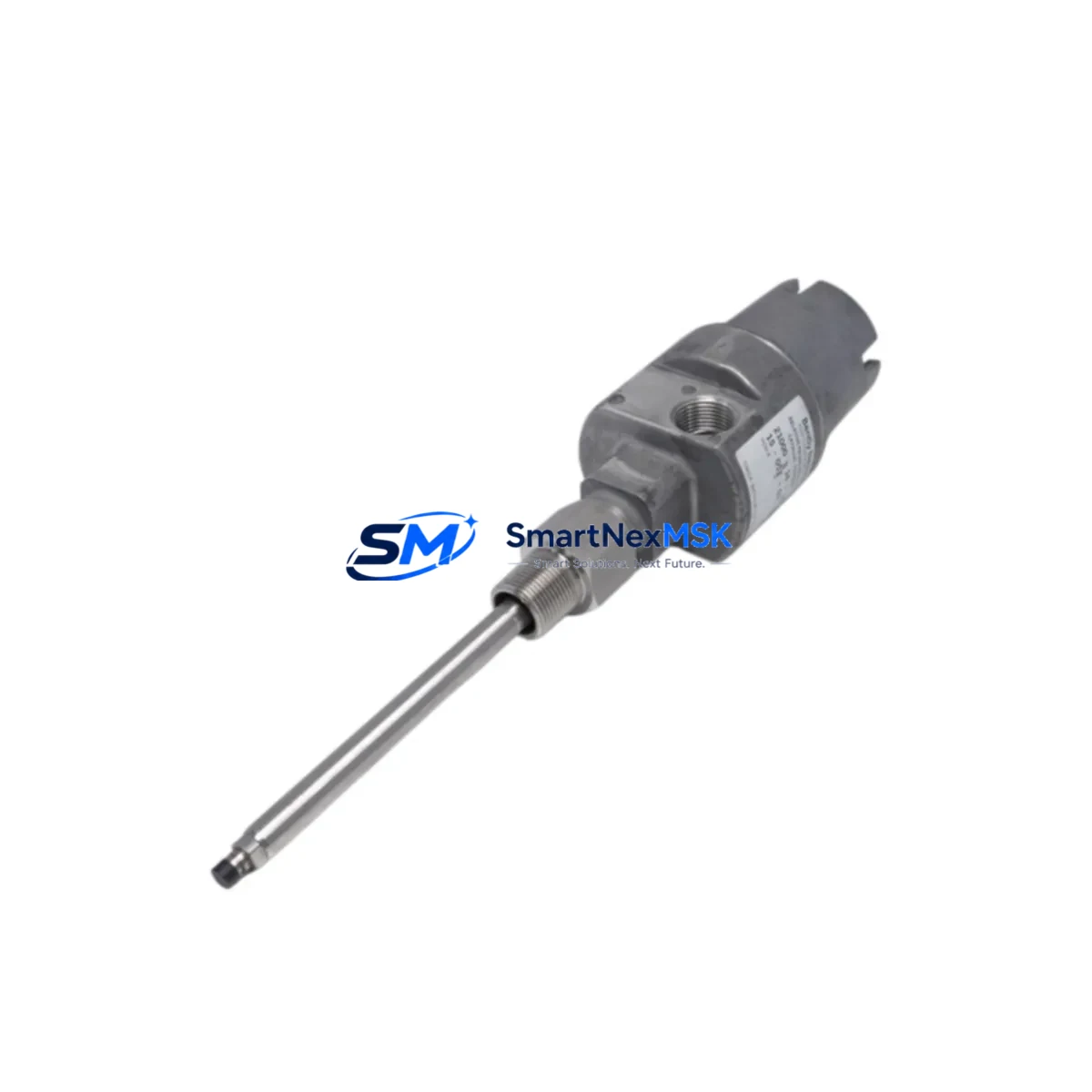

Bently Nevada 21000-16-10-15-029-03-02 Retrofit-Ready Proximity Probe Housing for 3300 XL Control Systems
The Bently Nevada 21000-16-10-15-029-03-02 is a precision-engineered proximity probe housing assembly designed for seamless integration into Bently Nevada 3300 XL series vibration monitoring systems. As legacy machinery protection platforms approach end-of-life and OEM support windows close, this component serves as a verified drop-in replacement for facilities undertaking planned retrofits, emergency spare replacements, and long-term control system modernization programs. Whether you are upgrading a turbine protection rack, replacing a failed probe housing on a compressor train, or consolidating spare parts inventory ahead of a scheduled outage, the 21000-16-10-15-029-03-02 delivers the dimensional accuracy, signal integrity, and installation compatibility required for critical rotating equipment applications.
This housing assembly is compatible with the standard 3300 XL monitor rack architecture, including the 3300/16 and 3300/20 series monitor cards. It maintains the same thread specification, cable exit geometry, and connector interface as the original factory component, eliminating the need for field modifications to existing conduit runs, junction boxes, or terminal strip wiring. Engineers responsible for machinery protection system upgrades will find that the 21000-16-10-15-029-03-02 integrates directly with existing 3300 XL proximitor/extension cable assemblies, including the 330130 and 330180 series extension cables, without requiring recalibration of the gap voltage or sensitivity settings already programmed into the monitor.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Monitor Series | Bently Nevada 3300 XL (3300/16, 3300/20) |
| Replaces OEM Part | 21000-16-10-15-029-03-02 (direct drop-in) |
| Connector Interface | Standard 3300 XL proximitor connector, no adapter required |
| Thread Specification | Matches original factory housing thread; no field re-tapping |
| Extension Cable Compatibility | 330130, 330180 series extension cables |
| Communication Protocol | Analog 4–20 mA / voltage output; compatible with existing DCS/PLC signal loops |
| Installation Requirement | Standard probe bracket; no mechanical modification required |
| Calibration | Gap voltage and sensitivity settings retained from existing monitor configuration |
| Retrofit Recommendation | Verify probe tip clearance and target material before installation |
| Commissioning Focus | Gap voltage check, signal noise floor verification, alarm setpoint confirmation |
| Warranty | 12-Month Warranty from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the 21000-16-10-15-029-03-02 into an operating machinery protection system requires a structured pre-installation review. Before removing the existing probe housing, maintenance engineers should document the current gap voltage reading displayed on the 3300 XL monitor card, typically in the range of −10 VDC for a correctly gapped eddy-current probe. This baseline reading is essential for verifying that the replacement housing positions the probe tip at the correct standoff distance from the rotating shaft target area.
Power supply capacity is a critical checkpoint during any 3300 XL rack retrofit. The system’s internal power supply module — commonly the 3300/05 or equivalent rack power unit — must be confirmed to have sufficient headroom to support the probe circuit after replacement. If the retrofit is part of a broader rack upgrade that also involves adding a 3300/46 or 3300/50 I/O module for expanded channel count, the total power budget must be recalculated before energizing the updated rack configuration.
Wiring continuity between the replacement housing and the existing junction box terminal strip should be verified using a calibrated multimeter before reconnecting the 330130 extension cable. Any oxidation or mechanical damage to the cable connector pins should be addressed at this stage to prevent intermittent signal faults after the system is returned to service. Where the existing conduit run includes a 3300 XL proximitor mounted in a hazardous area enclosure, the replacement procedure must comply with the applicable area classification requirements and the site’s hot-work and isolation permit system.
For facilities that also operate Bently Nevada 3500 series racks alongside legacy 3300 XL equipment, the 21000-16-10-15-029-03-02 housing is not directly interchangeable with 3500/42 or 3500/44 monitor channel probe assemblies. In mixed-platform environments, the site spare parts register should clearly distinguish between 3300 XL and 3500 series probe housing inventory to prevent cross-installation errors during emergency maintenance events. If a migration from 3300 XL to 3500 series is planned as part of a longer-term modernization roadmap, the probe housing replacement using the 21000-16-10-15-029-03-02 provides a cost-effective interim solution that maintains system availability while the full platform migration is engineered and scheduled.
DCS integration points should also be reviewed during the retrofit planning phase. The analog output signal from the 3300 XL monitor card feeds into the plant DCS — commonly a Honeywell Experion, Emerson DeltaV, or ABB 800xA system — via hardwired 4–20 mA loops or Modbus RTU links depending on the site configuration. Replacing the probe housing does not affect the DCS signal path, but the commissioning team should confirm that the DCS historian is logging the vibration channel correctly after the replacement is complete and the monitor has been returned to normal operation mode.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational constraint in any rotating equipment protection system retrofit. For the 21000-16-10-15-029-03-02 replacement, the recommended approach is to pre-stage the replacement housing assembly, verify its dimensional conformance against the original part, and prepare all required tools and consumables before the equipment is taken offline. A pre-tested spare that has been bench-verified for thread engagement and connector fit can reduce the actual on-machine replacement time to under 30 minutes for a single probe channel.
Where the machinery protection system supports channel bypass or inhibit functionality — available on 3300 XL monitor cards with the appropriate firmware revision — the affected vibration channel can be placed in bypass mode before the probe housing is removed. This prevents a spurious trip signal from reaching the turbine or compressor control system during the replacement window, protecting the original program logic in the associated PLC or safety system from responding to a false vibration alarm. After the replacement housing is installed and the gap voltage is confirmed within specification, the channel bypass is released and the monitor is returned to normal protective mode.
For sites where the 3300 XL rack is integrated with a Bently Nevada System 1 condition monitoring platform, the replacement event should be logged in the System 1 asset database with the new component serial number and installation date. This ensures that the condition monitoring trend data is correctly associated with the replacement component and that the 12-month warranty period is accurately tracked from the date of installation.
Pre-shipment testing is performed on all 21000-16-10-15-029-03-02 units before dispatch. Each housing assembly is inspected for dimensional conformance, thread integrity, and connector pin condition. Units are shipped with protective end caps installed to prevent transit damage to the probe tip and connector interface. Delivery from in-stock inventory is typically achievable within 3–7 business days for standard international shipments, supporting planned outage schedules and emergency maintenance requirements.
Retrofit Support FAQ
Q: Is the 21000-16-10-15-029-03-02 a direct replacement for the original Bently Nevada part?
A: Yes. This housing assembly is a verified drop-in replacement for the original OEM part number 21000-16-10-15-029-03-02. It maintains the same thread specification, connector interface, and dimensional envelope as the factory component, requiring no field modifications to the existing probe bracket, conduit, or extension cable assembly.
Q: What commissioning checks are required after installation?
A: After installing the replacement housing and reconnecting the 330130 or 330180 extension cable, verify the gap voltage reading on the 3300 XL monitor card. The target gap voltage is typically −10 VDC ± 0.5 VDC for a standard eddy-current probe at the correct standoff distance. Confirm that the vibration channel alarm setpoints are active and that the DCS is receiving a valid signal before releasing the channel from bypass mode.
Q: Can this housing be used with Bently Nevada 3500 series monitors?
A: No. The 21000-16-10-15-029-03-02 is designed for the 3300 XL series platform. It is not dimensionally or electrically interchangeable with probe housings used in the 3500/42 or 3500/44 monitor channels. For 3500 series applications, a separate compatible part number is required.
Q: What warranty coverage is provided?
A: All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects in materials and workmanship. Units that exhibit dimensional non-conformance or connector failure under normal operating conditions within the warranty period will be replaced or credited at no additional cost. Contact our technical support team with the shipment date and unit serial number to initiate a warranty claim.
