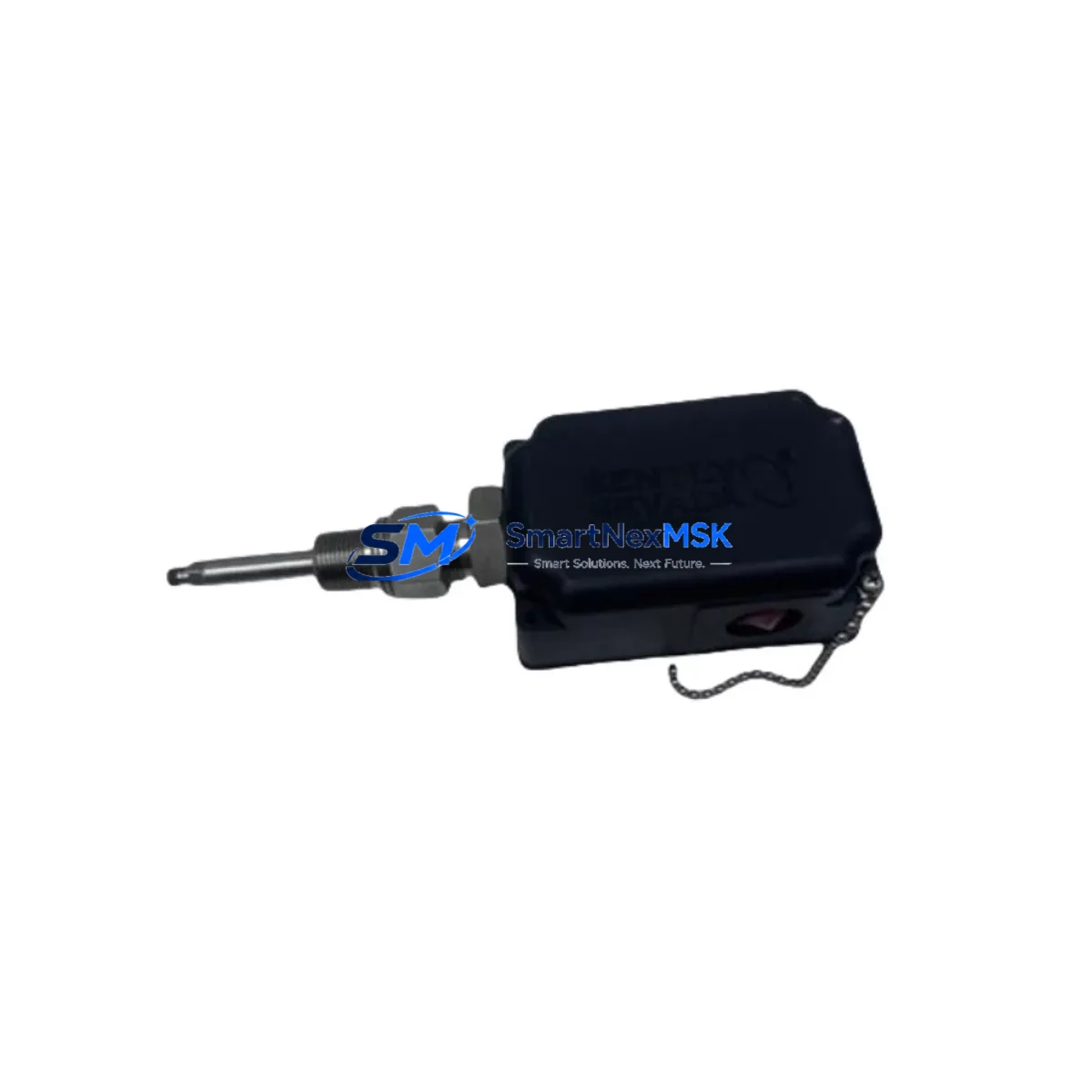

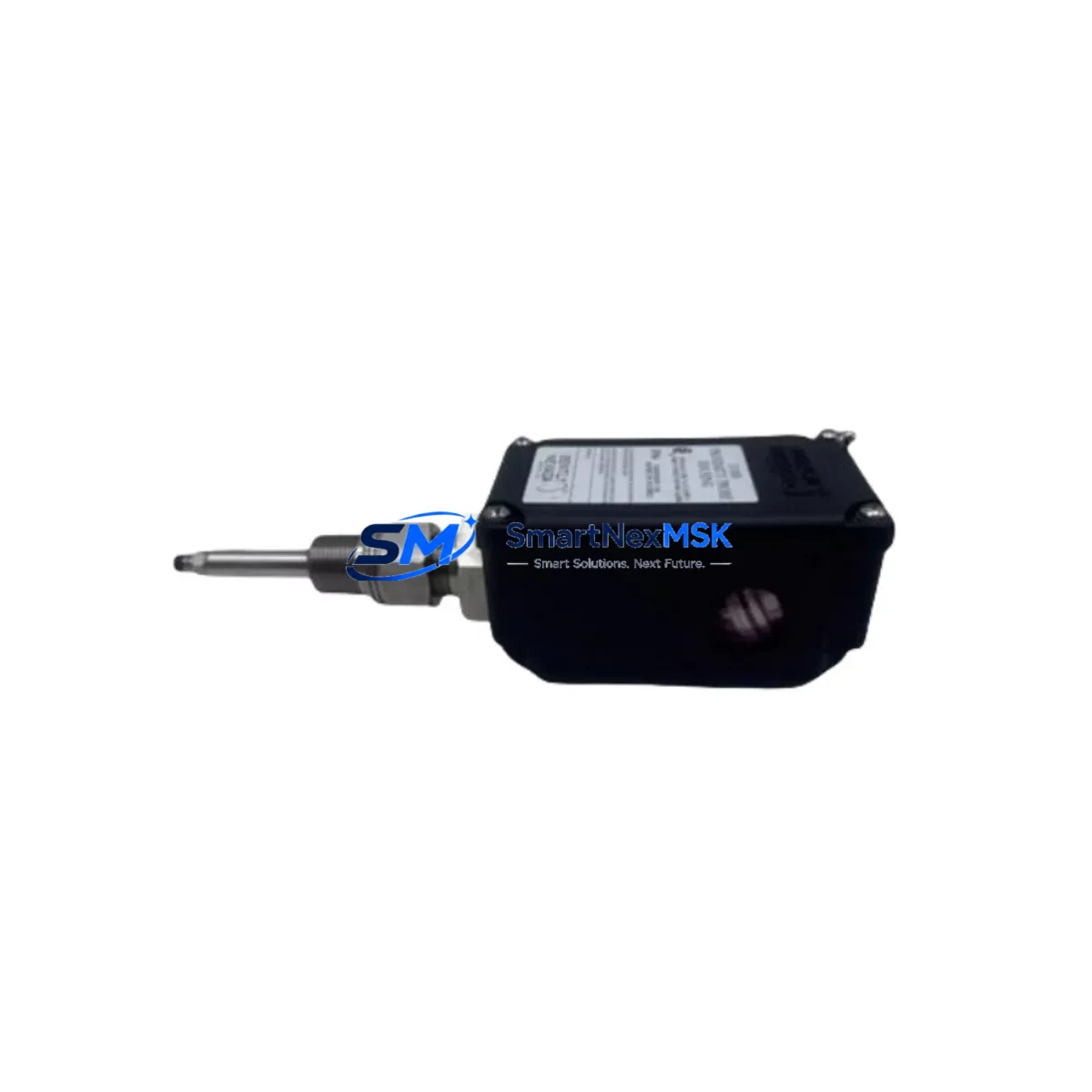

Bently Nevada 31000-16-05-20-040-02-02 Safety Probe Housing

Bently Nevada 31000-16-05-20-040-02-02 Safety Proximity Probe Housing: Reliable Control in Harsh Industrial Sites

The Bently Nevada 31000-16-05-20-040-02-02 is a ruggedized proximity probe housing assembly engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed to integrate seamlessly with Bently Nevada’s 3300 Series proximity transducer systems and compatible with the 3500 Series machinery protection platform, this housing assembly provides the mechanical and electrical protection necessary to maintain signal integrity across high-vibration, high-temperature, and chemically aggressive plant conditions.

In rotating machinery protection — where a single missed vibration event can cascade into catastrophic equipment failure, unplanned downtime, or personnel hazard — the mechanical housing is not a passive component. It is a frontline safety element. The 31000-16-05-20-040-02-02 is built to that standard: its ruggedized construction shields the proximity probe tip and cable from mechanical impact, fluid ingress, and electromagnetic interference, ensuring that the 3300 XL 8mm proximity transducer it houses continues to deliver accurate, drift-free eddy-current displacement signals to the 3500/42M Proximitor I/O module and the 3500/22M Transient Data Interface under all operating conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

Effective machinery protection is never a single-component solution. The 31000-16-05-20-040-02-02 housing assembly operates as part of a layered protection architecture that begins at the probe tip and extends through the control cabinet to the safety logic solver. In a typical turbine or compressor protection cabinet, this housing connects to a Bently Nevada 3300 XL 8mm proximity transducer, whose output is routed through a dedicated 3500/42M Proximitor I/O module — the rack-mounted signal conditioner that converts raw eddy-current displacement into 4–20 mA or voltage signals readable by the protection system.

To maintain signal fidelity across long cable runs in electrically noisy plants — particularly those with variable-frequency drives, large motor starters, or arc-furnace loads — the probe cable is typically routed through Bently Nevada 330130 extension cables with integral coaxial shielding, terminated at the 3500/20 rack power supply module which provides clean, regulated -24 VDC bias to the entire transducer loop. Where hazardous area segregation is required, a Pepperl+Fuchs KFD2-VR4-Ex1.26 Zener barrier or equivalent MTL 787+ unit is installed at the safe-area boundary to limit energy in the field circuit.

At the system level, the 3500 rack hosting the 42M I/O module is typically paired with a 3500/22M Transient Data Interface for high-resolution waveform capture during startup and coast-down events, and a 3500/32 4-Channel Relay Module that drives hardwired trip outputs to the turbine emergency shutdown valve or compressor anti-surge system. For plants running a DCS backbone — such as an Emerson DeltaV MD Plus controller or a Honeywell C300 controller — the 3500 rack communicates via Modbus RTU or OPC-DA gateway, ensuring that vibration alarm states are visible in the plant-wide SCADA and historian without introducing latency into the hardwired trip path. Surge protection for the signal wiring is provided by Phoenix Contact TRABTECH PT 2X2-24DC-ST surge arresters installed at the cabinet entry point, guarding against transient overvoltages from nearby lightning strikes or bus switching events.

Critical Industrial Safety Applications

The 31000-16-05-20-040-02-02 is deployed across a broad range of heavy industrial sectors where rotating machinery operates continuously under high mechanical stress and where unplanned trips carry severe safety and financial consequences.

In petrochemical and refinery plants, this housing assembly is mounted on centrifugal compressors and steam turbines driving critical process streams — ethylene crackers, crude distillation units, and hydrogen compression trains — where radial vibration and axial position monitoring are mandatory per API 670 machinery protection standards. A single bearing failure in these applications can result in hydrocarbon release, fire, or explosion; the ruggedized housing ensures the proximity probe remains functional through the thermal cycling, vibration, and chemical exposure inherent to these environments.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 31000-series housing is used on turbine-generator shaft monitoring systems, where it must maintain sub-micron displacement measurement accuracy across load swings and grid disturbances. The housing’s EMI shielding is particularly critical in generator halls, where strong magnetic fields from the generator rotor can induce noise in unshielded transducer cables.

In mining and mineral processing operations, the housing protects proximity probes mounted on SAG mill pinion bearings, crusher drive shafts, and slurry pump impellers — applications characterized by extreme shock loading, abrasive dust, and high-pressure wash-down. The IP67-equivalent sealing of the 31000-series housing prevents moisture and particulate ingress that would otherwise cause probe tip contamination and false vibration readings.

In water and wastewater treatment plants, the housing is used on large vertical turbine pumps and blower trains, where continuous operation is essential for regulatory compliance and public health. In metallurgical and steel-making facilities, it is deployed on rolling mill drive trains and blast furnace blower compressors, where the combination of high ambient temperature, electromagnetic interference from induction furnaces, and mechanical shock demands the full ruggedization that the 31000-series housing provides. In port and bulk-handling terminals, the housing is found on ship-unloader slew drives and conveyor head-pulley bearings, where salt-laden air and high-pressure wash-down cycles demand the highest level of ingress protection.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 31000-16-05-20-040-02-02?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. This includes housing seal integrity, thread condition, and electrical continuity of the integrated cable assembly. Warranty claims are processed with priority dispatch of a replacement unit to minimize plant downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 31000-16-05-20-040-02-02 unit undergoes a full functional verification protocol before dispatch: coaxial cable impedance measurement, probe tip eddy-current response check against a reference target, bias voltage output confirmation at -24 VDC, and visual inspection of the housing body, thread, and connector. A test report is available upon request.

Q3: Is this housing compatible with third-party proximity probe systems, and can it replace an existing installed unit without recalibration?
The 31000-16-05-20-040-02-02 is designed as a direct OEM-equivalent replacement for Bently Nevada 3300 XL 8mm proximity transducer systems. It is mechanically and electrically compatible with standard M10 × 1 probe holders and -24 VDC eddy-current driver circuits. When replacing a like-for-like unit in an existing installation, no recalibration of the 3500 rack is required, provided the gap voltage is verified at commissioning per the 3300 XL installation manual.

Q4: What is the long-term supply availability, and can SMARTNEXMSK support ongoing spare parts programs?
SMARTNEXMSK maintains standing inventory of the 31000-16-05-20-040-02-02 and related 31000-series housing variants to support planned maintenance shutdowns, insurance spare programs, and emergency breakdown requirements. Blanket purchase orders and scheduled delivery programs are available for customers requiring guaranteed stock allocation across multiple plant sites.
