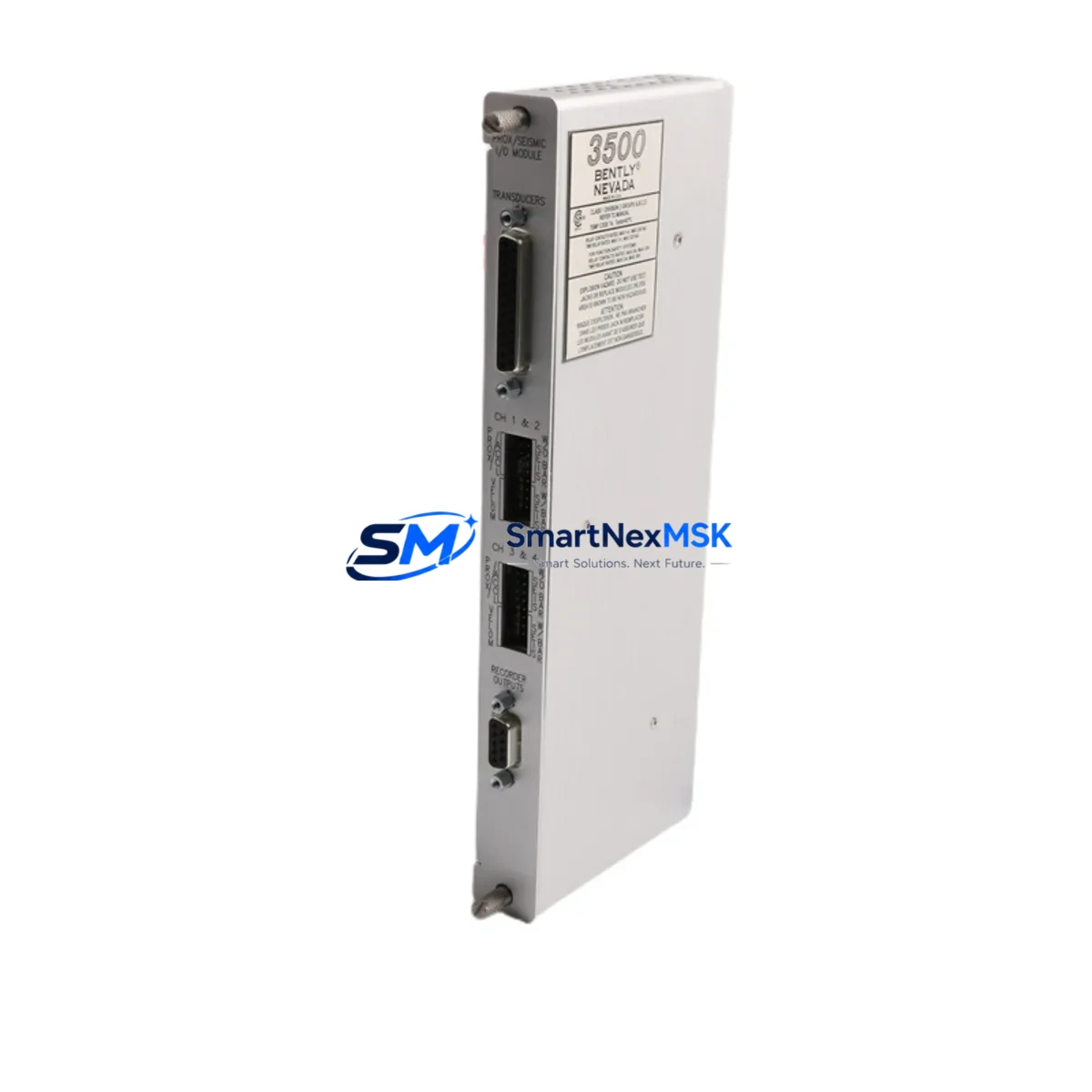

Bently Nevada 128240-01 Retrofit-Ready I/O Module for 3500 Series Control Systems
The Bently Nevada 128240-01 is a Proximity/Seismic I/O Module designed for the 3500 Series Machinery Protection System. As legacy installations age and original spare parts become increasingly difficult to source, the 128240-01 serves as a critical retrofit component for facilities maintaining continuous rotating machinery protection across turbines, compressors, pumps, and generators. This module provides a direct, wiring-compatible replacement path for aging or failed I/O modules within existing 3500 rack assemblies, enabling engineers to restore full system functionality with minimal downtime and without requiring a full platform migration.
Each unit is pre-tested against Bently Nevada factory specifications before shipment. Our inventory is sourced from verified industrial channels, and every 128240-01 ships with a 12-month warranty covering functional performance under normal operating conditions. Whether you are executing a planned maintenance window or responding to an unplanned trip event, our team can support same-week dispatch from our Xiamen warehouse.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | Bently Nevada 3500 Series Machinery Protection System |
| Module Type | Proximity/Seismic I/O Module |
| Rack Interface | 3500 Series standard backplane slot (wiring-compatible) |
| Communication Compatibility | Compatible with 3500/22M Transient Data Interface and 3500/92 Communication Gateway |
| Replacement Suitability | Direct drop-in for failed or end-of-life 128240-01 units in existing racks |
| Installation Requirement | No rack modification required; verify terminal block wiring map before insertion |
| Commissioning Notes | Confirm module address via 3500 Rack Configuration Software; validate channel OK status |
| Warranty | 12 months from shipment date, functional performance guarantee |
Retrofit Planning for Existing Automation Systems
Successful integration of the 128240-01 into a live 3500 Series rack requires careful pre-installation planning. Before removing the failed module, engineers should document the existing terminal block wiring using the original I/O termination drawing. The 3500/20 Rack Interface Module governs overall rack communication, and its configuration should be backed up via the 3500 Rack Configuration Software prior to any hardware swap.
In installations where the 3500/15 Power Supply Module is approaching its service life, it is advisable to assess power budget margins before adding or replacing I/O modules, as cumulative slot loading can affect rail stability. Similarly, if the rack includes a 3500/32 4-Channel Relay Module or a 3500/42M Proximitor/Seismic Monitor, their channel assignments and alarm setpoints should be exported and preserved before the retrofit begins.
For facilities running Bently Nevada System 1 software for condition monitoring, the module replacement should be followed by a channel re-verification cycle within the System 1 configuration tree to ensure the new 128240-01 is correctly mapped to its associated transducer inputs. Where the rack communicates upstream via a 3500/92 Communication Gateway to a DCS or SCADA platform — such as a Honeywell Experion PKS node or an Emerson DeltaV controller — the gateway’s Modbus or OPC-DA tag list should be audited post-swap to confirm no address offsets have shifted.
In multi-rack installations, the 3500/05 Rack Interface I/O Module and associated junction boxes should be inspected for terminal corrosion or loose ferrules, as these are common failure contributors in high-vibration environments. If the retrofit is part of a broader control cabinet upgrade that also involves replacing a 3500/22M Transient Data Interface, plan the sequence carefully to avoid simultaneous loss of both monitoring and communication paths during the maintenance window.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern when replacing a Bently Nevada 128240-01 in a live machinery protection environment. The recommended approach is to pre-configure the replacement module offline using the 3500 Rack Configuration Software, loading the exact channel configuration, gap voltage setpoints, and alarm thresholds from the backed-up rack file before the module is physically installed. This eliminates the need for on-rack parameter entry during the maintenance window and reduces the risk of configuration error under time pressure.
Where process conditions permit a brief controlled shutdown, the preferred sequence is: inhibit alarms at the DCS level, remove the failed module, insert the pre-configured 128240-01, restore power, verify Channel OK indicators, release alarm inhibits, and confirm trip relay status via the 3500/32 relay module. The entire swap can typically be completed within 15–30 minutes when the replacement unit is on-site and pre-configured.
For facilities that cannot tolerate any interruption to the protection chain, a hot-standby approach using a spare rack slot — if available — allows the new module to be brought online and verified before the original is decommissioned. In either case, the original program logic residing in the upstream PLC or DCS controller is unaffected by the I/O module swap, as the 3500 Series operates as an independent protection layer with its own rack-level configuration.
Retrofit Support FAQ
Q: Is the 128240-01 a direct replacement for the original Bently Nevada module, or are there wiring differences?
A: The 128240-01 is a direct functional and wiring-compatible replacement for the original Bently Nevada module of the same part number. Terminal block pinouts and backplane interface are identical. No wiring modifications are required, though we recommend verifying the termination drawing against your as-built documentation before installation.
Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, connect to the rack via the 3500 Rack Configuration Software and confirm the module is recognized in the correct slot. Verify channel OK status for all active inputs, check gap voltage readings against transducer specifications, and confirm alarm and danger setpoints match the backed-up configuration. If the rack communicates via a 3500/92 gateway, perform a tag poll from the upstream DCS to confirm data integrity.
Q: Has the replacement unit been tested before shipment?
A: Yes. Every 128240-01 unit we ship undergoes functional testing against Bently Nevada performance specifications prior to dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.
Q: What if the module address or rack slot assignment conflicts with the existing configuration?
A: Module slot addressing in the 3500 Series is determined by physical rack position, not by a software-assigned address. As long as the replacement 128240-01 is installed in the same slot as the original, no address conflict will occur. If the slot has changed due to rack reconfiguration, update the rack configuration file accordingly using the 3500 Rack Configuration Software before going live.
