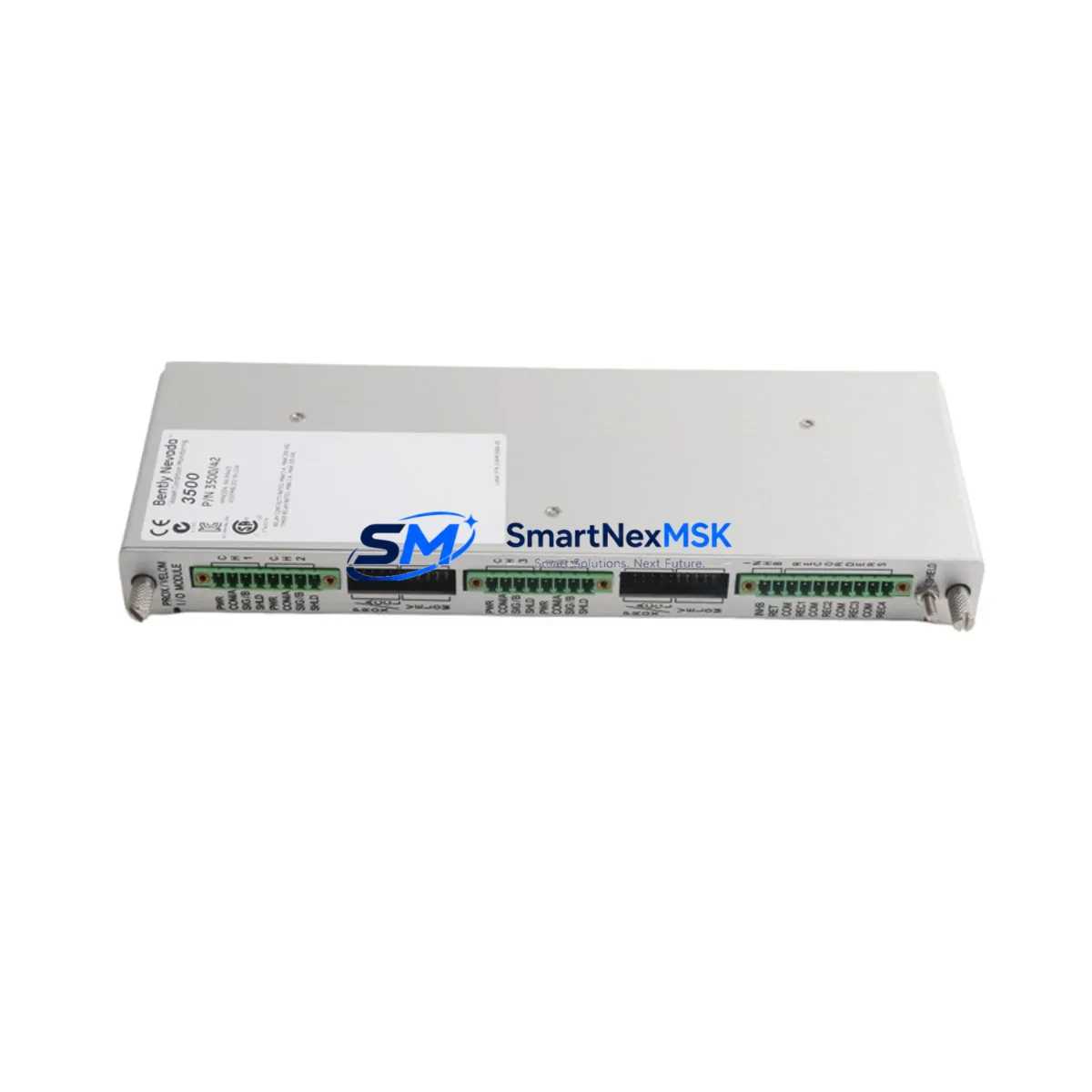

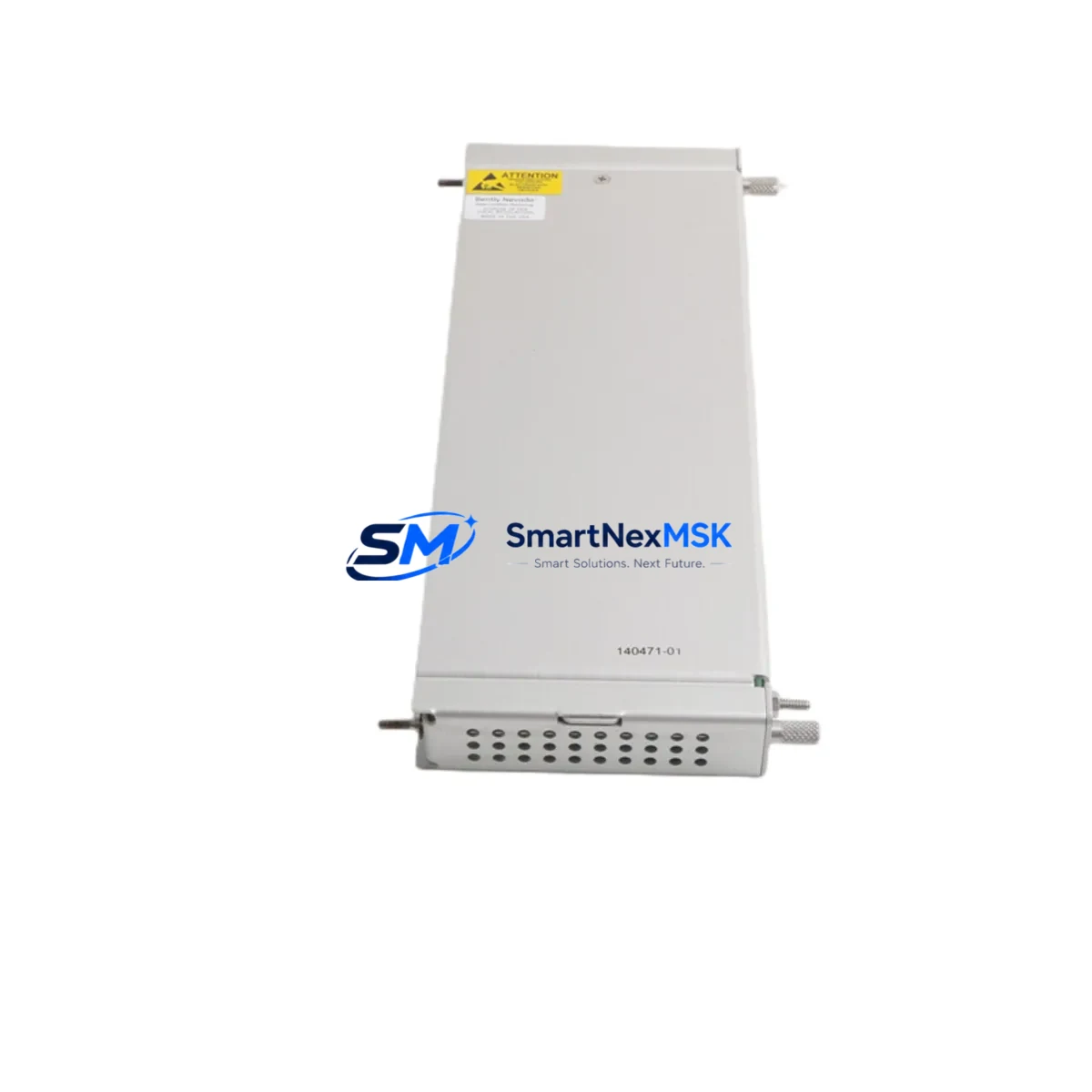

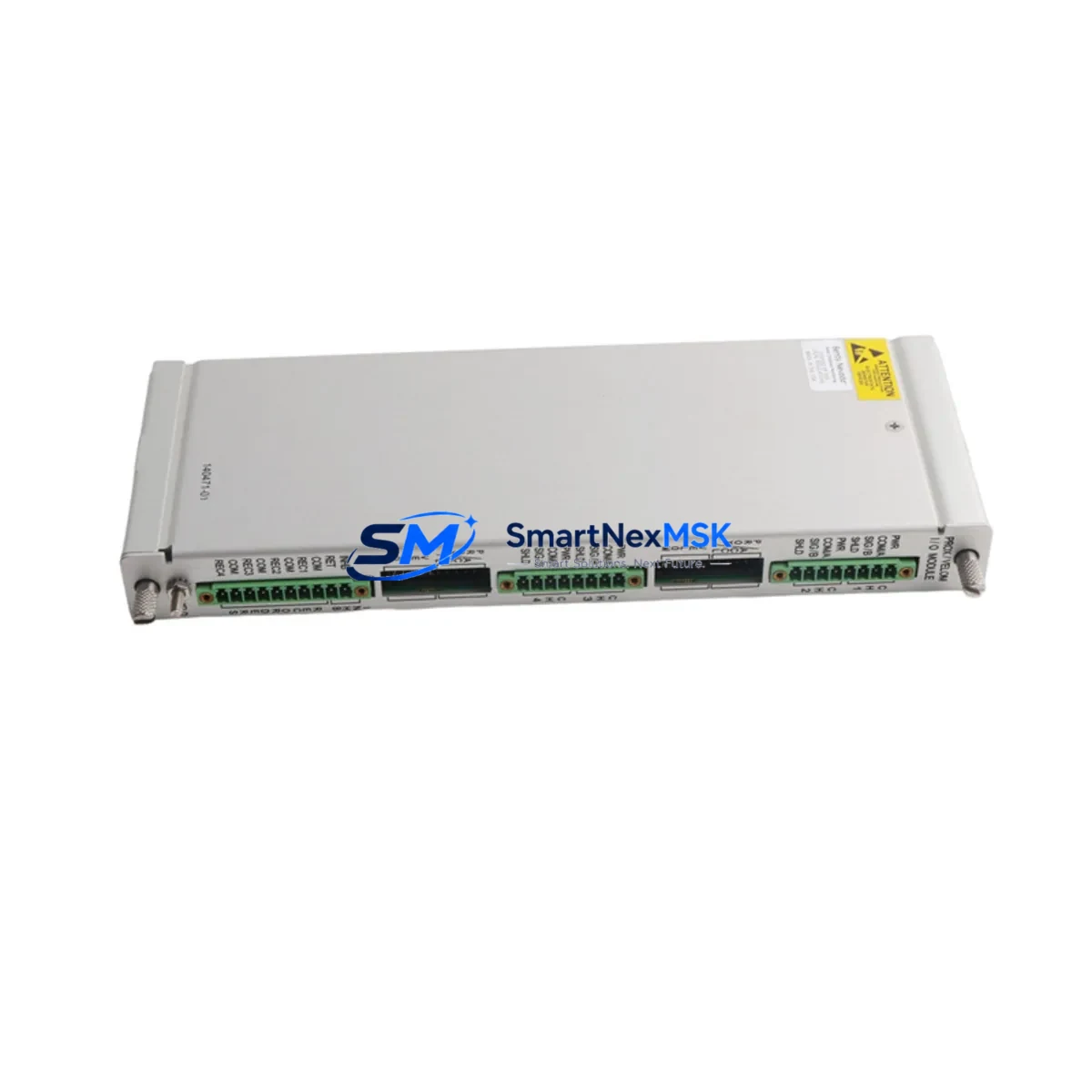

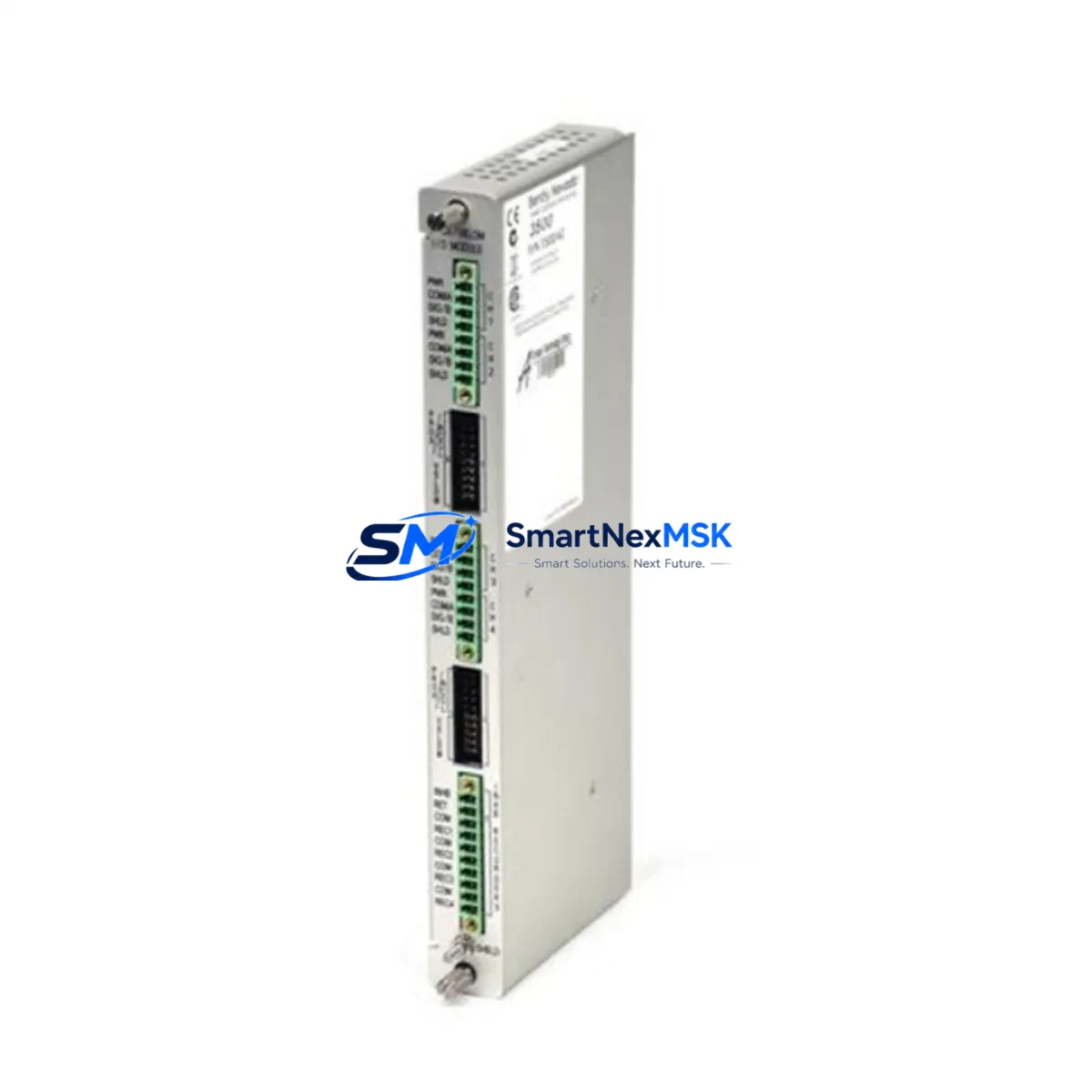

The Bently Nevada 140471-01 is an original Proximitor/Seismic Monitor module designed for the 3300 XY Series continuous vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this module serves as the critical signal-conditioning interface between eddy-current proximity probes and the plant’s safety and control logic. When this module fails or degrades, the entire vibration channel goes blind, exposing rotating assets to undetected shaft displacement, bearing wear, and catastrophic mechanical failure. Maintaining a certified original spare on the shelf is not optional in high-availability plants; it is a fundamental element of any credible predictive maintenance and emergency response strategy.

This unit ships tested, inspected, and backed by a 12-month warranty. Each module undergoes functional verification prior to dispatch to ensure it meets original Bently Nevada performance specifications. Fast global shipping is available to minimize downtime exposure for maintenance teams operating under tight outage windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 140471-01 module is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough control cabinet inspection and vibration channel audit should accompany every module swap to prevent repeat failures and ensure the restored channel meets original accuracy specifications.

Begin by verifying the 3300 Series power supply module (such as the 3300/15 or 3300/20 power supply) is delivering stable –24 VDC to the proximitor rail. A sagging or noisy supply is a common root cause of spurious OK relay dropouts that are incorrectly attributed to the monitor module itself. While the cabinet is open, inspect the 3300 Series I/O module and terminal block wiring for corrosion, loose ferrules, or insulation breakdown — particularly in high-vibration or high-humidity environments.

The eddy-current proximity probe and extension cable assembly (3300 XL or 7200 Series probe with matching extension cable and proximitor) must be gap-checked and continuity-verified before the new 140471-01 is commissioned. A probe with a worn tip or a cable with a damaged shield will immediately degrade the new module’s signal quality and may trigger nuisance alarms. If the probe assembly is more than five years old or shows physical wear, replacing it alongside the monitor module is strongly recommended.

For plants running integrated machinery protection, the 3300/55 Keyphasor module should be inspected at the same time, as phase-reference signal integrity directly affects the XY orbit and 1X/2X vector calculations that maintenance engineers rely on for root-cause diagnostics. Similarly, check the 3300/46M or 3300/46 position monitor module if axial position monitoring is part of the same rack, since a rack-level power event that damages one module often stresses adjacent slots.

On the control system side, verify that the 4–20 mA analog input card in the DCS or safety PLC receiving the vibration signal is reading correctly after the module swap. A failed input channel on the receiving controller can mask a successful module replacement and lead to unnecessary repeat maintenance. If the plant uses a Bently Nevada System 1 condition monitoring platform, confirm that the channel configuration, full-scale range, and alarm setpoints are correctly mapped to the replacement module’s output scaling.

For older 3300 Series racks approaching end-of-support, consider stocking a 3300/10 rack and backplane assembly as a long-lead spare. Backplane connector wear is a silent failure mode that becomes apparent only when a new module is inserted and intermittent contact faults appear. Proactive backplane inspection during any module replacement is a low-cost, high-value maintenance step that extends overall system life.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the channel alarm status in System 1 or the DCS historian. Document the last known vibration trend, 1X amplitude, and phase angle for the affected bearing location. This baseline is essential for post-replacement acceptance testing.

Step 2 — Safe isolation: Inhibit the channel alarm in the safety system per site MOC procedure. Do not bypass the OK relay output at the DCS without authorization. Remove the 140471-01 module from the rack by releasing the front-panel locking screw and sliding the module out on its card guides. Note the slot position — 3300 Series racks are slot-specific for some configurations.

Step 3 — Inspect before installing: Visually inspect the backplane connector pins for bent contacts or debris. Clean with dry compressed air if required. Inspect the probe cable connector at the internal termination block for corrosion or loose contacts.

Step 4 — Install the 140471-01 replacement: Slide the new module into the correct slot until the front-panel connector seats fully. Tighten the locking screw. The OK LED should illuminate within 5 seconds if the probe assembly is healthy and the gap is within specification (typically –10.0 VDC ± 0.5 VDC for standard 3300 XL probes at 1.0 mm gap).

Step 5 — Functional acceptance: Confirm the 4–20 mA output is within expected range at the DCS analog input. Verify the buffered transducer output voltage at the BNC connector matches the probe gap voltage. Remove the channel inhibit and confirm no spurious alarms are present. Log the replacement in the CMMS with the new module serial number and warranty expiry date.

This workflow is compatible with both hot-swap capable 3300 Series racks and those requiring a full rack power-down. Consult the site-specific safety procedure and Bently Nevada installation manual before proceeding in live machinery environments.

Spare Parts Support FAQ

Q1: Is the 140471-01 an exact drop-in replacement for older 3300 XY monitor modules?
Yes. The 140471-01 is designed as a direct replacement within the 3300 Series rack architecture. It uses the same slot form factor, backplane connector pinout, and internal termination wiring scheme as earlier 3300 XY monitor revisions. No rack modification or re-wiring is required for standard installations. Always verify the probe scale factor and gap voltage specification match your existing probe assembly before commissioning.

Q2: What pre-shipment testing is performed on each unit?
Every 140471-01 unit is functionally tested prior to shipment. Testing includes power-on self-test verification, OK relay operation, analog output linearity check, and buffered output signal verification. Units that do not pass all functional checks are not shipped. A 12-month warranty covers defects in materials and workmanship from the date of delivery.

Q3: How should I manage 140471-01 inventory for a multi-unit plant?
Industry best practice for critical vibration monitoring spares is to maintain a minimum of one module per four installed channels, with a floor of two units per plant regardless of installed base size. For plants with more than 20 channels of 3300 XY monitoring, a dedicated spare kit including the monitor module, a matched probe and extension cable set, and a power supply module is recommended. Rotate spare stock every 5–7 years to prevent electrolytic capacitor aging in long-term storage.

Q4: Can you supply 140471-01 modules on an ongoing basis for long-term maintenance contracts?
Yes. We maintain standing inventory of 3300 Series spare modules and can support blanket purchase orders, scheduled delivery programs, and emergency same-day dispatch for critical shutdown situations. Contact our team at sales@smartnexmsk.com or +86 18259474341 to discuss long-term supply agreements, volume pricing, and consignment stocking options tailored to your plant’s maintenance schedule.
