Bently Nevada 16710-13 Spare for 3300 Series Automation

Bently Nevada 16710-13 Spare for 3300 Series Automation: Precision Replacement for Vibration Monitoring Continuity

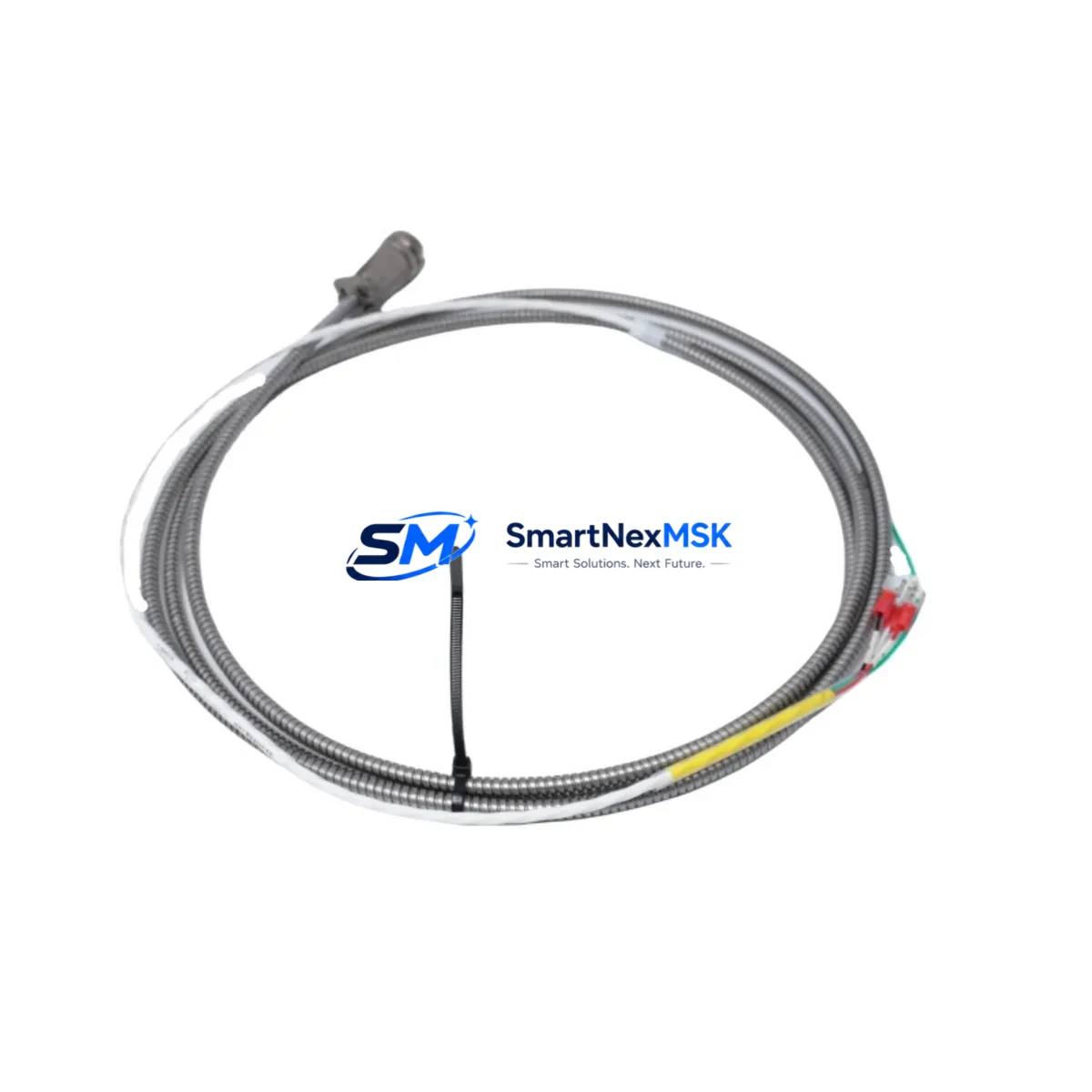

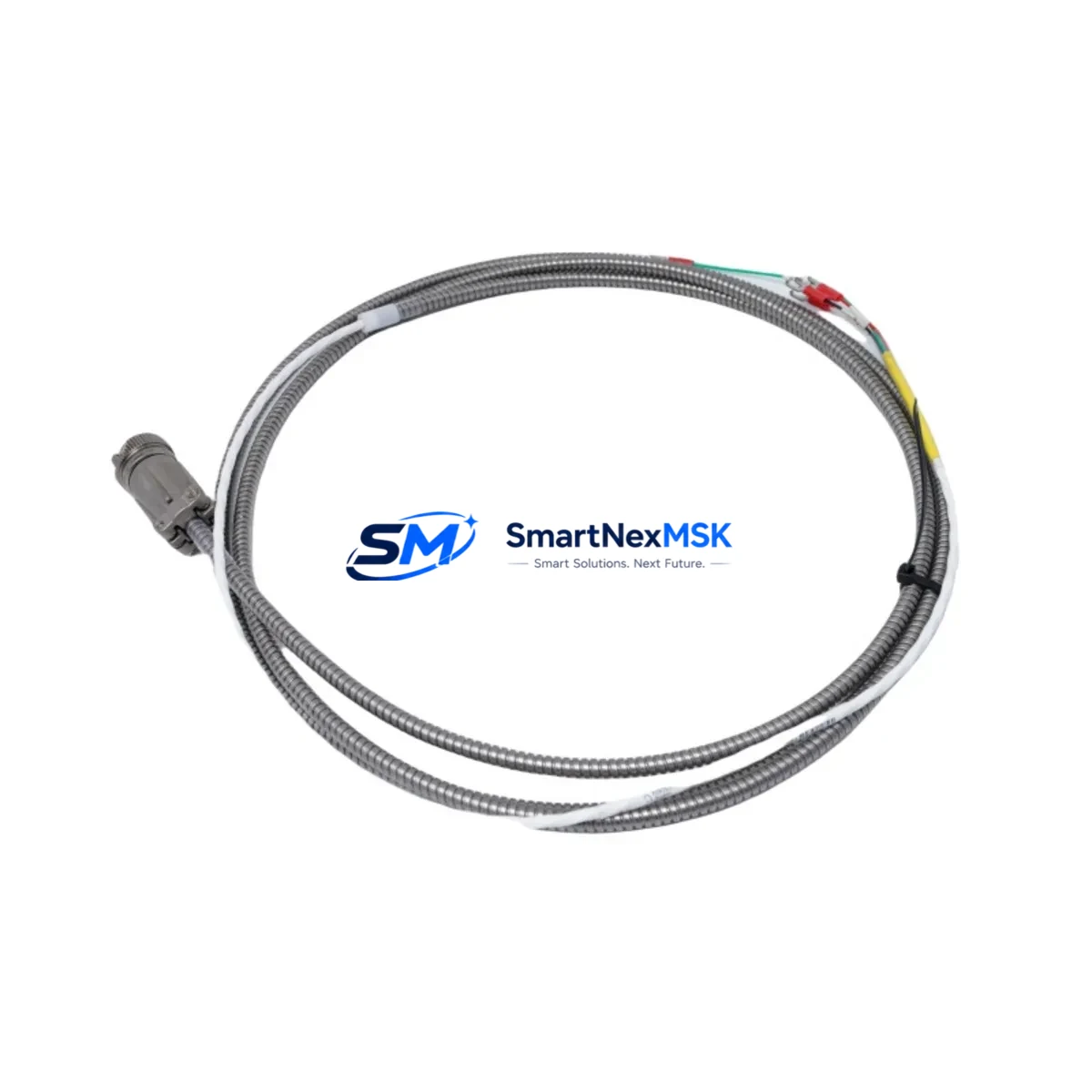

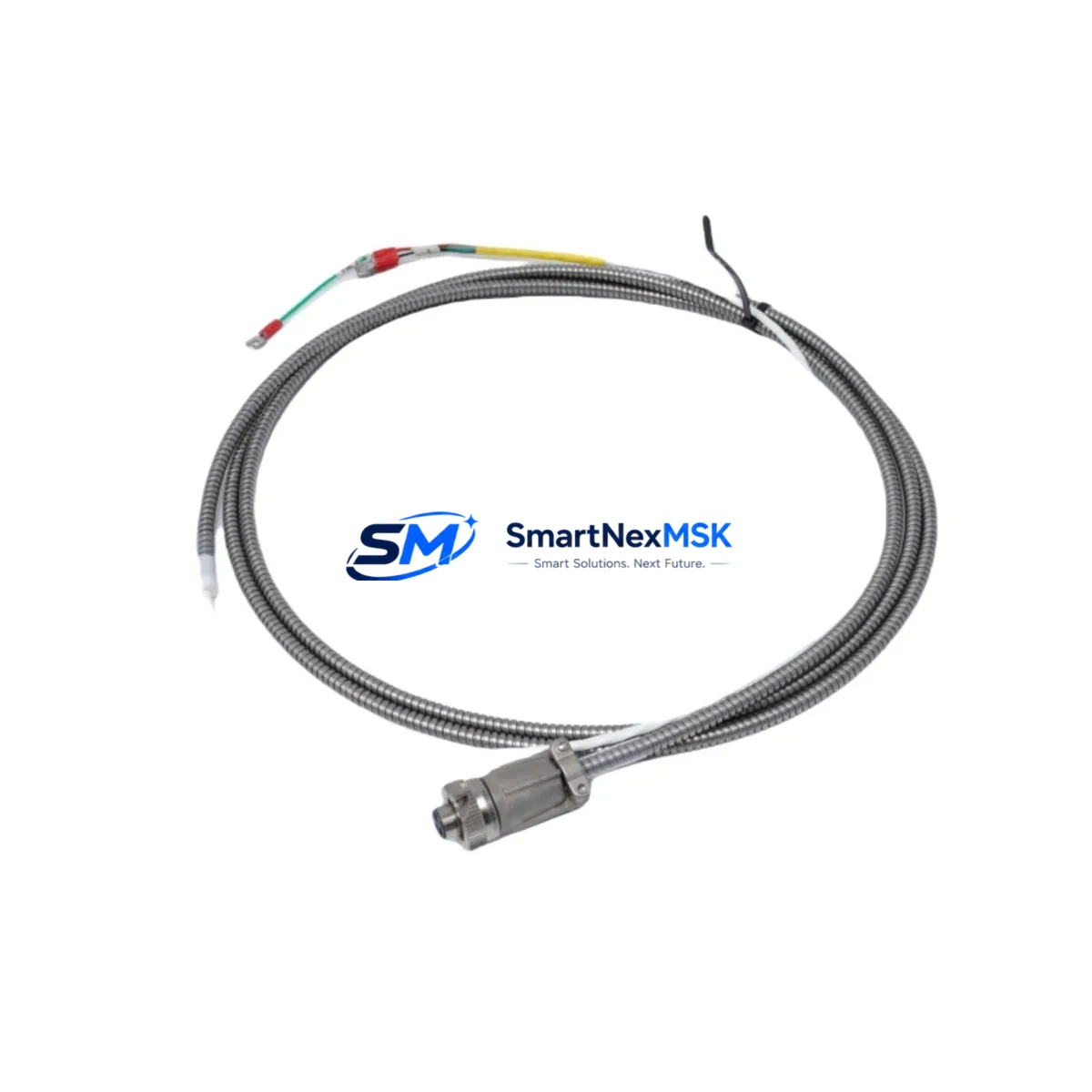

The Bently Nevada 16710-13 is an original proximity interconnect cable engineered for the 3300 Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. When a proximity cable fails or degrades, the entire vibration signal chain is compromised, leaving critical rotating machinery — turbines, compressors, pumps, and gearboxes — without real-time protection. Sourcing a verified, tested replacement is not optional; it is a maintenance imperative.

This listing provides the 16710-13 as a maintenance-ready spare, stocked for immediate dispatch, 100% electrically tested prior to shipment, and backed by a 12-month warranty. Whether you are executing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a long-running 3300 Series installation, this cable is the correct, compatible, and reliable choice.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 16710-13 interconnect cable sits at the heart of the proximity measurement loop. When planning a replacement — whether during a scheduled outage or an emergency shutdown — maintenance engineers should treat the cable swap as an opportunity to audit the entire signal chain and surrounding components.

Begin with the 3300/16 proximitor module (or its equivalent in your installed rack). If the cable has shown signs of intermittent signal or noise, the proximitor itself may have suffered input-stage degradation and should be bench-tested or replaced concurrently. Inspect the 3300/05 proximity probe at the machine end: tip wear, thread damage, or contamination will negate the benefit of a new cable. Check the 3300/20 extension cable if your installation uses a three-piece probe system — a compromised extension is a common source of false readings that are often misattributed to the interconnect cable.

At the rack level, verify the 3500/22M transient data interface or the relevant monitor card is receiving clean -24 VDC from the 3500/15 power supply module. A sagging or noisy DC rail will corrupt proximity readings regardless of cable condition. If your facility uses a 3500/92 communication gateway for Modbus or Ethernet output to the DCS or historian, confirm that the gateway firmware and configuration remain intact after any rack disturbance.

For installations where the 3300 Series feeds a Bently Nevada 3500 Series rack or interfaces with a GE Mark VIe turbine control system, ensure that the I/O termination boards and field wiring are inspected for loose terminals and moisture ingress — both are leading causes of spurious vibration alarms in humid or offshore environments. Terminal blocks and DIN rail-mounted surge protectors on the signal lines should be checked for continuity and clamping voltage integrity.

Finally, if your site uses a Bently Nevada System 1 software platform for condition monitoring, take the opportunity during the cable replacement window to verify that the channel configuration, gap voltage setpoints, and alarm thresholds are correctly documented and match the as-built drawings. Discrepancies between software configuration and physical installation are a silent risk in aging 3300 Series deployments.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the affected measurement channel at the monitor rack. Do not de-energize the entire rack unless required — most 3300 Series monitors support hot-swap of the cable without tripping adjacent channels.

Step 2 — Document Gap Voltage: Before disconnecting the old 16710-13, record the gap voltage displayed on the proximitor or monitor card. This baseline is essential for verifying correct probe positioning after reinstallation.

Step 3 — Cable Removal: Disconnect the BNC connectors at both the probe/extension cable end and the proximitor end. Inspect the connector bodies for corrosion, bent center pins, or damaged dielectric. If connector damage is found, replace the mating connector on the proximitor or extension cable as well.

Step 4 — Install 16710-13 Replacement: Route the new cable following the original cable path. Avoid sharp bends, contact with hot surfaces, or proximity to high-voltage power cables. Secure with cable ties at the original support points.

Step 5 — Verify Gap Voltage: After connection, confirm that the gap voltage returns to the documented baseline (typically -10 VDC ± 0.5 VDC for standard 3300 Series setups). Deviation indicates a probe positioning issue or a damaged proximitor — not a cable fault.

Step 6 — Functional Test and Return to Service: Clear any latched alarms at the monitor, verify that the vibration reading is within normal operating range, and document the replacement in the maintenance management system. Return the channel to automatic protection mode.

This workflow minimizes downtime, preserves system compatibility, and ensures that the replacement is fully validated before the machine is returned to load.

Spare Parts Support FAQ

Q1: Is the 16710-13 a direct drop-in replacement for all 3300 Series installations?
Yes. The 16710-13 is the OEM-specified interconnect cable for the Bently Nevada 3300 Series proximity measurement system. It is compatible with all standard 3300/05 probes, 3300/20 extension cables, and 3300/16 proximitor modules. No modification or re-configuration is required for a like-for-like replacement.

Q2: How should I manage 16710-13 inventory for a large rotating equipment fleet?
For facilities with 10 or more 3300 Series measurement points, we recommend maintaining a minimum of 2–3 spare cables per critical machine train. Cables in continuous service in high-temperature or high-vibration environments should be inspected annually and replaced on a 3–5 year preventive cycle, regardless of apparent condition. Storing spares in a sealed, climate-controlled cabinet extends shelf life beyond 10 years.

Q3: What pre-shipment testing is performed on each 16710-13 unit?
Every unit undergoes 100% electrical testing before dispatch: full continuity check on the center conductor and shield, insulation resistance measurement, and connector integrity verification. A test record is available upon request. Units that do not meet OEM electrical specifications are not shipped.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation, mechanical abuse, or operation outside specified environmental limits. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, failure description, and photographs of the failed unit. Replacement or credit is processed within 5 business days of claim approval.
