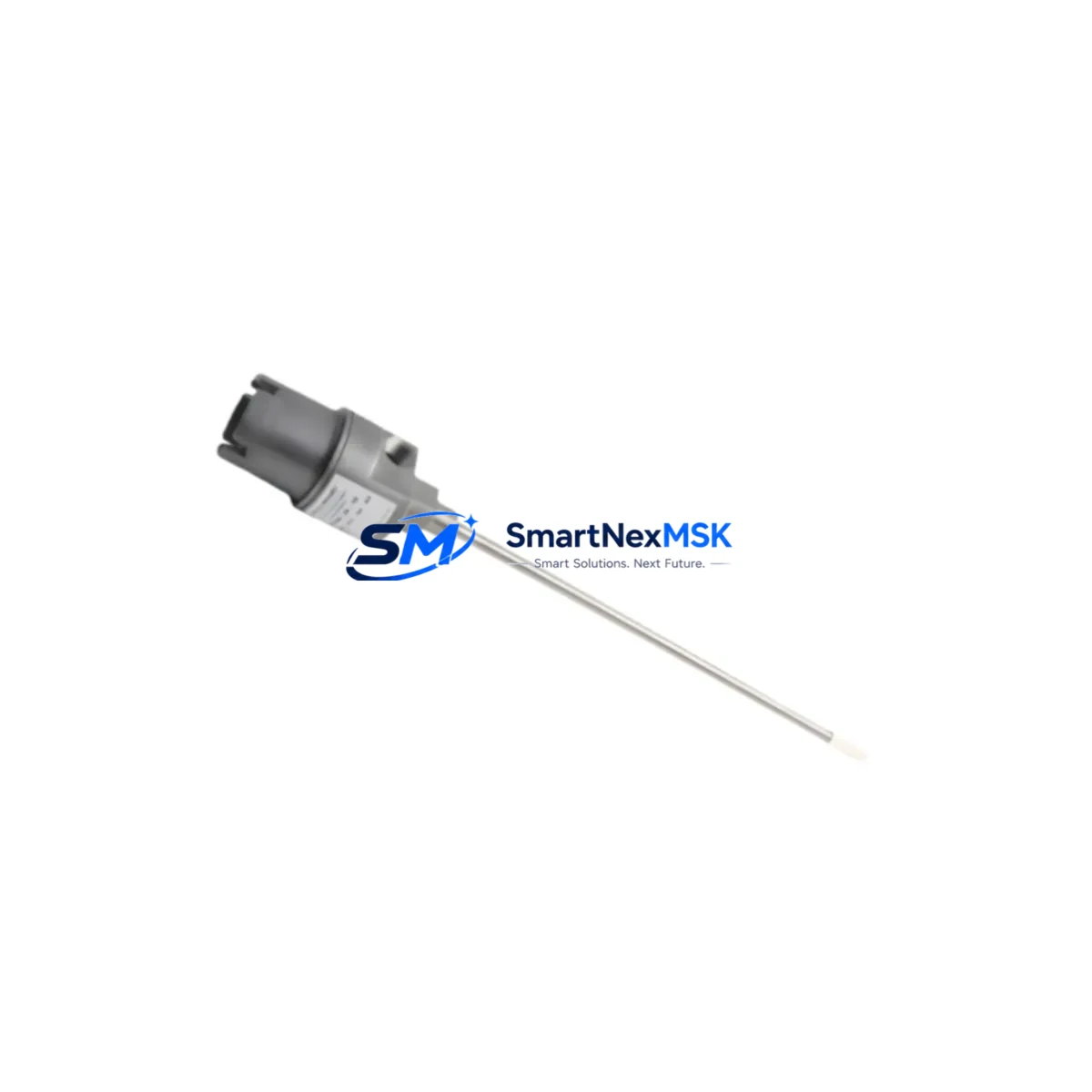

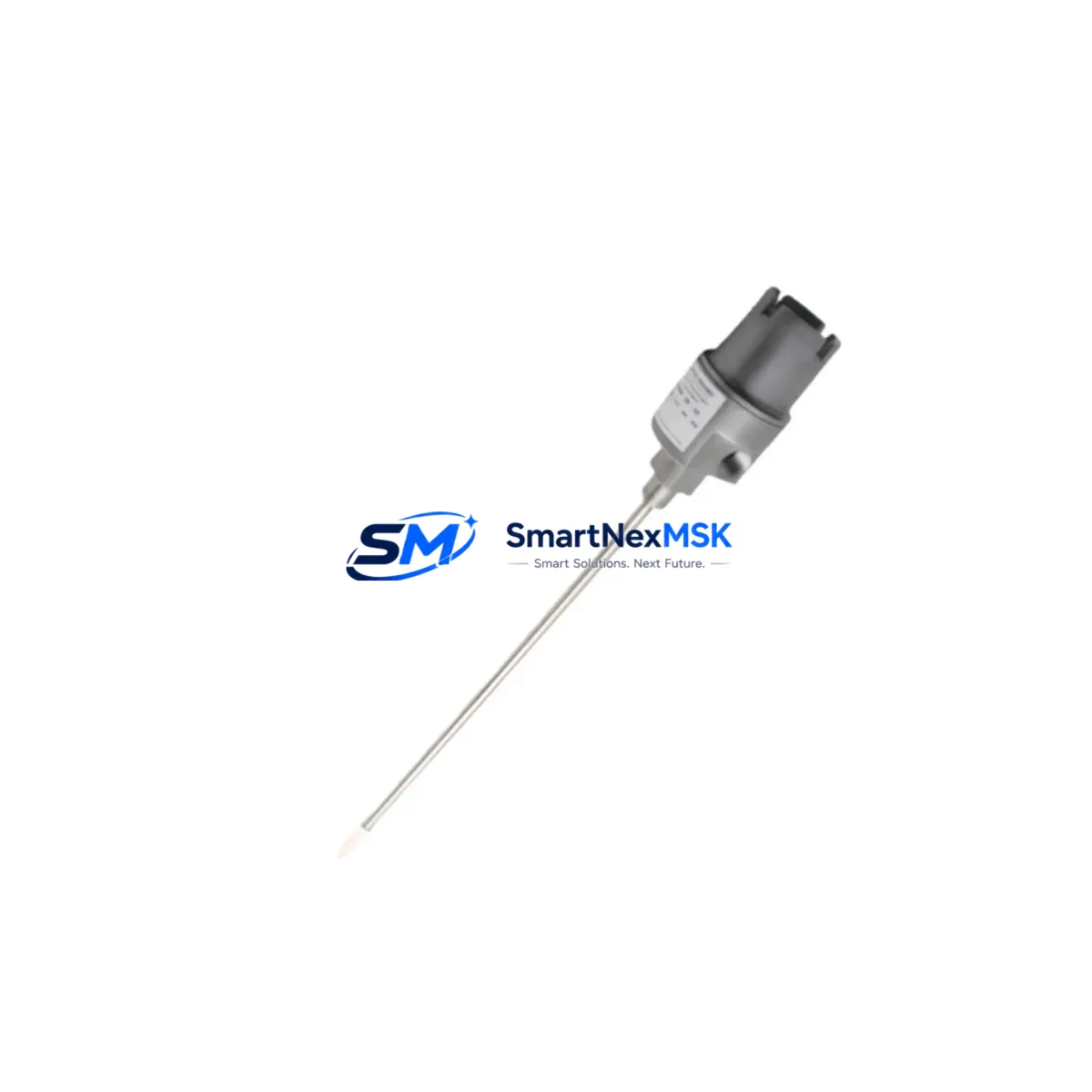

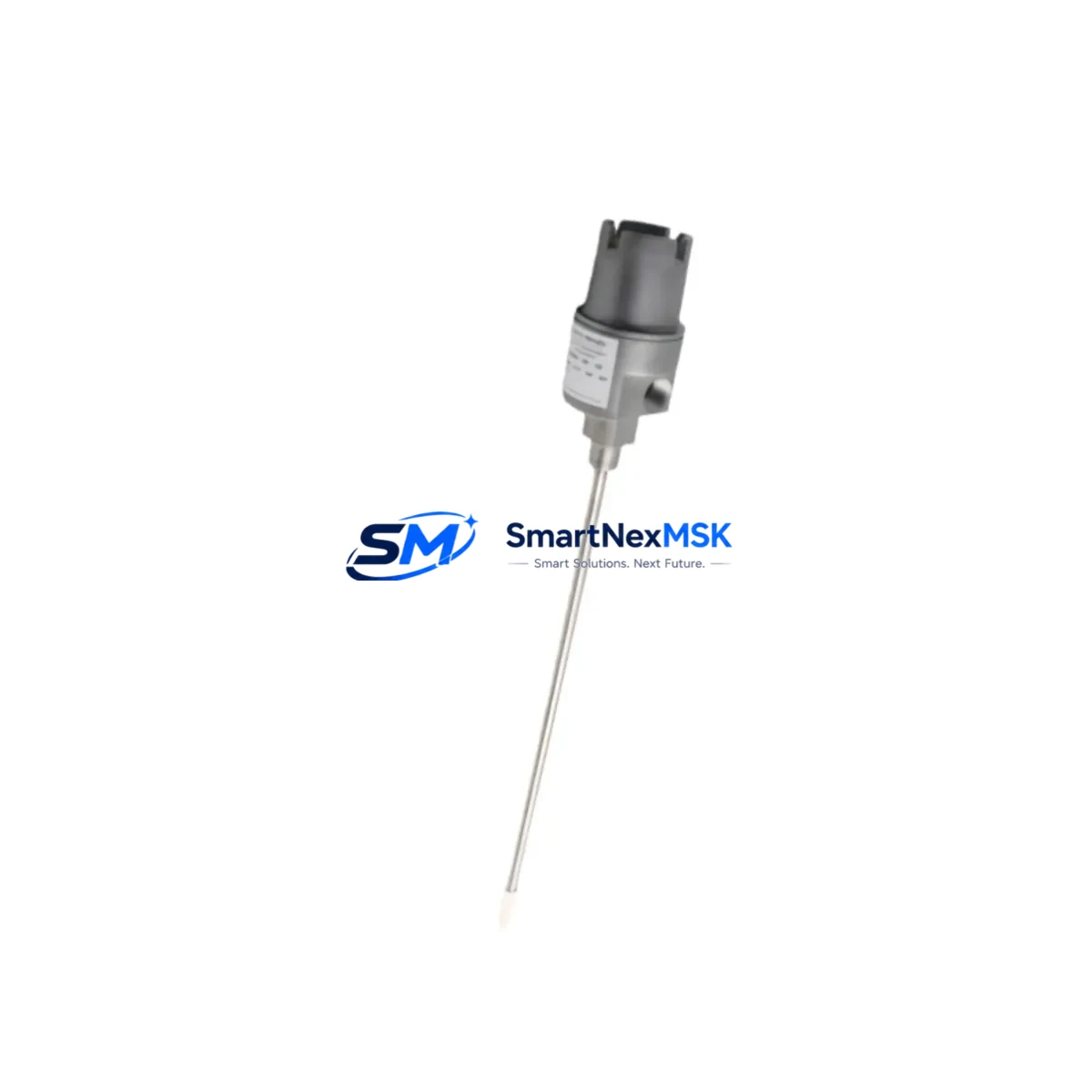

Bently Nevada 21000-28-05-00-080-03-02 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 21000-28-05-00-080-03-02 is a precision-engineered proximity probe assembly designed for seamless integration into legacy and active 3300 XL Series vibration monitoring systems. As industrial facilities face increasing pressure to extend the operational life of existing machinery protection infrastructure, this component serves as a critical retrofit solution — enabling engineers to replace discontinued or degraded probe assemblies without requiring full system overhauls or extended production shutdowns.
This probe is fully compatible with the Bently Nevada 3300 XL monitoring platform, which remains widely deployed across rotating machinery applications including steam turbines, gas compressors, centrifugal pumps, and large induction motors. The 21000-28-05-00-080-03-02 maintains the same eddy-current sensing principle and output signal characteristics as the original factory specification, ensuring that existing 3300 XL monitor cards — such as the 3300/16 and 3300/20 series — continue to receive accurate radial vibration and position data without recalibration of the monitoring rack.
When planning a retrofit using this probe assembly, engineers should verify several key parameters before installation. Power supply compatibility with the existing proximitor/extension cable circuit must be confirmed, particularly when the proximitor — such as the 3300 XL 8mm Proximitor — is being retained from the original installation. Terminal wiring at the junction box and monitor card input terminals should be inspected for correct polarity and shielding continuity. The probe tip gap must be set to the manufacturer-specified air gap (typically 1.0–1.5 mm for 8mm probes) using a calibrated gap voltage measurement at the proximitor output, referencing the original system documentation or the 3300 XL System Monitor manual.
Backplane and rack compatibility is another critical checkpoint. If the 3300 XL monitor cards are housed in a 3300 Rack or a 3500 Rack (where 3300 XL cards are sometimes co-located during phased migration), the probe signal routing must be verified against the rack’s I/O termination block assignments. Module address settings on the monitor card should remain unchanged during a probe-only swap to avoid disrupting the existing Bently Nevada System 1 software configuration or any connected DCS historian tags.
Program logic compatibility is equally important. In facilities where the 3300 XL system feeds alarm and trip signals into a DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA — the probe replacement should be treated as a field instrument swap, not a system change. Existing function blocks, alarm setpoints, and OK relay logic in the DCS should be verified post-installation to confirm that the new probe’s output falls within the expected gap voltage window and does not trigger spurious alerts.
HMI screen validation is recommended after installation. Operators monitoring shaft vibration trends on a System 1 Evolution workstation or a legacy System 1 v5.x client should confirm that the new probe’s live readings align with historical baseline data. Any deviation beyond ±5% of the pre-replacement trend should be investigated before returning the machine to full load.
Communication link integrity between the 3300 XL rack and the plant network should also be verified. If the rack communicates via a Bently Nevada TDI (Transient Data Interface) or a Modbus TCP gateway to the control room, the probe channel’s data point should be confirmed as live and within normal range in the SCADA or historian system before sign-off.
Field commissioning typically involves a cold-loop check with the machine at rest, followed by a slow-roll verification at minimum operating speed to confirm probe linearity and gap stability. This process is compatible with standard Bently Nevada commissioning procedures and does not require specialized tooling beyond a standard gap voltage meter and the probe driver’s calibration curve.
SMARTNEXMSK maintains verified stock of the 21000-28-05-00-080-03-02 and related 3300 XL ecosystem components, including extension cables, proximitor housings, and monitor card assemblies. All units are subject to pre-shipment functional testing and are covered by a 12-month warranty against manufacturing defects. Fast global shipping is available with full export documentation for international customers.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Compatible Platform | Bently Nevada 3300 XL Series |
| Probe Type | Eddy-Current Proximity Probe |
| Nominal Gap Voltage | −10 VDC (at 1.0 mm gap, typical) |
| Extension Cable Compatibility | 3300 XL standard extension cables (3 m, 5 m, 9 m) |
| Proximitor Compatibility | 3300 XL 8mm Proximitor Series |
| Monitor Card Compatibility | 3300/16, 3300/20 Radial Vibration Monitor Cards |
| Installation Requirement | Standard M8 probe mount; no housing modification required |
| Communication Compatibility | Analog signal output; compatible with TDI, Modbus, and DCS analog input cards |
| Replacement Recommendation | Direct drop-in for degraded or discontinued 21000-series probes |
| Commissioning Note | Gap voltage verification required post-installation |
| Warranty | 12-Month Warranty against manufacturing defects |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 21000-28-05-00-080-03-02 into an existing 3300 XL installation requires a structured approach to component verification. Engineers should begin by auditing the full probe circuit: from the probe tip through the extension cable to the 3300 XL 8mm Proximitor, and from the proximitor output to the monitor card input terminals on the 3300/16 or 3300/20 card. Each segment of this signal chain must be confirmed as electrically sound before the new probe is energized.
In retrofit projects where the control cabinet is also being upgraded, it is common to encounter co-installed components from adjacent Bently Nevada product families. The 3500 Series Rack, for example, is frequently used as the target platform when migrating from a 3300 XL system, and engineers may need to verify that the new probe’s output is compatible with 3500/42M or 3500/45 monitor modules if a phased migration is underway. Similarly, if the facility is upgrading its I/O infrastructure, the probe signal may need to be routed through a new analog input termination block or a 3500 I/O Module before reaching the updated monitor card.
Power supply integrity is a foundational requirement. The proximitor requires a regulated −24 VDC supply, and any degradation in the power rail — whether from an aging 3300 Power Supply Module or a shared DC bus — will directly affect probe output accuracy. A dedicated power audit of the rack’s power distribution should be completed before the new probe is commissioned.
In facilities where the 3300 XL system interfaces with a programmable logic controller via a hardwired relay output or a serial communication link, the PLC program should be reviewed to confirm that the probe’s OK relay logic is correctly mapped. If the PLC is a Siemens S7-300 or an Allen-Bradley ControlLogix, the input card assigned to the 3300 XL’s relay output should be verified as active and correctly addressed in the PLC program before the machine is returned to service.
Downtime Control During System Migration
Minimizing unplanned downtime during a probe replacement is a primary concern for maintenance teams operating in continuous-process environments. The 21000-28-05-00-080-03-02 is designed to support a rapid swap procedure: with the machine at rest and the monitor card bypassed or placed in bypass mode, the probe can be removed and replaced within a standard maintenance window without disturbing the surrounding wiring harness or the proximitor mounting.
To protect existing program logic during the swap, the 3300 XL monitor card should be placed in bypass mode using the System 1 software or the front-panel bypass switch before the probe circuit is broken. This prevents the monitor from generating a false trip signal during the open-circuit condition that occurs when the probe is disconnected. Once the new probe is installed and the gap voltage is verified, the bypass can be released and the monitor returned to normal operation.
Field control continuity can be maintained by pre-staging the replacement probe and extension cable assembly before the maintenance window begins. A pre-wired and pre-gapped probe assembly, verified on a bench test fixture using a calibration block, can be installed in minutes — reducing the total probe replacement time to well under one hour in most installations. This approach is consistent with Bently Nevada’s recommended hot-standby maintenance philosophy for critical rotating machinery protection systems.
Retrofit Support FAQ
Q: Is the 21000-28-05-00-080-03-02 a direct replacement for other 21000-series probes?
A: Yes. The 21000-28-05-00-080-03-02 is dimensionally and electrically compatible with other 21000-series 8mm proximity probes used in 3300 XL installations. Minor suffix variations may indicate cable length or connector type differences; confirm the extension cable length and connector style before ordering.
Q: Does replacing the probe require recalibration of the 3300 XL monitor card?
A: In most cases, no. If the replacement probe is from the same 21000 series and the gap voltage is set correctly, the monitor card’s existing scale factor and alarm setpoints remain valid. A gap voltage verification at the proximitor output is required, but full card recalibration is not typically necessary.
Q: What wiring checks are required before energizing the new probe?
A: Verify shield continuity on the extension cable, confirm correct polarity at the proximitor input terminals, and check that the proximitor’s −24 VDC supply is within specification. Inspect the probe tip for physical damage and confirm the mounting thread engagement before applying power.
Q: What does the 12-month warranty cover?
A: All units supplied by SMARTNEXMSK are covered by a 12-month warranty against manufacturing defects, including probe tip failure, cable insulation breakdown, and connector faults. Units are pre-shipment tested for output linearity and gap voltage response. Warranty claims are supported by our technical team at sales@smartnexmsk.com.
