Bently Nevada 31000-16-10-00-153-00-02 Spare 3300 XL

Bently Nevada 31000-16-10-00-153-00-02 Spare 3300 XL: Precision Spare for Industrial Vibration Monitoring

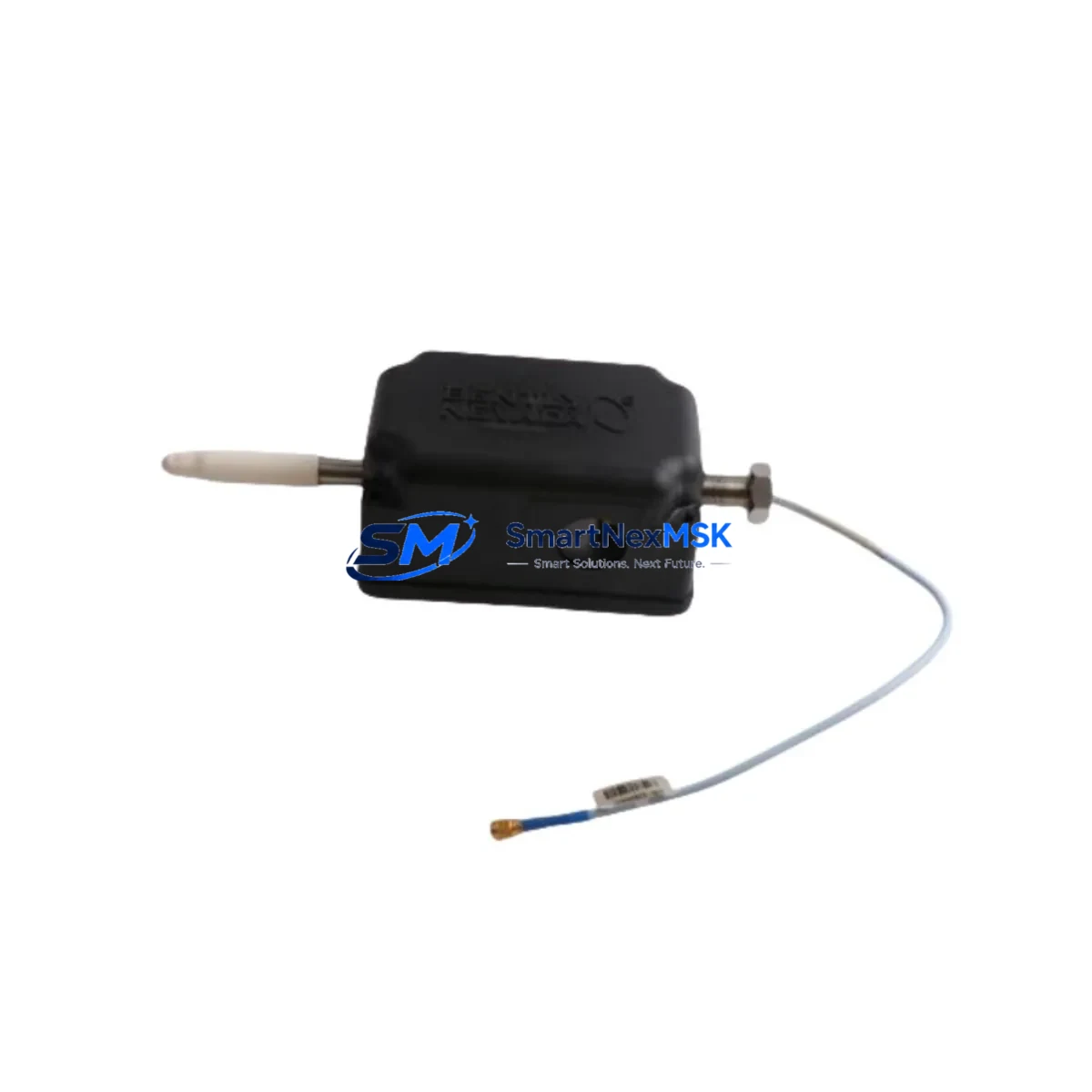

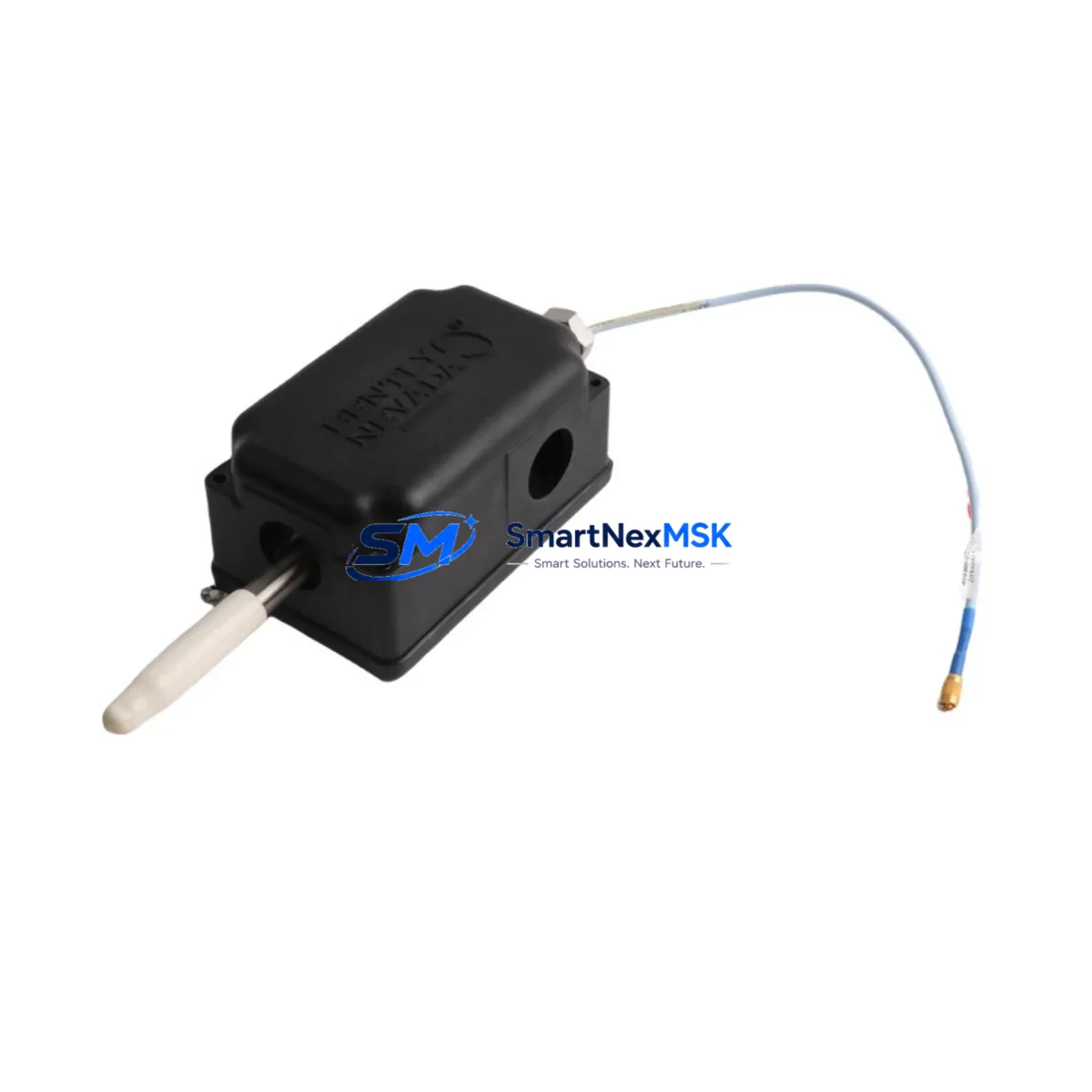

The Bently Nevada 31000-16-10-00-153-00-02 is an original 16mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor for shaft radial vibration, axial position, and differential expansion measurement. When this component fails or degrades, the entire machinery protection loop is compromised, creating unplanned downtime risk and potential equipment damage. Stocking a verified replacement is not optional; it is a fundamental element of any serious predictive maintenance program.

This listing supplies the 31000-16-10-00-153-00-02 as a maintenance-ready spare: tested before shipment, packaged for long-term storage, and backed by a 12-month warranty. Each unit is verified for dimensional conformance and electrical output characteristics before dispatch, ensuring drop-in compatibility with existing 3300 XL monitor racks without recalibration of the full channel.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated event. When a 31000-16-10-00-153-00-02 is pulled from service — whether due to tip damage, cable abrasion, connector corrosion, or sensitivity drift — the maintenance window should be used to inspect the entire measurement chain. The 3300 XL extension cable (typically 5 m or 9 m, part numbers in the 330130 series) is the most common failure point after the probe itself; its coaxial connector and armor jacket should be checked for moisture ingress and mechanical damage before the new probe is installed.

The 3300 XL driver/oscillator-demodulator (3300 XL proximitor, e.g., 330180-51-05) converts the probe’s raw RF signal into a DC gap voltage. If the driver has accumulated operating hours comparable to the failed probe, replacing both simultaneously eliminates a second unplanned outage within the same maintenance cycle. Similarly, the 3300 XL monitor module — which processes the gap voltage into vibration and position alarms — should have its alarm setpoints and OK relay status verified after any probe swap.

For machinery trains where the 3300 XL rack also monitors temperature, the 3300 XL temperature monitor and associated thermocouple or RTD inputs should be cross-checked during the same cabinet inspection. Loose terminal blocks on the 3300 XL I/O module or terminal board can introduce ground loops that corrupt vibration readings after a probe replacement, so torque verification of all field wiring terminations is recommended.

In control cabinets where the 3300 XL system shares a rack with Bently Nevada 3500 Series monitors, the opportunity should be taken to inspect the 3500 rack’s power supply module and backplane connectors. Cross-contamination of ground references between the two systems is a documented source of spurious OK-relay trips. If the plant runs a System 1 or System 1 Evolution condition monitoring platform, confirm that the channel configuration file reflects the new probe’s serial number and calibration date to maintain data integrity in the historian.

For sites operating older Bently Nevada 7200 Series or 3300/5 Series probes in parallel with the 3300 XL system, this maintenance event is an appropriate time to assess whether those legacy channels are candidates for upgrade. Replacement 7200 Series probes and their companion drivers remain available as spares to extend system life without a full rack replacement.

Finally, review the barrier or Zener barrier modules in the intrinsically safe loop (if applicable). IS barriers degrade over time and can limit the probe’s effective linear range, producing false high-vibration alarms that are often misdiagnosed as probe failure. A barrier swap during the same outage window is low-cost insurance against a repeat callout.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the 3300 XL rack channel or place the monitor in bypass mode to suppress spurious alarms during the swap.

Step 2 — Gap measurement baseline: Record the existing probe gap voltage (typically -10 VDC at mid-range) before disconnection. This value will be used to set the replacement probe to the same physical gap, minimizing re-commissioning time.

Step 3 — Probe removal: Disconnect the extension cable at the proximitor. Unthread the probe from the bracket using the correct spanner. Inspect the bracket bore for corrosion or thread damage — a damaged bracket will misalign the new probe and introduce measurement error.

Step 4 — New probe installation: Thread the 31000-16-10-00-153-00-02 into the bracket. Set the gap to achieve the target gap voltage (per the original calibration record or the 3300 XL system documentation). Reconnect the extension cable and verify the connector is fully seated and locked.

Step 5 — Channel verification: Restore power to the channel. Confirm gap voltage is within the linear range, OK relay is energized, and the System 1 or DCS historian is receiving a valid signal. Compare the live vibration reading against the pre-outage baseline to confirm the replacement has not introduced a measurement offset.

Step 6 — Documentation: Update the maintenance management system (CMMS) with the new probe serial number, installation date, and gap setting. Log the replaced probe’s failure mode for reliability analysis.

Spare Parts Support FAQ

Q: Is the 31000-16-10-00-153-00-02 a direct drop-in replacement for earlier 3300 XL 16mm probes?
A: Yes. The 31000-16-10-00-153-00-02 is dimensionally and electrically compatible with all 3300 XL 16mm proximity probe positions. No driver recalibration is required provided the target material is AISI 4140 steel. For non-standard target materials, consult the 3300 XL system documentation for correction factors.

Q: What pre-shipment testing is performed on each unit?
A: Every 31000-16-10-00-153-00-02 shipped from our inventory undergoes gap voltage output verification, insulation resistance testing, and connector integrity inspection. A test report is available upon request. The 12-month warranty covers electrical performance and mechanical integrity under normal operating conditions.

Q: How should this spare be stored to maximize shelf life?
A: Store in the original packaging in a dry, temperature-controlled environment (0°C to 40°C, <85% RH non-condensing). Avoid coiling the integral cable tighter than a 50mm bend radius. Inspect the connector cap for moisture ingress every 12 months. Properly stored, the probe maintains full specification for a minimum of 5 years.

Q: Can you supply multiple units for a plant-wide spare parts program?
A: Yes. Volume orders for maintenance kits — including matched probe, extension cable, and proximitor sets — are supported. Lead times and pricing for quantities of 5 or more units are available upon inquiry. Long-term supply agreements with scheduled delivery are also available to support annual maintenance planning cycles.
