Bently Nevada 330101-23-34-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330101-23-34-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

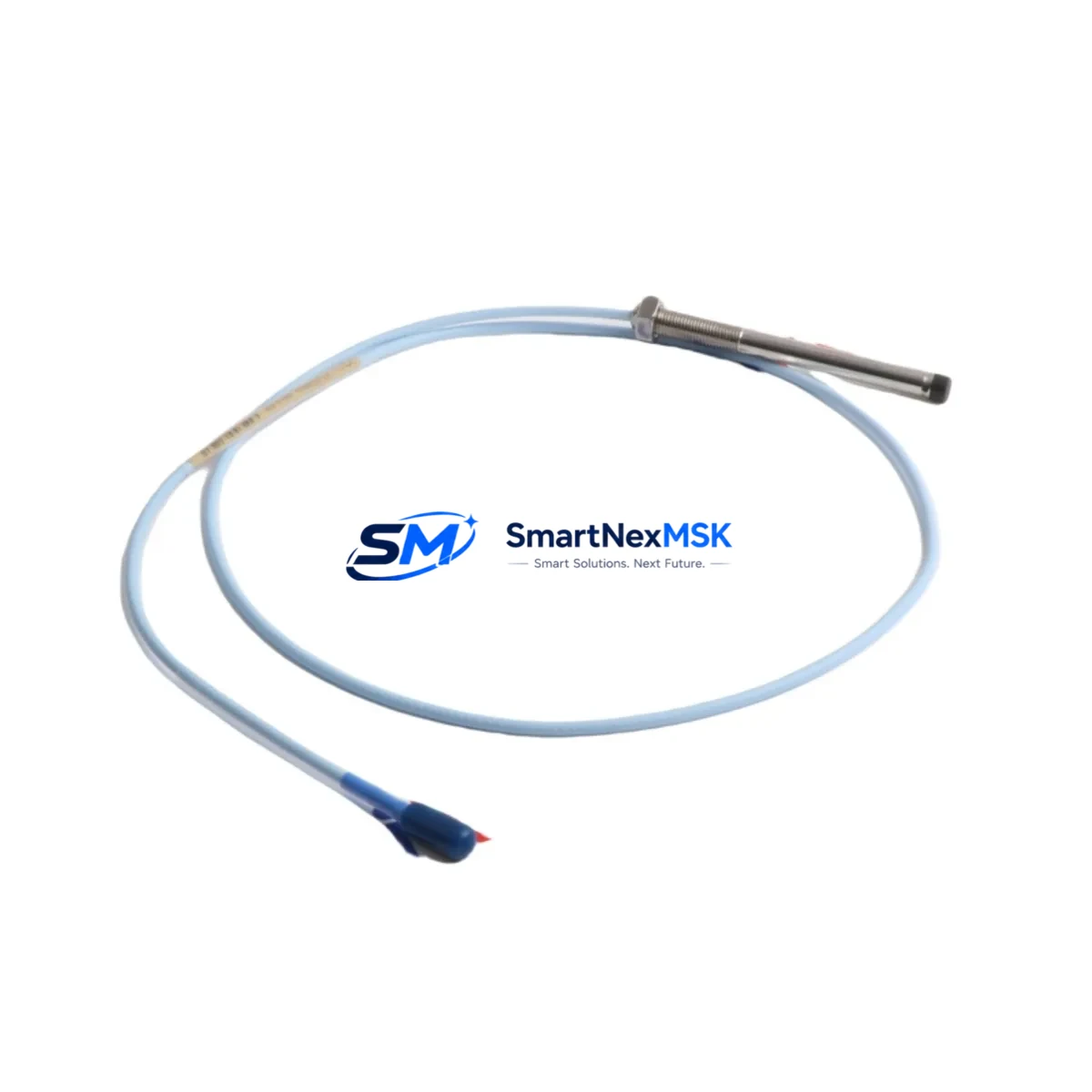

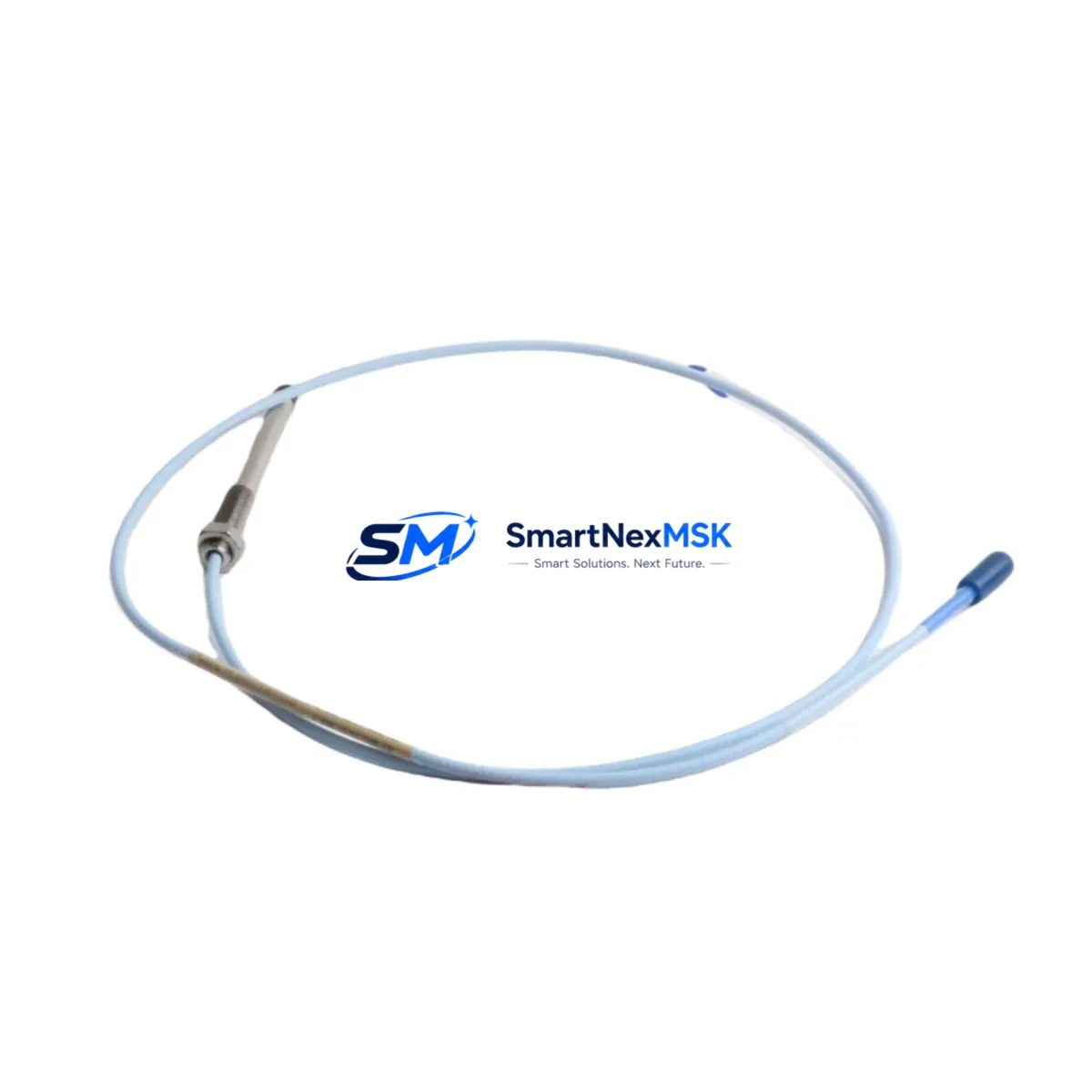

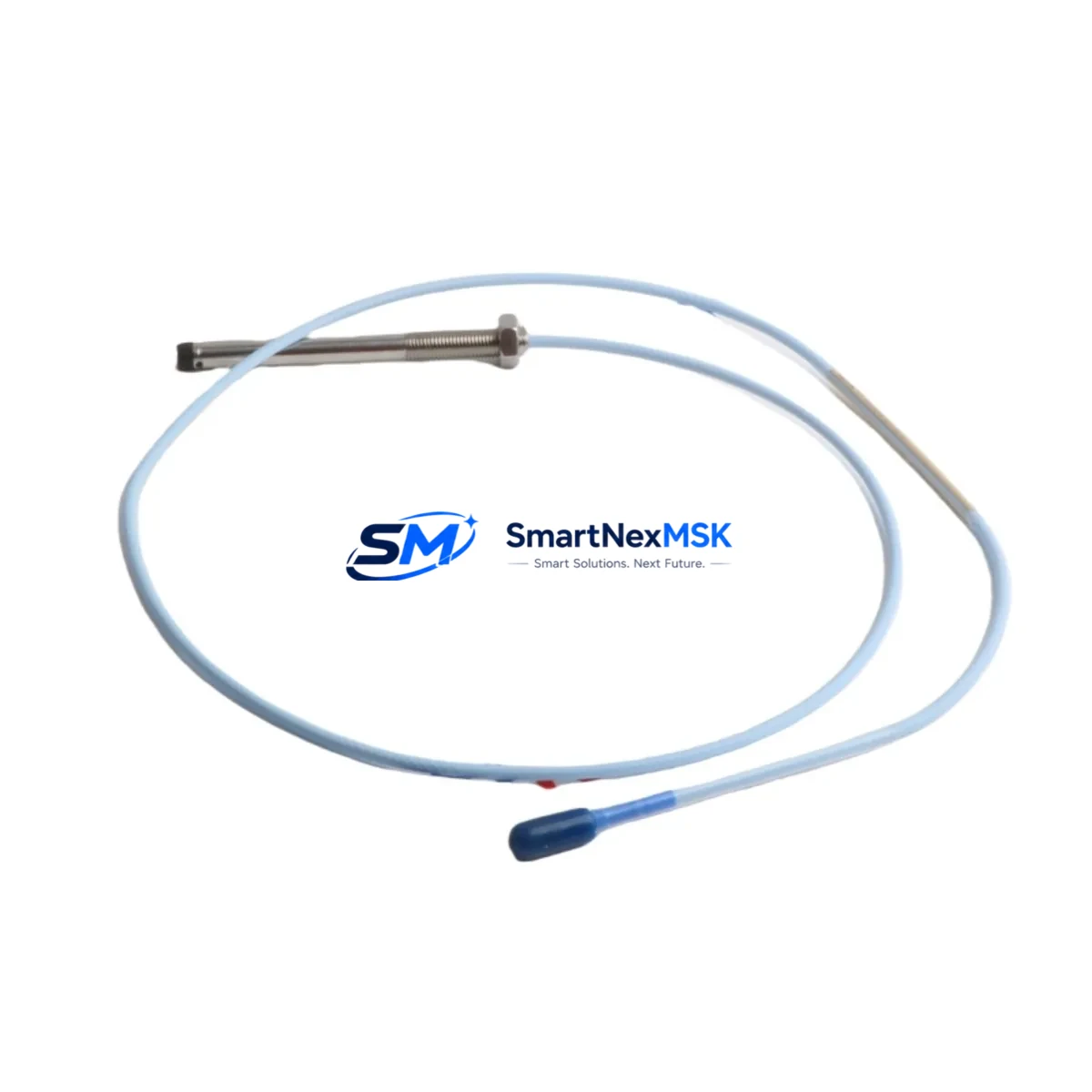

The Bently Nevada 330101-23-34-10-02-05 is an 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life or face discontinued spare parts availability, this probe serves as a verified drop-in replacement that restores full measurement integrity without requiring changes to the existing signal conditioning chain or rack architecture. Whether you are managing a planned outage, responding to an unplanned failure, or executing a phased modernization of your machinery protection system, this probe is stocked and ready for immediate dispatch with a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a Bently Nevada 3300 XL-based machinery protection system requires careful coordination across multiple hardware layers. The 330101-23-34-10-02-05 probe interfaces directly with the 330130 series extension cable, which in turn connects to the 330180 Proximitor® signal conditioner mounted in the 3300 XL rack. Before replacement, engineers should verify that the existing Proximitor® output range and scale factor match the new probe’s sensitivity specification — typically 7.87 V/mm — to avoid erroneous vibration readings in the System 1 or TDXnet monitoring software.

In many retrofit scenarios, the 3300 XL rack itself remains serviceable even when individual probe channels have degraded. The modular design of the 3300 XL allows replacement of the probe assembly without disturbing adjacent I/O modules or the rack power supply. However, if the rack backplane or the 3300 XL I/O module shows signs of corrosion or connector wear, it is advisable to inspect and potentially replace the I/O module simultaneously to avoid repeat outages. The 3300/16-24-01 power supply module and the 3300/20 I/O module are commonly evaluated during the same maintenance window.

For facilities migrating from older 3300 Series (non-XL) hardware to the 3300 XL platform, the probe mounting thread and tip geometry remain compatible, but the Proximitor® must be upgraded to the XL-rated conditioner to maintain system certification. During this transition, the 3500/42M Proximitor® I/O module from the 3500 Series is sometimes introduced as part of a broader platform upgrade, particularly when the plant is also adding overspeed detection or integrating with a DCS via the 3500/92 communication gateway module.

HMI screens tied to vibration channels should be reviewed after probe replacement. If the plant uses a System 1 Evolution workstation or a third-party SCADA with Modbus or OPC-DA connectivity, the channel tag assignments and engineering unit scaling must be verified to reflect the new probe’s output characteristics. Failure to update HMI scaling can result in false alarms or suppressed alerts during the initial post-commissioning period.

Field wiring should be inspected for continuity and insulation resistance before the new probe is energized. The 330101 series uses a coaxial cable arrangement, and any nick or moisture ingress in the extension cable jacket — particularly in the 330130-080-00-00 or 330130-045-00-00 variants — can introduce noise that mimics real vibration. A bench test of the probe-cable-Proximitor® assembly prior to installation is strongly recommended to confirm the gap voltage falls within the linear range (typically −10 VDC ± 0.5 V at the calibrated gap).

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement on a live rotating machine requires a structured hot-swap protocol. Where the machinery protection system permits channel bypass, the affected channel should be placed in bypass mode — not defeated — so that the remaining channels continue to provide protection during the swap. The bypass status should be logged in the plant’s permit-to-work system and communicated to the control room operator before any wiring is disturbed.

The original program logic in the 3300 XL or 3500 Series rack does not require modification for a like-for-like probe replacement. Trip setpoints, alert thresholds, and time-delay settings stored in the rack configuration are preserved. However, if the replacement is part of a broader upgrade that introduces a new rack or a different I/O module type, the configuration file should be backed up from the existing rack using the Rack Configuration Software (RCS) before any hardware is removed. This backup protects the original setpoint library and channel assignments, enabling rapid restoration if commissioning of the new hardware encounters unexpected issues.

After installation, a controlled ramp-up of the machine — rather than an immediate full-speed start — allows the technician to verify vibration trending in real time and confirm that the new probe is tracking correctly against the reference channel or the historical baseline stored in System 1. Any deviation greater than 10% from the pre-outage baseline should be investigated before the machine is returned to full load.

Retrofit Support FAQ

Q1: Is the 330101-23-34-10-02-05 a direct replacement for all 330101 suffix variants?
A: The core probe body and thread are common across the 330101 family, but the suffix encodes cable length, connector type, and temperature rating. Confirm that the replacement suffix matches your installed extension cable and Proximitor® model before ordering. Our technical team can cross-reference your existing part number on request.

Q2: Does replacing the probe require re-entering trip setpoints in the rack?
A: No. A like-for-like probe replacement does not alter the rack configuration. Setpoints, alert levels, and time delays remain stored in the 3300 XL or 3500 rack memory. Only gap voltage recalibration at the Proximitor® is required after installation.

Q3: What wiring checks are required before energizing the new probe?
A: Verify insulation resistance of the extension cable (minimum 100 MΩ at 500 VDC), confirm coaxial connector seating at both the probe and Proximitor® ends, and measure the static gap voltage with the machine at rest. The target gap is typically −10 VDC ± 0.5 V for 8mm probes at the standard 1.0 mm calibrated gap.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, gap voltage outside the specified range, or mechanical contact between the probe tip and the observed surface. Warranty claims are processed within 5 business days of receipt of the returned unit.
