Bently Nevada 330103-00-03-05-02-00 Spare 3300 XL Automation: Precision Spare Parts for Industrial Downtime Control

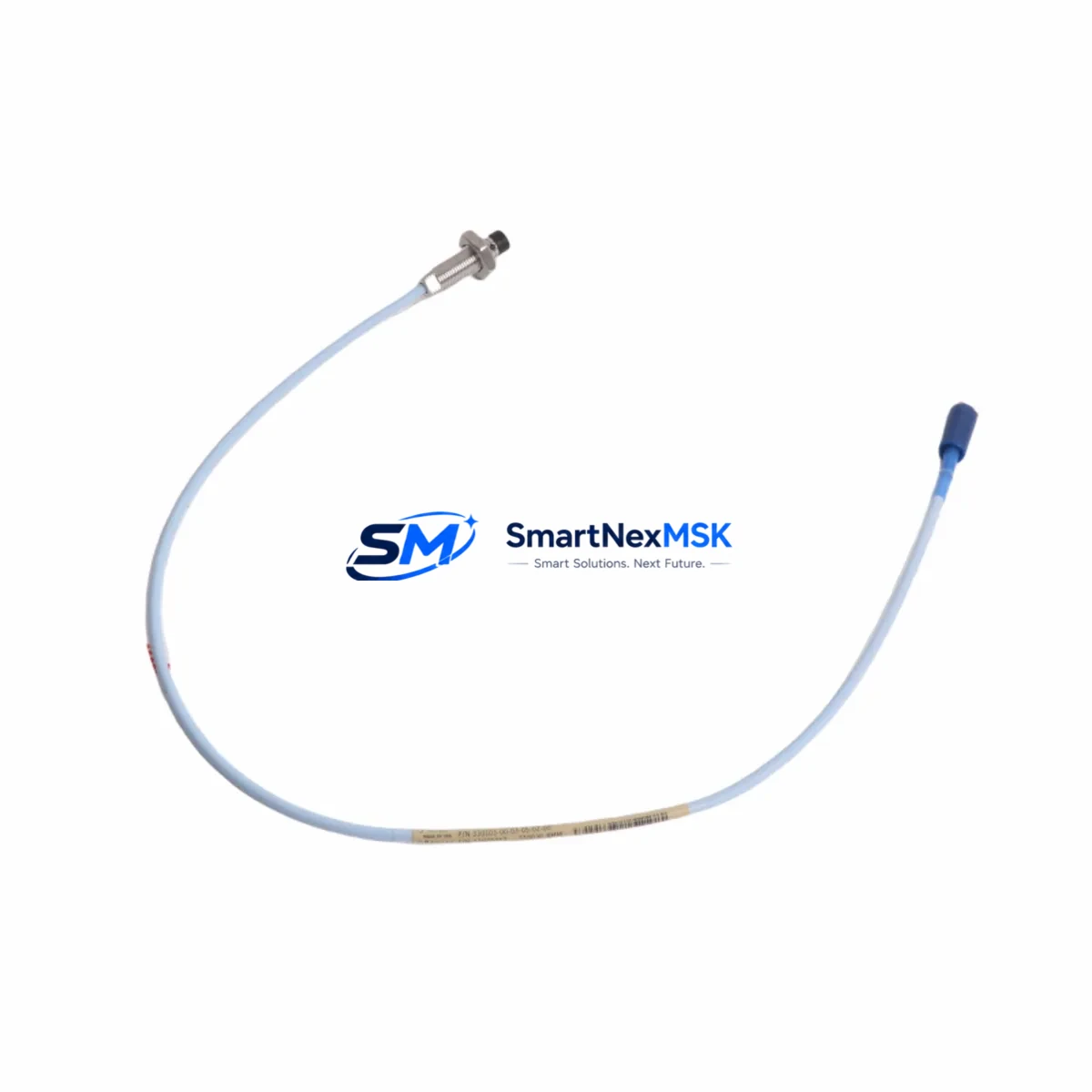

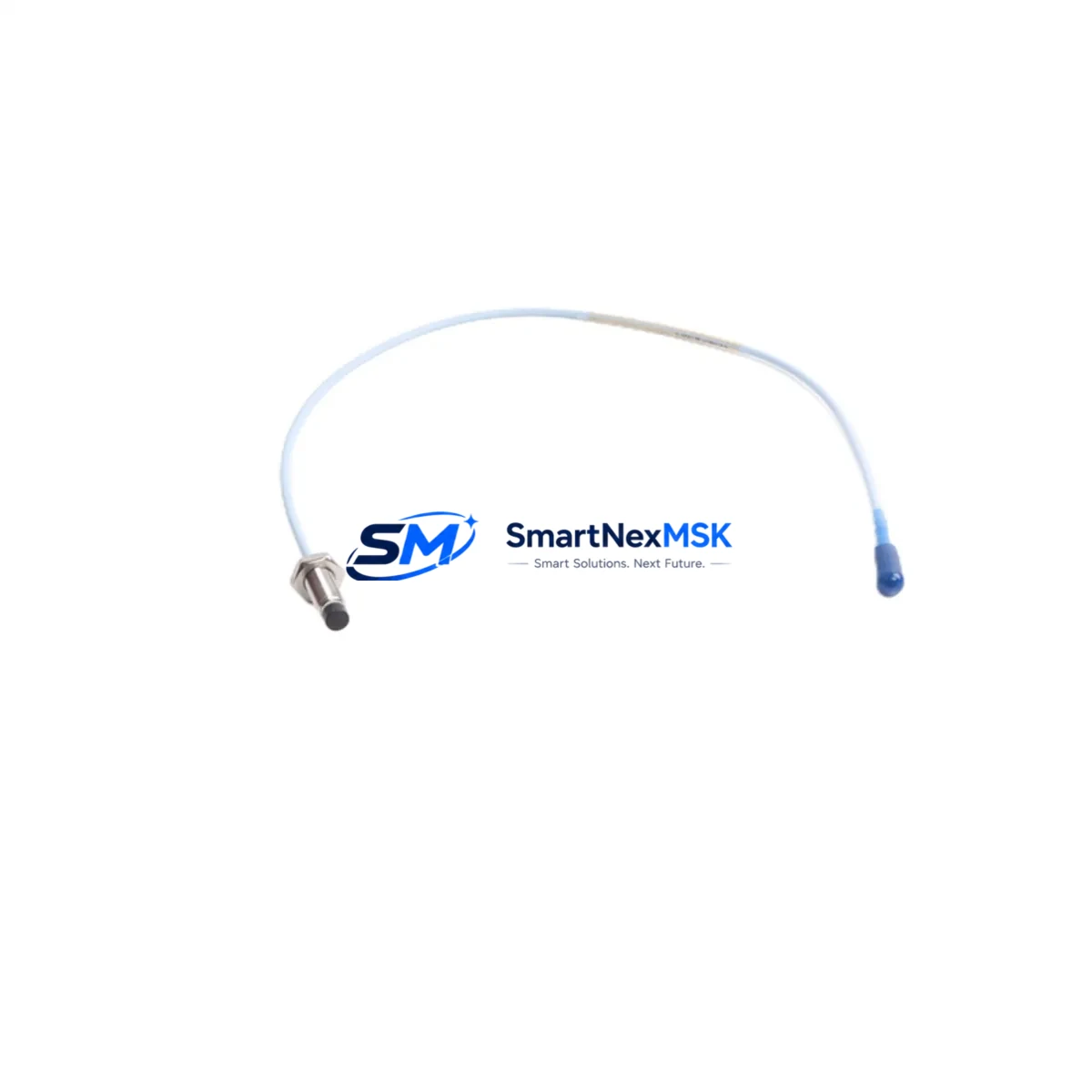

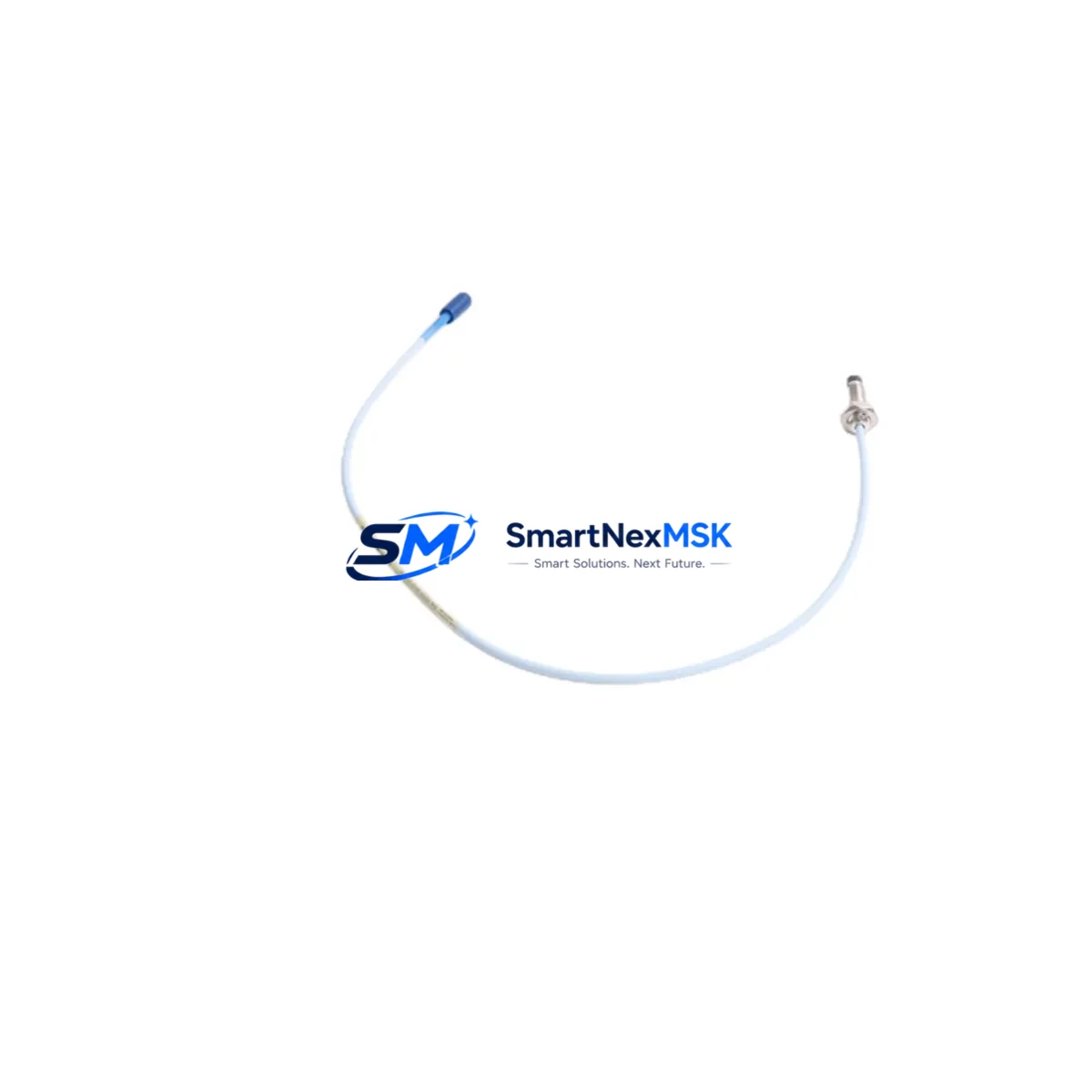

The Bently Nevada 330103-00-03-05-02-00 is an original 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor whose failure directly triggers unplanned shutdowns. Stocking a verified replacement is not optional; it is a core element of any credible predictive maintenance and spare parts strategy.

For maintenance engineers and procurement teams managing critical rotating assets, the 330103-00-03-05-02-00 represents the intersection of signal accuracy and system uptime. Its 8mm tip diameter, 5-metre integral cable, and -24 VDC bias voltage output are factory-calibrated to interface directly with the 3300 XL proximitor/driver, delivering gap voltage linearity that meets API 670 requirements. Substituting non-original probes risks calibration drift, false trips, and voided system certification — risks no plant can afford during a planned turnaround or emergency recovery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-00-03-05-02-00 proximity probe is flagged during a routine control cabinet inspection or vibration trend review, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A complete corrective maintenance cycle for a 3300 XL channel should include inspection of the paired 330180-91-00 proximitor/driver, which conditions the probe signal and is equally subject to thermal fatigue and connector corrosion in harsh environments.

The 3300/16 I/O module or equivalent rack-mounted input card should be checked for channel fault indicators and firmware revision compatibility. If the probe replacement is part of a broader machinery protection upgrade, verify that the 3500/42M proximitor I/O module — used in 3500 Series racks that may coexist in the same control room — is not sharing a common power rail with the 3300 XL chassis, as cross-system power disturbances can mask probe faults.

Power supply integrity is critical: the 3300/20 power supply module should be load-tested during any planned outage where probes are being replaced. A degraded power supply delivering marginal -24 VDC will cause the new probe to report erratic gap voltages, leading to false diagnostics. Similarly, the 3300/55 temperature monitor module installed in the same rack should be inspected for alarm setpoint drift, as temperature excursions often accompany the bearing wear events that trigger probe replacement in the first place.

At the field wiring level, inspect the coaxial extension cable (330130 series) between the probe and proximitor for jacket cracking, connector oxidation, and impedance continuity. A compromised extension cable will degrade the probe’s linear range even when the probe itself is new. Terminal blocks and cable glands at the junction box should be torqued to specification and sealed against process fluid ingress.

For plants running integrated safety systems, confirm that the 3500/33 16-channel relay output module trip setpoints are re-validated after probe replacement, as a new probe’s slightly different gap voltage at the same physical clearance can shift the effective alarm threshold. Where Bently Nevada System 1 software is used for online monitoring, update the channel configuration to reflect the new probe serial number and recalibrate the trend baseline before returning the machine to service.

Procurement engineers building a strategic spare parts inventory for 3300 XL-protected assets should consider holding at minimum one 330103-00-03-05-02-00 probe per monitored shaft, one spare 330180-series proximitor per rack, and a set of 330130 extension cables in the most common lengths used on site. This three-component buffer covers the majority of field failures without requiring emergency air freight.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and isolate the 3300 XL channel at the rack. Do not de-energize the entire rack unless required; most 3300 XL racks support hot-swap of individual channel cards, allowing adjacent channels to remain in protection during the probe swap.

Step 2 — Gap measurement before removal: Record the existing probe gap voltage using a calibrated voltmeter at the proximitor BNC test point. This baseline confirms whether the old probe had drifted and provides a reference for the new installation.

Step 3 — Probe removal: Loosen the locknut and back the probe out carefully. Inspect the probe tip for impact damage or contamination. Inspect the target surface (shaft or thrust collar) for scoring or runout that may have caused the probe failure.

Step 4 — New probe installation: Thread the 330103-00-03-05-02-00 into the bracket to the manufacturer’s recommended gap (typically 1.0–1.5 mm for 8mm probes on steel targets). Verify gap voltage at the proximitor test point: nominal -10.0 VDC ± 0.5 VDC at 1.0 mm gap on a steel target.

Step 5 — System verification: Clear channel faults at the rack, confirm OK status LED, and verify that System 1 or the DCS historian is receiving a clean, stable vibration signal. Perform a slow-roll check if the machine can be brought up under controlled conditions before returning to full load.

Step 6 — Documentation: Record the replacement in the CMMS with the new probe serial number, installation gap, and post-installation gap voltage. Update the spare parts inventory to trigger reorder of the consumed unit.

This workflow minimizes mean time to repair (MTTR) and ensures the replaced channel meets the same protection standard as the original factory installation — critical for API 670 compliance audits and insurance requirements.

Spare Parts Support FAQ

Q1: Is the 330103-00-03-05-02-00 a direct drop-in replacement for older 3300 series probes?
The 330103-00-03-05-02-00 is designed for the 3300 XL 8mm system and is not directly interchangeable with earlier 3300/05 or 3300/16 probes without verifying proximitor compatibility. The 3300 XL proximitor (330180 series) is required. If your rack uses an older proximitor, contact our technical team to confirm the correct probe-proximitor pairing before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 330103-00-03-05-02-00 shipped by SMARTNEXMSK undergoes functional verification including bias voltage output check, sensitivity measurement, and cable continuity test. Units are shipped with a test report. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should I manage spare probe inventory for a plant with multiple 3300 XL racks?
Industry best practice for API 670-protected machinery is to hold one spare probe per monitored shaft position, with a minimum of two probes per machine train (one radial X, one radial Y). For plants with more than five 3300 XL racks, a centralized spare parts store with a reorder trigger of one unit ensures coverage without excessive capital tied up in inventory. SMARTNEXMSK supports blanket purchase orders and scheduled delivery programs for high-volume sites.

Q4: Can this probe be used to extend the life of an aging 3300 XL system scheduled for eventual migration to the 3500 Series?
Yes. Replacing worn probes in an existing 3300 XL installation is a cost-effective strategy for extending system life during a phased migration. The 330103-00-03-05-02-00 restores full channel accuracy and API 670 compliance without requiring rack or software changes. This approach is commonly used to defer capital expenditure on full system replacement while maintaining protection integrity on critical assets.
