Bently Nevada 330103-00-06-50-02-05 Maintenance-Ready Spare 3300 XL

Bently Nevada 330103-00-06-50-02-05 Maintenance-Ready Spare 3300 XL

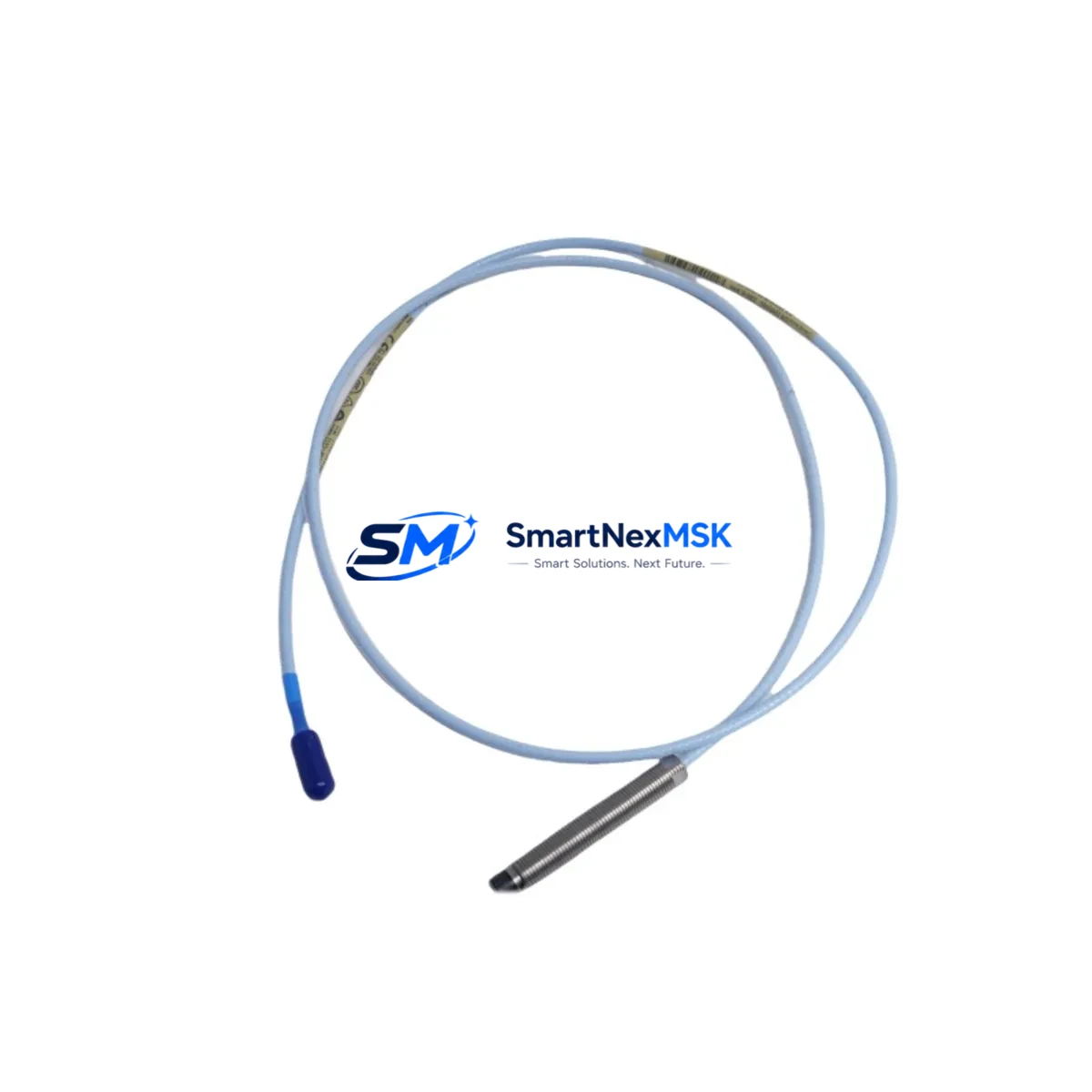

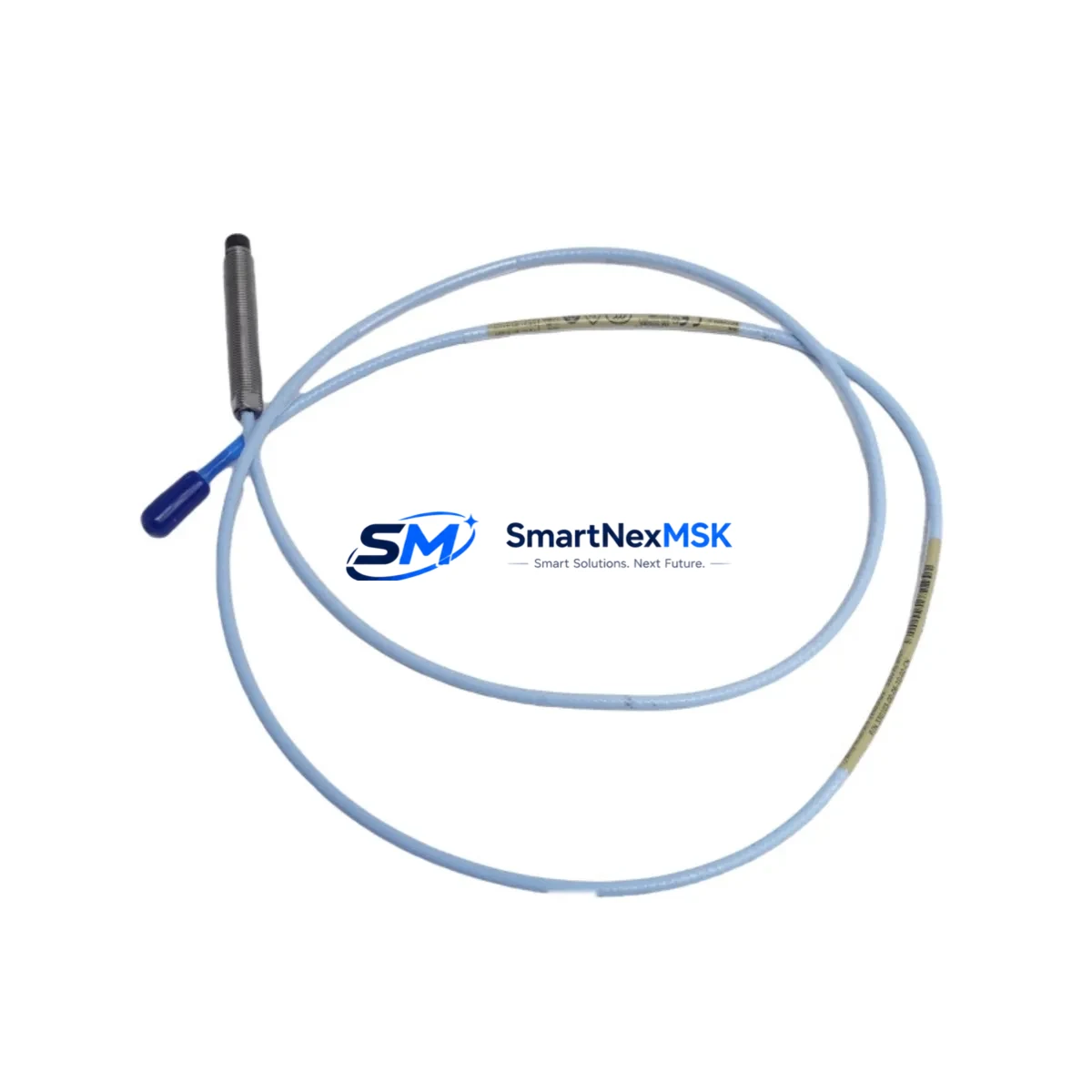

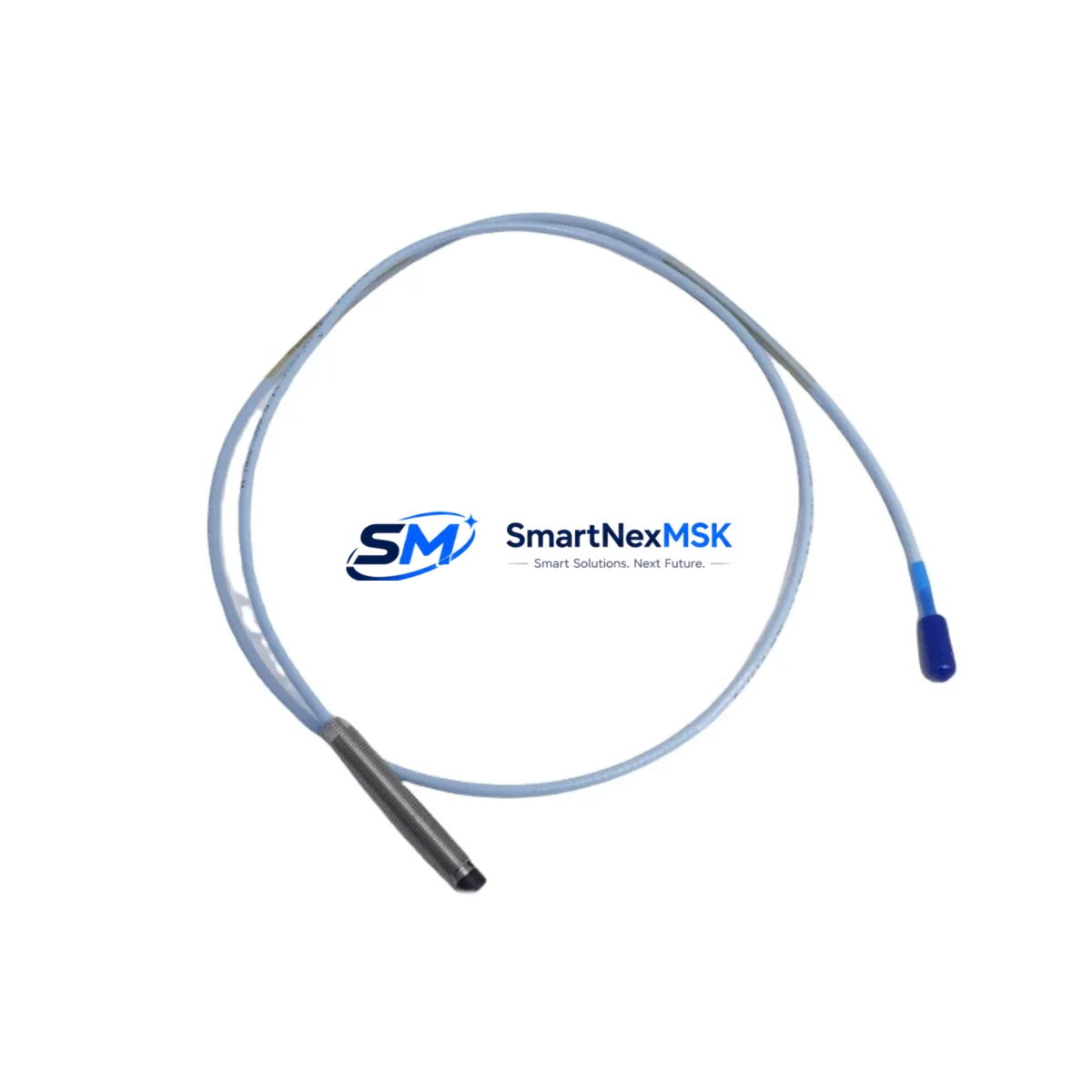

The Bently Nevada 330103-00-06-50-02-05 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Monitoring System. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor responsible for continuous shaft displacement and vibration measurement. When this component degrades or fails, the entire machinery protection loop is compromised, exposing critical assets to undetected mechanical faults and unplanned shutdowns.

Sourced as a genuine original spare, the 330103-00-06-50-02-05 is pre-tested, serialized, and shipped with a 12-month warranty. Each unit undergoes output linearity verification and gap voltage confirmation before dispatch, ensuring it meets Bently Nevada’s published sensitivity specification of 7.87 V/mm (200 mV/mil) and integrates directly into existing 3300 XL monitor racks without recalibration of the monitoring system.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 330103-00-06-50-02-05 proximity probe, maintenance engineers should treat the intervention as a full loop inspection rather than a single-component swap. The 3300 XL measurement chain is a matched system: the probe, the interconnect extension cable, and the proximitor module must be verified together to ensure the gap voltage and sensitivity remain within the monitor’s acceptance window.

Begin by inspecting the 3300 XL 8mm Proximitor module (330180-X1-05) for signs of drift, moisture ingress, or connector corrosion. A degraded proximitor will produce erratic gap voltage even with a new probe installed. Next, check the extension cable (330130-080-00-00) — the integral cable on the 330103 series is 5 metres, and any field-spliced extension must be verified for impedance continuity and shielding integrity.

At the monitor rack level, confirm that the 3300/16 Dual Voting Monitor or 3300/25 Radial Vibration Monitor channel is reading within the expected DC gap voltage range (typically -10 VDC ±1 V at nominal installation gap). If the channel has been in alarm or bypass state, inspect the 3300/05 Power Supply module for output stability — a sagging -24 VDC rail will affect all proximitor channels in the rack simultaneously.

For axial position loops, cross-check the paired 3300/55 Thrust Position Monitor and its associated thrust probe (typically a 330103 or 330104 series) to confirm differential expansion readings are consistent. In compressor trains, also verify the 3300/46 Speed Monitor and its keyphasor probe, as phase reference accuracy depends on a stable DC supply shared with the radial vibration channels.

During cabinet-level inspection, examine the 3300 Rack Termination Module (TM) barrier strips and field wiring terminals for oxidation or loose terminations. Loose shield grounds at the TM are a common source of noise that mimics probe degradation. If the plant uses a Bently Nevada 3500 series rack in parallel for overspeed or redundant protection, verify that the 3500/42M Proximitor I/O module is also within calibration, as cross-system discrepancies can trigger spurious trips during the maintenance window.

For facilities managing legacy 3300 systems alongside newer System 1 Evolution condition monitoring software, ensure that the replacement probe’s serial number and calibration data are updated in the asset database before returning the machine to service. This preserves alarm setpoint traceability and supports predictive maintenance trending.

Site Replacement Workflow

Step 1 — Isolation and Bypass: Place the affected monitor channel in maintenance bypass via the 3300 rack front-panel keyswitch or System 1 software before removing the probe. This prevents a spurious trip during the gap adjustment procedure.

Step 2 — Probe Removal: Loosen the probe locknut and back the probe out of the bracket. Note the installed gap (number of turns) for reference. Inspect the probe tip for mechanical damage, pitting, or contamination from shaft contact.

Step 3 — New Probe Installation: Thread the 330103-00-06-50-02-05 into the bracket and set the nominal gap of 1.0 mm (approximately 40 mil). Connect the integral cable to the extension cable or directly to the proximitor input. Verify the DC gap voltage at the proximitor output connector reads within the linear range before tightening the locknut.

Step 4 — Loop Verification: With the monitor channel still in bypass, confirm the gap voltage is stable and within the monitor’s configured OK limits. Apply a slow manual shaft rotation if accessible to verify the probe tracks shaft runout without saturation.

Step 5 — Return to Service: Remove the bypass, confirm the channel returns to OK status, and document the as-left gap voltage and vibration baseline in the maintenance management system. Update the spare parts inventory to reflect consumption of the 330103-00-06-50-02-05 unit and trigger a reorder if stock falls below the site’s minimum holding level.

This workflow minimises machine downtime to under 30 minutes for a trained technician and eliminates the risk of re-tripping caused by an improperly gapped replacement probe.

Spare Parts Support FAQ

Q1: Is the 330103-00-06-50-02-05 a direct drop-in replacement for older 330103 variants?
Yes. The 330103 series uses a standardised 8mm probe body and MIL-style connector. The -00-06-50-02-05 suffix denotes a 5m integral cable, 50-ohm system, standard temperature range, and standard connector. It is electrically and mechanically compatible with all 3300 XL 8mm proximitor modules and monitor channels configured for the 330103 probe family. Always confirm the cable length suffix matches your installation reach before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 330103-00-06-50-02-05 unit is bench-tested for DC resistance continuity, insulation resistance (>100 MΩ at 500 VDC), and output linearity across the full gap range using a calibrated steel target. Gap voltage at 1.0 mm nominal gap is verified against the 7.87 V/mm sensitivity specification. A test report is available upon request for quality-critical installations.

Q3: How should this spare be stored if not immediately installed?
Store in the original anti-static packaging in a dry environment between -40°C and +85°C with relative humidity below 95% non-condensing. Avoid coiling the integral cable tighter than a 50 mm bend radius. Inspect the probe tip and connector pins for corrosion at each annual inventory audit. Properly stored units maintain full specification compliance for a minimum of five years from the ship date.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, premature sensitivity drift beyond ±5% of the rated 7.87 V/mm specification, and connector or cable integrity failures under normal operating conditions. It does not cover damage from mechanical contact with the shaft, chemical contamination, or installation outside the specified gap range. Warranty claims are processed with return of the defective unit and a completed failure description form. Replacement units are dispatched within 5 business days of claim approval.
