Bently Nevada 330174-00-05-10-02-00 Retrofit-Ready Proximity Transducer for 3300 XL

Bently Nevada 330174-00-05-10-02-00: Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

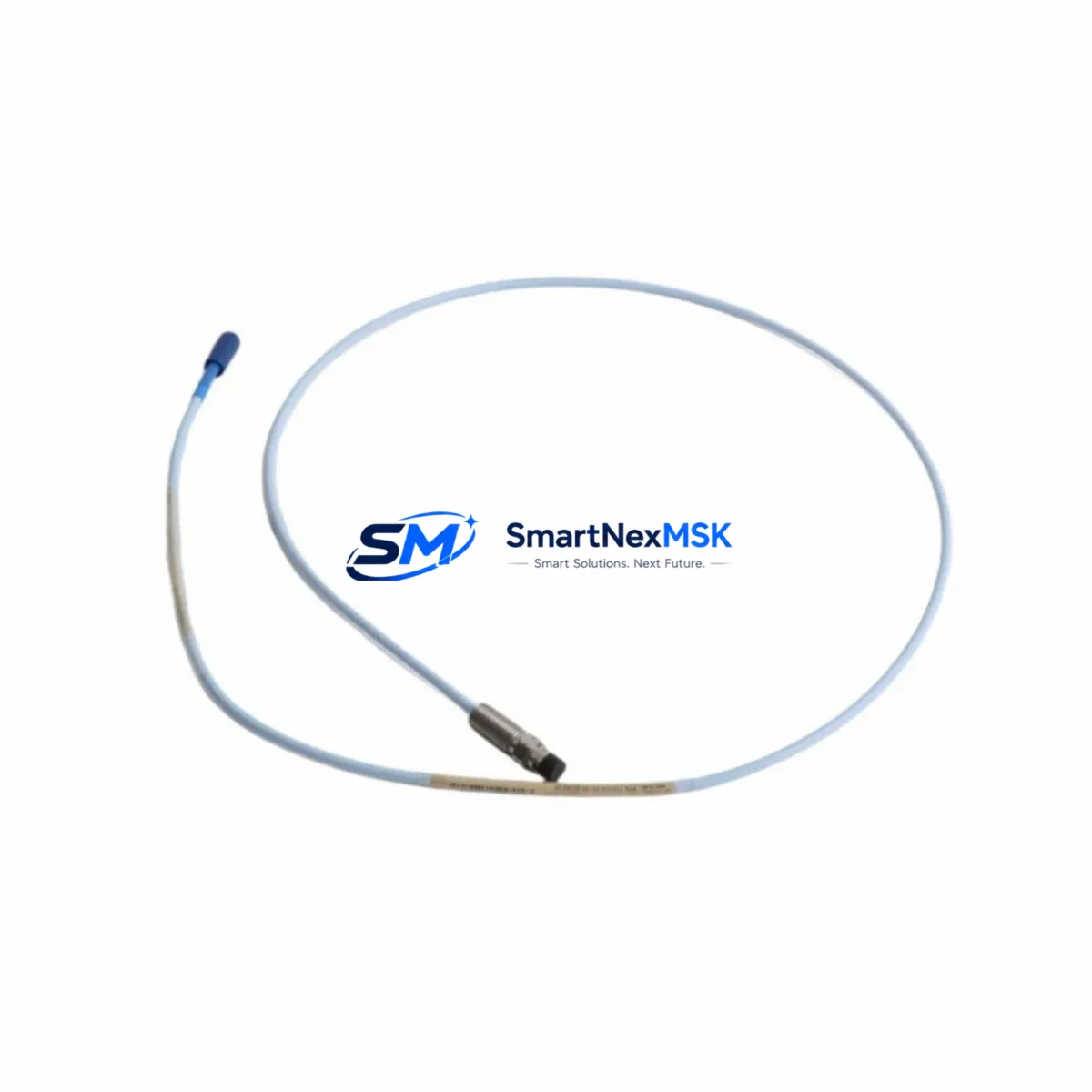

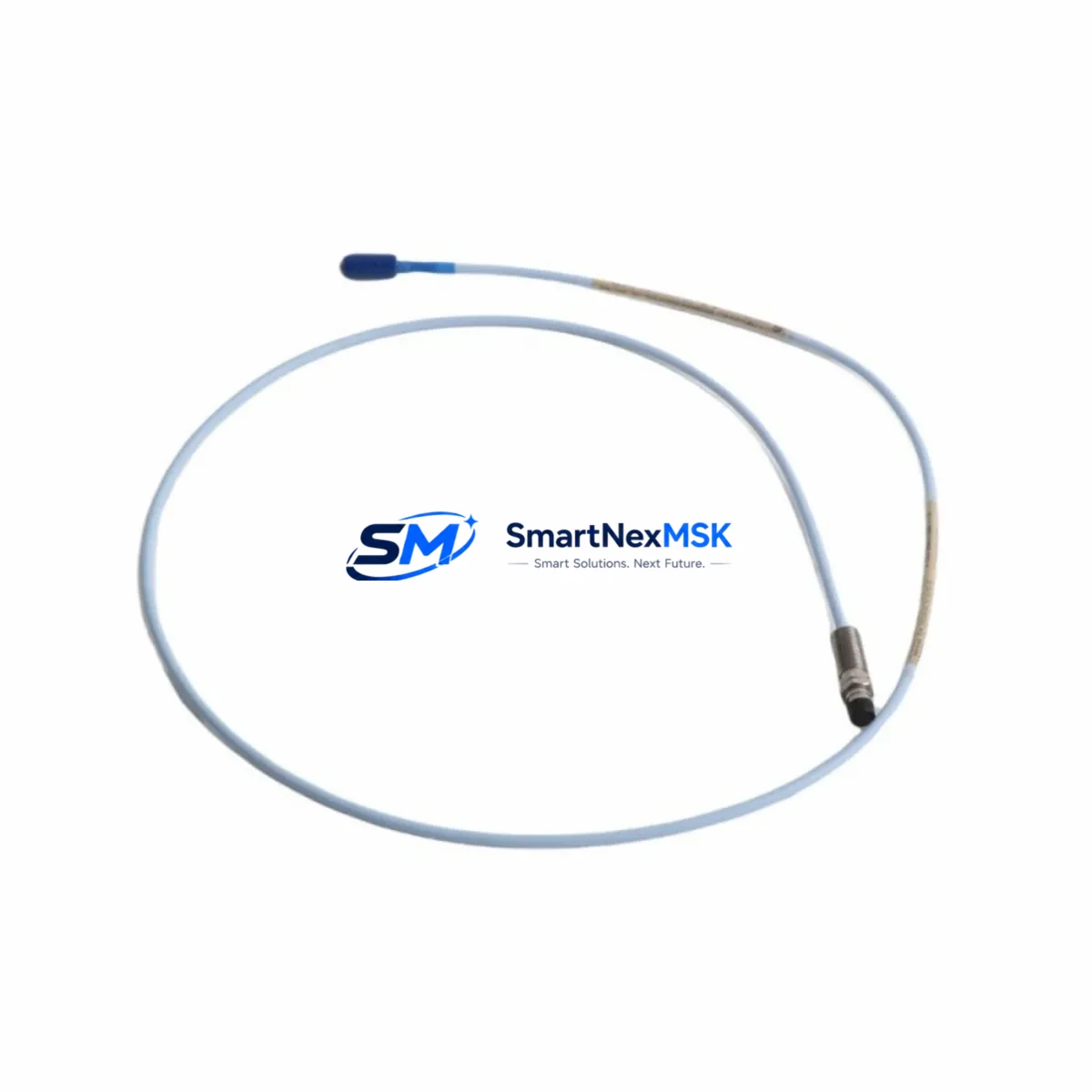

The Bently Nevada 330174-00-05-10-02-00 is an 8 mm proximity transducer system engineered for seamless integration into legacy 3300 XL vibration monitoring platforms. As rotating machinery protection systems age and OEM support windows close, plant engineers and reliability teams increasingly rely on verified drop-in replacements to sustain continuous operation without triggering full-system overhauls. This transducer assembly — comprising the probe, extension cable, and proximitor sensor — is fully compatible with the Bently Nevada 3300 XL series signal conditioning architecture, making it a preferred choice for brownfield retrofit projects, spare-parts replenishment, and control system life-extension programs.

Whether you are replacing a failed probe on a critical compressor train, restoring a turbine monitoring loop after an unplanned outage, or executing a planned upgrade from an older 7200 series installation, the 330174-00-05-10-02-00 delivers the dimensional accuracy, gap voltage linearity, and signal sensitivity required by the 3300 XL monitor cards. The 5-metre extension cable configuration suits the majority of standard machinery skid layouts, while the 10 mm tip-to-target range accommodates typical shaft diameters found in centrifugal compressors, steam turbines, and large induction motors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330174-00-05-10-02-00 into a running plant begins well before the probe reaches the machinery skid. A structured retrofit plan must account for the full signal chain — from the probe tip through the extension cable, into the proximitor sensor housing, and ultimately to the 3300/16 or 3300/20 monitor card seated in the 3300 XL rack. Engineers should begin by auditing the existing rack configuration: confirm that the target monitor card firmware supports the 8 mm transducer sensitivity factor (200 mV/mil or 7.87 V/mm), and verify that the I/O channel assignment in the System 1 condition monitoring software reflects the correct transducer type.

Terminal wiring is a frequent source of commissioning delays. The proximitor sensor output connects to the monitor card via a shielded twisted-pair cable; shield grounding must follow Bently Nevada’s single-point grounding convention to prevent common-mode noise from corrupting the vibration signal. If the existing cable tray contains ageing 330130 series extension cables with degraded insulation, replacement with new matched-length cables is strongly recommended before energising the loop. Similarly, inspect the probe armour and connector backshell for corrosion or mechanical damage — particularly in high-humidity or wash-down environments.

For sites migrating from older 7200 series proximity systems, the transition involves more than a physical swap. The 7200 series proximitor operates on a different sensitivity curve, so monitor card configuration parameters — including full-scale range, alert setpoints, and danger setpoints — must be recalculated and re-entered in the 3300 XL configuration software. Coordinate with the control room team to temporarily mask the affected channel in the DCS before making changes, preventing spurious trips during the reconfiguration window. If the plant uses a Rockwell Automation ControlLogix or Siemens S7-300 PLC as the primary safety interlock controller, confirm that the analogue input module receiving the 4–20 mA vibration signal is scaled correctly after the transducer swap.

Rack-level planning should also address power budget. The 3300 XL rack power supply — typically the 3300/05 or 3300/10 power supply module — must have sufficient headroom to support the additional proximitor current draw if multiple channels are being retrofitted simultaneously. Review the rack load calculation sheet and, if necessary, add a second power supply module before proceeding. Backplane slot assignments should be documented and cross-checked against the existing rack wiring diagram to avoid address conflicts with neighbouring I/O modules.

Where the plant HMI displays vibration trend data sourced from the 3300 XL system, update the tag database and faceplates to reflect the new transducer calibration constants. This is especially important for sites using Wonderware InTouch, Ignition SCADA, or similar historian-connected platforms where the engineering unit conversion is embedded in the tag configuration rather than the monitor card.

Downtime Control During System Migration

Minimising production interruption during a proximity transducer replacement requires a disciplined sequence of pre-outage, outage, and post-outage activities. Before the maintenance window opens, prepare a complete replacement kit: the 330174-00-05-10-02-00 assembly, a calibrated gap-setting voltmeter, a torque wrench set to the specified probe locknut torque (typically 1.1 N·m), and a printed copy of the channel configuration parameters extracted from the 3300 XL configuration software. Having the replacement proximitor sensor pre-wired to the extension cable and bench-tested against a reference target block reduces in-field installation time significantly.

During the outage, follow a channel-by-channel replacement strategy rather than removing all probes simultaneously. This preserves the vibration monitoring coverage on adjacent channels and allows the control room to maintain partial machinery protection throughout the work. After installing the new probe and setting the static gap voltage to −10.0 VDC ± 0.5 V, perform a dynamic check by slowly rotating the shaft by hand (where safe and permitted) to confirm that the monitor card registers a clean, noise-free signal. Compare the peak-to-peak runout reading against the pre-outage baseline stored in System 1 to validate that the new transducer is performing within specification.

Programme logic preservation is critical when the vibration signal feeds a safety interlock or a PLC-based trip circuit. Before breaking the signal loop, capture a screenshot or export of the current setpoint configuration from the 3300 XL monitor card. After restoration, re-enter the setpoints and perform a simulated trip test — injecting a test signal via the monitor card’s built-in test function or an external signal generator — to confirm that the interlock chain responds correctly before returning the machinery to service. Document the completed work in the plant CMMS and update the as-built wiring diagram to reflect any cable or connector changes made during the retrofit.

Retrofit Support FAQ

Q1: Is the 330174-00-05-10-02-00 a direct drop-in replacement for the original Bently Nevada part?
Yes. This assembly is manufactured to the original Bently Nevada dimensional and electrical specification. The probe thread (M10 × 1), extension cable length (5 m), and proximitor output range (−2 VDC to −18 VDC) are identical to the factory part, ensuring a direct fit without modification to the probe boss, cable conduit, or monitor card wiring.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the static gap voltage to −10.0 VDC ± 0.5 V using a calibrated voltmeter connected to the proximitor output terminals. Verify the signal at the 3300 XL monitor card input and confirm that the channel reads within the expected quiescent voltage range. Update the System 1 or equivalent condition monitoring software with the transducer serial number and calibration date, then perform a channel function test before returning the machinery to service.

Q3: Can this transducer be used with a Bently Nevada 3500 series rack?
The 330174-00-05-10-02-00 is optimised for the 3300 XL platform. While the 3500 series uses the same 8 mm probe geometry and gap voltage convention, the 3500 monitor cards apply different sensitivity and scale factor settings. Consult the 3500 series transducer compatibility matrix before installing this assembly in a 3500 rack, and reconfigure the monitor card parameters accordingly if cross-platform use is required.

Q4: What does the 12-month warranty cover, and is a test certificate included?
The 12-month warranty covers all manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes a pre-shipment functional test — including gap voltage linearity verification and insulation resistance check — and ships with a test certificate. Warranty claims are processed via our sales team; field-damaged or improperly installed units are assessed on a case-by-case basis.
