Bently Nevada 330905-00-04-05-02-00 Spare 3300 XL Automation

Bently Nevada 330905-00-04-05-02-00 Maintenance-Ready Spare for 3300 XL Automation

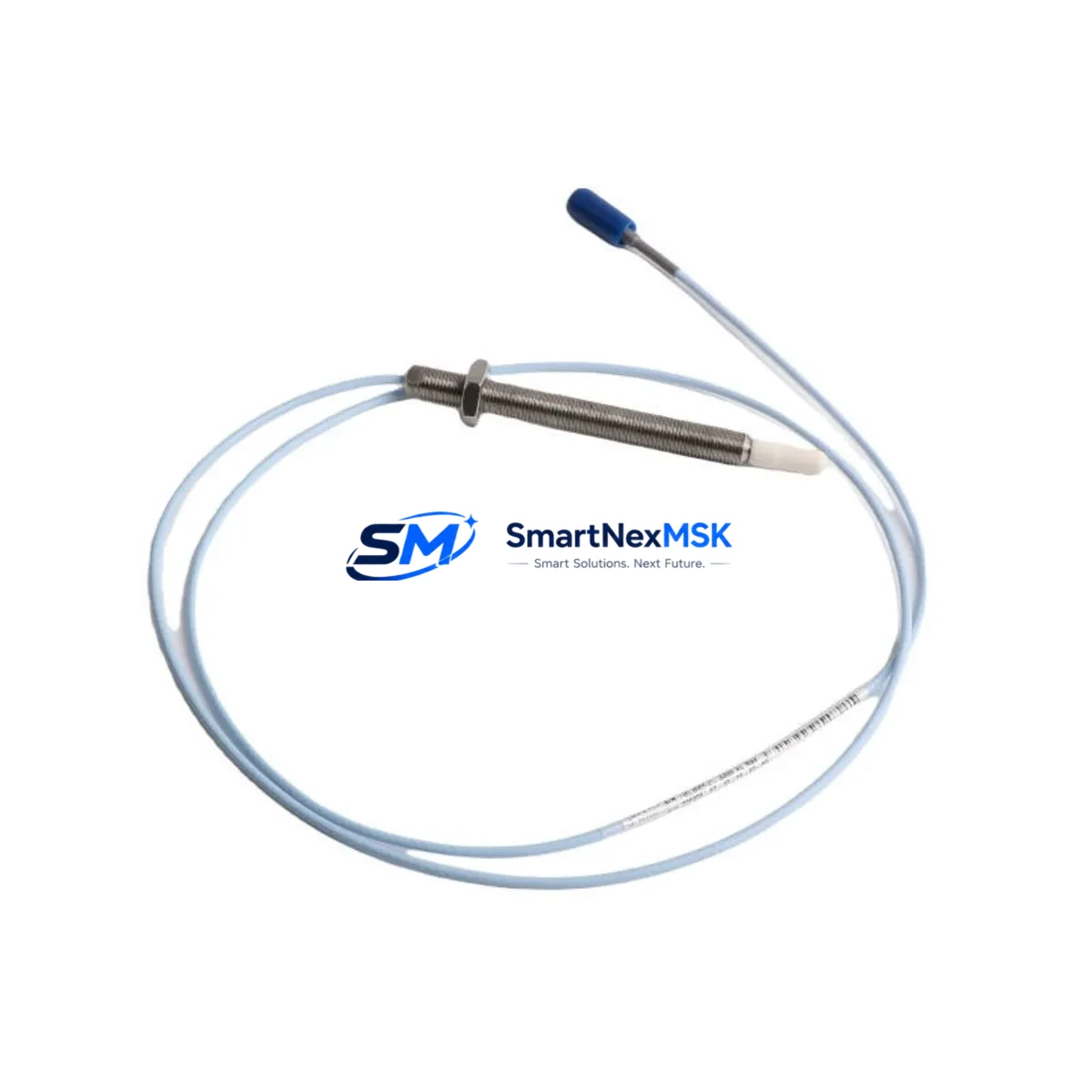

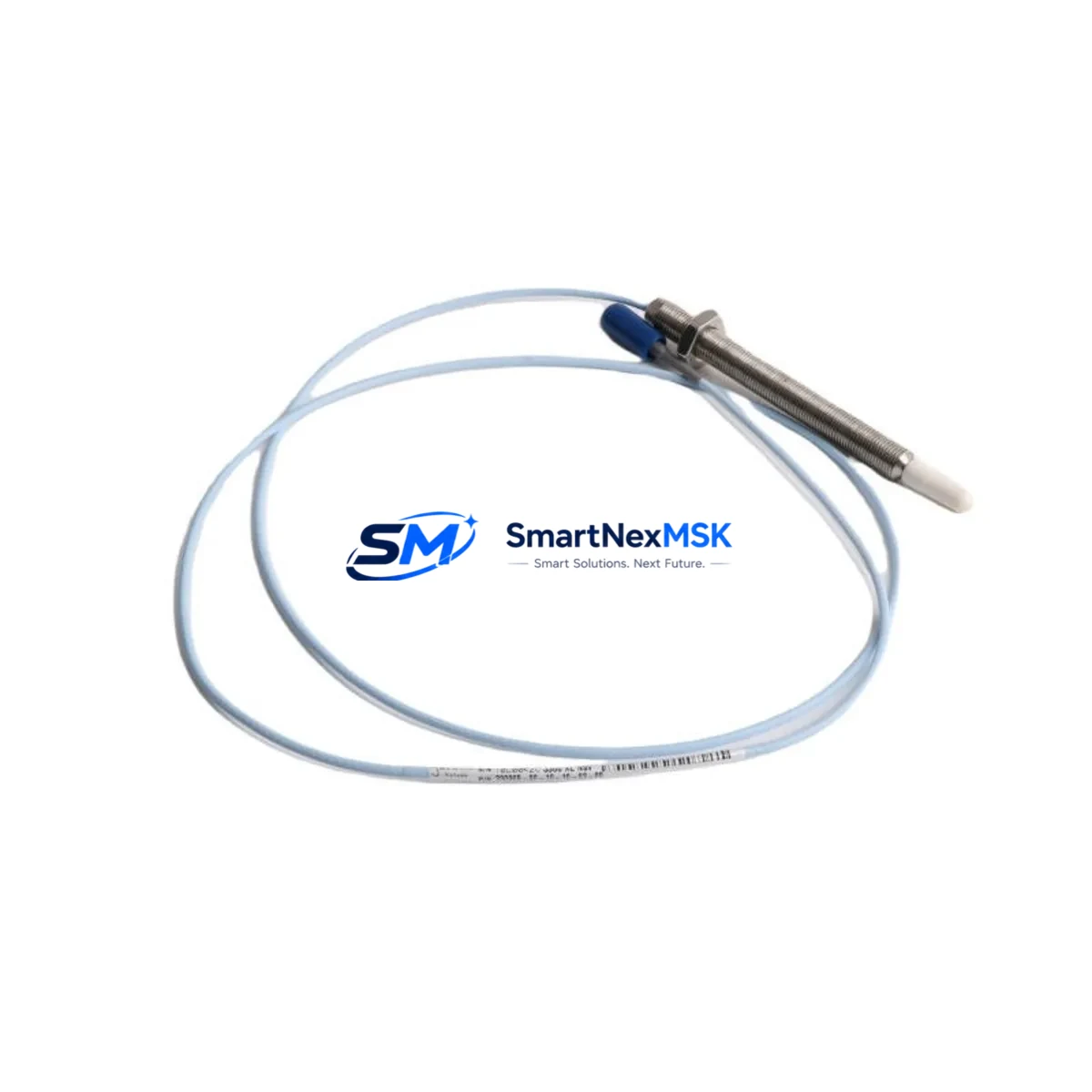

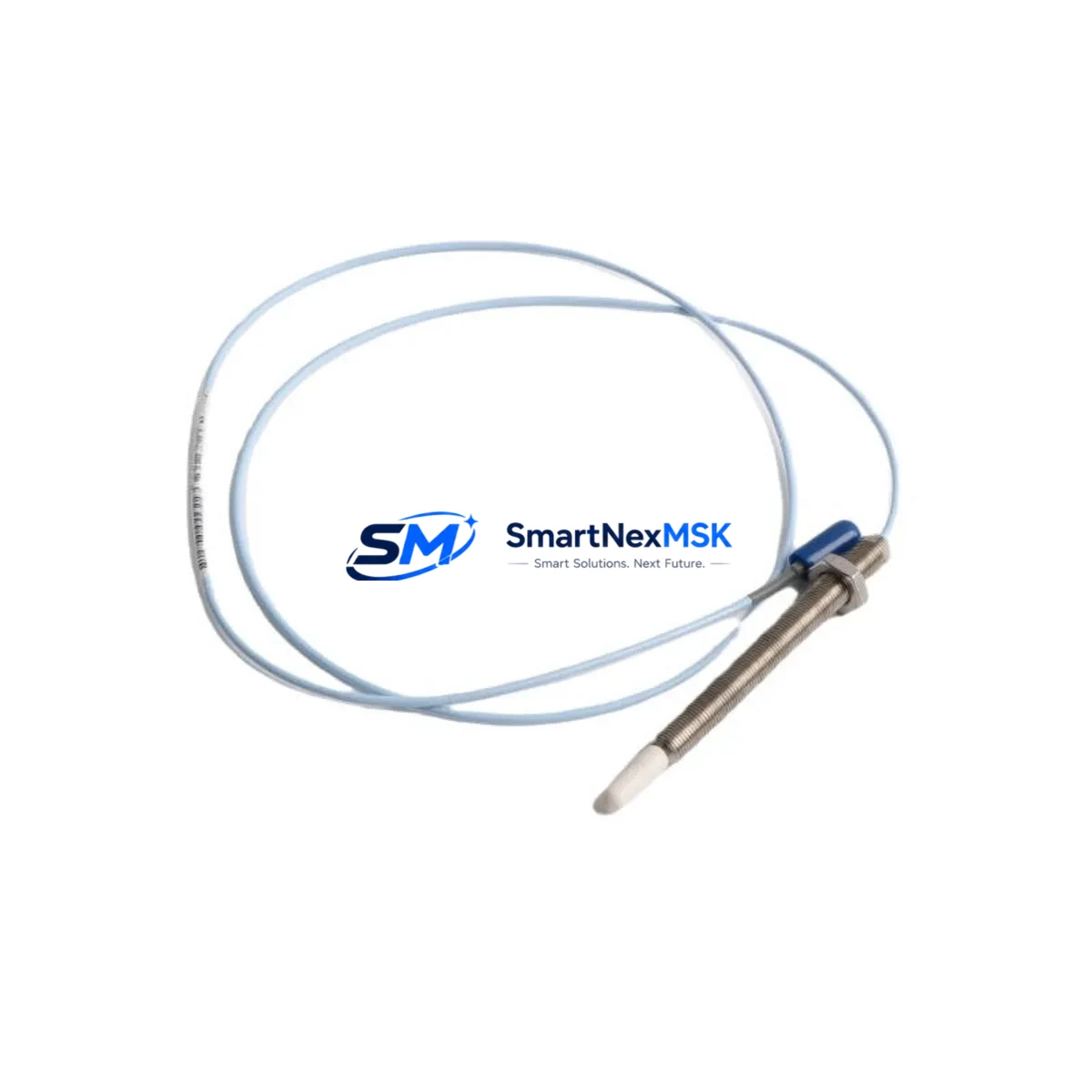

The Bently Nevada 330905-00-04-05-02-00 is an 8mm Eddy Current Proximity Transducer engineered for continuous vibration and position monitoring within the 3300 XL Series machinery protection system. For maintenance engineers managing rotating equipment — turbines, compressors, pumps, and gearboxes — this transducer is a critical front-line sensor whose failure can trigger unplanned shutdowns and cascade into costly production losses. Stocking a verified replacement unit is not optional; it is a fundamental element of any credible predictive maintenance strategy.

This unit is sourced as an original spare, individually inspected, and tested prior to shipment. It ships with a 12-month warranty covering manufacturing defects and functional performance. Whether you are executing a planned turnaround, responding to a vibration alarm, or building out your control room spare parts inventory, the 330905-00-04-05-02-00 is ready for immediate deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330905-00-04-05-02-00 transducer is flagged during a routine control cabinet inspection or triggers a high-vibration alarm, the replacement workflow rarely ends with the transducer alone. Experienced maintenance engineers know that a single sensor fault often signals broader wear across the measurement chain. Before returning the machine to service, the following associated components should be inspected or replaced as part of the same work order:

The 3300 XL 8mm Proximitor Monitor (typically a 3300/16 or 3300/20 series module) conditions the transducer signal and converts it to a 4–20 mA or voltage output for the protection system. If the transducer has been operating in a high-temperature or high-vibration environment, the Proximitor should be bench-tested for output linearity. Similarly, the extension cable connecting the transducer to the Proximitor — often a 330130 series armored cable — should be checked for jacket integrity, connector corrosion, and continuity, as cable faults are a leading cause of false vibration readings.

At the rack level, the 3500/42M Proximitor/Seismic Monitor or equivalent 3300 XL rack card should be verified for correct gap voltage (typically –10 VDC ±0.5 V at the nominal air gap). The 3500/15 Power Supply module feeding the rack should be load-tested; a sagging –24 VDC rail will cause systematic measurement errors across all transducer channels. If the cabinet houses a 3500/22M Transient Data Interface, confirm that the channel configuration still matches the replacement transducer’s sensitivity coefficient.

For plants running legacy 3300 XL keyphasor transducers (such as the 330180 series) alongside radial vibration probes, the keyphasor gap and signal quality should be re-verified after any transducer swap, as phase reference errors will corrupt all vector-based vibration analysis. Where the protection system feeds a System 1 Evolution or third-party DCS historian, confirm that the engineering unit scaling and alarm setpoints are correctly mapped to the replacement unit’s sensitivity.

Procurement engineers building a minimum viable spare parts kit for a 3300 XL-protected machine train should consider holding at minimum: one spare transducer per monitored shaft, one spare extension cable per transducer, one spare Proximitor module per rack, and a tested spare 3500/15 power supply. For critical compressor trains or steam turbines, a complete spare rack assembly is justified by the cost of a single unplanned outage.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a hot-work or confined-space permit as applicable. Bypass the vibration channel in the protection system to prevent a spurious trip during transducer removal. Document the existing gap voltage before disconnecting the old unit.

Step 2 — Transducer removal: Disconnect the extension cable at the Proximitor end first. Remove the transducer from the mounting bracket, noting the thread engagement depth for reference during reinstallation.

Step 3 — Inspection of mounting hardware: Inspect the transducer boss, lock nut, and bracket for corrosion or mechanical damage. Replace the lock nut if thread wear is evident. Clean the target area on the shaft and verify there are no surface defects that could cause runout errors.

Step 4 — Installation of 330905-00-04-05-02-00: Thread the replacement transducer to the correct gap distance (typically 1.0–1.5 mm for 8mm probes on steel targets). Reconnect the extension cable and verify connector seating. Restore the –24 VDC supply and measure the gap voltage at the Proximitor output terminal.

Step 5 — Functional verification: Confirm gap voltage is within the linear range (–10 VDC ±0.5 V). Observe the vibration reading at slow-roll speed to verify the signal is clean and the 1× runout is within acceptable limits. Remove the bypass and restore the channel to protection service.

Step 6 — Documentation: Record the new gap voltage, installation date, and part serial number in the equipment maintenance log. Update the spare parts inventory to trigger reorder of the consumed unit.

Spare Parts Support FAQ

Q: Is the 330905-00-04-05-02-00 a direct drop-in replacement for earlier 3300 series transducers?
A: The 330905-00-04-05-02-00 is designed for the 3300 XL 8mm system and is mechanically and electrically compatible with standard 3300 XL Proximitor monitors. Compatibility with earlier 3300 (non-XL) monitors should be verified against the Bently Nevada system configuration documentation, as sensitivity coefficients may differ.

Q: How is the unit tested before shipment?
A: Each unit undergoes electrical continuity verification, insulation resistance testing, and functional output check against a calibrated Proximitor before packaging. A test report is available upon request for critical applications.

Q: What is the recommended spare parts holding strategy for this transducer?
A: For machines with API 670-compliant protection systems, industry practice recommends holding a minimum of one spare transducer per monitored shaft position. For critical or unspared machines, a two-unit buffer per shaft is advisable to cover both emergency replacement and the time required to reorder and receive a replenishment unit.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional performance failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified environmental limits.
