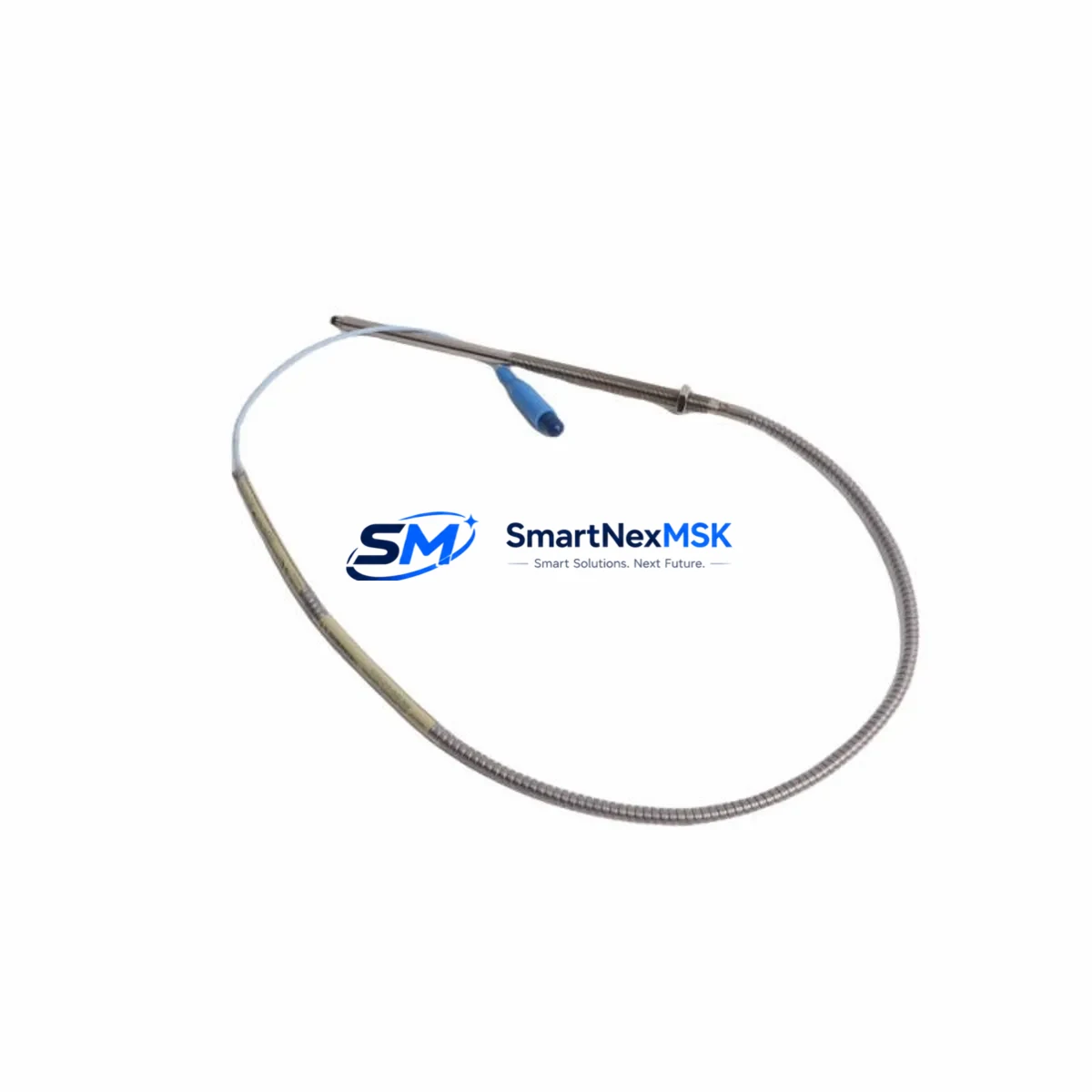

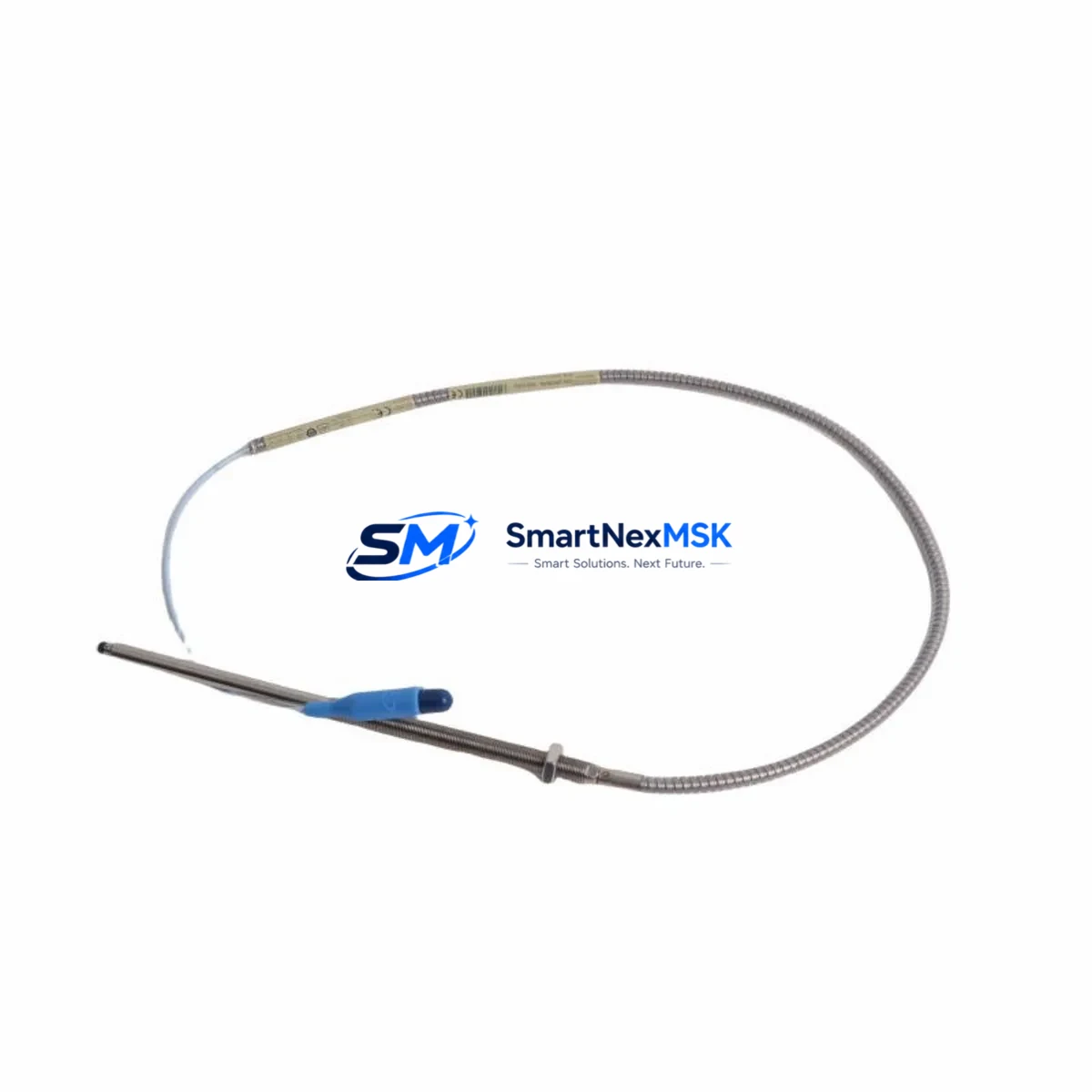

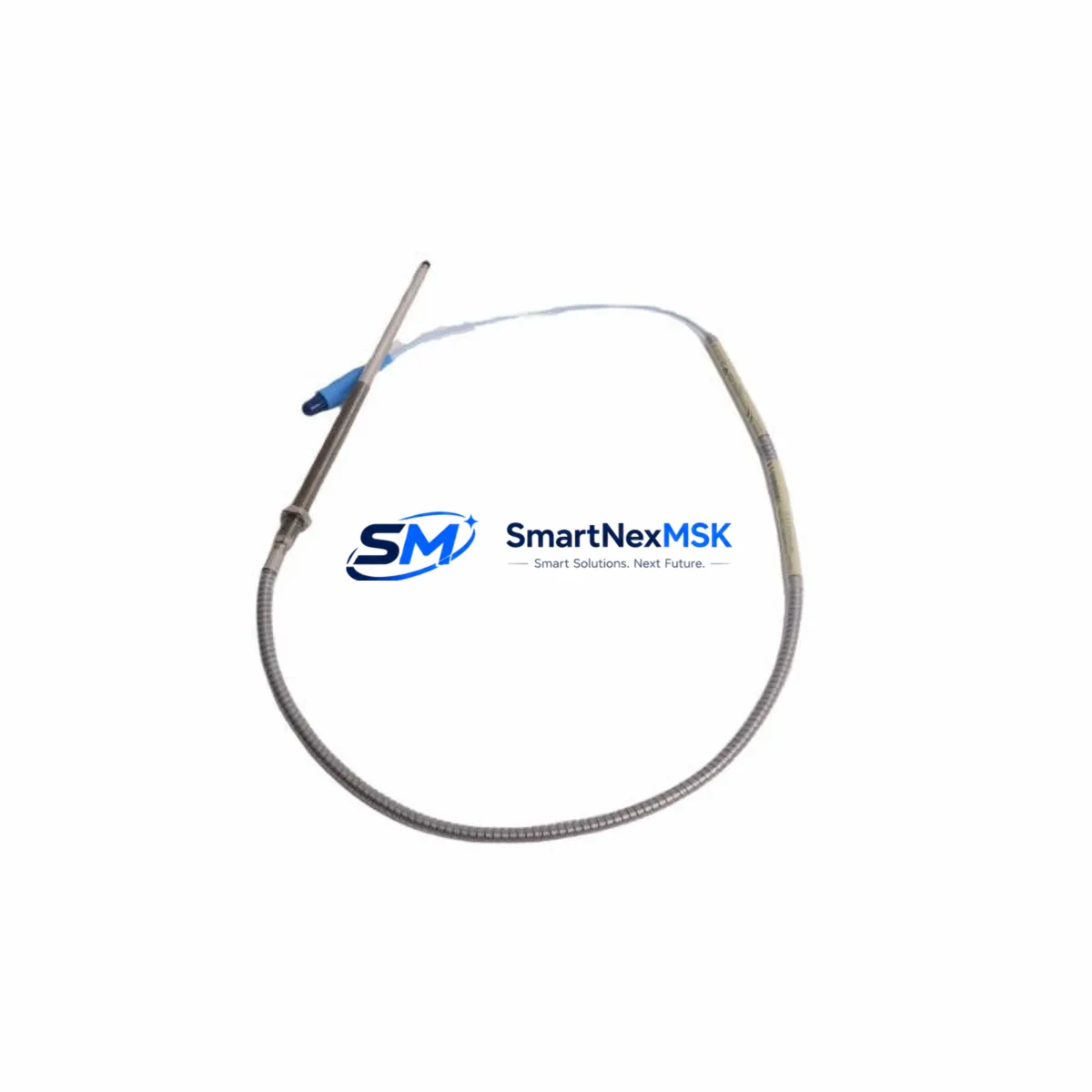

Bently Nevada 330910-00-20-10-01-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330910-00-20-10-01-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL Series vibration monitoring platform. Designed as a retrofit-ready replacement for legacy 3300 Series installations, this transducer delivers full signal compatibility with existing monitor racks, extension cables, and field wiring — enabling a smooth, low-risk upgrade path for aging machinery protection systems without requiring full system replacement.
Industrial facilities operating rotating equipment such as steam turbines, gas compressors, centrifugal pumps, and large electric motors rely on continuous vibration monitoring to prevent catastrophic failure. When original Bently Nevada 330900 or 330905 series transducers reach end-of-life or become unavailable as spare parts, the 330910-00-20-10-01-00 provides a verified drop-in alternative that maintains measurement accuracy, output signal range (–24 VDC nominal bias), and mechanical mounting dimensions consistent with the 3300 XL platform specification.
SMARTNEXMSK maintains in-stock inventory of the 330910-00-20-10-01-00 with 12-month warranty coverage, pre-shipment functional testing, and full traceability documentation. Global shipping is available with lead times confirmed at order placement.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | Bently Nevada 3300 XL Series Vibration Monitoring System |
| Replaces / Supersedes | 330900-xx-xx, 330905-xx-xx legacy proximity transducers |
| Output Bias Voltage | –24 VDC nominal (compatible with 3300 XL monitor inputs) |
| Tip Diameter | 8 mm (standard 3300 XL mounting thread) |
| Cable Length | 1.0 m integral cable (pairs with 330130 or 330180 extension cables) |
| Communication / Signal | Analog voltage output; no protocol migration required |
| Installation Requirement | Standard 3300 XL probe holder; verify gap voltage at commissioning |
| Commissioning Check | Set air-gap to –10 VDC ±0.5 VDC per 3300 XL calibration procedure |
| Warranty | 12 months from date of shipment |
| Pre-shipment Testing | Functional output and bias voltage verified before dispatch |
Retrofit Planning for Existing Automation Systems
Replacing a proximity transducer within an operating machinery protection system requires careful coordination across several interdependent components. The 330910-00-20-10-01-00 is typically installed as part of a broader 3300 XL rack upgrade that may also involve replacing the 3300/16-24-01-01-00 monitor module, the 3300/20 power supply, or the 3300/55 keyphasor module when those units have also reached end-of-service life.
Before removing the legacy transducer, engineers should document the existing gap voltage reading at the monitor terminal and record the alarm and danger setpoints configured in the 3300 XL monitor. This baseline data is essential for verifying that the replacement 330910-00-20-10-01-00 is correctly positioned and calibrated after installation. The extension cable — typically a 330130-045-00-00 or 330180-045-00-00 depending on the installation distance — should be inspected for connector corrosion and continuity before reuse, as cable degradation is a common source of signal noise in retrofit projects.
For installations where the 3300 XL rack interfaces with a DCS or safety system via a 3500/22M transient data interface or a 3500/42M proximitor monitor, the retrofit plan must confirm that the analog signal range and scaling remain unchanged after transducer replacement. In most cases, the 330910-00-20-10-01-00 is a direct electrical replacement that requires no reconfiguration of the upstream monitor or DCS input card. However, if the existing installation uses a 3300/25 or 3300/46M monitor variant, the engineer should verify the sensitivity setting (V/mm or V/mil) matches the transducer specification before closing out the work order.
Where the machinery protection system is integrated with a GE Mark VI, Emerson DeltaV, or Honeywell Experion PKS control platform, the vibration signal is typically hardwired from the 3300 XL monitor output to an analog input module on the DCS. No changes to the DCS configuration are required when replacing only the field transducer, provided the monitor output scaling is preserved. The HMI faceplate and historian tags referencing the vibration point will continue to function without modification.
For sites performing a full rack modernization — replacing the entire 3300 XL system with a 3500 Series rack — the 330910-00-20-10-01-00 remains compatible with 3500/42M proximitor monitors, allowing field transducers to be reused while the rack electronics are upgraded. This approach significantly reduces field wiring costs and minimizes the scope of mechanical work during the outage window.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity transducer replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement 330910-00-20-10-01-00 should be bench-tested to confirm bias voltage output, and all required tools — including a calibrated gap-setting gauge, torque wrench, and multimeter — should be staged at the work site.
The recommended sequence is to bypass the vibration channel at the 3300 XL monitor before removing the legacy transducer, preventing a spurious trip signal from reaching the turbine or compressor protection logic. Once the replacement transducer is installed and the gap voltage is set to the target value (typically –10 VDC ±0.5 VDC), the bypass is removed and the channel is verified against the pre-recorded baseline before the machine is returned to service.
For critical machinery where continuous monitoring is required, a temporary portable vibration analyzer can be connected to the transducer output during the transition period to maintain surveillance while the permanent monitor channel is out of service. This approach is particularly valuable in power generation and petrochemical applications where regulatory requirements mandate continuous vibration monitoring during operation.
Original program logic in the DCS or safety instrumented system (SIS) does not require modification when replacing a field transducer of the same type. The 330910-00-20-10-01-00 produces an identical output signal to the legacy 330900 and 330905 series transducers, ensuring that existing alarm logic, historian configurations, and HMI displays remain fully functional after the retrofit is complete. Total planned downtime for a single-channel transducer replacement is typically 2–4 hours, including gap setting, functional verification, and documentation.
Retrofit Support FAQ
Q: Is the 330910-00-20-10-01-00 a direct replacement for the 330905-00-20-10-01-00?
A: Yes. The 330910-00-20-10-01-00 is the current production replacement for the 330905 series proximity transducers. It shares the same mechanical dimensions, output sensitivity, and bias voltage characteristics, making it a drop-in substitute in all standard 3300 XL installations. No wiring changes or monitor reconfiguration are required.
Q: What commissioning steps are required after installation?
A: After mechanical installation, set the transducer air gap to achieve a bias voltage of –10 VDC ±0.5 VDC as measured at the monitor terminal. Verify that the OK relay is energized and that the vibration reading is within the expected baseline range before removing any channel bypasses. Record the final gap voltage and OK status in the maintenance log.
Q: Can this transducer be used with extension cables from the existing installation?
A: Yes, provided the existing extension cable (such as the 330130 or 330180 series) is in good condition and the total system cable length does not exceed the specification for the 3300 XL platform. Inspect connectors for corrosion and verify cable continuity before reuse. Replace the extension cable if resistance or insulation readings are outside specification.
Q: What warranty and testing documentation is provided?
A: Every 330910-00-20-10-01-00 shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. Pre-shipment functional testing confirms bias voltage output and signal integrity. A test report and product traceability documentation are available upon request. Contact our technical team at sales@smartnexmsk.com for warranty claims or commissioning support.
