Bently Nevada 3500/15E Maintenance-Ready Spare for 3500 Automation

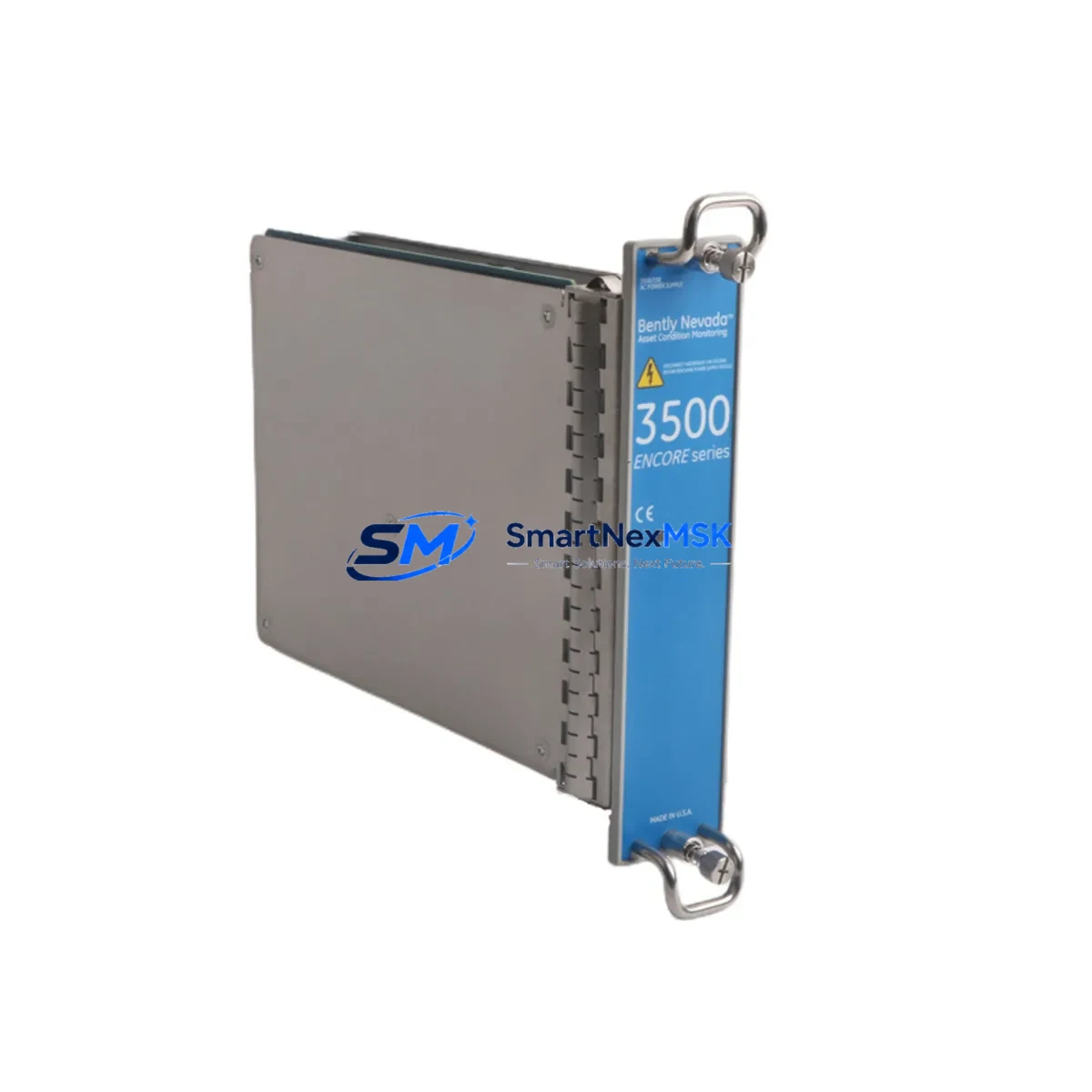

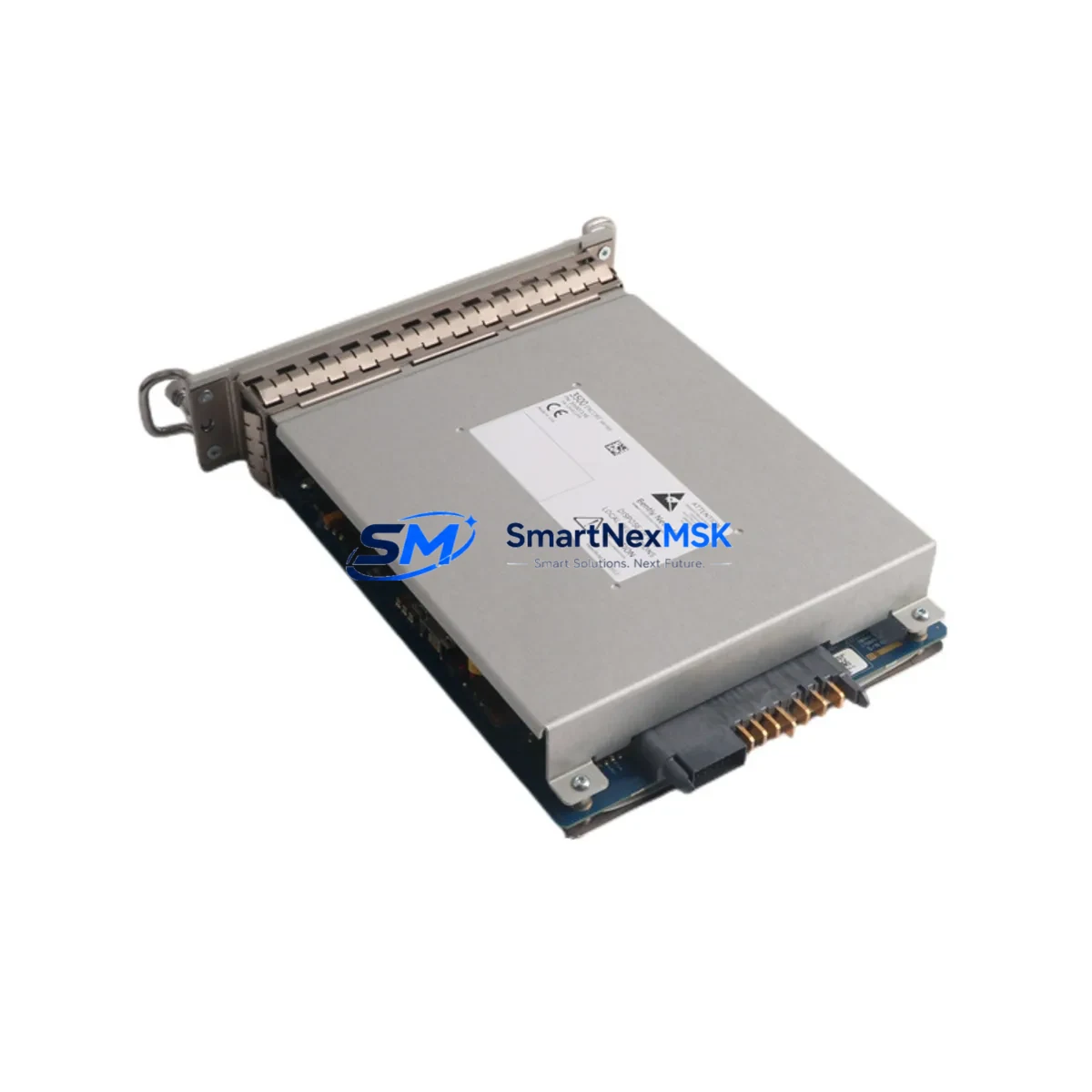

The Bently Nevada 3500/15E is the dedicated rack power supply module for the 3500 Series machinery protection and condition monitoring system — one of the most widely deployed vibration monitoring platforms in rotating equipment facilities worldwide. Whether you are managing a planned outage, responding to an unplanned trip, or building a strategic spare parts inventory for your turbine, compressor, or pump protection system, the 3500/15E is a critical line-replaceable unit that directly determines rack availability and system uptime.
Sourced as an original spare, each 3500/15E unit we supply is inspected, function-tested, and shipped with a 12-month warranty. Our inventory supports maintenance engineers and procurement teams who cannot afford extended lead times from OEM channels — particularly in aging plant environments where the 3500 Series rack has been in continuous service for 10 to 20+ years.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | 3500/15E |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3500 Series Machinery Protection System |
| Module Function | Rack Power Supply — provides regulated DC power to all modules in the 3500 rack |
| Input Voltage | 85–264 VAC, 47–63 Hz (universal AC input) or 18–32 VDC (DC input variant) |
| Output | Regulated internal bus voltage for 3500 rack backplane |
| Redundancy Support | Dual power supply slots supported for redundant operation |
| Form Factor | Single-slot 3500 rack module, front-panel accessible |
| Compatibility | 3500/01 Rack, 3500/05 Rack Interface Module, all 3500 Series monitor modules |
| Application Environment | Gas turbines, steam turbines, centrifugal compressors, pumps, fans — continuous process industries |
| Condition | Original spare — inspected and function-tested |
| Warranty | 12 months from date of shipment |
| Country of Origin | United States |
| Lead Time | In-stock units ship within 3–5 business days; express options available |
| Maintenance Recommendation | Replace at first sign of power fault alarm; keep one unit as hot spare in critical installations |
Maintenance Planning for Continuous Operation
When a 3500/15E power supply fault is detected — whether through a PWR FAIL LED, a rack-level alarm, or a complete loss of monitoring — the replacement workflow must be fast and systematic. Maintenance engineers should treat a power supply event as a system-level incident, not an isolated module failure. Before and after replacing the 3500/15E, a thorough inspection of the surrounding rack components is essential to confirm root cause and prevent recurrence.
Start with the 3500/01 Rack itself: inspect the backplane connectors and slot contacts for corrosion, heat damage, or mechanical wear. A degraded backplane can cause repeated power supply failures even after module replacement. Next, verify the 3500/05 Rack Interface Module (RIM), which handles communication between the rack and the host DCS or historian — a power transient can corrupt RIM configuration and cause false trips after restoration.
Check all 3500/20 Keyphasor modules and 3500/22M Transient Data Interface units in the rack. These modules are sensitive to power quality and may require re-initialization after a supply interruption. Similarly, inspect the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor cards — confirm that channel OK status is restored and that vibration alarm setpoints have not been altered.
On the field wiring side, inspect the 3500/92 Communication Gateway Module if Modbus or Ethernet connectivity to the plant historian is part of your architecture. A power event can reset gateway parameters. Also verify the 3500/15 Power Supply input wiring: check the upstream circuit breaker, terminal block connections, and any surge protection devices in the control cabinet. If the facility uses a DC-input power supply variant, inspect the 24 VDC bus and associated fuses.
For installations with redundant power supply slots, confirm that the standby 3500/15E (second slot) is healthy and that automatic switchover logic is functioning. Redundant power supply pairs should be tested during planned maintenance windows — not discovered to be faulty during an emergency. Maintaining a dedicated spare 3500/15E in your on-site inventory eliminates the most common cause of extended rack downtime in 3500 Series installations.
Site Replacement Workflow
Step 1 — Confirm fault isolation. Verify that the PWR FAIL indicator on the 3500/15E is active and that the fault is not caused by an upstream supply issue (breaker, fuse, or UPS). Check the rack’s second power supply slot if redundancy is configured.
Step 2 — Notify control room. Inform the DCS operator that the rack will be temporarily in a degraded monitoring state. Confirm whether the process can continue under manual monitoring or whether a controlled shutdown is required per site safety procedures.
Step 3 — Hot-swap or cold-swap. The 3500/15E is designed for replacement without removing the rack from service in redundant configurations. In single-supply installations, a brief power interruption to the rack is required. Follow Bently Nevada installation procedures for module extraction and insertion.
Step 4 — Verify restoration. After insertion, confirm that all monitor modules return to OK status, that Keyphasor signals are re-acquired, and that the RIM re-establishes communication with the host system. Check the System Event List for any latched alarms that require acknowledgment.
Step 5 — Document and restock. Log the replacement in your CMMS, record the failed module serial number, and immediately initiate a reorder for the spare 3500/15E to restore your buffer inventory. Long-term supply continuity for legacy 3500 Series components requires proactive procurement — OEM availability for older variants can be unpredictable.
Spare Parts Support FAQ
Q: Is this 3500/15E compatible with all 3500 Series rack configurations?
A: The 3500/15E is compatible with the standard 3500/01 19-inch rack and supports all 3500 Series monitor modules. Confirm your rack’s power supply slot configuration (single or dual) and input voltage variant (AC or DC) before ordering. Our technical team can assist with compatibility verification based on your existing rack serial number or configuration drawing.
Q: What testing is performed before shipment?
A: Each unit undergoes visual inspection, connector integrity check, and functional power output verification before dispatch. Units that do not meet original specification are not shipped. A test report is available upon request for critical installations.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority to minimize your downtime.
Q: How should we manage long-term spare parts inventory for aging 3500 Series systems?
A: For plants with 3500 Series racks in critical service, we recommend maintaining a minimum of one 3500/15E power supply as a permanent on-site spare, alongside spares for your highest-density monitor modules. For systems approaching end-of-support lifecycle, a broader last-time-buy strategy covering the 3500/05 RIM, communication gateway, and key monitor cards is advisable. We can assist with lifecycle procurement planning and multi-unit pricing for strategic stock builds.
