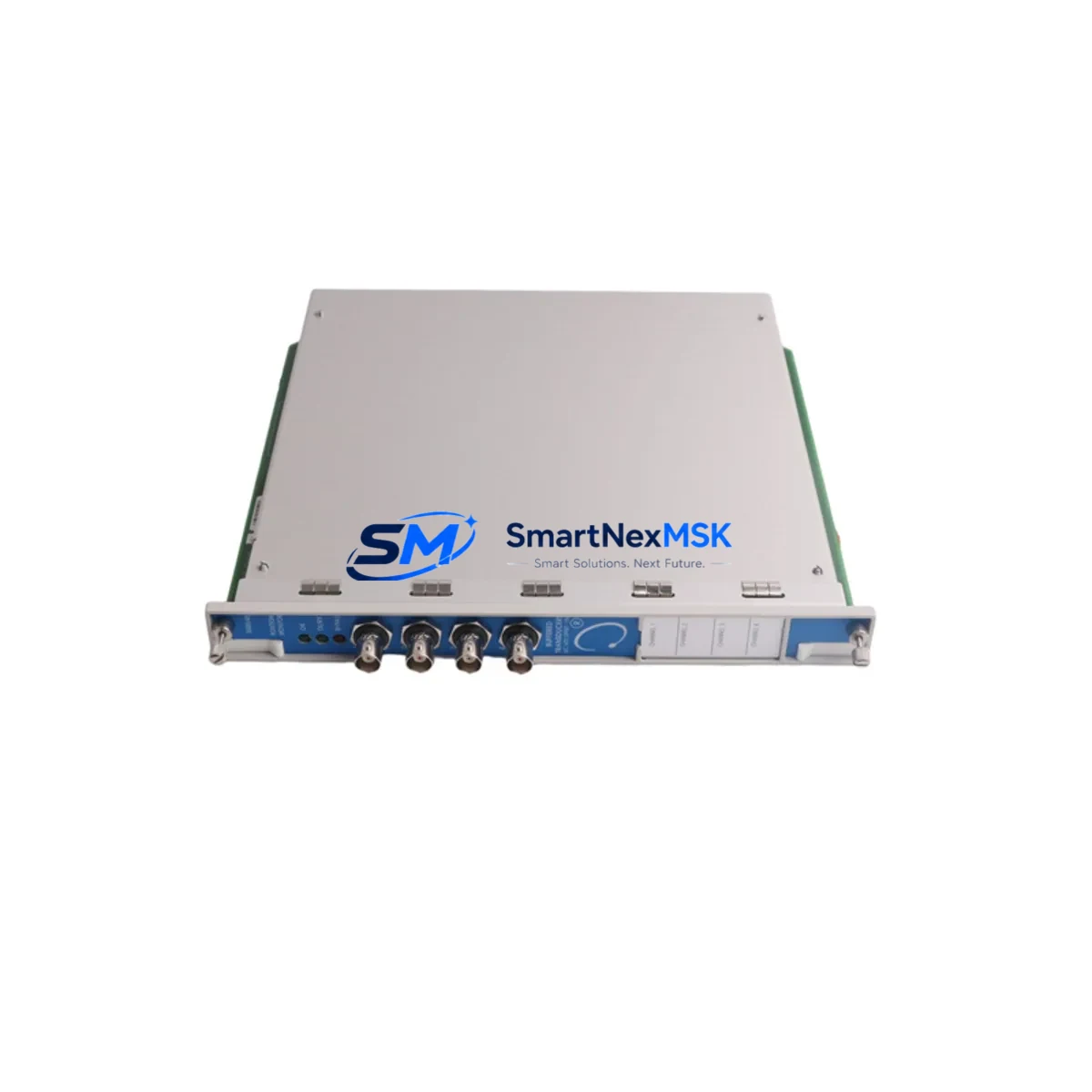

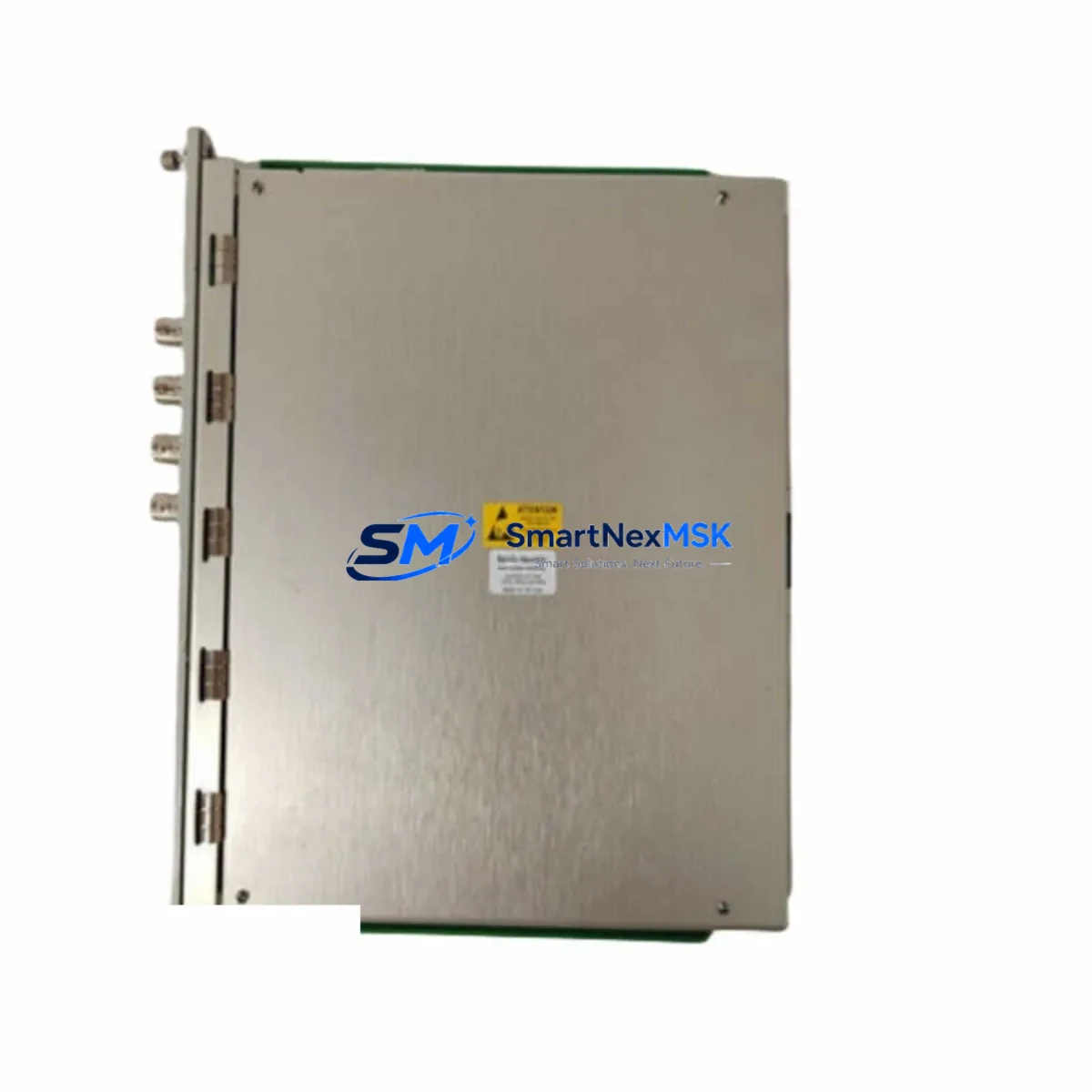

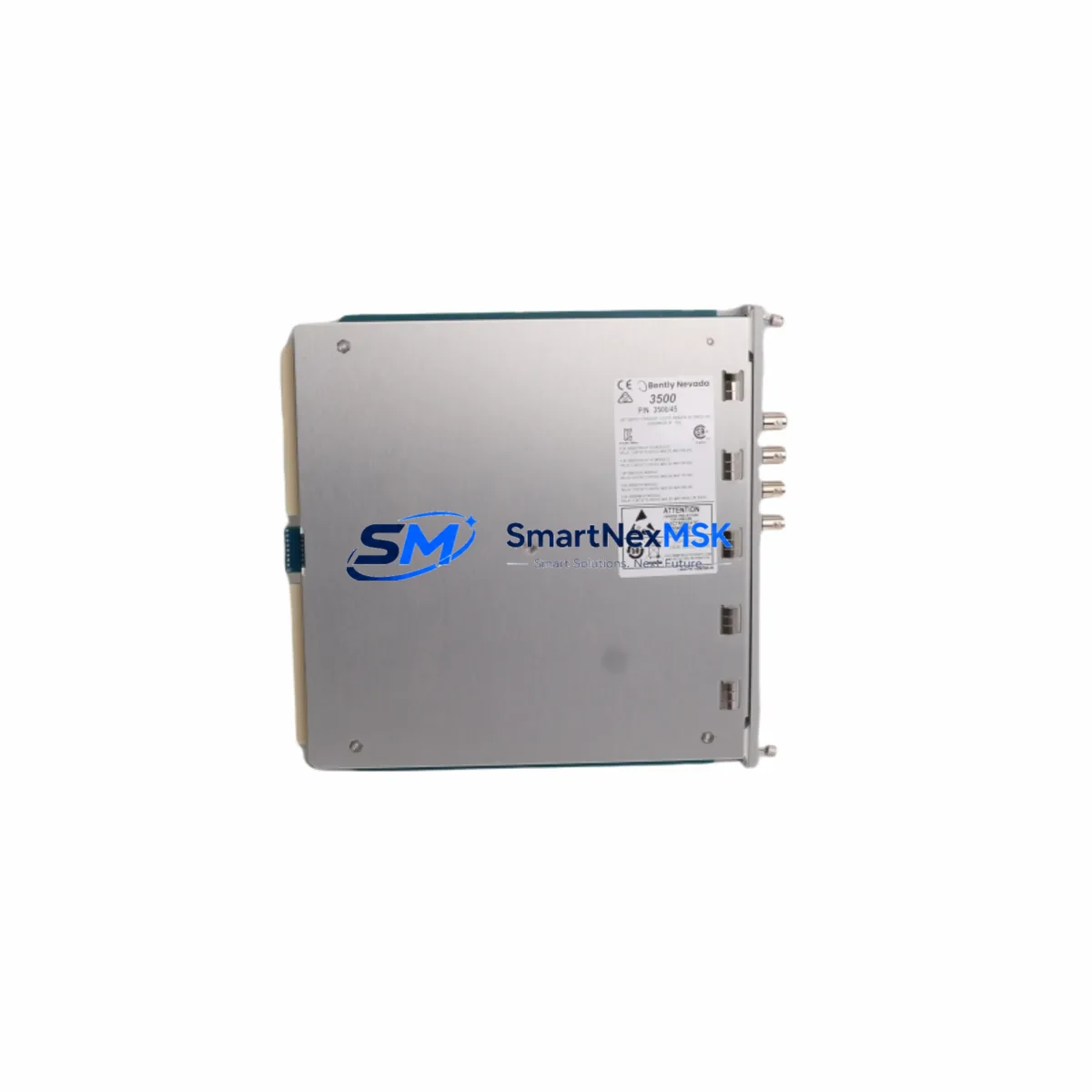

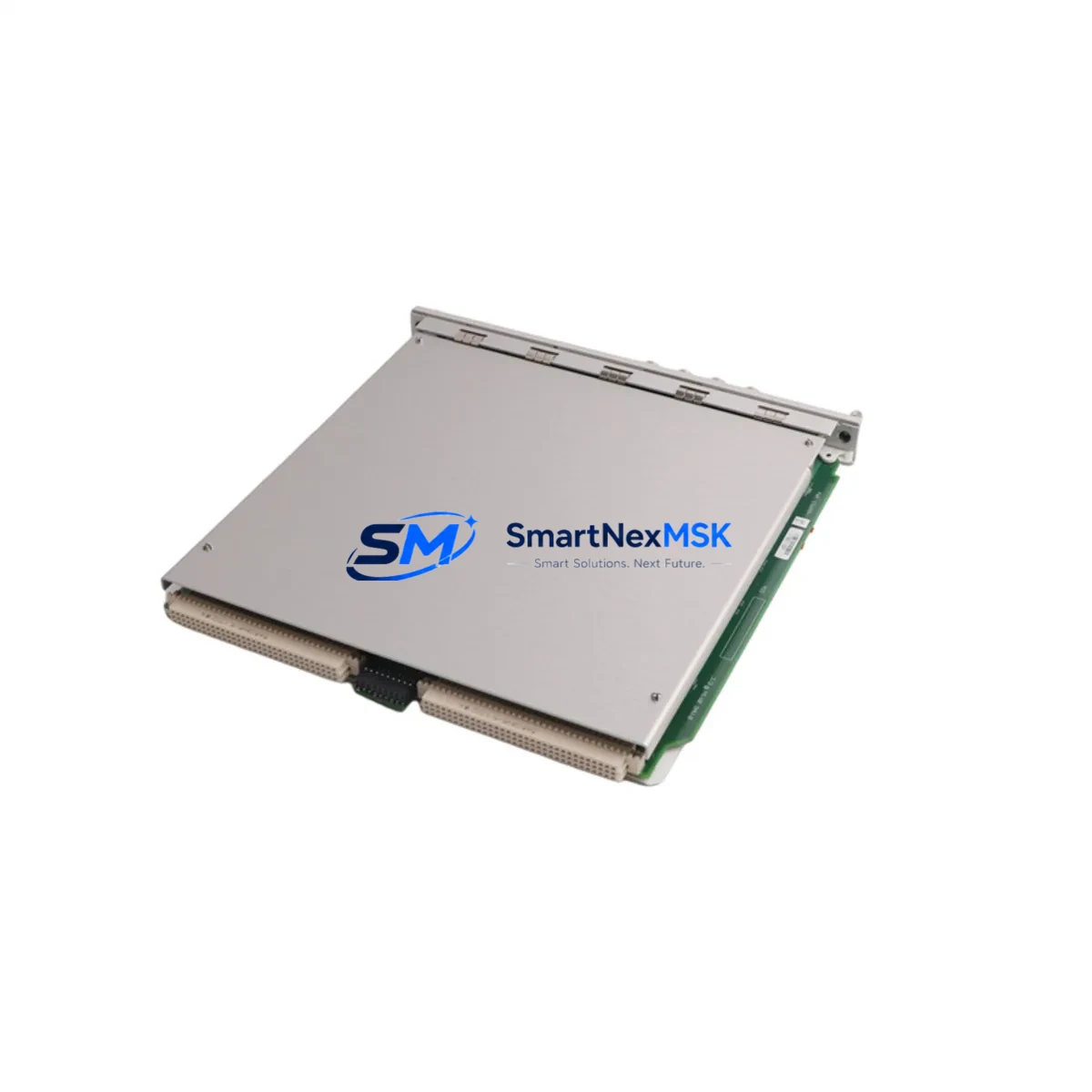

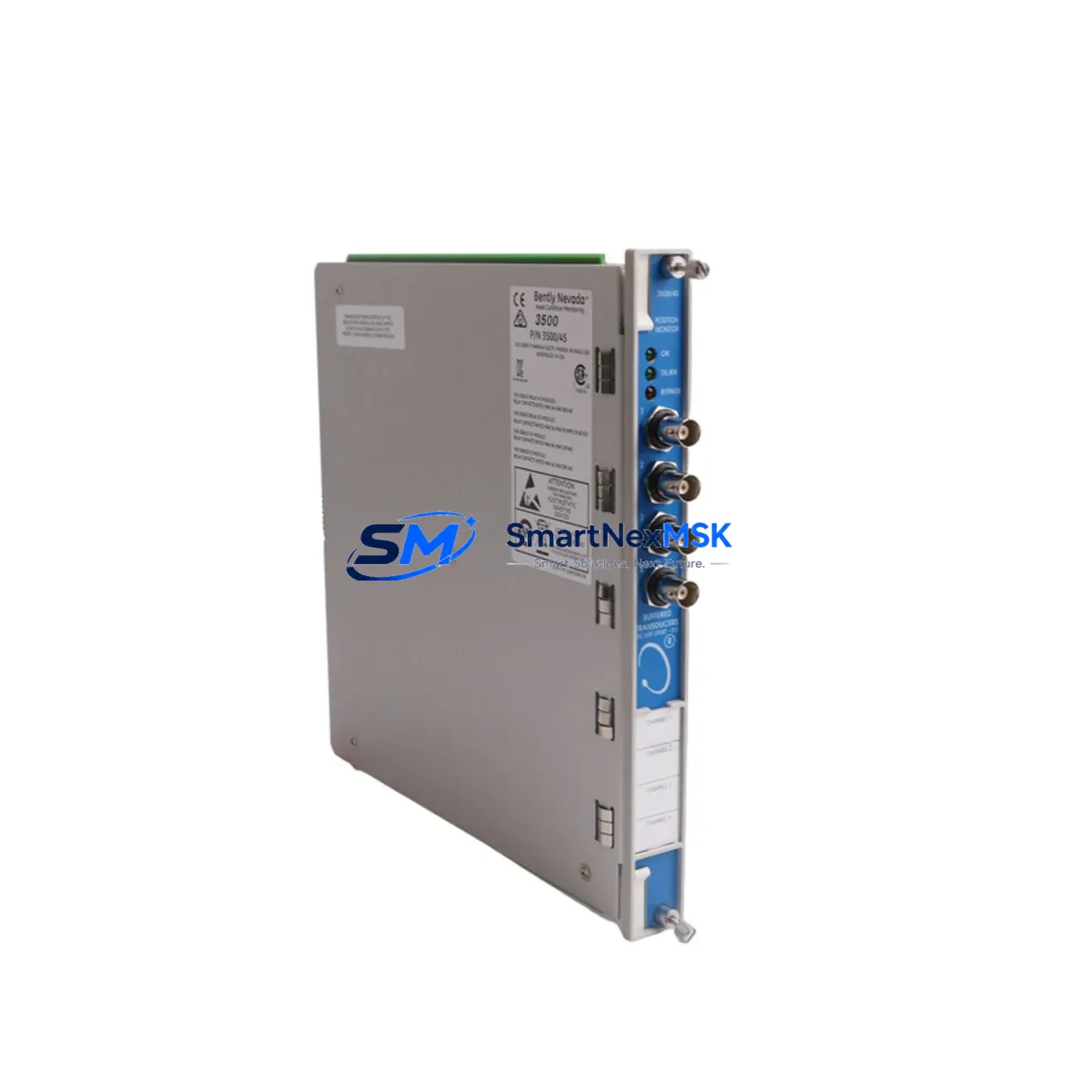

Bently Nevada 3500/45 176449-04 Maintenance-Ready Spare for 3500 Automation
The Bently Nevada 3500/45 176449-04 is a dual-channel position monitor module designed for continuous machinery protection within the 3500 Series modular monitoring system. For maintenance engineers managing rotating equipment — turbines, compressors, pumps, and gearboxes — this module is a critical line-of-defense component. When a 3500/45 fails or approaches end-of-life, the entire protection loop for that machine train is compromised. Sourcing a verified, original-specification replacement with minimal lead time is not optional; it is a plant reliability imperative.
This listing provides a maintenance-ready, tested spare of the 3500/45 176449-04, stocked specifically to support rapid field replacement, planned outage kits, and long-term system sustainment for legacy 3500 Series installations. Each unit is inspected, functionally verified, and shipped with documentation to support your site acceptance procedure. A 12-month warranty is included from date of shipment.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | 3500/45 176449-04 |
| Brand | Bently Nevada |
| Series | 3500 Series Modular Monitoring System |
| Module Type | Dual-Channel Position Monitor |
| Channels | 2 (independent position measurement channels) |
| Input Signal | Compatible with Bently Nevada proximity transducer systems (Proximitor® sensors) |
| Output / Communication | 3500 Series backplane communication; supports Modbus and System 1 integration |
| Rack Compatibility | 3500 Series 19-inch rack chassis (3500/05, 3500/15, 3500/20 power modules) |
| Application Environment | Industrial plant floor, control room, turbine control cabinet; Class I Div 2 rated environments |
| Operating Temperature | 0°C to 65°C (standard industrial range) |
| Origin | United States |
| Condition | Original spare — inspected and functionally tested |
| Warranty | 12 Months from date of shipment |
| Pre-shipment Testing | Functional verification performed; test report available on request |
| Typical Replacement Scenario | Planned outage swap, emergency fault isolation, spare parts kit replenishment |
| Lead Time | In-stock; ships within 1–3 business days |
Maintenance Planning for Continuous Operation
When a 3500/45 176449-04 position monitor is flagged during a routine control cabinet inspection or triggers a machinery protection alarm, the replacement scope rarely ends at the module itself. Experienced maintenance engineers know that a position monitor fault often signals stress across the entire measurement loop and adjacent rack infrastructure.
Begin your inspection at the Proximitor® sensor and extension cable feeding the affected channel. A degraded 3500/45 may have been masking a marginal sensor gap voltage or a cable with intermittent continuity — both of which will cause the replacement module to fault immediately if not corrected. Verify gap voltage is within the –10 VDC to –18 VDC window specified for your transducer type.
Next, inspect the 3500/20 or 3500/15 power supply module in the same rack. Position monitors are sensitive to supply rail ripple; a power module approaching end-of-life can introduce noise that mimics a position fault. If the power module has not been replaced within its recommended service interval, include it in your outage scope.
Check the 3500/32 4-Channel Relay Module or 3500/33 16-Channel Relay Module associated with the position monitor’s alarm outputs. Relay contacts that have cycled thousands of times may exhibit increased contact resistance, causing delayed or missed trip signals — a critical safety concern for overspeed or thrust fault scenarios.
For systems integrated with a DCS or safety PLC, verify the 3500/92 Communication Gateway Module or 3500/93 Data Manager is correctly mapping the channel data after module swap. A firmware version mismatch between a replacement 3500/45 and the gateway can cause data dropouts in your System 1 historian or Modbus polling loop.
If your installation uses signal isolators or barriers between the 3500 rack and the DCS analog input cards — common in hazardous area installations — inspect those isolators for drift. A failing isolator can corrupt the 4–20 mA position signal downstream even when the 3500/45 itself is functioning correctly.
Finally, review the terminal blocks and field wiring terminations on the I/O side of the rack. Loose or corroded terminations on the 3500 Series I/O module connectors are a frequent root cause of intermittent position faults that are misdiagnosed as module failures. Torque all terminals to specification and apply contact enhancer where appropriate before commissioning the replacement module.
Maintaining a stocked spare of the 3500/45 176449-04 — alongside a 3500/20 power module, a set of Proximitor® extension cables, and a spare relay module — gives your maintenance team the inventory depth to execute a complete loop restoration within a single shift window, minimizing unplanned downtime on critical rotating assets.
Site Replacement Workflow
Step 1 — Isolation and documentation: Before removing the 3500/45, capture the current channel configuration using System 1 or the rack configuration software. Export the rack configuration file so the replacement module can be loaded with identical setpoints, full-scale ranges, and alarm thresholds. Do not rely on manual transcription of setpoints — configuration errors after module swap are a leading cause of nuisance trips during recommissioning.
Step 2 — Physical replacement: The 3500/45 is a hot-swappable module within a powered 3500 rack, but confirm your site safety procedure before proceeding. Remove the module by releasing the front-panel locking tabs, slide out cleanly, and insert the replacement unit. The backplane connector is keyed; do not force insertion.
Step 3 — Configuration download: Using the 3500 Rack Configuration software, download the saved configuration to the replacement module. Verify that channel full-scale, transducer scale factor, and alarm setpoints match the original values. Confirm the module’s firmware revision is compatible with your rack’s communication gateway.
Step 4 — Loop verification: Apply a known displacement to the proximity probe target (or use a calibrated signal simulator) and verify the 3500/45 displays the correct position value within tolerance. Confirm alarm relay operation at the defined setpoints before returning the machine to service.
Step 5 — Documentation and spare replenishment: Log the replacement in your CMMS, update the spare parts inventory, and initiate a purchase order to replenish the consumed spare. A single-unit spare strategy for a critical position monitor is insufficient for plants with multiple 3500 Series racks — consider a minimum two-unit buffer for high-criticality machine trains.
Spare Parts Support FAQ
Q: Is the 3500/45 176449-04 compatible with all 3500 Series rack configurations?
A: The 3500/45 176449-04 is designed for use within the Bently Nevada 3500 Series modular rack system. Compatibility depends on your rack chassis revision and communication gateway firmware. We recommend confirming your rack’s configuration software version before installation. Contact our technical team with your rack serial number for pre-purchase compatibility verification.
Q: What pre-shipment testing is performed on this spare?
A: Each 3500/45 176449-04 unit undergoes functional verification prior to shipment, including power-on self-test confirmation and channel output verification. A test report is available upon request. The 12-month warranty covers functional defects from date of shipment under normal operating conditions.
Q: Can this module replace older 176449-01 or 176449-02 revision units?
A: The -04 revision of the 176449 position monitor incorporates firmware and hardware updates relative to earlier revisions. In most 3500 Series installations, the -04 is backward compatible as a field replacement for earlier revisions, but configuration re-download is required after swap. Confirm compatibility with your System 1 version and rack gateway firmware before installation.
Q: What is your long-term supply commitment for legacy 3500 Series spares?
A: We maintain dedicated inventory of 3500 Series modules to support plants operating legacy Bently Nevada systems beyond OEM active production. Our sourcing strategy prioritizes original-specification units to ensure your machinery protection system maintains its certified performance characteristics. Blanket order arrangements and consignment stocking programs are available for high-volume maintenance contracts.
