Bently Nevada 3500/45 Maintenance-Ready Spare 3500 Series: Spare Parts Replacement & Industrial Downtime Risk Control

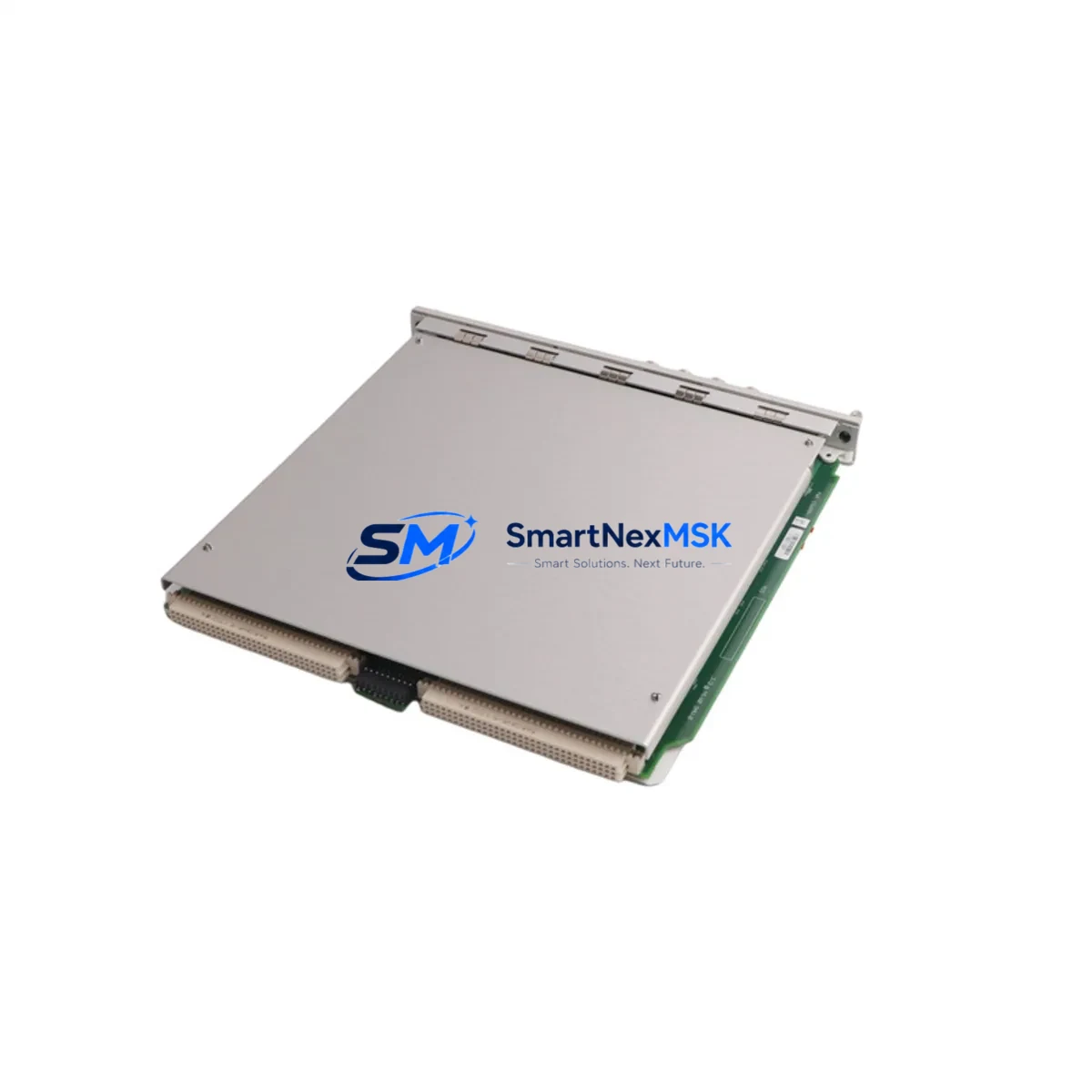

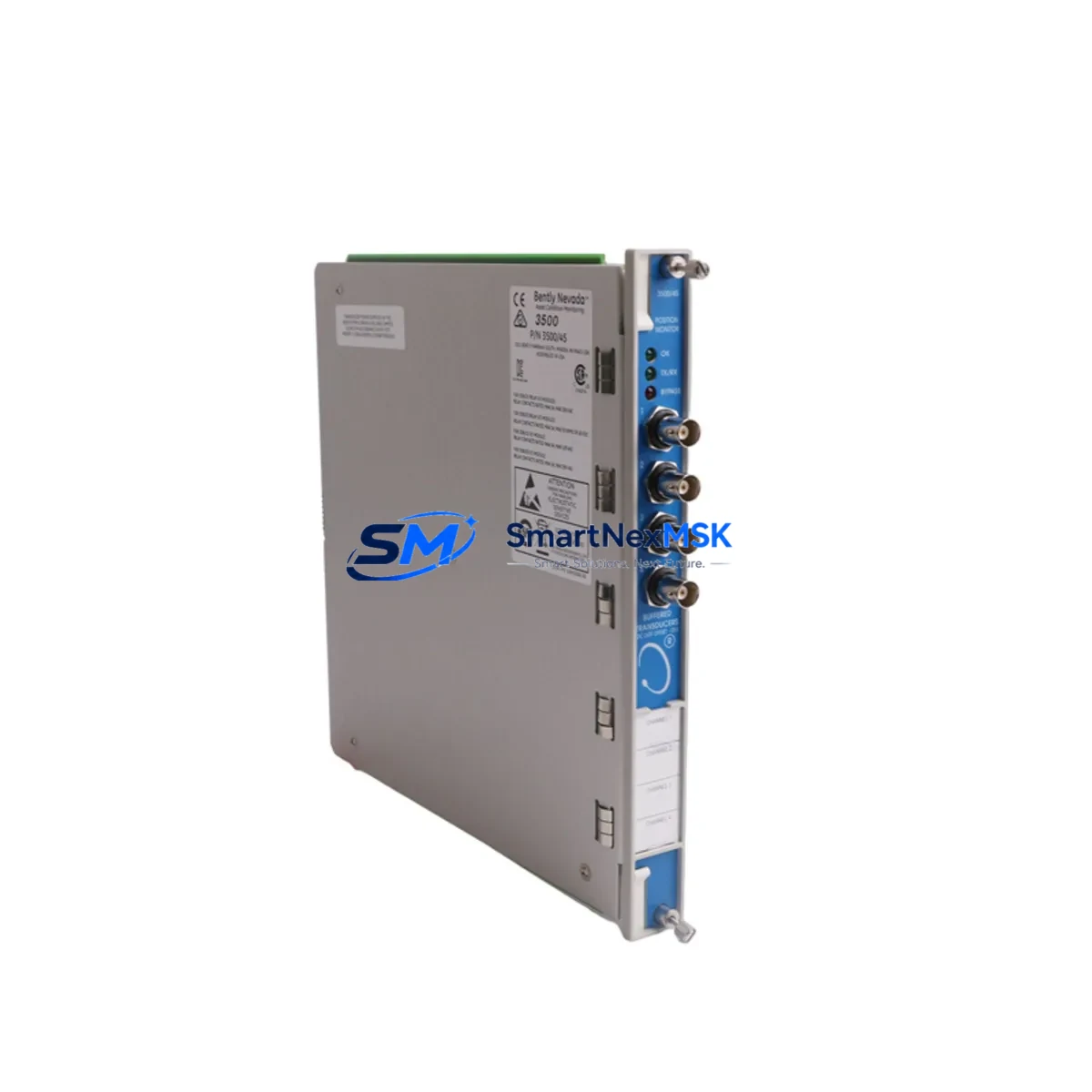

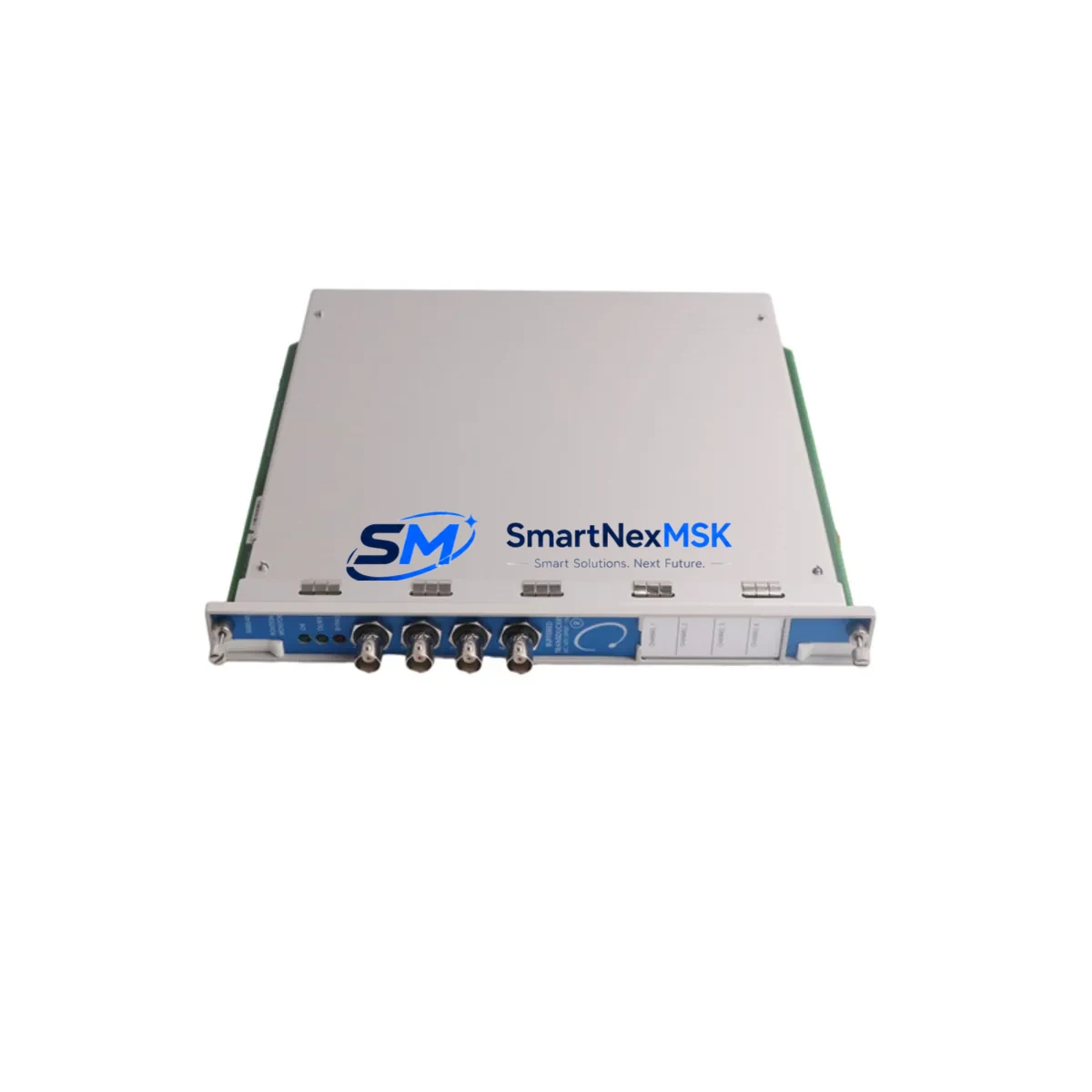

The Bently Nevada 3500/45 is a dual-channel position monitor module designed for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed continuous monitoring platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unscheduled trip, or building a strategic spare parts inventory for a critical compressor train or turbine skid, the 3500/45 is a high-priority line item that maintenance and reliability engineers cannot afford to leave unaddressed.

This listing provides an original Bently Nevada 3500/45 position monitor module, sourced, inspected, and tested prior to shipment. It is fully compatible with the 3500 Series backplane architecture and can be installed as a direct drop-in replacement without firmware reconfiguration in most standard rack configurations. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance, giving procurement teams the confidence to stock this module as a long-term spare.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3500/45 position monitor is flagged during a control cabinet inspection or triggers a rack fault alarm, the replacement process rarely ends with the module itself. Experienced maintenance engineers know that a position monitor fault can be symptomatic of upstream or downstream issues across the same electrical loop. Before returning the system to service, the following components in the same 3500 Series rack and associated field wiring should be verified:

The 3500/15 power supply module should be checked for output voltage stability, as a degraded power rail can cause intermittent monitor faults that mimic module failure. The 3500/20 rack interface module governs communication between the rack and the host DCS or safety system — any firmware mismatch or communication fault here can prevent a newly installed 3500/45 from initializing correctly. If the facility uses a 3500/22M transient data interface, verify that the TDI configuration still maps correctly to the replacement module’s channel assignments.

On the field side, the proximitor/extension cable assembly connecting the eddy-current probe to the monitor input is a common wear item that should be inspected for insulation damage, connector corrosion, and continuity. The 3300 XL 8mm proximity transducer system (or equivalent probe series) paired with the 3500/45 should be gap-verified after module replacement to confirm the static voltage reading falls within the calibrated range. If the position measurement is part of a thrust bearing protection loop, the 3500/32M 4-channel relay output module should also be tested to confirm that trip setpoints and relay logic remain intact after the rack is re-energized.

For facilities running extended maintenance intervals, it is advisable to simultaneously inspect the 3500/42M vibration monitor module installed in adjacent slots, as vibration and position monitors often share the same rack and are subject to the same environmental stressors — heat cycling, vibration, and power transients. Terminal blocks and field wiring terminations on the 3500 I/O module should be re-torqued and inspected for oxidation. Where signal isolation is required between the 3500 rack output and the plant DCS analog input card, a signal isolator/conditioner (such as a DIN-rail mounted 4–20 mA loop isolator) should be tested for drift. Finally, if the rack includes a 3500/92 communication gateway module for Modbus or Ethernet integration, verify that the gateway still polls the replacement module correctly after commissioning.

Stocking the 3500/45 alongside these associated modules — particularly the power supply, rack interface, and relay output modules — forms the foundation of a resilient spare parts strategy for any facility where rotating machinery uptime is a critical KPI.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the rack slot assignment and channel configuration of the existing 3500/45 using the System 1 configuration file or the rack’s front-panel display. Document the current gap voltage readings and alarm/trip setpoints before powering down the slot.

Step 2 — Safe isolation: Place the affected monitor channel into bypass mode via the rack keyswitch or System 1 software to prevent spurious trips during module swap. Notify the control room before proceeding.

Step 3 — Module extraction and installation: Remove the faulted 3500/45 by releasing the front-panel locking tabs. Insert the replacement module into the same slot. The 3500 Series backplane is hot-swap capable in bypass mode, minimizing process interruption.

Step 4 — Configuration restore: If the replacement module requires configuration, download the saved configuration file from System 1 or the rack’s internal memory. Verify that channel assignments, engineering units, full-scale range, and alarm setpoints match the original settings.

Step 5 — Functional verification: Re-enable the monitor channel and confirm that the gap voltage reading is within the calibrated range (typically –10 VDC ± 0.5 V for standard 3300 XL probes). Verify that OK relay status is healthy and that no latched alarms remain active.

Step 6 — Return to service: Remove bypass mode, confirm System 1 data acquisition is active for the replaced channel, and update the maintenance management system (CMMS) with the replacement record, including the new module serial number and warranty expiry date.

This workflow is applicable whether you are replacing an end-of-life module in an aging turbine protection system or restoring a rack after an unplanned trip event. The 3500/45’s drop-in compatibility with the existing 3500 Series backplane means that — with proper configuration management — total replacement time from isolation to return-to-service can be achieved within a single maintenance shift.

Spare Parts Support FAQ

Q1: Is this 3500/45 module tested before shipment?
Yes. Every unit undergoes a pre-shipment functional test to verify module initialization, channel output integrity, and OK relay status. A test record is available upon request. The module ships with a 12-month warranty covering functional performance and manufacturing defects from the date of shipment.

Q2: How do I confirm compatibility with my existing 3500 Series rack?
The 3500/45 is designed for the standard 3500 Series backplane and is compatible with all standard 3500 rack configurations. To confirm slot compatibility, check your rack’s configuration file in System 1 or review the rack’s module map. If your rack uses a non-standard I/O module or a specialized backplane variant, contact us with your rack part number and we will verify compatibility before shipment.

Q3: What is the recommended spare parts stocking strategy for the 3500/45?
For facilities with two or more 3500 Series racks protecting critical rotating equipment, we recommend maintaining a minimum of one 3500/45 spare per rack type in your on-site inventory. For plants with extended maintenance intervals (18–36 months between turnarounds), holding two units per critical train is advisable. Pairing the 3500/45 spare with a 3500/15 power supply module and a 3500/20 rack interface module provides a comprehensive first-response kit for the most common rack-level failure scenarios.

Q4: Can this module replace older or discontinued Bently Nevada position monitor variants?
The 3500/45 is the current-generation dual-channel position monitor for the 3500 Series platform and is the designated replacement for earlier position monitor modules used in the same rack family. In most cases, the replacement is configuration-compatible, meaning existing probe wiring, I/O terminations, and setpoint files can be reused without modification. For legacy installations using older rack generations, contact us with your existing module part number for a compatibility assessment prior to ordering.
