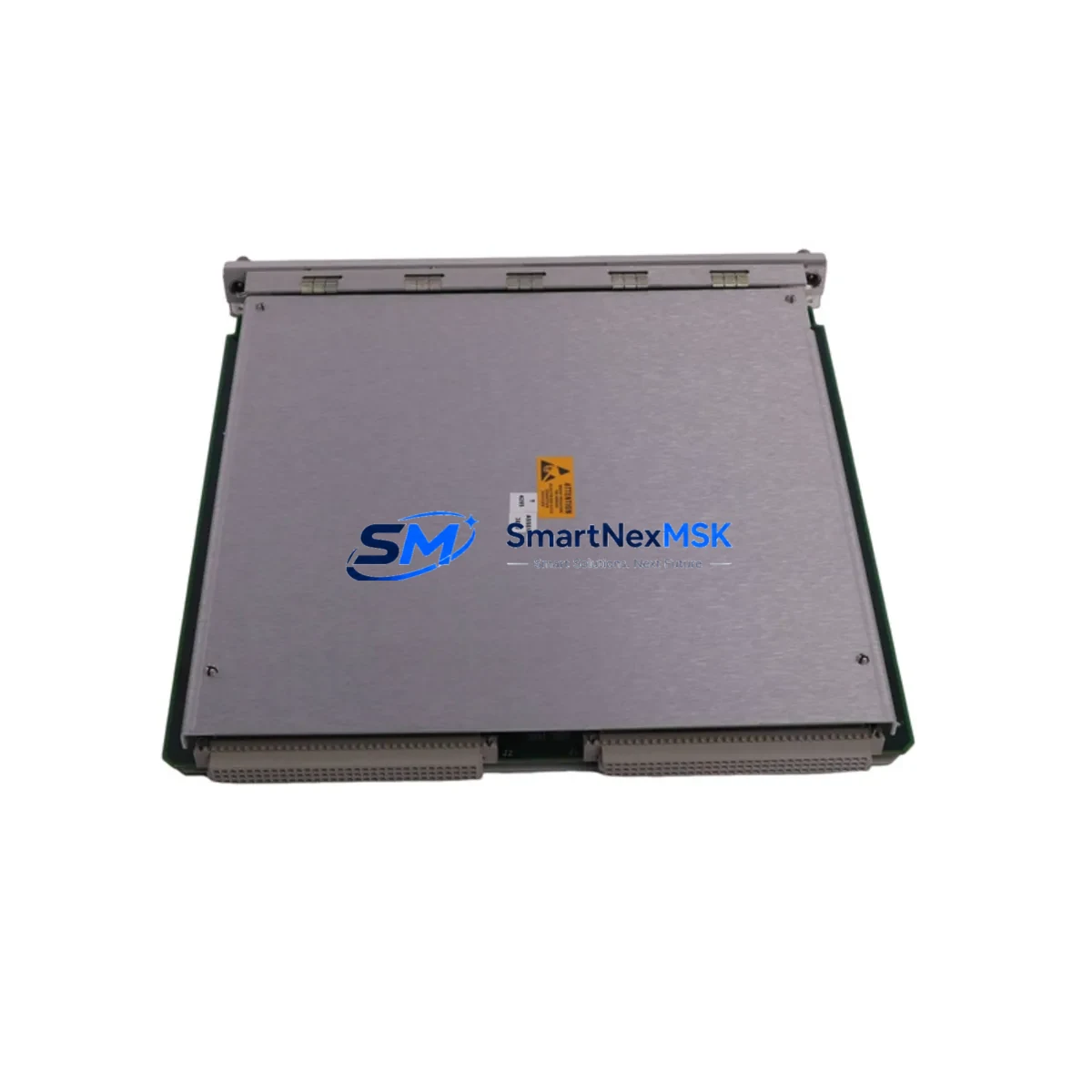

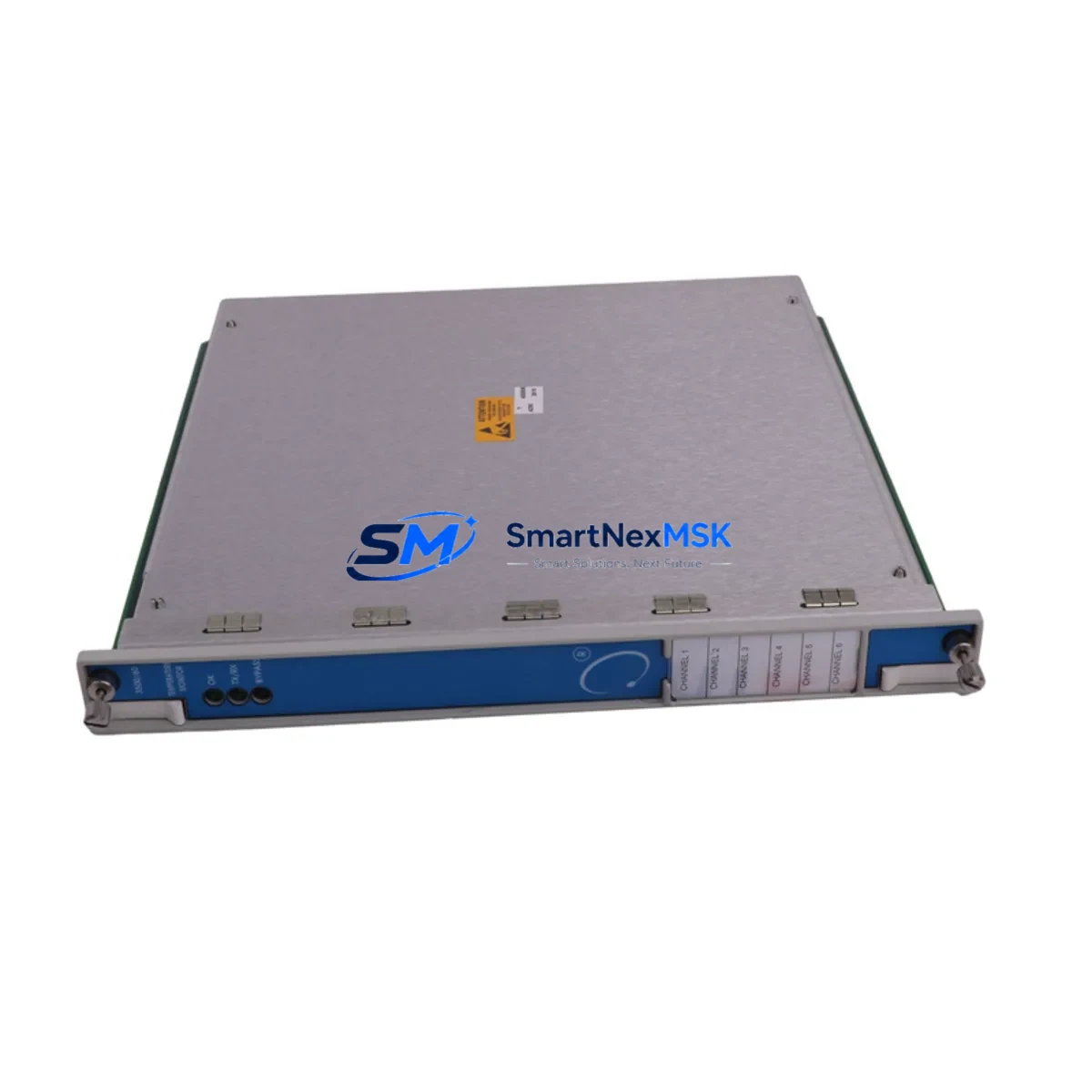

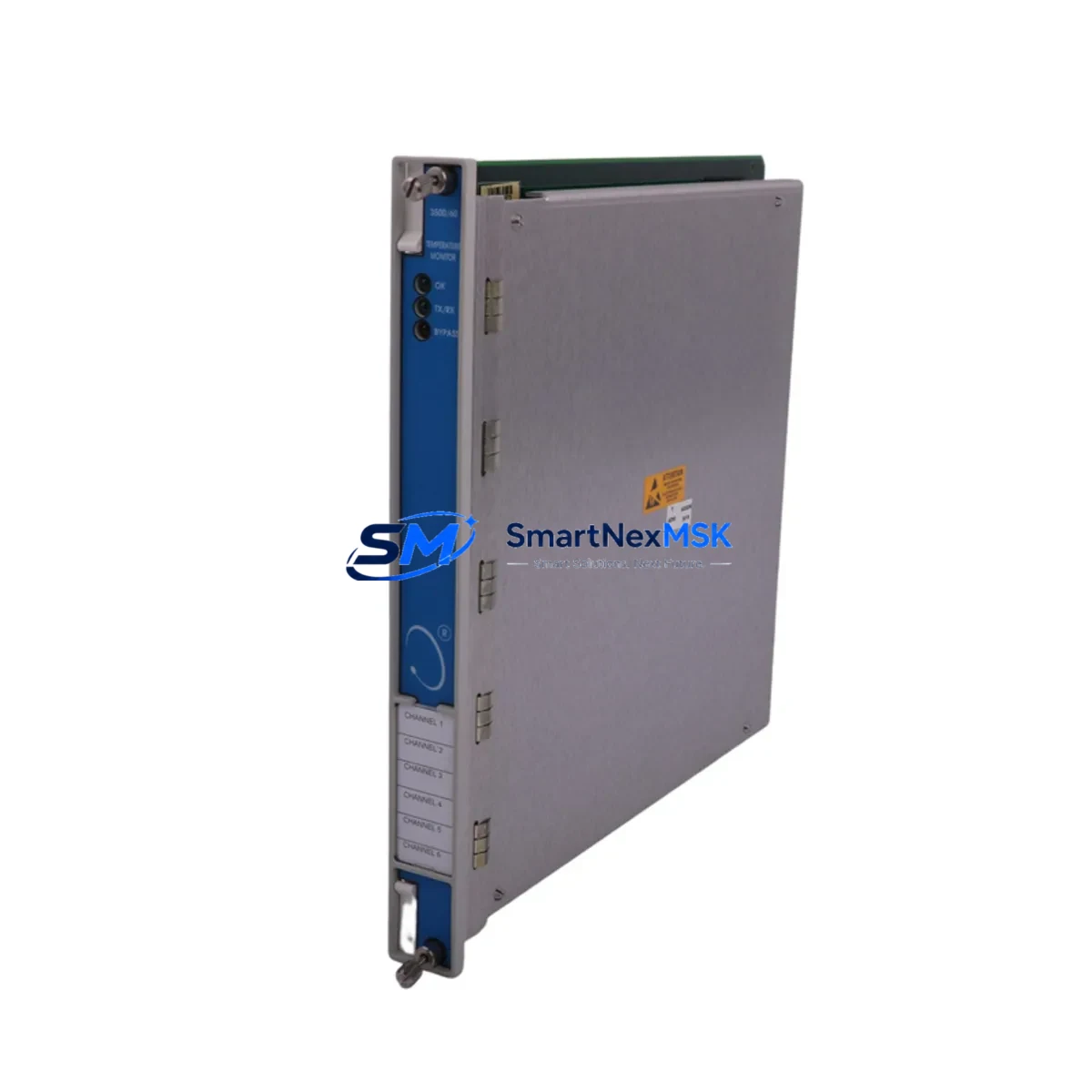

Bently Nevada 3500/60 163179-01 Retrofit-Ready Temperature Monitor for 3500 Series Control Systems
The Bently Nevada 3500/60 163179-01 is a rack-mounted temperature monitor module designed for continuous machinery protection within the 3500 Series monitoring platform. As legacy installations age and OEM support for discontinued configurations becomes increasingly limited, this module serves as a verified retrofit-ready replacement for facilities managing turbines, compressors, pumps, and rotating equipment in oil & gas, power generation, and petrochemical environments. Whether you are executing a planned control system upgrade or responding to an unplanned module failure, the 3500/60 163179-01 provides a direct-fit solution that preserves your existing rack architecture and minimizes engineering rework.
Before proceeding with installation, engineers should confirm several critical compatibility parameters. The 3500/60 163179-01 occupies a standard 3500 Series rack slot and interfaces with the 3500/01 Rack Interface Module for system communication. Power draw must be verified against the 3500/05 Power Supply Module capacity — particularly in fully populated racks where multiple I/O modules share a common backplane bus. Terminal wiring follows the standard 3500 Series I/O module pinout; however, technicians replacing an older revision should cross-reference the terminal block assignments against the original loop drawings to confirm thermocouple or RTD input wiring has not been field-modified.
Module address configuration is handled through the 3500 System Configuration Software. When replacing a failed unit, the replacement module must be assigned the same rack slot address and channel configuration as the original to ensure that the 3500/20 Rack Configuration Module correctly identifies the device and that existing alarm setpoints, transducer scale factors, and OK relay logic are preserved without reprogramming. If the host DCS or safety system communicates with the 3500 rack via the 3500/92 Ethernet I/O Module or a legacy 3500/22M Communication Gateway, the communication link should be verified post-installation before returning the machine to service.
HMI screens connected to the 3500 platform — whether running on a dedicated operator workstation or integrated into a broader DCS environment — typically reference channel tags by rack slot and point number. After module swap, operators should confirm that all temperature channel tags are resolving correctly and that no spurious OK-relay trips or alarm floods are generated during the first minutes of operation. This is especially important in systems where the 3500/15 Power Supply I/O Module or 3500/25 Enhanced Keyphasor Module shares backplane resources with the temperature monitor slot.
For facilities undertaking a broader migration from legacy Bently Nevada 3300 Series or 7200 Series monitoring systems to the 3500 platform, the 3500/60 163179-01 is a natural anchor point for temperature channel consolidation. The 3500 Series rack accepts a mix of vibration, position, temperature, and speed modules — including the 3500/40M Proximitor/Seismic Monitor and the 3500/50M Tachometer Module — allowing a phased migration strategy where temperature monitoring is modernized first while vibration channels are transitioned in subsequent maintenance windows. This approach reduces total downtime exposure and allows operations teams to validate each phase independently before committing to the next.
Outgoing testing at our facility includes functional verification of all input channels, OK relay output, and communication response prior to shipment. Each unit is inspected against original factory specifications and ships with a 12-month warranty covering manufacturing defects and functional performance. Inventory is maintained in stock for fast dispatch, supporting both planned maintenance schedules and emergency breakdown scenarios where minimizing mean time to repair is critical.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Compatible Rack | Bently Nevada 3500 Series Standard Rack |
| Slot Type | Standard 3500 I/O Module Slot |
| Input Type | Thermocouple / RTD (verify per loop drawing) |
| Communication Interface | 3500 Backplane Bus; compatible with 3500/92 Ethernet I/O and 3500/22M Gateway |
| Power Compatibility | Verify against 3500/05 Power Supply Module capacity |
| Address Configuration | Via 3500 System Configuration Software |
| Replaces / Upgrades From | Earlier 3500/60 revisions; legacy 3300 Series temperature channels |
| Installation Requirement | Rack power-down recommended; hot-swap per site safety procedure |
| Commissioning Tool | Bently Nevada 3500 System Configuration Software |
| Warranty | 12 Months — covers manufacturing defects and functional performance |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins with a complete audit of the existing rack population. In a typical 3500 Series installation, the rack may contain a mix of the 3500/40M Proximitor/Seismic Monitor for radial vibration, the 3500/42M Proximitor/Seismic Monitor for axial position, and the 3500/50M Tachometer Module for speed and phase reference — all sharing the same backplane and drawing from the same 3500/05 Power Supply Module. Before inserting the 3500/60 163179-01, calculate the total module power budget and confirm headroom exists. If the rack is at or near capacity, a second 3500/05 power supply may be required.
Terminal wiring for the temperature inputs should be mapped against the original I/O schedule. In older installations, field wiring may have been landed on a 3500 Series terminal block with non-standard color coding or modified junction box configurations. Photograph and document all existing wiring before removal. The 3500/60 163179-01 uses the standard Bently Nevada terminal block pinout, so direct re-termination is straightforward in most cases, but thermocouple type (J, K, T, E) or RTD configuration (2-wire, 3-wire, 4-wire) must match the channel configuration set in software.
If the site is also upgrading communication infrastructure — for example, migrating from a serial Modbus link via the 3500/22M Communication Gateway to an Ethernet-based connection through the 3500/92 Ethernet I/O Module — the temperature channel data mapping in the host DCS or historian must be updated to reflect the new register addresses. Coordinate this change with the control room team to avoid data gaps in the process historian during the cutover window.
Downtime Control During System Migration
Minimizing unplanned downtime during a module replacement requires pre-staging the replacement unit, pre-loading the correct configuration file, and coordinating with operations to schedule the swap during a planned maintenance window or low-production period. Before powering down the rack slot, export the current rack configuration from the 3500 System Configuration Software and save it to a secure backup location. This file contains all alarm setpoints, transducer scale factors, channel enable/disable states, and OK relay logic — restoring it to the replacement 3500/60 163179-01 takes minutes and eliminates the risk of manual re-entry errors.
Where site safety procedures permit hot-swap operations, the 3500 Series architecture supports module insertion with rack power maintained, allowing adjacent channels to remain in service during the swap. Confirm this is permitted under your site’s Management of Change procedure before proceeding. After insertion, allow the module a brief initialization period before verifying channel OK status and alarm relay states. Conduct a loop check on each temperature channel before releasing the machine back to operations, and document the as-left configuration in the site maintenance management system.
Retrofit Support FAQ
Q: Is the 3500/60 163179-01 a direct drop-in replacement for earlier 3500/60 revisions?
A: In most cases, yes. The module occupies the same rack slot and uses the same terminal block pinout. However, firmware revision differences may affect configuration software compatibility — confirm your 3500 System Configuration Software version supports the replacement unit’s firmware before installation.
Q: What commissioning steps are required after installation?
A: Restore the saved rack configuration file via the 3500 System Configuration Software, verify all channel OK statuses, confirm alarm setpoints match the original values, and perform a loop check on each active temperature input. Document as-found and as-left readings in your maintenance records.
Q: Can this module be used in a rack that also contains vibration and speed monitoring modules?
A: Yes. The 3500 Series rack is designed for mixed-module configurations. Ensure total rack power consumption remains within the 3500/05 Power Supply Module rating and that the rack configuration software correctly identifies each module by slot address.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional performance failures under normal operating conditions. Each unit is functionally tested prior to shipment. Contact our sales team for warranty claim procedures and return authorization.
