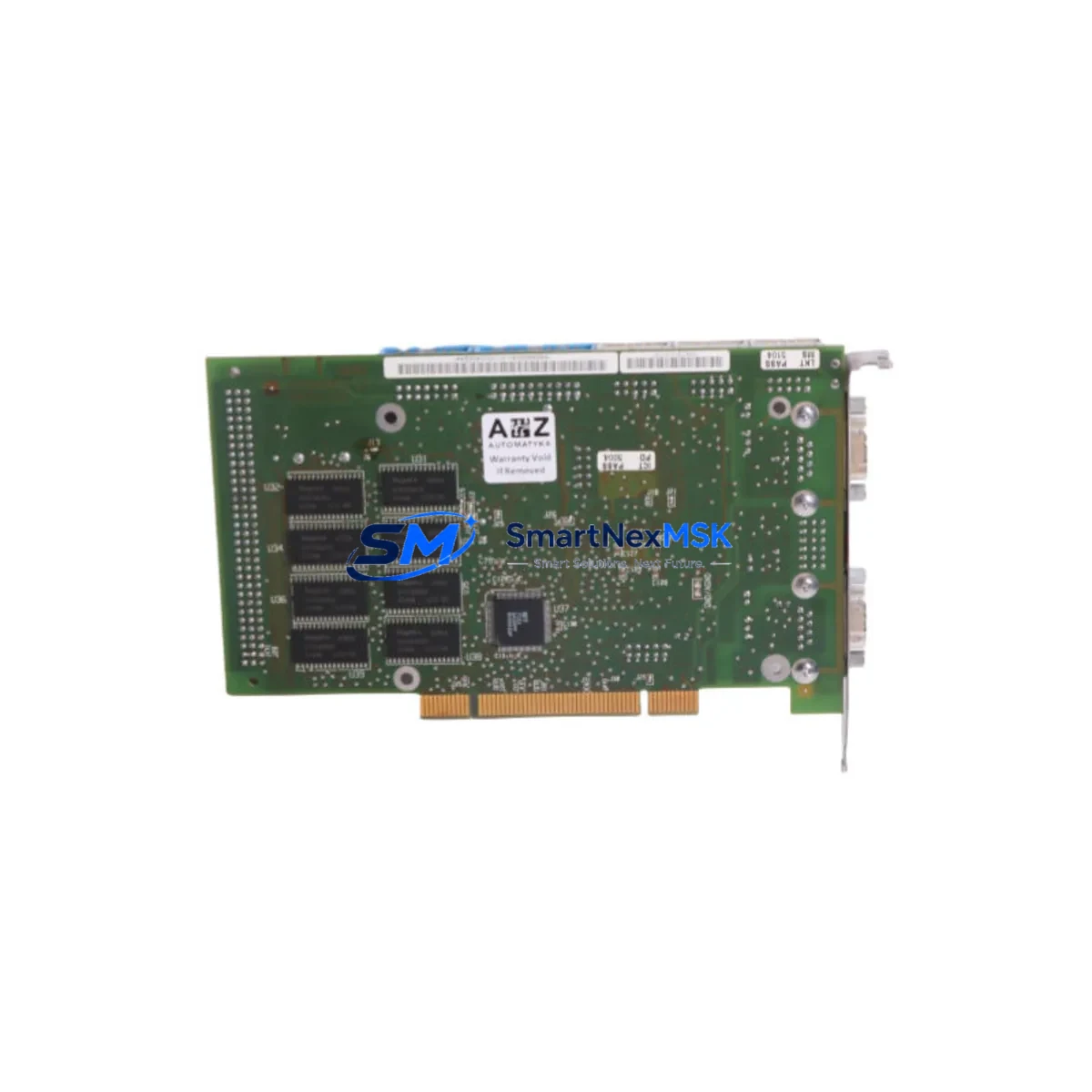

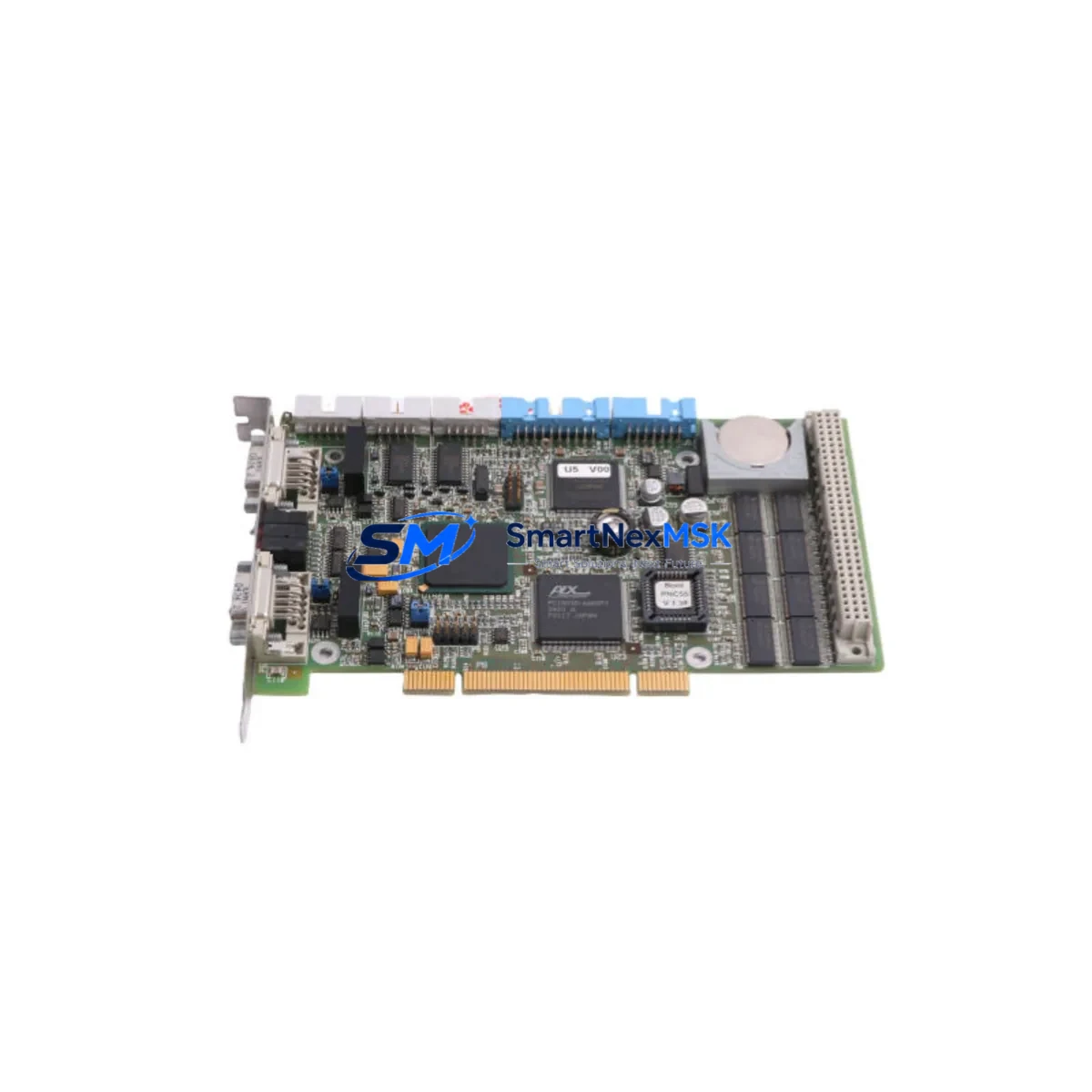

Eckelmann PNC55-CPU 4325600031LS Retrofit-Ready CPU for PNC55

Eckelmann PNC55-CPU 4325600031LS Retrofit-Ready CPU for PNC55 Control Systems

The Eckelmann PNC55-CPU 4325600031LS is a high-reliability central processing unit engineered for seamless integration into PNC55-series rack-based control systems. As legacy Eckelmann PNC55 platforms approach end-of-life and original spare parts become increasingly scarce, this CPU module provides a verified, drop-in retrofit solution that preserves existing program logic, I/O addressing, and communication architecture — minimizing engineering rework and unplanned downtime during system modernization.

Designed for industrial environments where control continuity is non-negotiable, the PNC55-CPU 4325600031LS supports direct backplane installation into the PNC55 rack chassis without mechanical modification. Engineers undertaking a control cabinet upgrade or production line retrofit can retain existing terminal wiring, field device connections, and HMI screen layouts while replacing the aging CPU core. This compatibility-first design approach significantly reduces the scope of validation testing and accelerates return-to-production timelines.

When planning a retrofit around the PNC55-CPU 4325600031LS, engineers should systematically verify several critical parameters before commissioning. Power supply capacity within the existing PNC55 rack — typically provided by a dedicated Eckelmann PNC55-PS power supply module — must be confirmed against the CPU’s rated current draw to avoid bus undervoltage faults. Terminal block wiring assignments on associated I/O modules, such as the PNC55-DI digital input module and PNC55-DO digital output module, should be cross-referenced against the original wiring diagrams to ensure address mapping is preserved after CPU swap.

Backplane slot addressing is a particularly important consideration: the PNC55-CPU 4325600031LS must be installed in the designated CPU slot of the PNC55 rack, and any co-installed communication modules — including Profibus-DP interface cards or Ethernet TCP/IP communication modules — must retain their original slot positions to avoid re-addressing in the application program. If the existing system uses a PNC55-COM communication module for supervisory SCADA integration, the communication parameters (baud rate, station address, protocol variant) should be documented and verified post-swap before re-enabling the communication link.

Program compatibility is a primary concern in any CPU replacement project. The PNC55-CPU 4325600031LS is compatible with application programs developed in the Eckelmann PNC55 programming environment. Before replacement, the existing CPU program should be uploaded and archived using the original programming cable and software. After installation of the replacement CPU, the archived program should be downloaded and a full cold-start cycle performed to confirm correct initialization of all I/O modules, including any connected PNC55-AI analog input modules used for process variable monitoring.

HMI screen integrity should also be validated as part of the commissioning checklist. Operator panels connected via serial or Ethernet links to the PNC55 controller — whether legacy panel PCs or modern touch HMIs — rely on consistent data block addresses and variable tag mappings. A CPU replacement that preserves the original program structure will maintain these mappings without requiring HMI project modifications, provided the communication link parameters are correctly restored.

For systems where the PNC55 platform is being migrated to a newer Eckelmann control architecture, the PNC55-CPU 4325600031LS can serve as an interim stabilization module, extending the operational life of the existing rack while a phased migration plan is developed. This approach allows production to continue uninterrupted while engineering teams prepare the replacement control platform, test new I/O configurations, and validate updated application logic in a parallel environment.

All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes functional testing prior to shipment to confirm CPU initialization, memory integrity, and backplane communication. Inventory is maintained in stock for immediate dispatch, supporting urgent breakdown recovery and planned maintenance schedules alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the PNC55-CPU 4325600031LS begins with a thorough audit of the existing control cabinet. The PNC55 rack chassis accommodates multiple module types in a defined slot order: the CPU occupies the primary slot, followed by communication modules, digital I/O modules, and analog I/O modules in adjacent positions. Before removing the original CPU, engineers should document the physical slot layout, record all module part numbers — including the PNC55-PS power supply, PNC55-DI digital input, PNC55-DO digital output, PNC55-AI analog input, and any installed PNC55-COM communication interface — and photograph the terminal wiring on each I/O module for reference during reassembly.

The programming cable connection to the CPU’s programming port should be used to perform a full program backup prior to any hardware change. This backup should include the application program, configuration data, and any retained data blocks that store process parameters or recipe values. Once the PNC55-CPU 4325600031LS is installed and powered, the program is restored via the same programming interface, and a structured commissioning sequence is followed: power-on self-test confirmation, I/O module recognition check, communication link establishment with any connected Profibus-DP field devices or Ethernet SCADA systems, and finally a supervised production trial run to verify output behavior matches pre-retrofit baselines.

For control cabinets integrating third-party devices — such as variable frequency drives, servo controllers, or remote I/O stations communicating over Profibus or Modbus — the communication parameters stored in the CPU configuration must be verified to match the field device settings. Any mismatch in baud rate, station address, or protocol variant will prevent successful communication establishment and must be resolved before returning the system to automatic operation.

Downtime Control During System Migration

Minimizing production downtime during a CPU replacement requires disciplined pre-planning and a structured execution sequence. The recommended approach is to schedule the physical swap during a planned maintenance window, with all preparatory steps — program backup, spare module staging, wiring documentation, and commissioning checklist preparation — completed in advance during normal production hours.

During the swap window, the sequence should follow a defined order: controlled shutdown of the PNC55 system, safe isolation of the control cabinet power supply, physical removal of the original CPU module, installation of the PNC55-CPU 4325600031LS in the same backplane slot, power restoration, program download, and a structured I/O check before releasing the system to automatic control. This sequence, when executed by a prepared team with the replacement module and programming tools on hand, can typically be completed within a single shift, preserving the original program logic and field device configurations without requiring re-engineering of the control application.

For systems where continuous operation is critical, a parallel commissioning strategy can be employed: the replacement CPU is configured and program-tested on a bench rack using the same PNC55 I/O module types before the live swap, allowing the commissioning team to identify and resolve any compatibility issues without impacting the running production system. This approach is particularly effective when the existing system has been in service for an extended period and the original commissioning documentation is incomplete.

Retrofit Support FAQ

Q: Is the PNC55-CPU 4325600031LS a direct replacement for the original Eckelmann PNC55 CPU?
A: Yes. The PNC55-CPU 4325600031LS is designed as a direct replacement for the original CPU module in PNC55 rack systems. It installs in the same backplane slot without mechanical modification and is compatible with existing PNC55 application programs, I/O module configurations, and communication setups.

Q: Do I need to re-wire the terminal blocks on my I/O modules after replacing the CPU?
A: No. The CPU replacement does not affect the terminal wiring on PNC55 I/O modules. Existing wiring on digital input, digital output, and analog input modules remains unchanged. Only the CPU slot module is replaced; all other rack modules and their field wiring are retained as-is.

Q: How do I verify communication compatibility with my existing Profibus or Ethernet devices after installation?
A: After downloading the application program to the PNC55-CPU 4325600031LS, verify that all communication module parameters — including Profibus station addresses, baud rates, and Ethernet IP settings — match the pre-retrofit configuration. Use the programming software to monitor communication status flags and confirm that all field devices are recognized and responding before releasing the system to automatic operation.

Q: What does the 12-month warranty cover, and has the module been tested before shipment?
A: The 12-month warranty covers manufacturing defects and functional failures under normal industrial operating conditions from the date of shipment. Every PNC55-CPU 4325600031LS unit undergoes functional testing prior to dispatch, including CPU initialization, memory integrity verification, and backplane communication checks, ensuring the module is ready for installation upon arrival.
