GE 531X175SSBAAM3 Retrofit-Ready Bus Interface for Mark VI

GE 531X175SSBAAM3 Retrofit-Ready Bus Interface for Mark VI Control Systems

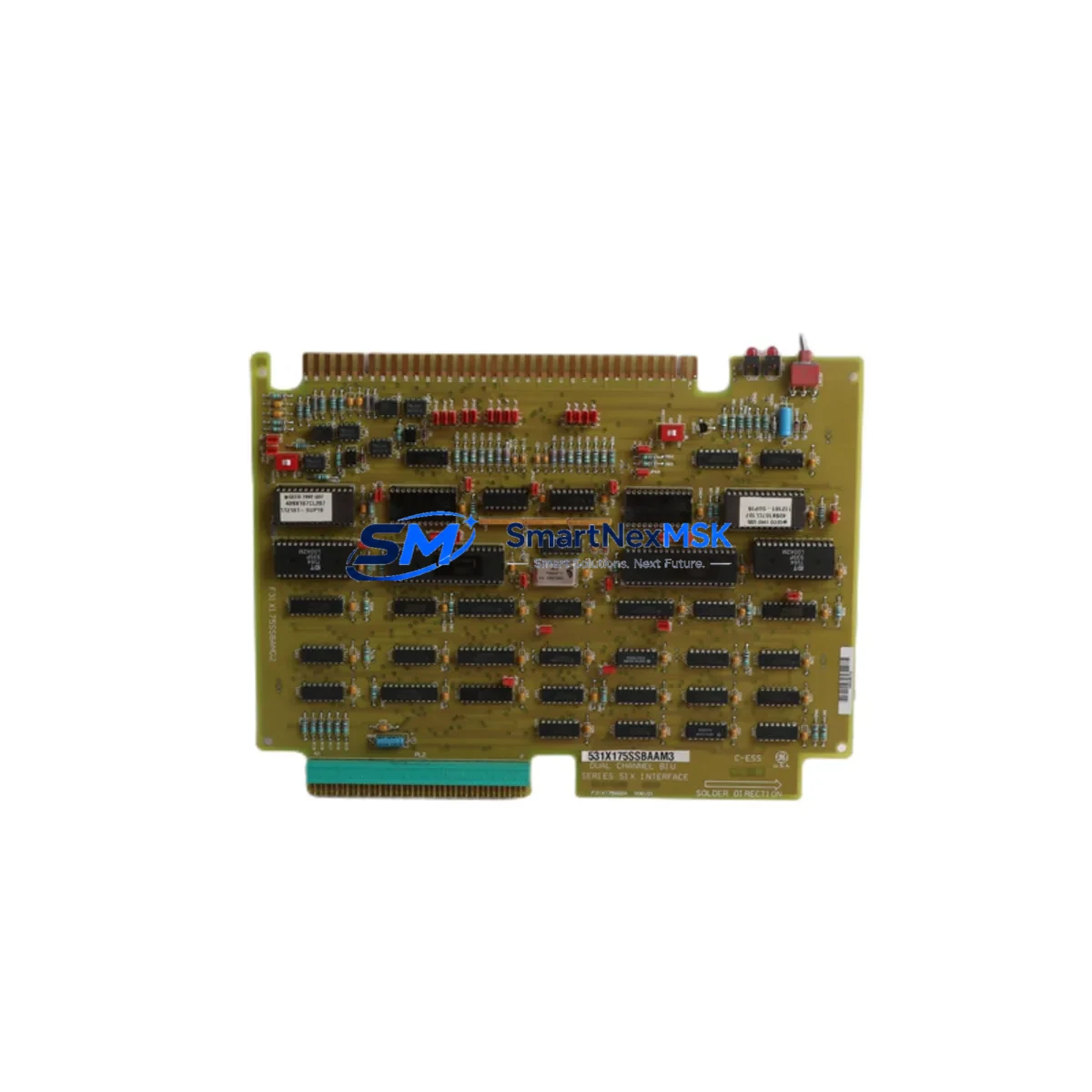

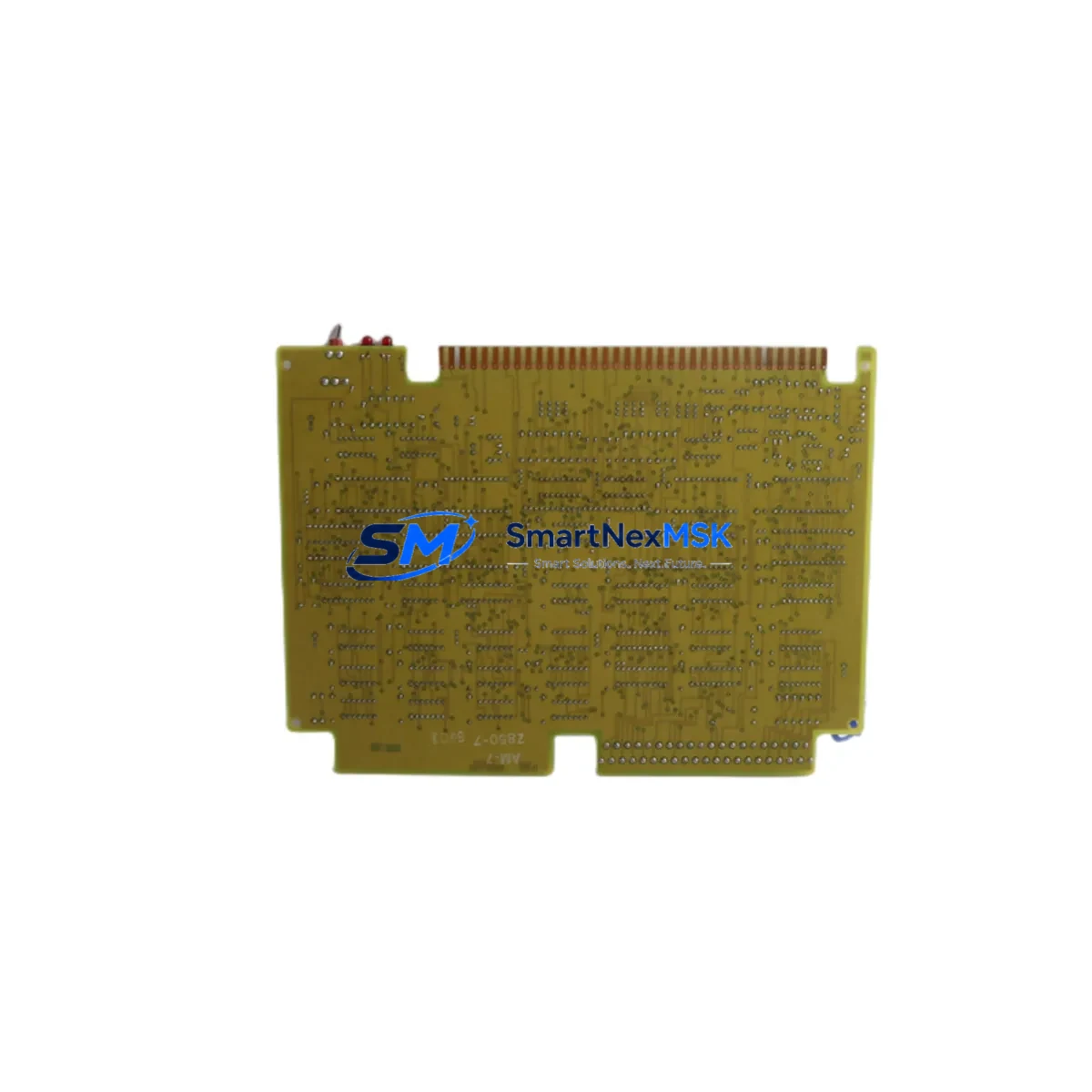

The GE 531X175SSBAAM3 is a dual-channel Bus Interface Unit (BIU) engineered for the GE Mark VI turbine control platform. As legacy Mark V and early Mark VI installations approach end-of-life, this module has become a critical component in plant-wide retrofit programs, enabling operators to extend system service life, restore communication integrity, and defer full DCS replacement. Whether you are replacing a failed unit on an emergency basis or executing a planned control cabinet upgrade, the 531X175SSBAAM3 delivers verified drop-in compatibility with the Mark VI backplane architecture and IONet communication infrastructure.

In retrofit scenarios, the 531X175SSBAAM3 interfaces directly with the IS200TBAAH1A terminal board, maintaining existing field wiring without re-termination. Engineers migrating from older Mark V IONET topologies will find that this BIU supports the same dual-redundant fiber optic communication links, preserving the original network segment addressing and eliminating the need to remap I/O channels in the application software. The module slots into the standard IS200BPPBH1A backplane without mechanical modification, and its power draw is compatible with the IS200EPCTG1A power supply module already installed in most Mark VI cabinets.

Before commissioning a replacement 531X175SSBAAM3, field engineers should verify the following during retrofit planning: confirm available power budget on the existing IS200EPCTG1A or equivalent power supply; inspect backplane connector pins on the IS200BPPBH1A for oxidation or mechanical damage; document the current module address jumper settings from the failed unit before removal; and back up the active ToolboxST application project, including all I/O configuration blocks and HMI tag bindings, prior to any hardware swap. If the plant HMI is running Cimplicity screens tied to Mark VI tag names, verify that no tag renaming is required after the BIU replacement — in most cases, the tag structure is preserved when the module address is unchanged.

For sites running mixed-generation control architectures, the 531X175SSBAAM3 is also compatible with rack configurations that include the IS200VSVOH1B servo driver module and IS200TREGH1B turbine regulation card, making it suitable for combined electrical and mechanical control retrofit projects. Communication continuity with upstream SCADA systems connected via the IS200ENEAH1A Ethernet network adapter is maintained without protocol reconfiguration, provided the IONet segment parameters remain unchanged.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 531X175SSBAAM3 retrofit begins well before the module arrives on site. The planning phase should include a full audit of the control cabinet, covering the condition of the IS200BPPBH1A backplane, the integrity of fiber optic cables connecting to the IONet ring, and the firmware revision of adjacent modules such as the IS200VSVOH1B servo driver and IS200TREGH1B regulation card. If the cabinet also houses a IS200ENEAH1A Ethernet adapter for SCADA connectivity, confirm that its IP configuration and subnet mask are documented before any power interruption.

Terminal wiring connected to the IS200TBAAH1A terminal board should be photographed and labeled prior to removal of the failed BIU. In most Mark VI installations, the 531X175SSBAAM3 does not require re-termination of field cables, but verifying wire labeling against the original engineering drawings prevents errors during reassembly. The IS200EPCTG1A power supply rail voltage should be measured under load before and after module insertion to confirm that the replacement unit does not introduce unexpected current draw.

For plants executing a broader I/O expansion alongside the BIU replacement, this is an appropriate time to add IS200IOCIH1A I/O controller interface cards or expand the rack with additional analog or digital I/O modules. ToolboxST project files should be updated to reflect any new I/O assignments, and the updated application should be validated in offline simulation before being downloaded to the live controller. If a programming cable such as the IC693CBL316 or equivalent USB-to-serial adapter is used for local ToolboxST access, confirm driver compatibility with the site laptop operating system before the maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a Mark VI BIU replacement requires a structured hot-swap protocol. Where the control architecture supports redundant BIU operation, the standby channel can be promoted to active before the failed module is removed, maintaining turbine control continuity throughout the swap. In simplex configurations, the maintenance window should be scheduled during a planned outage, with the ToolboxST application project fully backed up and a verified spare 531X175SSBAAM3 staged on site before the turbine is taken offline.

After physical installation, the IONet communication link should be verified using the ToolboxST diagnostic view before the turbine is returned to service. Confirm that all I/O channels report expected values, that HMI alarm states are consistent with field conditions, and that the SCADA system connected via the IS200ENEAH1A adapter is receiving live data. A functional test of the servo control loop through the IS200VSVOH1B module should be completed before load is applied. Documenting the pre- and post-swap IONet diagnostic logs provides a baseline for future maintenance and supports warranty claim processing if required.

Retrofit Support FAQ

Q1: Is the 531X175SSBAAM3 a direct drop-in replacement for earlier Mark VI BIU revisions?
Yes. The 531X175SSBAAM3 is mechanically and electrically compatible with the IS200BPPBH1A backplane used across the Mark VI platform. Module address jumpers must be set to match the original unit, and the ToolboxST application does not require modification for a like-for-like replacement.

Q2: What commissioning steps are required after installation?
After seating the module, verify IONet fiber link status in ToolboxST diagnostics, confirm all I/O channel readings, check HMI tag values against field instruments, and validate SCADA data flow through the IS200ENEAH1A adapter. A servo loop functional test via the IS200VSVOH1B is recommended before returning the unit to service.

Q3: Does the replacement unit ship pre-tested?
Yes. Every 531X175SSBAAM3 unit is functionally tested prior to shipment, including communication interface verification and power-on self-test. A test report is available upon request. Units are shipped with ESD-protective packaging to prevent damage in transit.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers hardware defects, communication interface failures, and functional non-conformance under normal operating conditions. Warranty claims are supported with return material authorization (RMA) processing, and a replacement unit can be dispatched in advance for critical applications to minimize downtime exposure.
