GE IS200BPPBH2CAA Maintenance-Ready Spare for Mark VI

GE IS200BPPBH2CAA Maintenance-Ready Spare for Mark VI Automation

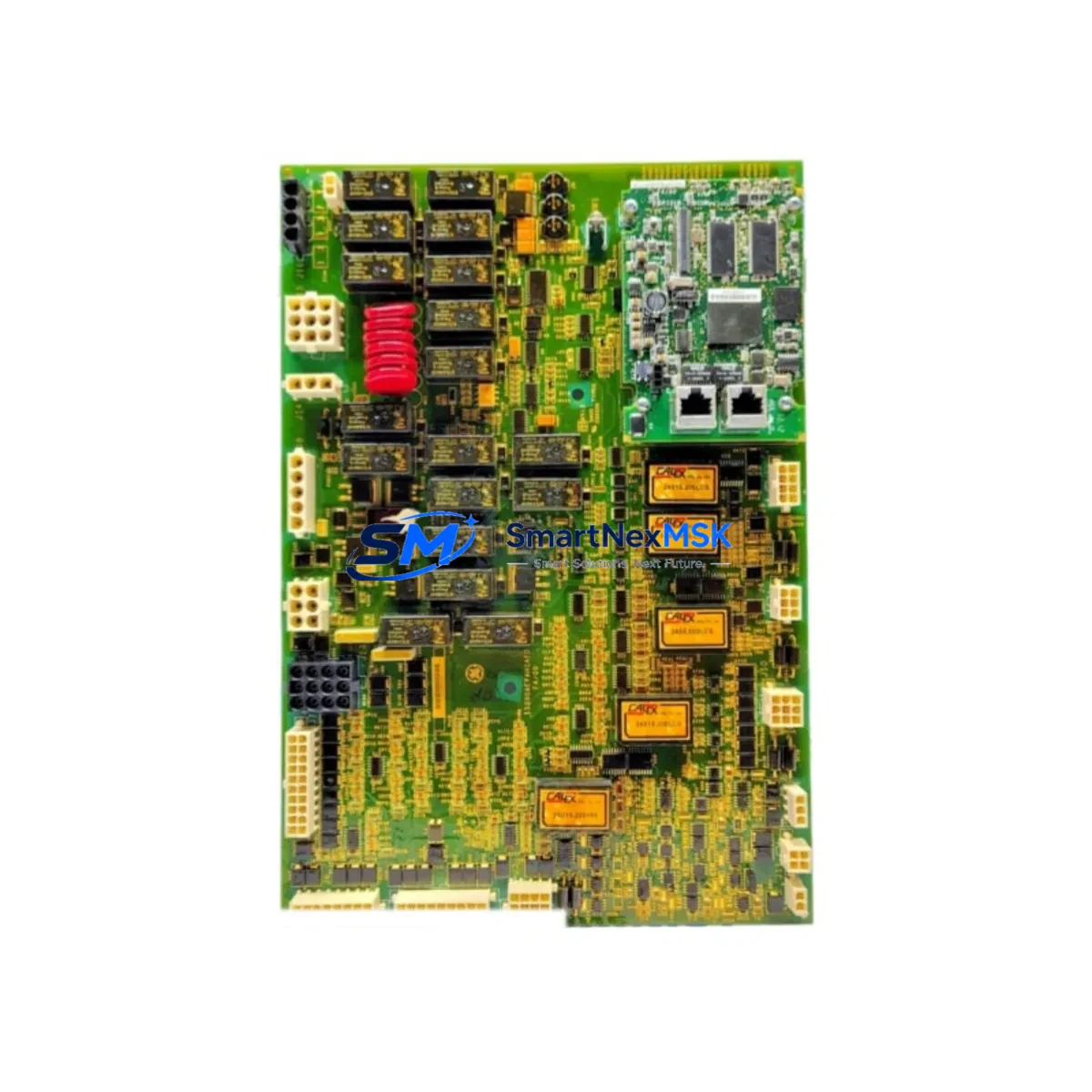

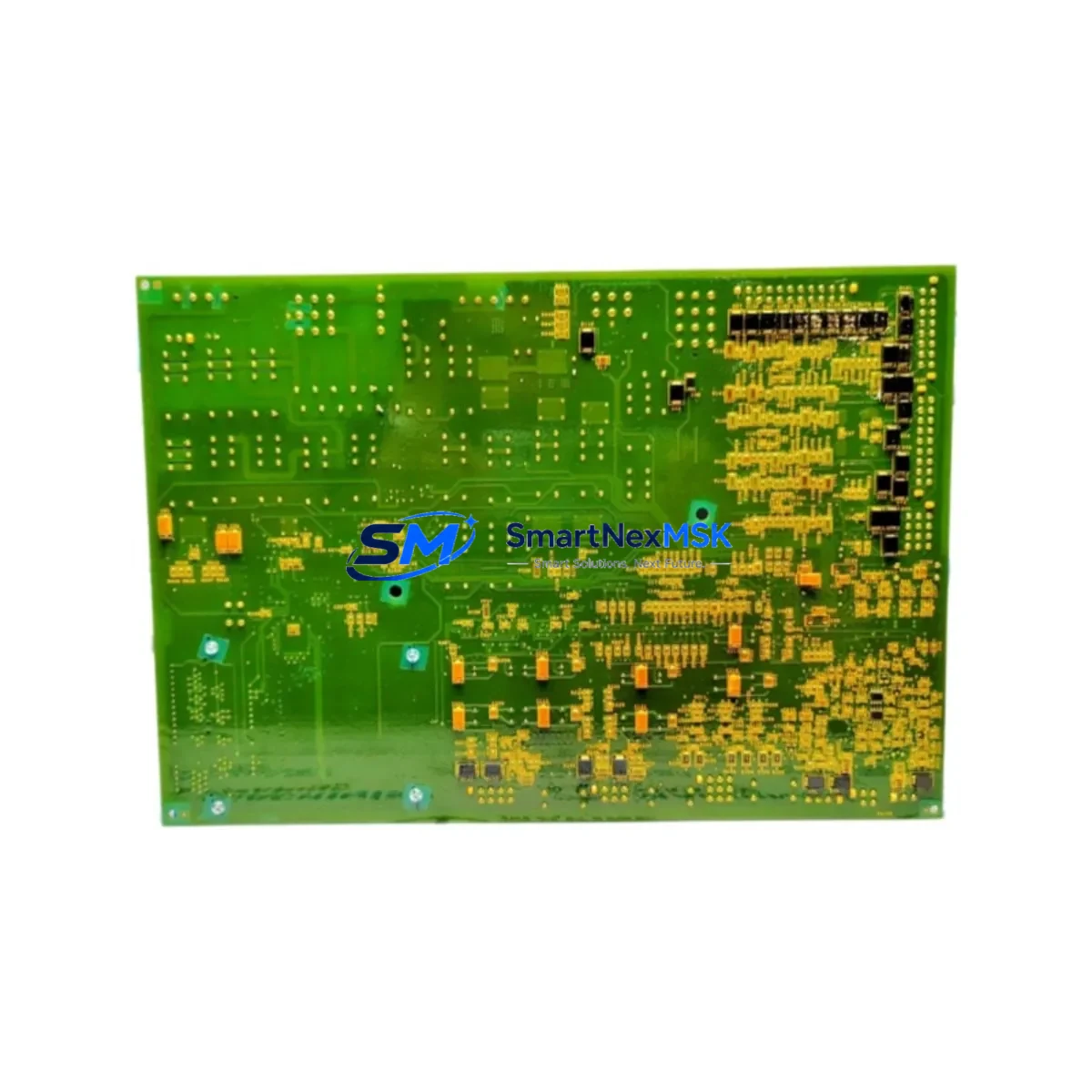

The GE IS200BPPBH2CAA is a central processor board designed for the GE Mark VI Speedtronic turbine control system — one of the most widely deployed gas and steam turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As a maintenance-ready original spare, the IS200BPPBH2CAA is engineered to support rapid field replacement, minimize unplanned downtime, and extend the operational life of aging Mark VI control cabinets.

For maintenance engineers managing turbine control infrastructure, the IS200BPPBH2CAA represents a critical node in the control architecture. Its failure or degradation can trigger system faults, trip events, or complete turbine shutdown. Stocking a verified replacement unit is a fundamental element of any proactive maintenance strategy for Mark VI-based installations.

This unit is sourced as an original GE component, fully tested prior to shipment, and backed by a 12-month warranty. It is suitable for direct replacement in existing Mark VI control enclosures without requiring firmware re-flashing in most standard configurations, subject to site-specific verification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When planning a replacement of the IS200BPPBH2CAA, maintenance and procurement engineers should treat this as an opportunity to audit the broader Mark VI control cabinet. The processor board does not operate in isolation — its reliability depends on the health of surrounding components across the power, I/O, communication, and protection layers.

Start with the power supply modules feeding the Mark VI rack. Units such as the IS200EPCTG1A (power converter board) and associated DC bus regulators should be inspected for capacitor aging, output voltage drift, and thermal stress. A degraded power supply is a common root cause of processor board failures and should be replaced proactively when the IS200BPPBH2CAA is swapped.

Next, verify the I/O terminal boards connected to the processor. The IS200TBCIH1C and IS200TTURH1CBB terminal boards interface directly with field sensors, actuators, and protection circuits. Loose terminal connections, corroded contacts, or damaged ribbon cables between the terminal board and the processor module can cause intermittent faults that are misdiagnosed as processor failures.

The IONet communication infrastructure — including the IS200IOCIH1B I/O controller interface board and associated Ethernet switches — should be tested for packet loss and latency. A degraded IONet link can cause the Mark VI to log communication faults and trigger unnecessary trips even after a processor board replacement.

For sites running redundant Mark VI configurations (TMR — Triple Modular Redundancy), the IS200BPPBH2CAA replacement must be coordinated with the voting logic across all three control paths. Inspect the companion processor boards in the R, S, and T controllers to ensure no latent faults exist in the redundant channels.

Additionally, review the condition of the IS200VSVOH1B servo output board and IS200TREGH1B turbine regulation board if the unit is installed in a gas turbine application. These boards interact closely with the processor during startup sequencing and load control, and their degradation can mask or amplify processor-related faults.

For older Mark VI installations approaching end-of-support, consider stocking the IS200BPPBH2CAA alongside the IS200DSPXH1D DSP board and IS200EXHSG2A excitation board as a coordinated spare kit. This approach reduces the risk of secondary failures during the post-replacement commissioning phase and supports a structured system life-extension strategy.

Finally, inspect fuse holders, terminal strips, and grounding bars within the control enclosure. Loose ground connections are a frequently overlooked cause of processor board instability in high-vibration industrial environments.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Record all active alarms, I/O states, and configuration parameters from the existing IS200BPPBH2CAA using the Mark VI Toolbox software. Export the application configuration file and store it securely before powering down.

Step 2 — Safe isolation: Follow site-specific LOTO (Lockout/Tagout) procedures. De-energize the Mark VI rack via the main control panel breaker. Confirm zero-energy state before opening the enclosure.

Step 3 — Board removal: Disconnect the IONet Ethernet cable and any ribbon connectors from the IS200BPPBH2CAA. Remove the board from the backplane using the ejector levers. Handle with ESD precautions.

Step 4 — Replacement installation: Seat the new IS200BPPBH2CAA firmly into the backplane slot. Reconnect all cables. Verify that the board revision matches the system’s firmware expectations — consult the GE Mark VI System Guide (GEH-6421) if in doubt.

Step 5 — Power-up and verification: Restore power to the rack. Monitor the Mark VI Toolbox for board initialization status. Verify IONet link establishment, I/O scan completion, and absence of diagnostic faults before returning the turbine to service.

Step 6 — Post-replacement test: Perform a functional test of all critical I/O channels, protection trip circuits, and communication links. Document the replacement in the site maintenance log.

This workflow is applicable to both planned maintenance windows and emergency replacement scenarios. The IS200BPPBH2CAA’s compatibility with the standard Mark VI backplane means that experienced maintenance teams can typically complete the swap within a single shift, significantly reducing turbine downtime compared to full controller replacements.

Spare Parts Support FAQ

Q1: Is the IS200BPPBH2CAA compatible with both Mark VI and Mark VIe systems?
The IS200BPPBH2CAA is primarily designed for the GE Mark VI Speedtronic platform. Compatibility with Mark VIe depends on the specific hardware revision and firmware version of the target system. We recommend providing your system’s controller revision and software version for compatibility verification before ordering.

Q2: What testing is performed before shipment?
Each IS200BPPBH2CAA unit undergoes functional testing prior to dispatch to verify board integrity, communication interfaces, and basic operational parameters. A test report is available upon request. All units are shipped with ESD-protective packaging to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported with a replacement or repair process coordinated through our technical team.

Q4: Can you support long-term or repeat supply of the IS200BPPBH2CAA?
Yes. We maintain ongoing sourcing relationships to support long-term spare parts programs for Mark VI installations. For facilities managing multiple turbine units or planning multi-year maintenance contracts, we can discuss reserved stock arrangements and priority fulfillment agreements. Contact our team to discuss your site’s specific inventory requirements.
