GE IC200ALG264 Maintenance-Ready Spare for VersaMax Automation

GE IC200ALG264 Maintenance-Ready Spare for VersaMax Automation

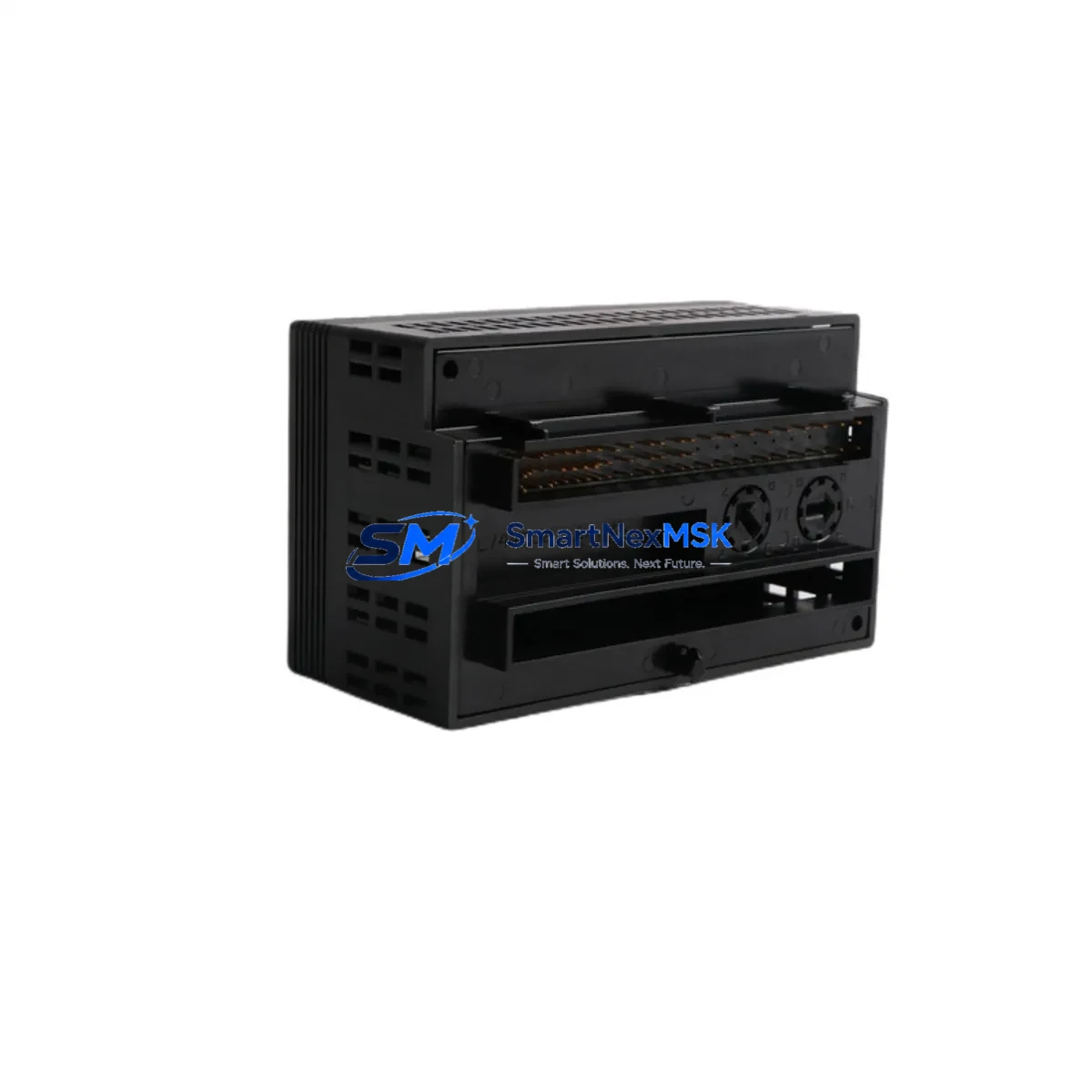

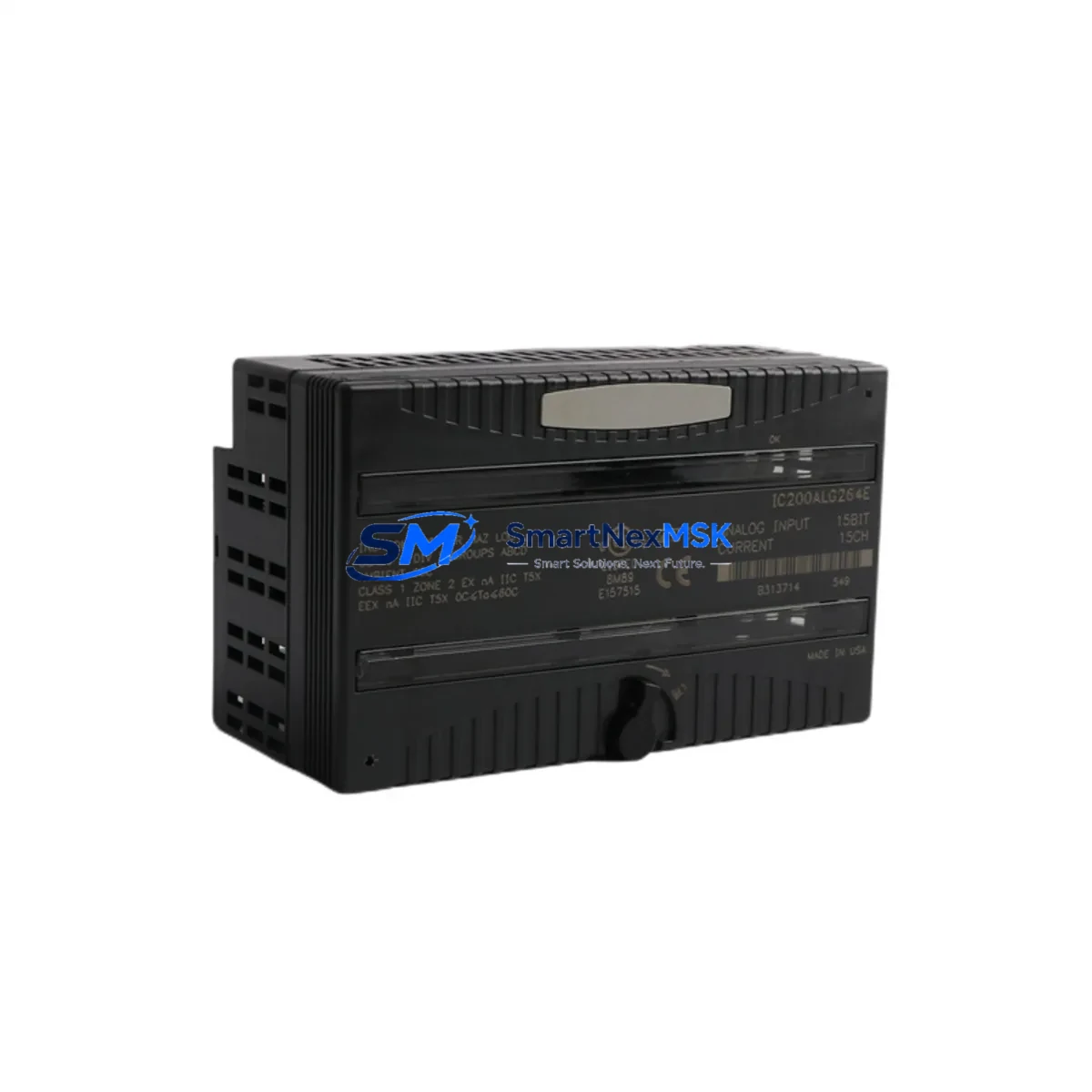

The GE IC200ALG264 is a 15-channel current analog input module designed for the GE VersaMax distributed I/O platform. As a critical interface between field instrumentation and the PLC control loop, this module converts 4–20 mA current signals from transmitters, sensors, and transducers into digital values processed by the VersaMax CPU or remote I/O head. When this module fails or degrades, the entire analog measurement chain for that rack segment is compromised — triggering process alarms, forcing manual overrides, and extending unplanned downtime. Stocking a verified original IC200ALG264 spare is the most direct way to restore normal operation within a single maintenance window.

At SMARTNEXMSK, every IC200ALG264 unit is sourced from authorized supply chains, inspected against GE factory specifications, and tested prior to shipment. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our logistics infrastructure supports urgent dispatch to minimize the gap between fault detection and system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the IC200ALG264 in a live VersaMax system is rarely an isolated task. Maintenance engineers and procurement teams should treat this module replacement as an opportunity to audit the surrounding electrical environment and reduce the risk of repeat failures.

Begin with the VersaMax backplane (IC200CHS002 or IC200CHS022) — a damaged or corroded backplane connector can cause intermittent analog readings that mimic module failure. Inspect the backplane bus contacts and verify slot seating torque before condemning the IC200ALG264 itself. Similarly, the VersaMax power supply module (IC200PWR002) should be load-tested; an under-voltage condition on the backplane rail degrades ADC accuracy across all analog channels.

On the field wiring side, inspect the terminal blocks and field wiring connectors for oxidation, loose ferrules, or moisture ingress — particularly in humid or coastal plant environments. Each of the 15 current input channels relies on a clean, low-impedance loop connection. A single corroded terminal can introduce offset errors that are difficult to distinguish from module faults during initial diagnostics.

If the VersaMax rack also hosts a discrete I/O module such as the IC200MDL640 or IC200MDL740, verify that the shared backplane power budget is within specification after adding the analog module’s load. Overloaded backplanes are a common root cause of intermittent analog module resets in high-density I/O configurations.

For systems using signal isolators or signal conditioners upstream of the IC200ALG264 — common in high-voltage or noisy environments — confirm that the isolator output range is calibrated to 4–20 mA and that the isolator’s power supply is stable. A drifting isolator output will produce analog readings that appear to be module errors but are actually upstream signal quality issues.

Where the VersaMax rack communicates over Profibus DP or DeviceNet via a network interface module (IC200BEM003 or IC200BEM104), verify that the network module firmware is compatible with the replacement IC200ALG264 and that the I/O configuration in the PLC program correctly maps the 15 analog channels. A configuration mismatch after module swap is a frequent cause of post-maintenance alarms.

Finally, if the plant uses a GE Cimplicity or iFIX SCADA/HMI connected to this VersaMax node, coordinate with the control room team to confirm that analog tag scaling and alarm limits are re-verified after the module replacement. Scaling errors introduced during commissioning of a replacement module can persist undetected until a process excursion occurs.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s slot address and channel assignments in the PLC hardware configuration. Download and save the current I/O configuration from the programming software (GE Proficy Machine Edition or equivalent) before any physical work begins.

Step 2 — Safe isolation: Place the VersaMax node in a safe state per your site’s lockout/tagout procedure. For hot-swap capable VersaMax configurations, verify whether the IC200ALG264 supports live insertion in your specific backplane revision — not all VersaMax backplane generations support hot-swap for analog modules.

Step 3 — Physical replacement: Remove the field wiring connector from the failed module, extract the module from the backplane slot, and insert the replacement IC200ALG264. Re-seat the field wiring connector and verify terminal tightness. The module requires no DIP switch or jumper configuration for standard 4–20 mA operation — channel configuration is managed entirely through the PLC software.

Step 4 — System restoration and verification: Power the rack and confirm that the replacement module is recognized by the CPU or network interface. Use the PLC diagnostic tools to verify that all 15 channels report valid engineering unit values. Cross-check at least two channels against independent field instruments before returning the system to automatic control.

Step 5 — Documentation: Record the replacement date, module serial number, and post-replacement channel verification results in your plant maintenance management system (CMMS). This record supports warranty claims and future failure trend analysis.

The IC200ALG264 is a direct form-fit-function replacement for earlier VersaMax analog input revisions. No PLC program changes are required for standard channel configurations, making it one of the lowest-risk module replacements in the VersaMax family.

Spare Parts Support FAQ

Q1: Is the IC200ALG264 still available as a new original part, or only as refurbished?
SMARTNEXMSK supplies original IC200ALG264 modules sourced from authorized distribution channels. Each unit is inspected and functionally tested before shipment. We do not supply refurbished or remanufactured modules unless explicitly requested and agreed upon in writing.

Q2: How do I verify compatibility between the IC200ALG264 and my existing VersaMax backplane revision?
The IC200ALG264 is compatible with all standard VersaMax I/O carriers and backplanes in the IC200 series. If your system uses an older backplane revision (pre-2005 manufacture), contact our technical team with your backplane part number and firmware revision. We will confirm compatibility before shipment to avoid any integration issues on site.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined by GE’s published specifications for the IC200ALG264. To initiate a warranty claim, contact [email protected] with your order number, a description of the failure mode, and any available diagnostic data. We will arrange return logistics and replacement dispatch within our standard SLA.

Q4: Can I order multiple IC200ALG264 units for a strategic spare parts inventory?
Yes. SMARTNEXMSK supports bulk spare parts orders for plant-level and enterprise-level inventory programs. Volume pricing is available for orders of 3 or more units. We recommend maintaining at least one IC200ALG264 per VersaMax node that uses analog input in your facility, particularly for systems where the module is no longer in active production by the OEM.
