GE DS200TCPSG1ARE Retrofit-Ready Signal Board for Mark V

GE DS200TCPSG1ARE Retrofit-Ready Signal Board for Mark V Control Systems

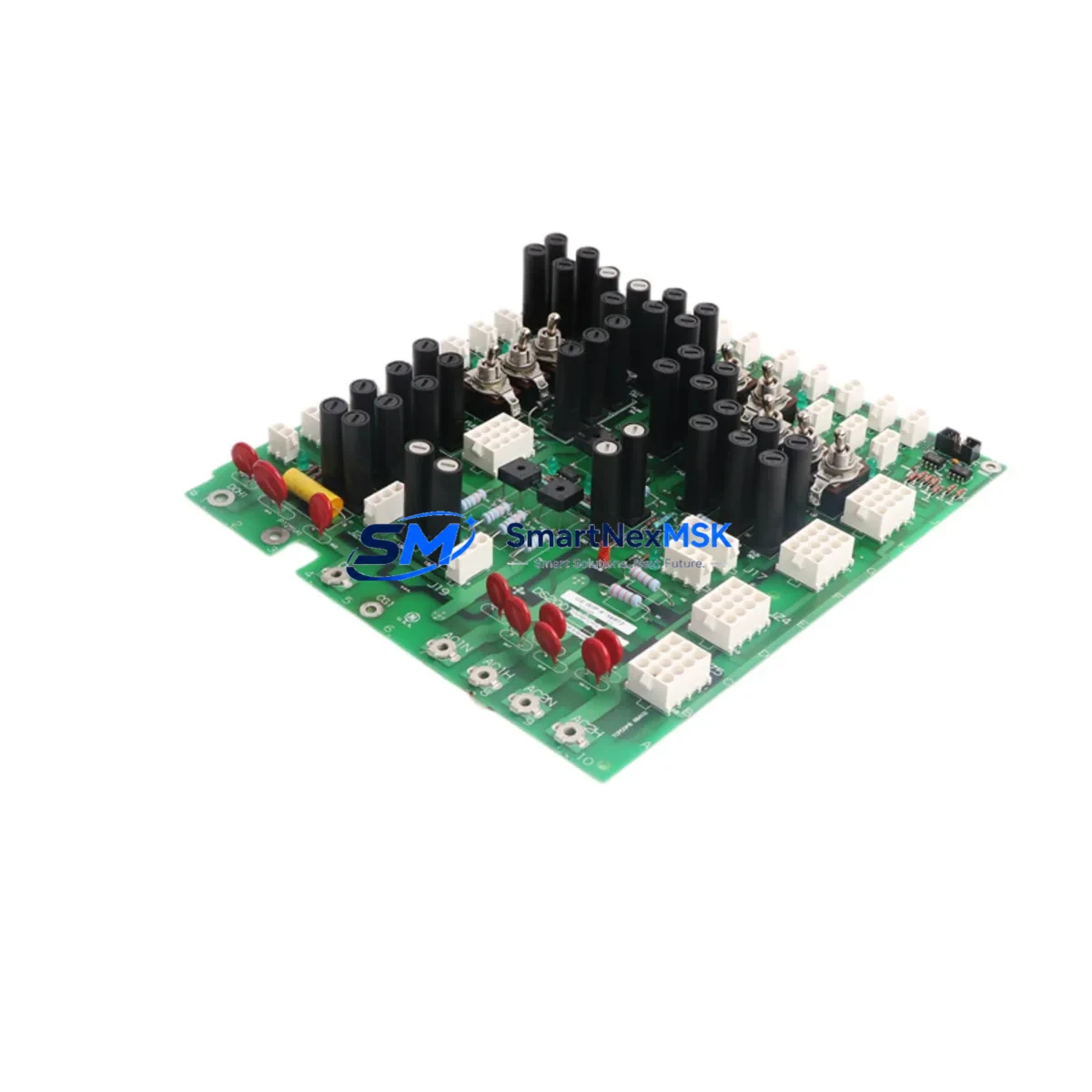

The GE DS200TCPSG1ARE is a turbine control signal processing board engineered for the GE Mark V turbine control platform — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. As the Mark V platform approaches end-of-life and OEM support becomes increasingly limited, the DS200TCPSG1ARE has become a critical retrofit and replacement component for engineers managing aging control infrastructure.

Whether you are executing a like-for-like board swap to restore a tripped unit, planning a phased control system upgrade, or sourcing verified spare inventory to reduce unplanned downtime risk, the DS200TCPSG1ARE provides a proven, drop-in compatible solution. Each unit supplied by SMARTNEXMSK is functionally tested prior to shipment and backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DS200TCPSG1ARE retrofit begins well before the board arrives on site. Engineers should start by auditing the existing Mark V rack configuration — confirming which controller (R, S, or T) the board is assigned to, and whether the system is running in simplex or Triple Modular Redundant (TMR) mode. In TMR configurations, all three controller boards must be at compatible revision levels to maintain voting integrity.

Terminal board wiring is one of the most common sources of retrofit delay. The DS200TCPSG1ARE interfaces with dedicated I/O terminal boards mounted in the Mark V cabinet. Before removal of the failed board, photograph and document all wiring connections on the associated terminal board — typically a DS200TCQAG1B or DS200TCEAG1B — and verify that terminal screws are torqued to specification after reconnection. Loose terminations on analog input circuits are a frequent cause of post-retrofit calibration drift.

Power supply integrity must be confirmed prior to board installation. The Mark V rack relies on the DS200VPBLG1AFB power supply board to deliver regulated voltages to all control boards. A degraded power supply is often the root cause of repeated board failures; replacing the DS200TCPSG1ARE without verifying power rail quality risks damaging the new board. Measure +5 VDC, +15 VDC, and -15 VDC rails under load before proceeding.

Communication link continuity is equally critical. The Mark V uses ARCNET as its primary inter-controller communication protocol. After board installation, verify ARCNET node addressing using the GE Toolbox software and confirm that the replacement board is recognized by the DS200DSPCH1A communication board or equivalent network coordinator. If the site is in the process of migrating toward a Mark VIe platform, note that the Mark VIe uses Ethernet-based IONet rather than ARCNET — a protocol migration that requires updated I/O packs such as the IS420ESWBH3A Ethernet switch module and revised HMI configuration in ToolboxST.

For sites expanding I/O capacity as part of the retrofit, the DS200IOCAG1A I/O controller board and associated analog and digital I/O terminal boards can be added to the existing rack without requiring a full controller replacement. Ensure that any new I/O addresses are reflected in the application code and that the DS200GDDAG1AEB or equivalent gate drive board assignments are updated accordingly in the Toolbox configuration file.

HMI screen binding should be validated after every board replacement. CIMPLICITY-based HMI systems reference specific Mark V point names tied to board addresses; a board address mismatch will cause alarm points to display incorrectly or fail to update. Coordinate with the controls engineer to run a full point-by-point verification against the HMI database before returning the unit to service.

Downtime Control During System Migration

Minimizing turbine downtime during a DS200TCPSG1ARE replacement requires a structured pre-outage preparation protocol. Begin by downloading and archiving the current Toolbox configuration file from the Mark V controller before any hardware is disturbed. This backup preserves all tuning constants, setpoints, sequence logic, and I/O calibration data — and serves as the recovery baseline if commissioning issues arise.

For TMR-configured units, it is possible in some site configurations to replace a single controller board while the remaining two controllers maintain turbine control, effectively performing a hot-swap without a full unit trip. This approach requires coordination with the site controls engineer and OEM documentation review to confirm that the specific firmware version supports online board replacement. Where hot-swap is not feasible, plan the outage window to include board installation, ARCNET node verification, I/O calibration, HMI point check, and a supervised restart sequence — typically achievable within a four-to-eight hour maintenance window for an experienced controls team.

Keeping a verified spare DS200TCPSG1ARE in site inventory is the most effective long-term downtime mitigation strategy. With OEM production of Mark V components discontinued, lead times for sourcing replacement boards on the open market can extend to weeks. SMARTNEXMSK maintains stock of tested DS200TCPSG1ARE units and can support expedited shipment for emergency breakdown situations, with same-day dispatch available for in-stock items.

Retrofit Support FAQ

Q1: Is the DS200TCPSG1ARE a direct drop-in replacement for all Mark V variants?
The DS200TCPSG1ARE is compatible with the standard GE Mark V turbine control platform. However, Mark V configurations vary by site — including differences in controller redundancy (simplex vs. TMR), firmware revision, and rack slot assignment. Always verify the board revision suffix and confirm compatibility with your site’s Toolbox version before installation. Our technical team can assist with pre-shipment compatibility verification upon request.

Q2: What wiring checks are required before installing the replacement board?
Prior to installation, document all terminal connections on the associated I/O terminal board (e.g., DS200TCQAG1B). Verify wire labeling against the site wiring diagram, check for insulation damage or corrosion on terminal screws, and confirm that the mating connector on the backplane is free of bent pins or contamination. After installation, re-torque all terminal screws and perform a continuity check on critical analog input circuits before powering up.

Q3: How is the replacement board commissioned after installation?
After physical installation, power up the Mark V rack and use GE Toolbox to verify that the DS200TCPSG1ARE is recognized at the correct node address. Run the I/O diagnostic routines to confirm analog and digital I/O calibration. Verify ARCNET communication status on the Toolbox network display. Perform a full HMI point check against the CIMPLICITY database. Document all calibration values and compare against the pre-outage baseline before authorizing turbine restart.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with the order reference, a description of the failure mode, and photographic documentation of the board condition. Replacement or repair will be arranged within five business days of claim approval.
