GE IS210MVRAH2A Retrofit-Ready I/O Interface for Mark VI

GE IS210MVRAH2A Retrofit-Ready I/O Interface for Mark VI Control Systems

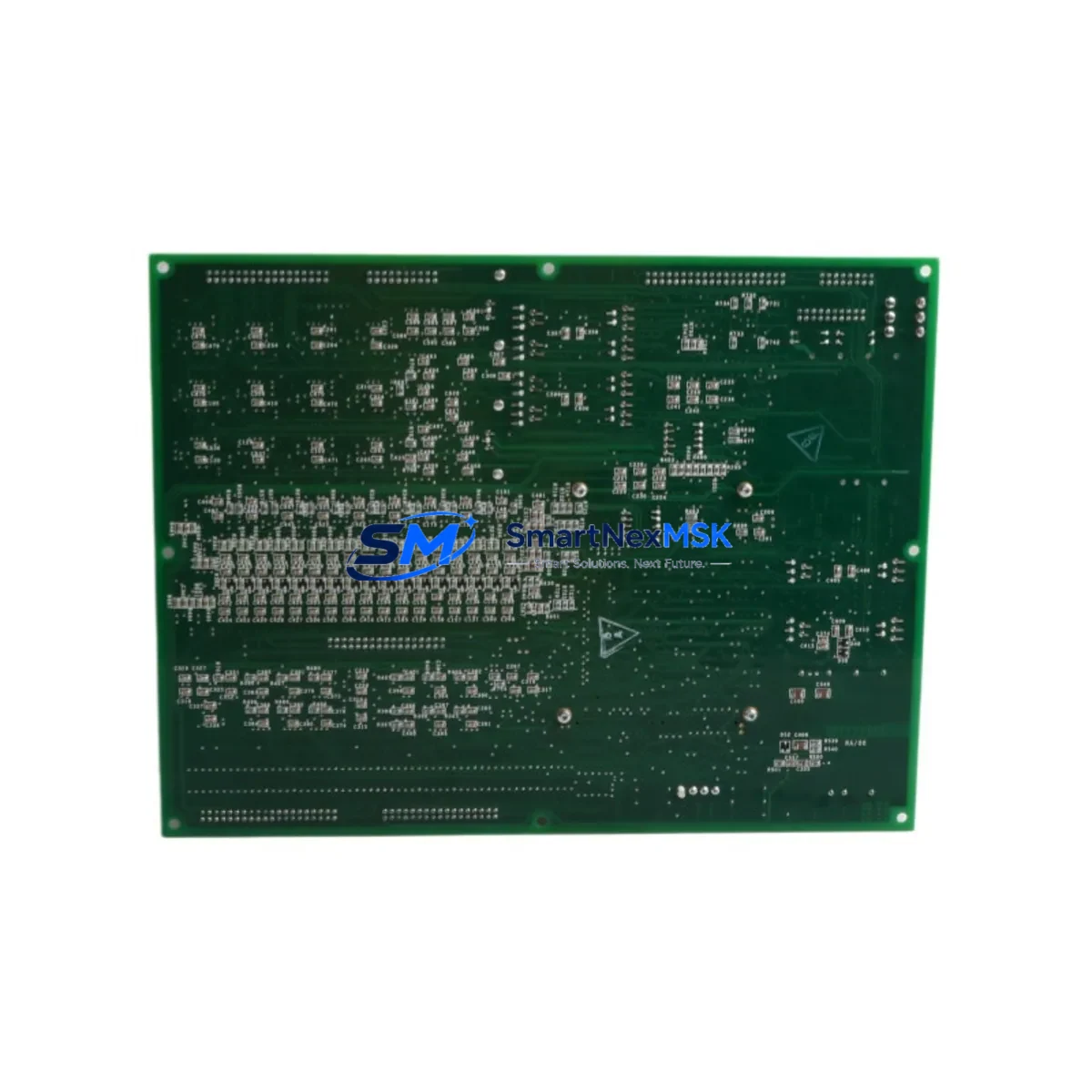

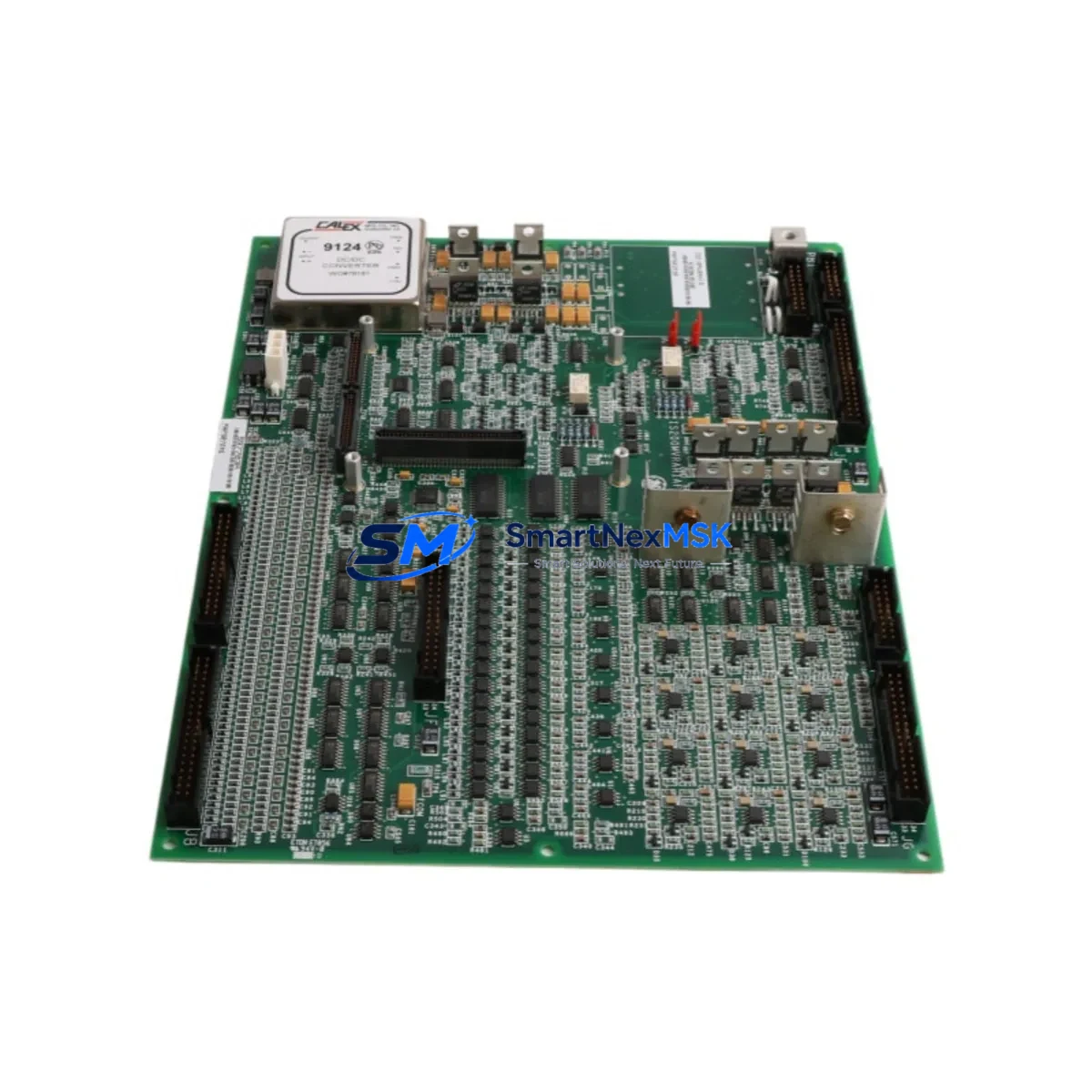

The GE IS210MVRAH2A (also referenced as IS200MVRAH2AFC) is a high-reliability I/O Interface Module engineered for the GE Mark VI Speedtronic turbine control platform. As legacy Mark V and early Mark VI installations approach end-of-life, plant engineers and system integrators increasingly rely on verified retrofit-ready replacements to sustain operational continuity without full DCS overhaul. This module serves as a direct, wiring-compatible drop-in replacement, enabling smooth migration from discontinued assemblies while preserving existing terminal layouts, backplane connections, and program logic.

SMARTNEXMSK maintains verified stock of the IS210MVRAH2A, fully tested prior to shipment, backed by a 12-month warranty, and available for rapid dispatch from our Xiamen warehouse. Each unit undergoes functional verification against GE Mark VI I/O interface specifications before release.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IS210MVRAH2A within an operational Mark VI control cabinet requires a structured approach. Before the module swap, engineers should audit the existing I/O rack configuration, confirm available backplane slot positions, and document all terminal board wiring assignments. The Mark VI system typically houses I/O modules alongside the VCMI communication interface board, PPRO processor module, and TTUR or TSVO terminal boards — all of which must remain undisturbed during a targeted I/O module replacement.

Power supply capacity is a critical pre-check. The Mark VI I/O rack draws regulated 28 VDC from the PSPS or PSMV power supply modules. Before inserting the IS210MVRAH2A, verify that the rack power budget accommodates the module’s draw without triggering supply overload alarms. If the existing PSPS unit is already near capacity due to added I/O expansion, a parallel power supply module may be required.

For sites migrating from older IS200-series assemblies to IS210-series modules, the IONet communication link must be validated end-to-end. The IONET segment connecting the I/O rack to the Mark VI controller (typically routed through the VCMI or DSPX processor card) should be checked for link integrity using the GE ToolboxST diagnostic interface. Any IONet address conflicts between the replacement IS210MVRAH2A and existing modules — such as the IS210AEBIH2A analog I/O board or IS210BPPBH2A power board — must be resolved before energizing the rack.

Terminal board compatibility is equally important. The IS210MVRAH2A interfaces with Mark VI terminal boards such as the TTUR, TSVO, or TREG series. Confirm that the existing terminal board revision is compatible with the IS210 module generation. In some retrofit scenarios, the terminal board itself may require replacement alongside the I/O module — particularly when migrating from early Mark VI hardware revisions to later IS210-series assemblies.

HMI screen updates are often overlooked during I/O module retrofits. If the plant uses a GE Cimplicity or third-party SCADA system connected to the Mark VI via OPC or Modbus TCP, verify that the I/O point addresses referenced in HMI graphics remain consistent after the module swap. Changes in module slot assignment can shift I/O register offsets, causing display anomalies or alarm mismatches that require HMI tag remapping.

For sites also upgrading communication infrastructure, the IS210MVRAH2A retrofit is often performed in conjunction with replacing legacy serial communication modules with Ethernet-capable alternatives. Components such as the IS210EDIIH2A Ethernet interface module or IS210DSPXH2A digital signal processor card are commonly upgraded in the same maintenance window to modernize the control network without requiring a full Mark VI panel replacement.

All replacement modules supplied by SMARTNEXMSK are shipped with functional test documentation. Units are verified for I/O channel integrity, backplane communication handshake, and power rail stability before dispatch. Stock is maintained in Xiamen with typical lead times of 3–7 business days for standard orders.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any Mark VI I/O module replacement. The recommended approach is to pre-stage the IS210MVRAH2A as a cold spare, fully configured and address-verified in ToolboxST, before the scheduled maintenance window opens. This eliminates configuration delays during the actual swap and reduces the live outage window to the physical replacement and IONet link re-establishment time — typically under 30 minutes for an experienced controls technician.

Before removing the existing module, export the current ToolboxST application project and save a timestamped backup to an offline engineering workstation. This preserves the full I/O mapping, alarm setpoints, control logic, and communication configuration. If the Mark VI system is running in simplex mode, coordinate with operations to place the affected turbine or process unit in a safe hold state before proceeding. For redundant Mark VI configurations (TMR — Triple Modular Redundant), the replacement can often be performed on one voting channel at a time, maintaining two-out-of-three voting integrity throughout the swap.

After physical installation, restore IONet communication by confirming the module’s network address in ToolboxST matches the slot assignment in the I/O rack configuration. Monitor the Mark VI diagnostic display for any I/O fault alarms, communication loss indications, or power supply warnings during the first 15 minutes of post-swap operation. Conduct a full I/O loop check on all channels associated with the IS210MVRAH2A before returning the unit to automatic control mode.

SMARTNEXMSK recommends maintaining at least one IS210MVRAH2A as an on-site cold spare for critical turbine control applications. Given the discontinuation of many IS200-series predecessors, securing verified replacement stock in advance significantly reduces the risk of extended outages caused by procurement delays.

Retrofit Support FAQ

Q1: Is the IS210MVRAH2A a direct replacement for the IS200MVRAH2AFC?
Yes. The IS210MVRAH2A is the designated form-fit-function replacement for the IS200MVRAH2AFC within the GE Mark VI Speedtronic platform. Both modules share the same backplane connector, terminal board interface, and IONet communication protocol. No hardware modification is required for the swap, though module address verification in ToolboxST is mandatory before energizing.

Q2: What commissioning steps are required after installing the IS210MVRAH2A?
After physical installation, open ToolboxST and confirm the module is recognized at the correct rack slot address. Verify IONet link status shows active communication. Perform a full I/O channel check to confirm all input and output signals are mapped correctly. Check for any diagnostic alarms on the Mark VI controller display. If the system uses Cimplicity or a third-party HMI, confirm that all associated I/O tags are reading correctly before returning to automatic operation.

Q3: How do I verify wiring compatibility before the swap?
Compare the terminal board wiring diagram for the existing IS200MVRAH2AFC installation against the IS210MVRAH2A terminal assignment documentation. For most Mark VI installations, the terminal board (TTUR, TSVO, or equivalent) remains unchanged, and field wiring does not need to be disturbed. If any wiring discrepancies are identified, document them before the maintenance window and prepare revised termination drawings in advance.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions consistent with GE Mark VI system specifications. Each IS210MVRAH2A unit is functionally tested prior to shipment. In the event of a warranty claim, SMARTNEXMSK will provide a replacement unit or repair service. The warranty does not cover damage resulting from incorrect installation, overvoltage conditions, or use outside the module’s rated environmental specifications.
