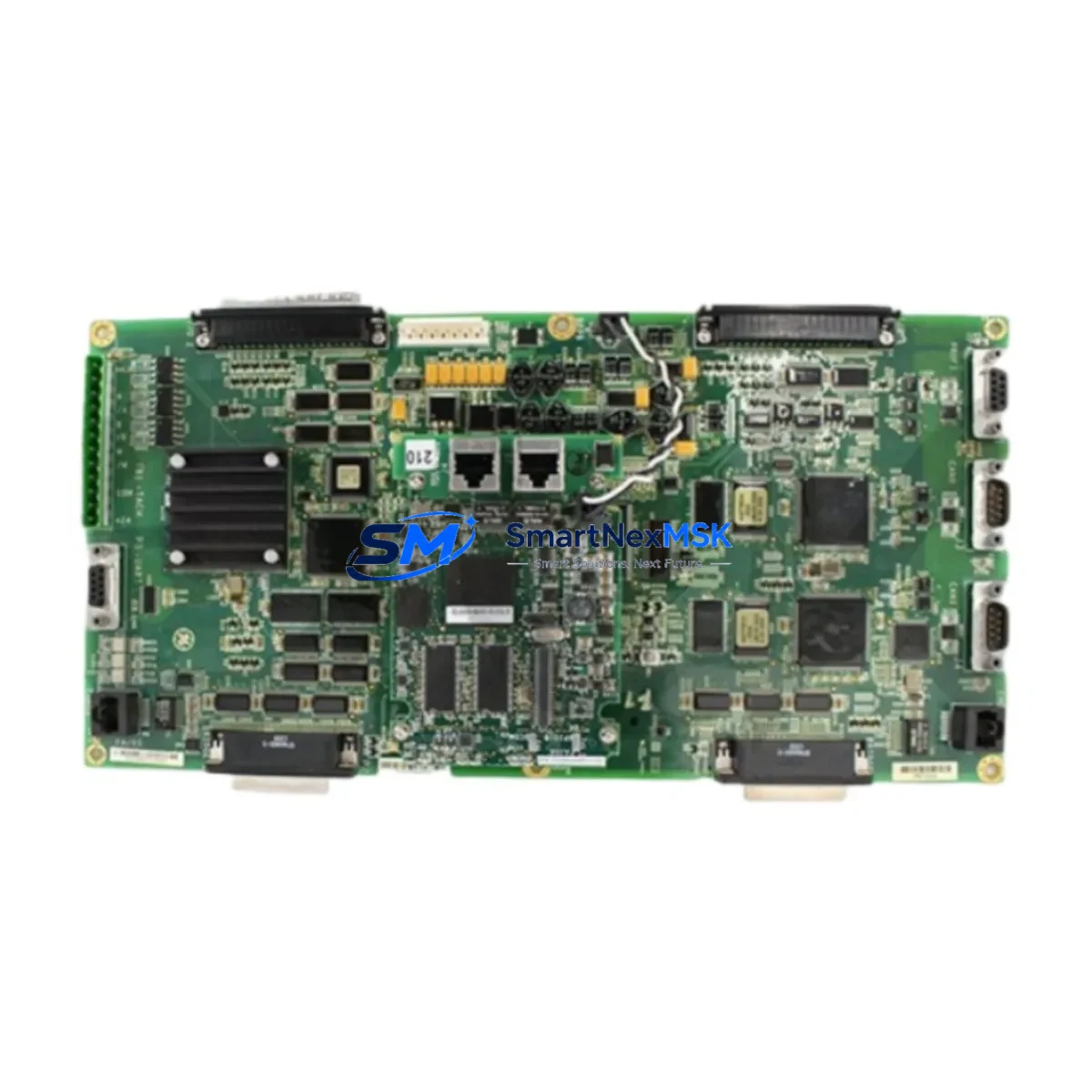

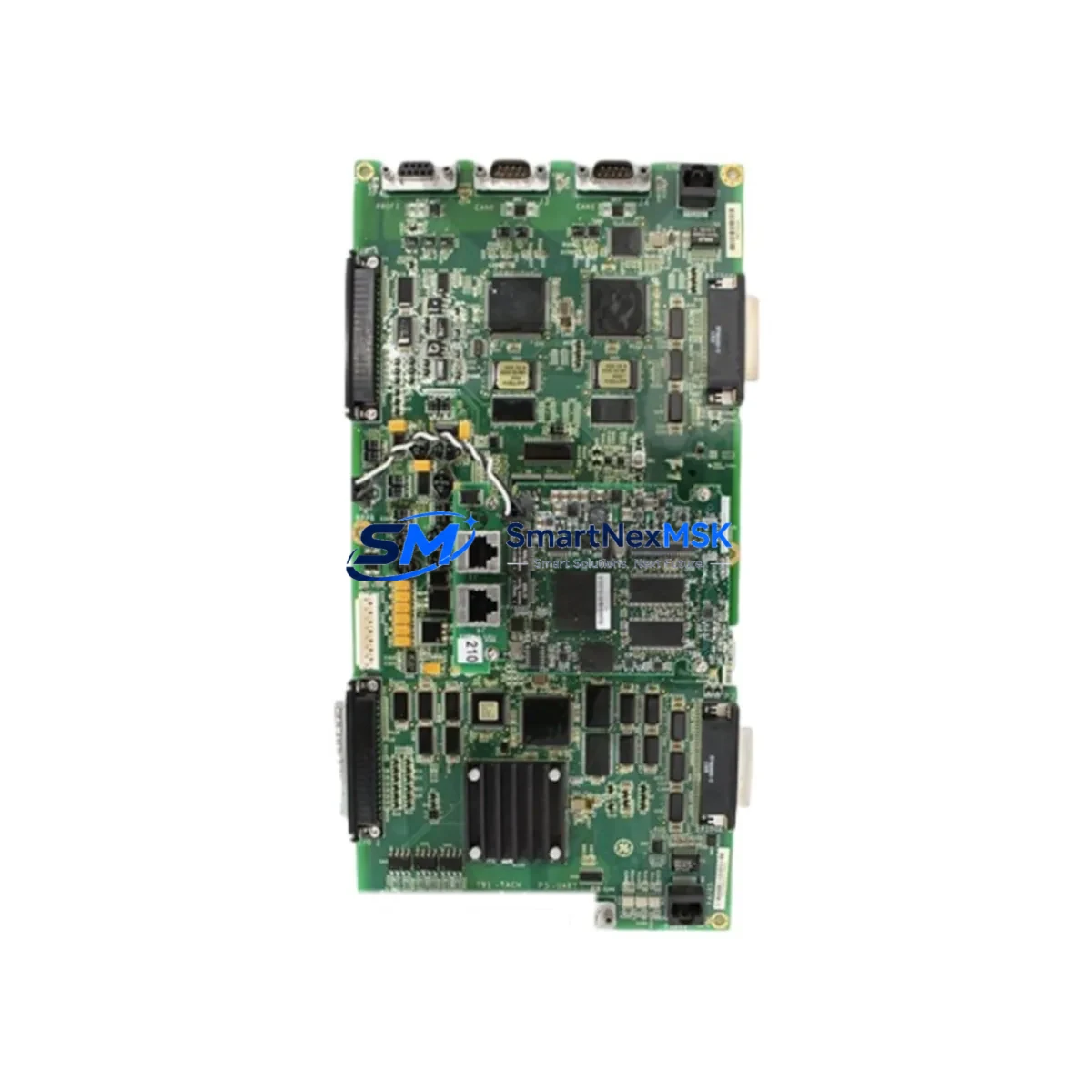

GE IS210MACCG1A Maintenance-Ready Spare for Mark VI Automation

GE IS210MACCG1A Maintenance-Ready Spare for Mark VI Automation

The GE IS210MACCG1A is a critical processor/controller module within the GE Mark VI turbine control platform — one of the most widely deployed DCS architectures in power generation, oil & gas, and heavy industrial facilities worldwide. When this module fails or degrades, the consequences extend far beyond a single cabinet: turbine trips, unplanned outages, and extended downtime can cost facilities tens of thousands of dollars per hour. Sourcing a verified, original-specification IS210MACCG1A spare is the single most effective step a maintenance team can take to restore control system integrity and return the unit to service.

At SMARTNEXMSK, every IS210MACCG1A unit is sourced from original manufacturing channels, subjected to functional bench testing prior to shipment, and backed by a 12-month warranty. Our inventory is maintained specifically to support emergency replacement, planned outage kitting, and long-term spare parts programs for facilities operating GE Mark VI and Mark VIe control systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the IS210MACCG1A in a Mark VI control cabinet is rarely an isolated task. Experienced maintenance engineers treat a controller module swap as an opportunity to audit the entire control enclosure and associated electrical circuits. Before returning the turbine to service, the following components in the same cabinet or electrical loop should be inspected or replaced as part of a comprehensive maintenance plan:

The IS200TBAIH1C terminal board and associated I/O terminal assemblies should be checked for corrosion, loose terminations, and insulation degradation — these boards carry the field wiring that feeds directly into the controller. The IS215UCVEH2A VME controller card, if present in a parallel redundant configuration, must be verified for firmware version parity with the replacement IS210MACCG1A to avoid synchronization faults on restart.

Power supply modules such as the IS200EPCTG1A or equivalent Mark VI power conditioner should be load-tested; a marginal power supply is a common root cause of intermittent controller faults that are misdiagnosed as CPU failures. Inspect the IS200TREGH1B regulation board and confirm that backplane voltages are within specification before inserting the new module.

On the communications side, the IS210AEAAH1B Ethernet adapter and IONet switch infrastructure should be verified for link integrity. A degraded IONet segment can cause the replacement controller to report communication faults immediately after installation, leading to unnecessary re-work. Similarly, the IS200VCRCH1BBB VME crate controller and any associated ARCNET repeaters should be inspected for proper termination.

For facilities running redundant TMR (Triple Modular Redundancy) configurations, all three controller slots — R, S, and T — should be audited simultaneously. Replacing only the faulted IS210MACCG1A while leaving degraded modules in the S or T slots creates a latent reliability risk. Procurement engineers should consider kitting a matched set of IS210MACCG1A modules for TMR systems to ensure consistent firmware baselines across all three controllers.

Finally, relay output modules, signal isolators, and fuse assemblies within the same panel should be visually inspected. Blown fuses or failed relay contacts in the output circuit can mask whether the replacement controller is functioning correctly during post-installation testing.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s part number and revision suffix (IS210MACCG1A) against the system’s hardware configuration record. Cross-reference with the GE Mark VI hardware manual to verify backplane slot assignment and any jumper or DIP switch settings required for the specific turbine application.

Step 2 — Configuration backup: Before removing the faulted module, use the GE Toolbox software to export the current application configuration, I/O assignments, and calibration data. Store the backup on an isolated engineering workstation. This step is critical for systems where the controller holds non-volatile application memory.

Step 3 — Safe module extraction: De-energize the controller rack following site LOTO (Lockout/Tagout) procedures. Discharge any residual backplane capacitance, then extract the IS210MACCG1A using the module ejector levers. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit.

Step 4 — Replacement installation and firmware load: Insert the new IS210MACCG1A, restore power, and allow the module to complete its self-test sequence. Use GE Toolbox to download the backed-up application configuration and verify that all I/O points are correctly mapped and responding.

Step 5 — Functional test and return to service: Perform a controlled startup sequence, monitoring all critical process variables and alarm states. Confirm IONet communication with peer controllers and HMI stations before releasing the turbine to automatic control. Document the replacement in the site maintenance management system (CMMS) with the new module’s serial number and installation date.

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement IS210MACCG1A is fully validated before the turbine returns to load-bearing operation.

Spare Parts Support FAQ

Q: Is the IS210MACCG1A still available as a new original part, or only as refurbished?
A: SMARTNEXMSK supplies IS210MACCG1A modules sourced from original manufacturing and authorized distribution channels. Each unit is functionally tested prior to shipment. Where new stock is available, it is clearly indicated; all units are covered by our 12-month warranty regardless of sourcing tier.

Q: How do I verify compatibility with my specific Mark VI turbine configuration before ordering?
A: Provide your turbine unit’s hardware configuration report or the existing module’s full part number including revision suffix. Our technical team will cross-reference against known Mark VI hardware matrices to confirm direct compatibility. For TMR systems, we recommend specifying all three slot designations to ensure matched module sets.

Q: What testing is performed before the IS210MACCG1A ships?
A: Every module undergoes bench-level power-on self-test, backplane interface verification, and communication port functional checks. Test records are available upon request. Modules that do not pass all test criteria are not shipped — they are quarantined for further evaluation or return to the supply chain.

Q: What is your recommended spare parts stocking strategy for Mark VI systems?
A: For facilities with a single Mark VI controller, we recommend maintaining at least one IS210MACCG1A as a cold standby spare. For TMR configurations, a matched set of three modules is the industry best practice. Pairing the controller spare with a power supply module and at least one I/O terminal board assembly provides comprehensive coverage for the most common failure modes and supports rapid recovery from unplanned outages.
