Honeywell 51307190-150 Retrofit-Ready I/O Link for HPM Systems

Honeywell 51307190-150 Retrofit-Ready I/O Link for HPM Systems: Compatible Modernization & Smooth Legacy Upgrade

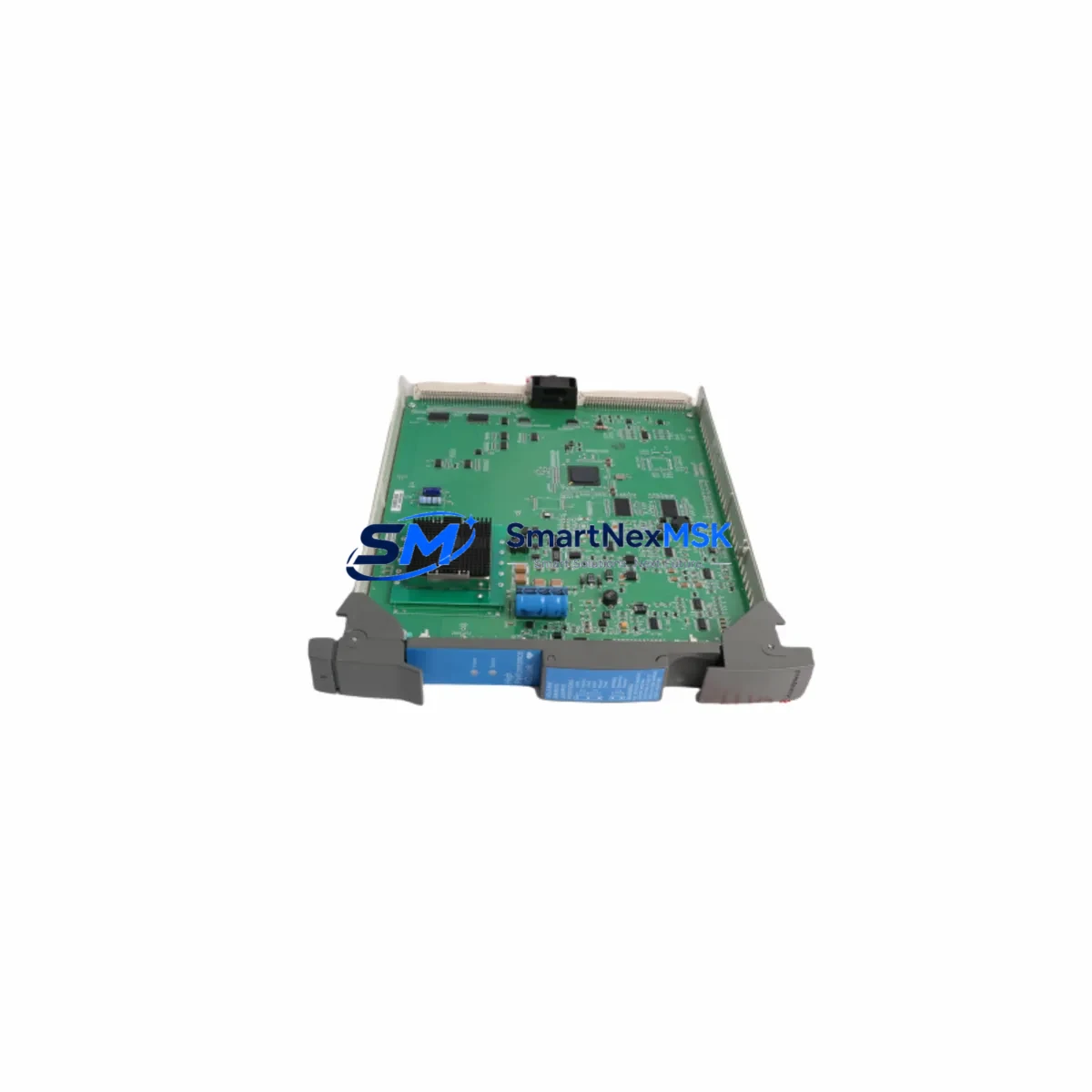

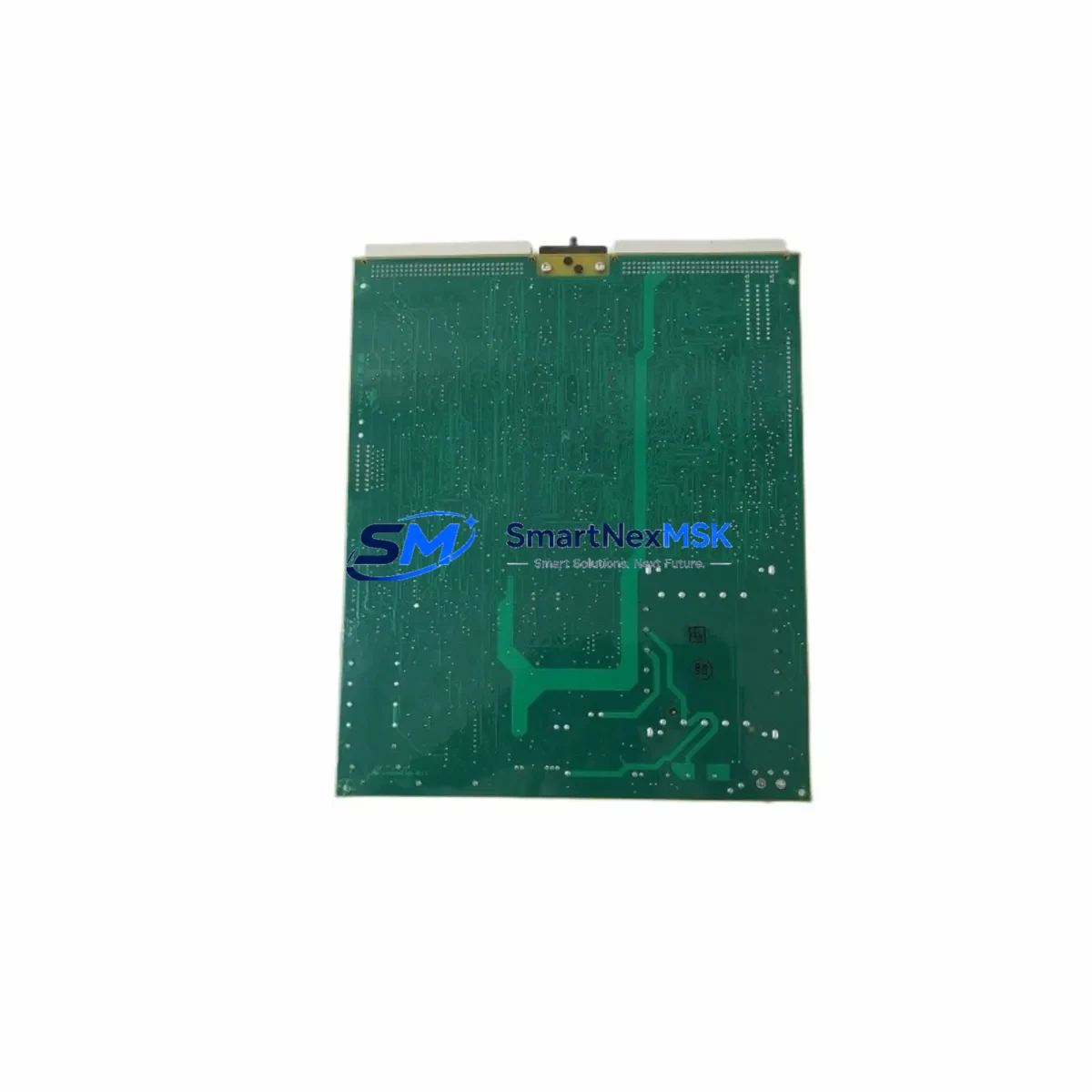

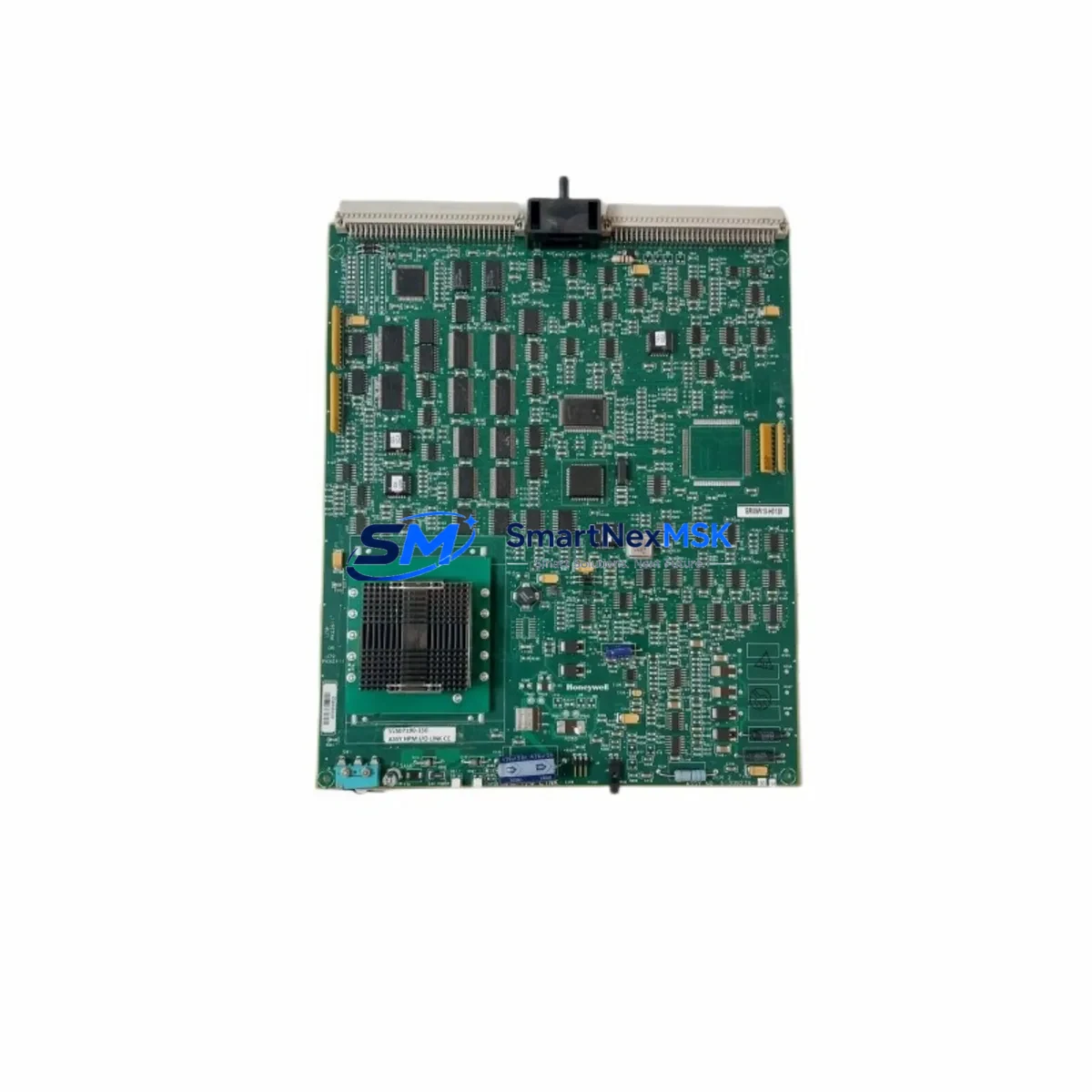

The Honeywell 51307190-150 is an Ethernet I/O Link Card designed for the HPM (High-Performance Process Manager) series within Honeywell’s TPS (TotalPlant Solution) and TotalPlant DCS platforms. As legacy HPM cabinets age and original spare parts become increasingly scarce, the 51307190-150 serves as a critical retrofit component — enabling engineers to restore, extend, and modernize existing control architectures without committing to a full platform migration.

This module occupies a standard HPM card slot and provides the Ethernet I/O Link interface required to maintain communication between the process manager and field I/O subsystems. Whether you are replacing a failed card in an active production environment, building a cold-standby spare inventory, or executing a phased control system upgrade, the 51307190-150 delivers the compatibility and reliability that industrial operations demand.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Honeywell 51307190-150 into an aging HPM-based control system requires careful pre-installation planning. Engineers undertaking a retrofit should begin by auditing the existing card cage configuration, confirming available slot positions, and reviewing the system’s current I/O Link topology. In many HPM installations, the I/O Link card works in conjunction with Honeywell FTA (Field Termination Assembly) panels — these termination assemblies must be verified for wiring compatibility before the new card is seated.

Power budget is a key consideration. The HPM card file is powered by dedicated Honeywell HPM Power Supply modules (such as the 51304485-100 or equivalent), and adding or replacing an I/O Link card may affect the overall card file power draw. Confirm that the existing power supply has sufficient headroom before proceeding.

For sites running mixed I/O subsystems, the 51307190-150 must be coordinated with the downstream Honeywell HLAI (High-Level Analog Input), LLAI (Low-Level Analog Input), AO (Analog Output), and DI/DO (Digital Input/Output) modules connected via the I/O Link bus. Each of these I/O modules has its own address assignment within the HPM configuration database, and any mismatch between the physical module address and the database entry will result in communication faults.

Sites that have extended their HPM systems with Honeywell UCN (Universal Control Network) or LCN (Local Control Network) infrastructure should also verify that the Ethernet I/O Link segment does not conflict with existing network node assignments. In larger TPS installations, the Honeywell NIM (Network Interface Module) and HG (Hiway Gateway) components govern inter-network routing, and their configuration tables may need to be updated to reflect the replacement card’s presence.

For sites considering a broader migration from HPM to a newer Honeywell Experion PKS platform, the 51307190-150 can serve as a bridge component — maintaining HPM I/O Link continuity while the Experion C300 Controller and associated CHARM (Configurable Hardware Addressable Remote Module) I/O infrastructure is staged in parallel. This phased approach allows production to continue uninterrupted while the new control layer is validated.

Programming cable access is also essential during commissioning. Technicians should have a Honeywell Engineering Console connection available — typically via the LCN or a dedicated console workstation — to monitor card status, verify I/O Link communication, and confirm that all downstream I/O points are reporting correctly before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing an HPM I/O Link card in a live process environment. The recommended approach is to pre-configure and bench-test the Honeywell 51307190-150 before the scheduled maintenance window. This includes verifying the card’s firmware revision against the target system’s requirements and confirming that the replacement unit powers up correctly in a test card cage if one is available.

During the actual swap, the process should be placed in manual control at the HMI level — typically through the Honeywell GUS (Global User Station) or US (Universal Station) operator console — before the card is removed. This ensures that all regulatory control loops are held at their last output value and that no automatic control actions are triggered by the temporary loss of I/O Link communication.

Once the replacement card is seated and powered, the HPM will automatically attempt to re-establish I/O Link communication with the downstream I/O subsystems. Engineers should monitor the system status displays on the Engineering Console for any residual communication alarms, verify that all I/O points are returning valid process values, and confirm that control loop outputs are tracking correctly before returning loops to automatic. In most like-for-like replacement scenarios, the existing HPM control database — including all CL program logic, tuning parameters, and alarm setpoints — remains fully intact, eliminating the need for a program re-download and significantly reducing the risk of configuration errors during the cutover.

For critical loops where even brief manual control is unacceptable, a hot-standby HPM configuration with redundant I/O Link cards provides seamless failover. In these architectures, the standby card takes over I/O Link communication automatically upon detection of a primary card fault, with no operator intervention required.

Retrofit Support FAQ

Q1: Is the Honeywell 51307190-150 a direct drop-in replacement for earlier HPM I/O Link card revisions?
In most cases, yes. The 51307190-150 is designed to occupy the same HPM card slot as earlier I/O Link revisions. However, firmware compatibility should be verified against your system’s current HPM software version. If the system is running an older HPM firmware release, a firmware update may be required before the replacement card can be recognized. Our technical team can assist with revision compatibility checks prior to shipment.

Q2: What wiring or terminal changes are required when installing this card?
No field wiring changes are required at the FTA (Field Termination Assembly) level for a like-for-like replacement. The 51307190-150 connects to the HPM card cage backplane via the standard card edge connector — there are no external terminal block connections on the card itself. All field signal wiring remains at the FTA panels and is unaffected by the card swap.

Q3: How is the module address configured, and will it conflict with existing system settings?
The I/O Link card address is defined in the HPM system configuration database, not via physical DIP switches or jumpers on the card itself. When replacing a failed card with the 51307190-150, the replacement card will inherit the address assignment already stored in the database, provided the slot position is identical. No manual address reconfiguration is required in a standard like-for-like replacement scenario.

Q4: What does the 12-month warranty cover, and what is the outgoing test procedure?
Every Honeywell 51307190-150 unit shipped by SMARTNEXMSK is subject to a functional outgoing test prior to dispatch, verifying power-up behavior, communication interface integrity, and basic I/O Link protocol response. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units that fail within the warranty period are eligible for replacement or repair at no additional cost. Warranty claims should be initiated by contacting our sales team with the original order reference and a description of the observed fault.
