Honeywell DC-TFB402 51307616-176 Maintenance-Ready Spare for Experion Automation

Honeywell DC-TFB402 51307616-176 Maintenance-Ready Spare for Experion Automation

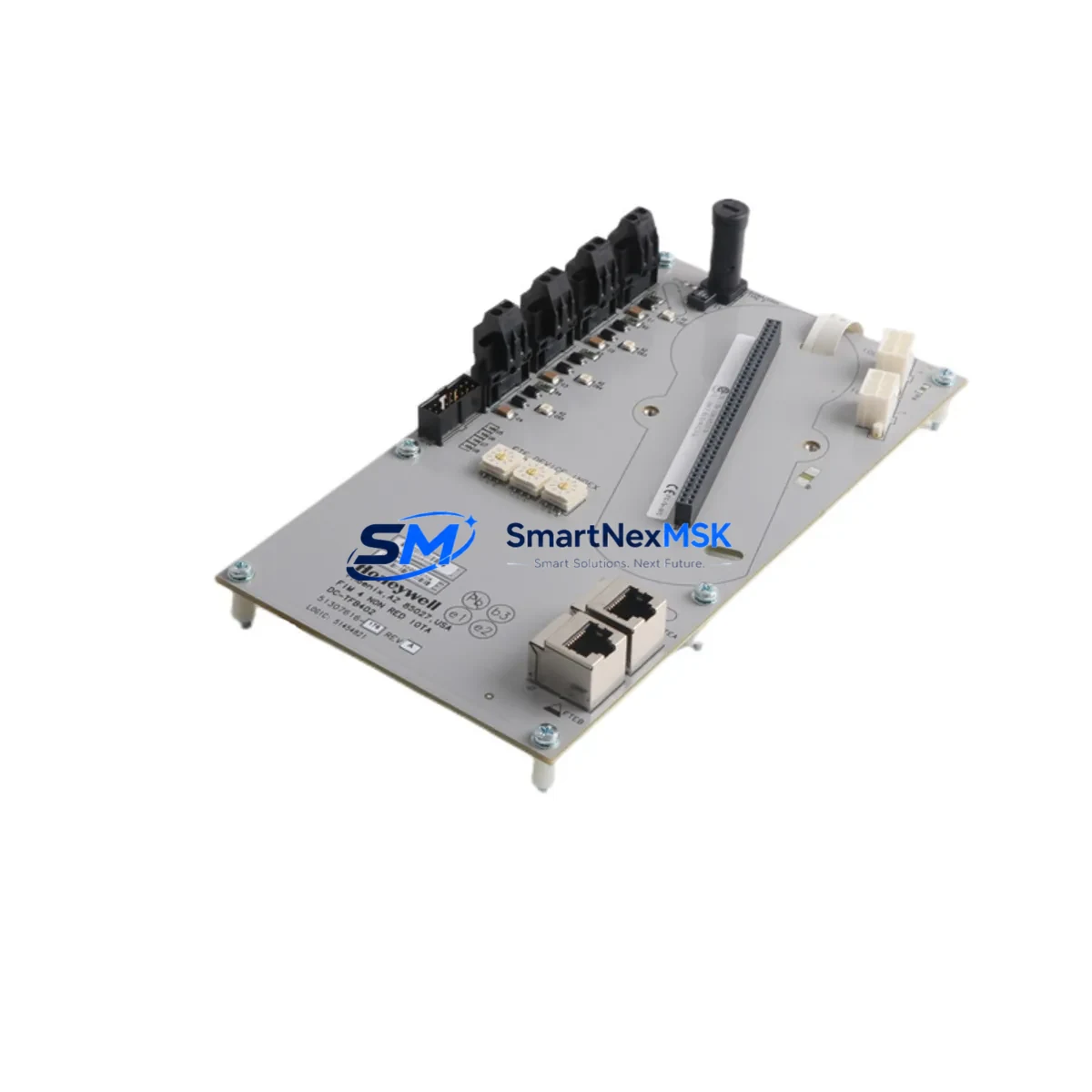

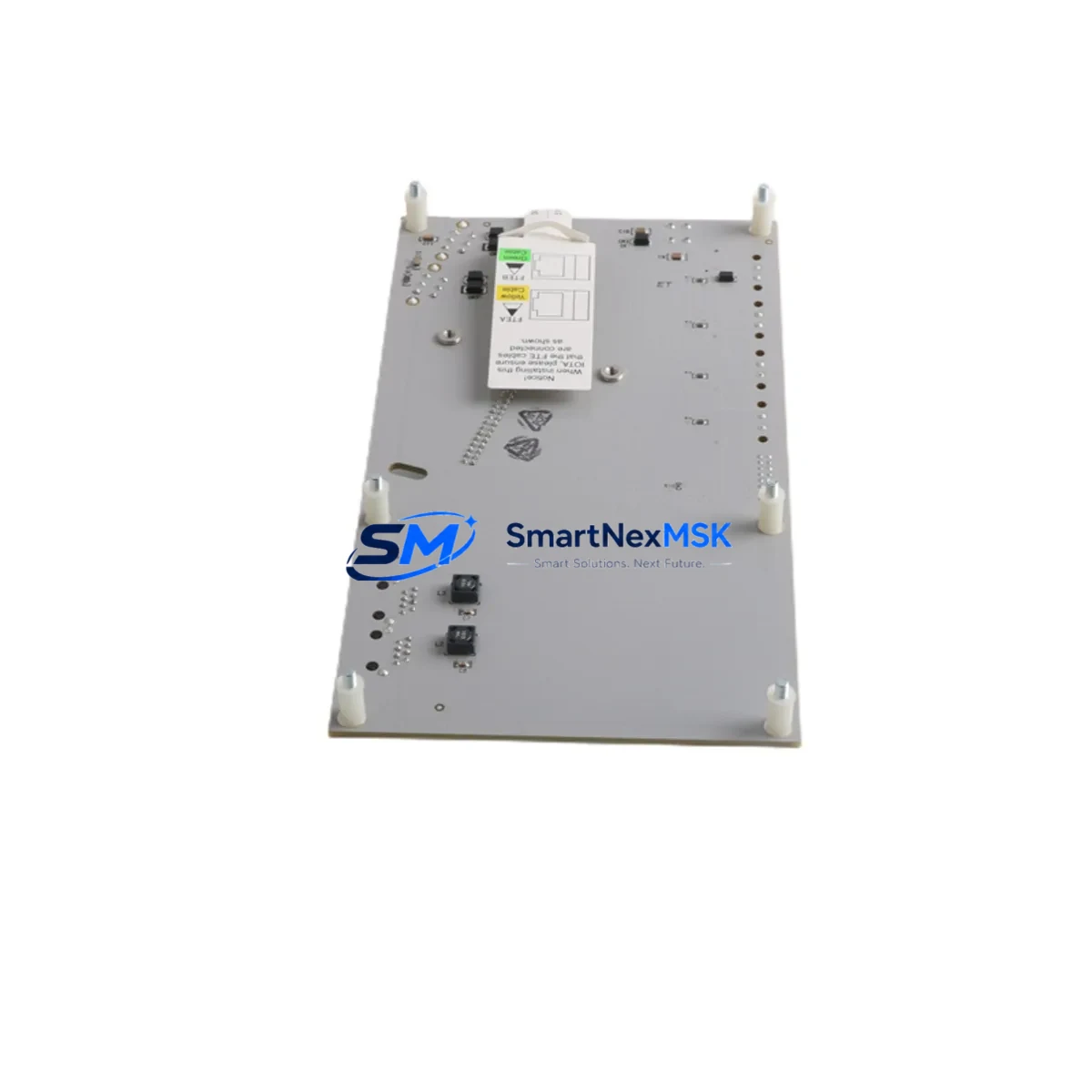

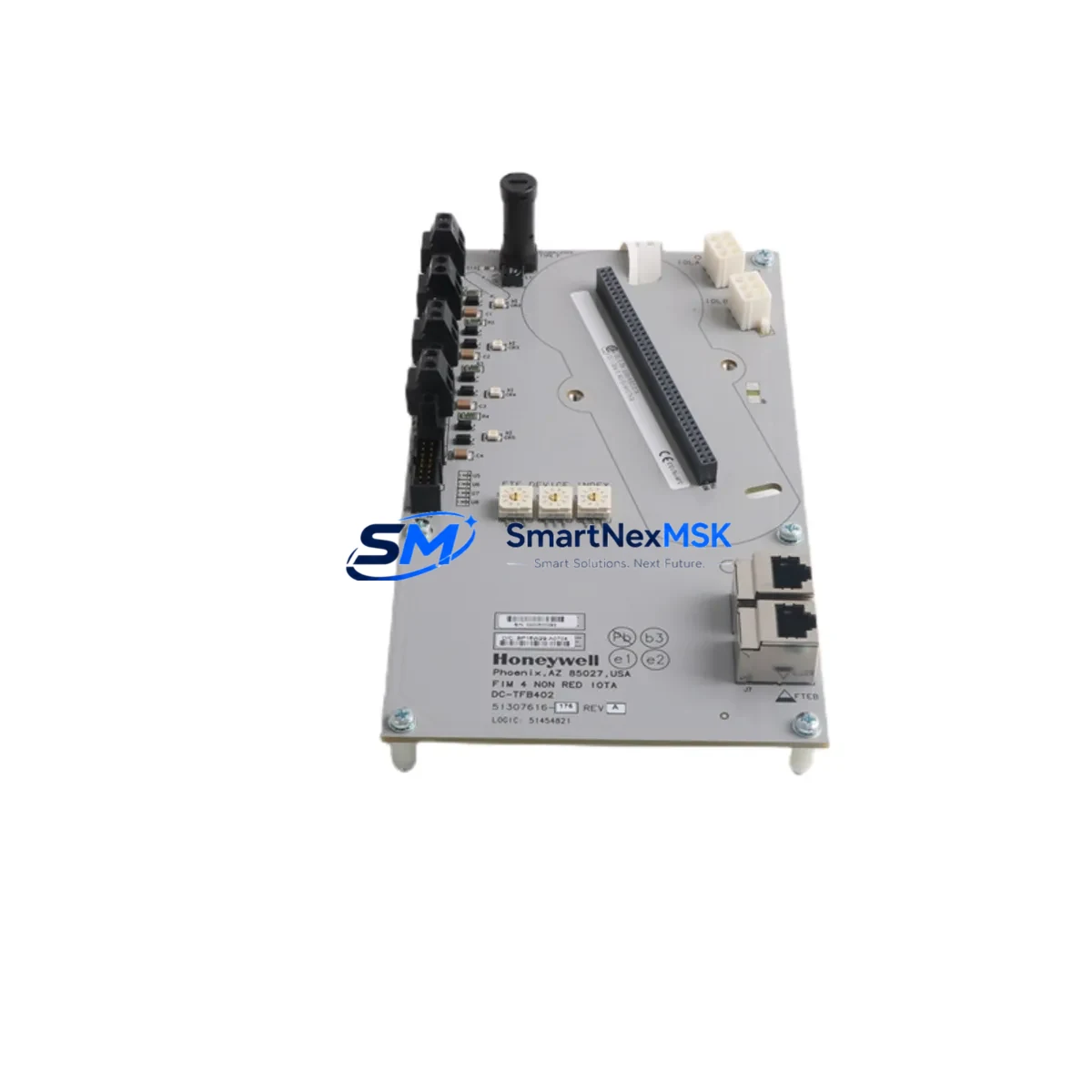

The Honeywell DC-TFB402 (P/N 51307616-176) is a FIM4 Non-Redundant IOTA Field Interface Module designed for Honeywell Experion PKS and TPS distributed control systems. In process-critical environments — refining, petrochemical, power generation, and advanced manufacturing — this module serves as the physical interface layer between field instrumentation and the DCS controller network. Sourced as an original Honeywell spare, each unit is inspected, function-tested, and shipped with a 12-month warranty, enabling maintenance teams to execute rapid replacements and restore system availability with confidence.

For maintenance engineers managing aging Experion PKS or TPS cabinets, holding a verified DC-TFB402 spare on the shelf is a direct risk-mitigation strategy. FIM4 module failures can isolate entire I/O clusters, triggering unplanned shutdowns that cascade across process loops. A pre-qualified replacement unit eliminates the lead-time risk associated with emergency procurement and allows technicians to execute a structured swap within a planned maintenance window — or within hours during an unplanned outage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DC-TFB402 FIM4 module is flagged for replacement during a scheduled turnaround or emergency callout, experienced maintenance engineers treat the event as a trigger for a broader cabinet health review. The FIM4 sits at the intersection of field wiring, IOTA backplane power, and controller communication — meaning adjacent components are subject to the same thermal and electrical stress cycles.

Before or alongside replacing the DC-TFB402, the following components should be inspected or staged as secondary spares:

• IOTA Backplane Assembly — Verify backplane connector integrity and check for oxidation on the FIM4 mating socket. A worn backplane can cause intermittent FIM4 faults even after module replacement.
• Honeywell 24 VDC Power Supply Module (e.g., MC-PDPY22) — Confirm output voltage stability under load. Voltage sag on the IOTA bus is a leading cause of FIM4 communication errors and spurious I/O faults.
• C200 or C300 Controller Module — Check controller firmware version for FIM4 compatibility. Mismatched firmware revisions between the controller and FIM4 can prevent successful re-initialization after a hot swap.
• FTE Network Switch / Redundant FTE Cable Assembly — Inspect FTE patch cables and switch port status. A degraded FTE link will prevent the replacement FIM4 from joining the control network, masking the root cause of the original fault.
• I/O Link Interface Module (IOLIM) — If the DC-TFB402 interfaces with Series C I/O links, verify IOLIM health and I/O link cable continuity before declaring the FIM4 as the sole fault source.
• Terminal Block and Field Wiring Marshalling — Inspect field-side terminal blocks for loose terminations, moisture ingress, or insulation breakdown. Field wiring faults can stress FIM4 input circuits and accelerate module degradation.
• Signal Isolators / Zener Barriers — For intrinsically safe loops, verify that Zener barriers or galvanic isolators in the marshalling cabinet are within calibration and have not drifted, which can introduce ground loops affecting FIM4 analog inputs.
• Relay Output Modules (e.g., MC-TAIH02) — If the FIM4 drives relay-coupled outputs, inspect relay coil resistance and contact condition. Welded relay contacts can back-feed voltage into FIM4 output circuits.
• Communication Gateway / Modbus RTU Interface — Where the Experion system bridges to legacy Modbus or HART field devices, confirm gateway configuration has not been altered, as configuration drift can appear as FIM4-level communication faults.
• Cabinet Cooling Fan and Filter Assembly — Elevated cabinet temperature is a primary accelerator of FIM4 and IOTA component aging. Replace clogged filters and verify fan operation as part of every FIM4 replacement event.

Procurement engineers should note that the DC-TFB402 is a long-lifecycle Honeywell DCS component. Establishing a minimum stock level of one to two units per active Experion PKS cabinet cluster is a recognized best practice for facilities operating beyond the original system commissioning date. Pairing the FIM4 spare with a staged C200/C300 controller module and a set of FTE cables creates a self-contained emergency kit that covers the most common Experion field interface failure modes.

Site Replacement Workflow

Replacing the DC-TFB402 in an active Experion PKS system follows a structured sequence to minimize process impact and ensure clean re-integration:

1. Pre-Replacement Verification: Confirm the replacement unit’s part number (DC-TFB402) and firmware revision match the installed base. Cross-reference with the Experion system’s hardware configuration database before proceeding.
2. Process Impact Assessment: Identify all I/O points served by the affected FIM4. Coordinate with the control room operator to place affected loops in manual mode or activate bypass logic where process safety permits.
3. Safe Isolation: De-energize the IOTA slot per site LOTO (Lockout/Tagout) procedure. For non-redundant FIM4 configurations, this step will interrupt field I/O — confirm process hold conditions are in place.
4. Module Extraction and Inspection: Remove the faulty DC-TFB402. Inspect the IOTA backplane connector for bent pins, carbon tracking, or moisture. Clean with approved contact cleaner if required before inserting the replacement.
5. Replacement Installation: Seat the new DC-TFB402 firmly into the IOTA backplane. Re-energize the slot and observe FTE link LEDs for successful network join (typically within 60–90 seconds on Experion PKS R500+).
6. Functional Verification: From the Experion Station, confirm all I/O points associated with the FIM4 return to normal scan status. Perform a loop check on critical analog inputs and verify alarm setpoints are active.
7. Return to Automatic: Restore affected loops to automatic control in coordination with the control room operator. Document the replacement in the site CMMS with the new module serial number and installation date.

This workflow applies equally to planned turnaround replacements and emergency callouts, and is compatible with both Experion PKS R400 and R500 series environments. The DC-TFB402’s non-redundant architecture means replacement speed directly determines downtime duration — a pre-staged, tested spare is the single most effective tool for minimizing that window.

Spare Parts Support FAQ

Q1: Is the DC-TFB402 51307616-176 compatible with both Experion PKS and TPS systems?
Yes. The DC-TFB402 FIM4 module is designed for use across Honeywell Experion PKS and the legacy TotalPlant Solution (TPS) platform where IOTA-based field interface architecture is employed. Always verify the firmware revision against your specific system release before installation. Our team can assist with compatibility confirmation prior to shipment.

Q2: What is included in the 12-month warranty and pre-shipment testing?
Every DC-TFB402 unit is function-tested prior to dispatch, covering power-up self-diagnostics, FTE communication link verification, and I/O channel continuity checks. The 12-month warranty covers component failure under normal operating conditions. Units showing physical damage from incorrect installation or overvoltage events are assessed on a case-by-case basis. A test report is available upon request.

Q3: How should I manage DC-TFB402 spare inventory for a multi-cabinet Experion system?
For facilities with three or more active Experion PKS cabinets, a minimum stock of two DC-TFB402 units is recommended. Pair each FIM4 spare with a documented firmware revision record and store in an ESD-safe, climate-controlled environment. Rotate stock on a 36-month cycle to prevent capacitor aging in long-term storage. For large-scale DCS estates, we offer reserved stock agreements to guarantee availability without capital commitment.

Q4: Can the DC-TFB402 be used to replace older or discontinued FIM variants in legacy Honeywell cabinets?
The DC-TFB402 (FIM4) is the current-generation non-redundant IOTA field interface module and is the designated replacement for earlier FIM revisions in compatible IOTA backplane configurations. Physical and electrical compatibility should be confirmed against the installed backplane revision and controller firmware. Our technical team can review your system’s hardware configuration report and confirm drop-in compatibility before you commit to a purchase.
