Honeywell FC-RUSIO-3224 Retrofit Universal I/O Experion PKS

Honeywell FC-RUSIO-3224 Retrofit-Ready Universal I/O for Experion PKS Control Systems

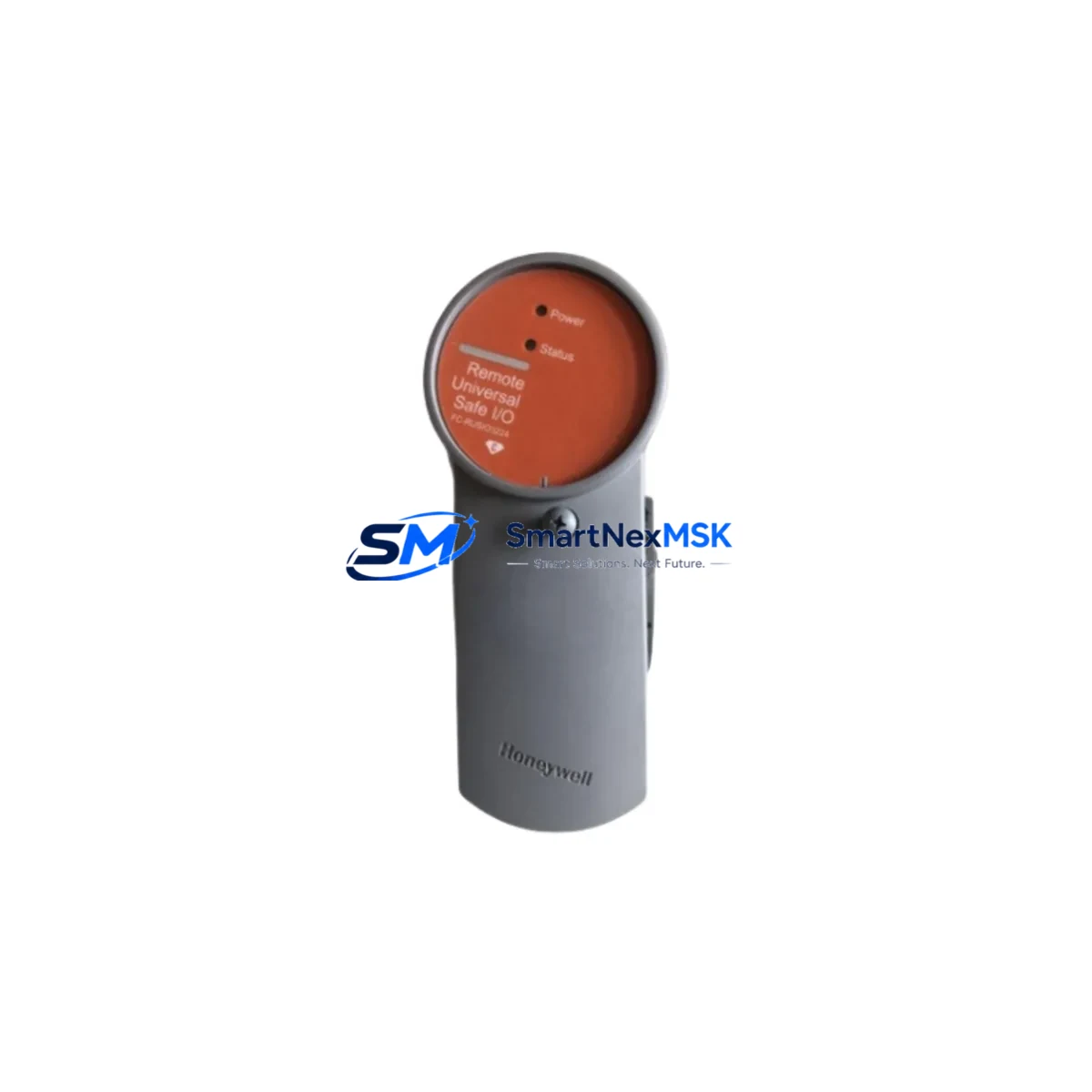

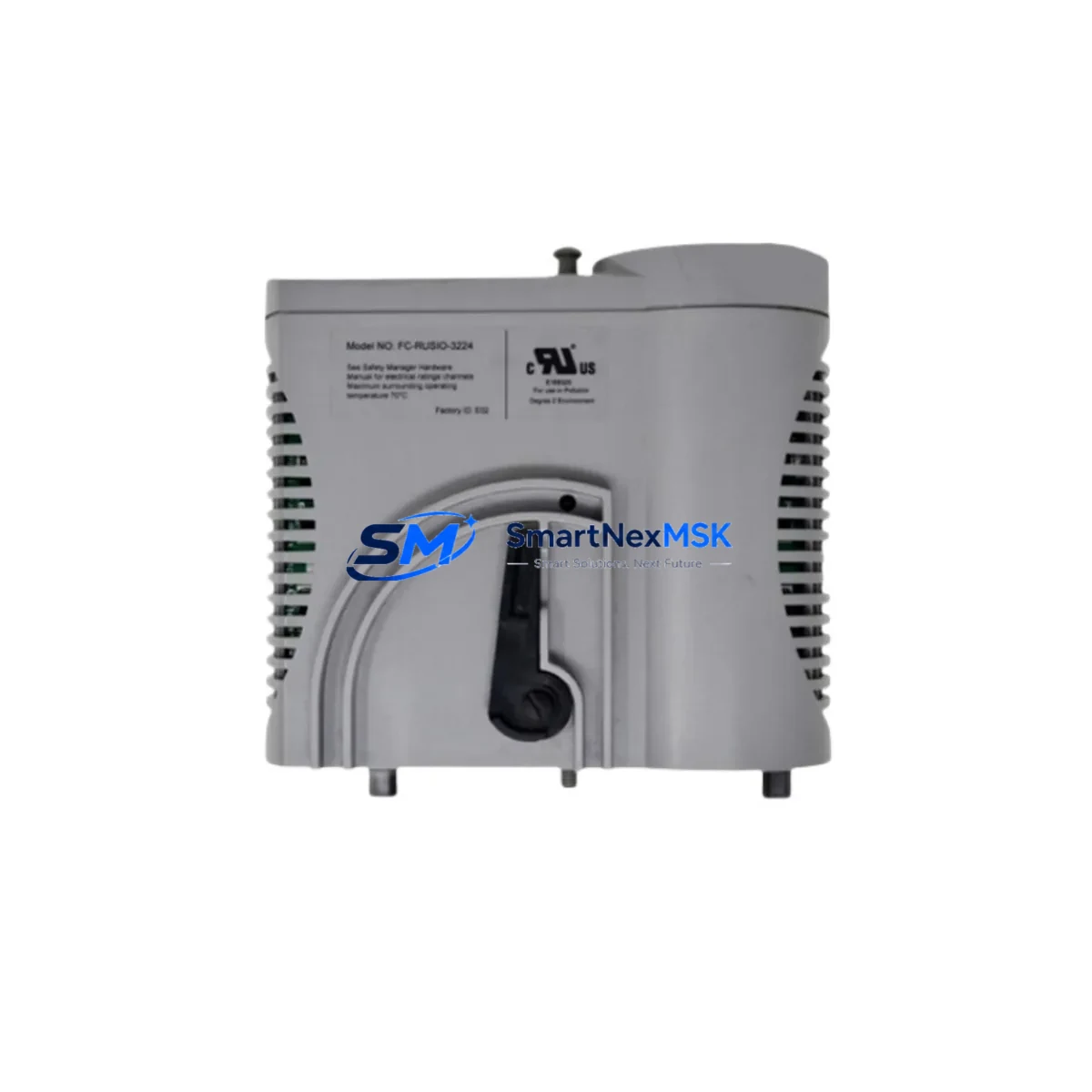

The Honeywell FC-RUSIO-3224 is a 32-channel Universal I/O module engineered for the Experion PKS Series C distributed control platform. Designed to support seamless migration from legacy Honeywell TDC 3000, PlantScape, and early Experion R100–R300 architectures, this module delivers a drop-in upgrade path that minimizes engineering rework, preserves existing field wiring, and reduces planned shutdown windows to the absolute minimum. Whether you are replacing a failed module in an aging control cabinet or executing a phased DCS modernization across multiple process units, the FC-RUSIO-3224 is the preferred retrofit solution for instrumentation engineers and automation integrators working within Honeywell ecosystems.

Each channel on the FC-RUSIO-3224 is software-configurable as AI, AO, DI, or DO, eliminating the need to stock separate analog input, analog output, or discrete I/O modules for mixed-signal field loops. This universal channel architecture is particularly valuable during brownfield upgrades where legacy marshalling cabinets contain heterogeneous signal types across a single terminal block row. The module interfaces directly with the Experion PKS Series C IOLINK backplane, and is fully compatible with the C300 Controller and CCIE (Control and I/O Interface Engine) communication infrastructure.

When planning a retrofit involving the FC-RUSIO-3224, engineers must verify several critical parameters before cutover. Power budget on the existing Series C I/O Link segment must accommodate the module’s 24 VDC supply draw; consult the cabinet power distribution rail and confirm the PS-IOLINK Power Supply capacity before adding modules to an existing segment. Terminal block wiring from legacy marshalling panels is typically retained without modification, but field loop resistance and cable capacitance should be re-verified against the module’s input impedance specifications. Backplane slot addressing must be confirmed in Experion Configuration Studio prior to download to avoid address conflicts with adjacent modules such as the FC-SDIO-1224 discrete I/O module or the FC-SMAI-1620 analog input module sharing the same IOLINK segment.

Program compatibility is a key concern during any DCS module swap. Control strategies built in Experion Control Builder referencing the replaced module’s tag database must be reviewed for channel-to-tag mapping integrity. In most Series C environments, the FC-RUSIO-3224 retains the same function block interface as its predecessor, allowing existing PID loops, cascade strategies, and interlock logic to remain intact without recompilation. However, if the original module was running under an older firmware baseline, a firmware alignment step in Experion Server R500 or later may be required before the new module is recognized on the IOLINK bus.

HMI screen updates are often overlooked during module replacements. If the plant’s Experion Station or third-party SCADA system references specific I/O point addresses tied to the old module slot, display faceplates and alarm configurations should be audited before the replacement module goes live. This is especially relevant in facilities where Honeywell FTE (Fault Tolerant Ethernet) network topology connects multiple Experion Servers to a shared process historian, as tag renaming can propagate unexpected gaps in trend data.

Communication link integrity must be validated after installation. The FC-RUSIO-3224 communicates over the Series C IOLINK serial bus, and cable continuity, termination resistance, and segment length must all be within specification. In systems where the IOLINK segment also carries signals from a FC-RPSM-0001 Power Supervision Module or a FC-TSAI-1620 HART-enabled analog input module, the bus loading calculation should be repeated after adding the new module to confirm signal integrity margins are maintained.

Field commissioning of the FC-RUSIO-3224 follows a structured sequence: module insertion and backplane recognition, channel-type configuration download via Control Builder, loop calibration and signal verification against field instruments, alarm setpoint confirmation, and final functional acceptance test with the process control team. SMARTNEXMSK ships each FC-RUSIO-3224 with a pre-shipment functional test report, confirming channel-by-channel signal accuracy and communication handshake with a reference Experion PKS test bench. All units carry a 12-month warranty covering manufacturing defects and communication failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful FC-RUSIO-3224 retrofit begins with a thorough audit of the existing control cabinet. Start by documenting the current IOLINK segment map, identifying every module slot occupied by components such as the FC-SDIO-1224, FC-SMAI-1620, FC-TSAI-1620, and any FC-RPSM-0001 Power Supervision Modules. Confirm the backplane rack model — typically the Series C I/O Chassis — and verify that the target slot is physically and electrically compatible with the FC-RUSIO-3224 form factor.

Power planning is non-negotiable. Calculate the aggregate current draw of all modules on the IOLINK segment, including the replacement FC-RUSIO-3224, and confirm the PS-IOLINK Power Supply has sufficient headroom. In cabinets where the power rail is already near capacity due to a dense mix of analog and discrete modules, a supplementary power supply may be required before the retrofit can proceed safely.

Terminal wiring from the existing marshalling panel is generally reusable. However, if the legacy module used a different terminal block pitch or a proprietary cable assembly, a wiring adapter or re-termination at the field junction box may be necessary. Document every field loop signal type, range, and engineering unit before the cutover window opens, and prepare a loop check sheet that the commissioning technician can execute channel by channel immediately after module insertion.

For facilities running Honeywell FTE networks with redundant Experion Servers, coordinate the module swap with the DCS system administrator to ensure the standby server does not initiate an automatic failover during the brief IOLINK interruption that occurs when the old module is removed. In most cases, a controlled inhibit of the affected IOLINK segment in Experion Configuration Studio is sufficient to prevent nuisance alarms and unintended control actions during the physical swap.

If the retrofit is part of a broader migration from a Honeywell TDC 3000 or PlantScape platform to Experion PKS, the FC-RUSIO-3224 can serve as the I/O front-end for newly installed C300 Controllers, with the Experion Migration Toolkit used to translate legacy control strategies and tag databases into the new environment. In this scenario, the universal channel architecture of the FC-RUSIO-3224 significantly reduces the number of distinct module part numbers required, simplifying spare parts inventory and long-term maintenance planning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any live DCS module replacement. The FC-RUSIO-3224 supports a structured hot-swap procedure within the Experion PKS Series C architecture, provided the IOLINK segment is properly inhibited in software before the physical module is removed. This inhibit step freezes the last known good values of all I/O points on the segment, allowing the process control strategy to continue executing in a hold state without generating spurious output commands to field actuators.

Before the maintenance window opens, pre-configure the replacement FC-RUSIO-3224 offline using a portable Experion Control Builder workstation. Download the channel configuration, verify tag assignments, and confirm HART device descriptors are loaded for any smart field instruments connected to the module. This offline preparation step typically reduces the in-cabinet commissioning time to under 30 minutes for a fully populated 32-channel module.

During the physical swap, follow the Experion PKS Series C module replacement procedure: inhibit the IOLINK segment, remove the old module, insert the FC-RUSIO-3224, restore the segment inhibit, and initiate a controlled download from Control Builder. The module will perform a self-test and IOLINK handshake within seconds of power-up. Once the green status LED confirms normal operation, execute the pre-prepared loop check sheet to verify each channel before releasing the segment back to automatic control.

Original program logic — including PID tuning parameters, interlock setpoints, and cascade configurations — is preserved in the Experion Server database and is not affected by the physical module replacement. HMI faceplates on Experion Station will resume normal display as soon as the IOLINK segment is released. For facilities with a process historian such as Honeywell PHD or a third-party OSIsoft PI system, confirm that trend collection resumes on all affected tags and that no data gaps exceed the historian’s compression tolerance.

Retrofit Support FAQ

Q1: Is the FC-RUSIO-3224 a direct drop-in replacement for fixed-type I/O modules in the Experion PKS Series C chassis?
A: Yes, in most Series C installations. The FC-RUSIO-3224 occupies the same backplane slot and uses the same IOLINK interface as fixed-type modules such as the FC-SMAI-1620 and FC-SDIO-1224. The key difference is that channel types must be configured in software via Control Builder rather than being hardware-fixed. Verify slot addressing and power budget before installation.

Q2: What wiring changes are required when replacing a legacy analog input module with the FC-RUSIO-3224?
A: In most cases, existing field wiring can be retained without modification. The FC-RUSIO-3224 uses a standard terminal block compatible with typical marshalling panel cable assemblies. Verify field loop resistance and cable capacitance against the module’s input specifications, and confirm that 2-wire, 3-wire, or 4-wire transmitter configurations are correctly set in the channel software configuration.

Q3: How is the FC-RUSIO-3224 tested before shipment, and what does the 12-month warranty cover?
A: Every FC-RUSIO-3224 shipped by SMARTNEXMSK undergoes a pre-shipment functional test on a reference Experion PKS Series C test bench, verifying channel-by-channel signal accuracy, IOLINK communication handshake, and HART pass-through functionality. The 12-month warranty covers manufacturing defects and communication failures under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can the FC-RUSIO-3224 be used in a migration from Honeywell TDC 3000 or PlantScape to Experion PKS?
A: Yes. The FC-RUSIO-3224 is a supported I/O front-end for C300 Controllers in new Experion PKS installations, including those built as part of a TDC 3000 or PlantScape migration. Use the Experion Migration Toolkit to translate legacy control strategies and tag databases. The universal channel architecture reduces the number of distinct I/O module part numbers required, simplifying the migration BOM and long-term spare parts planning.
