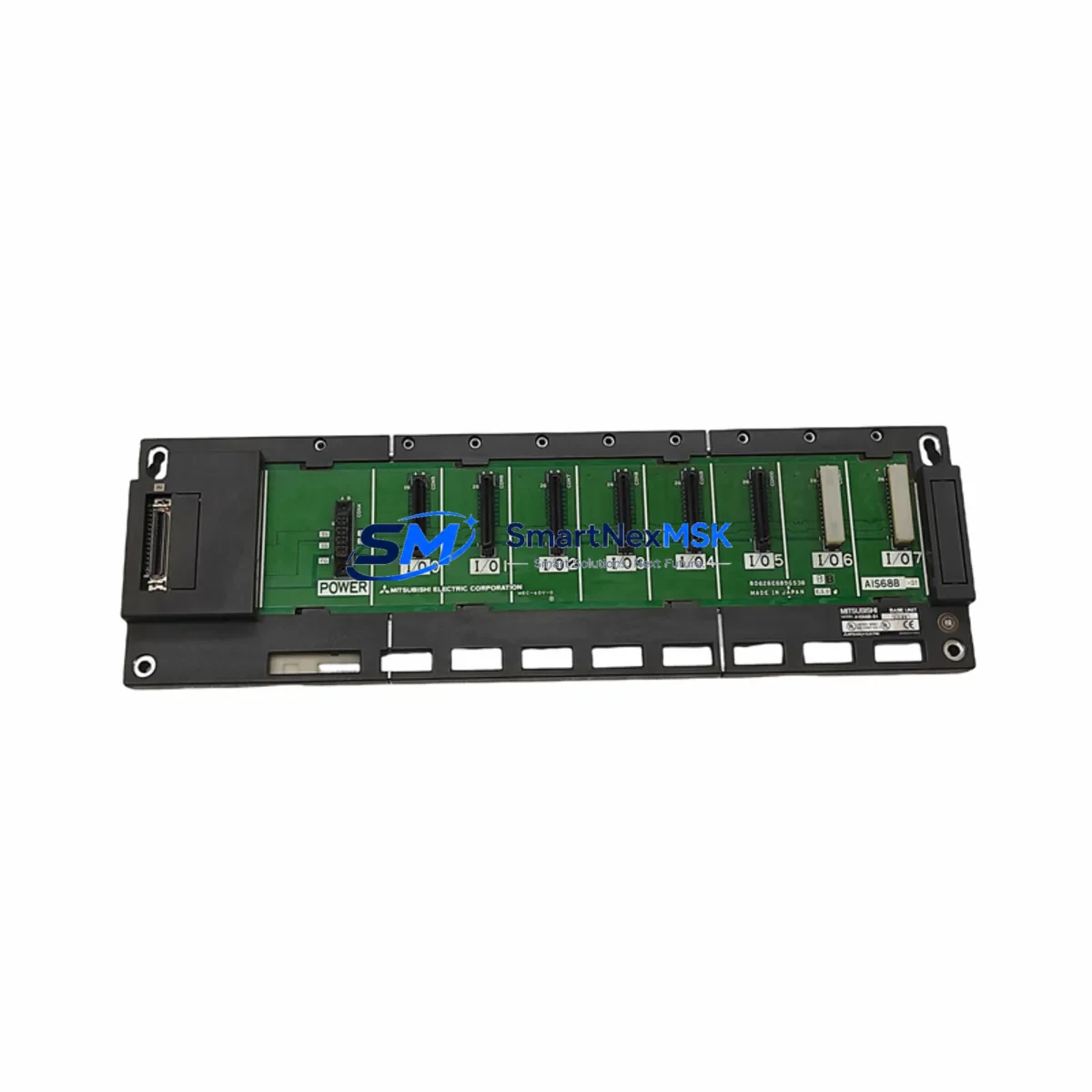

Mitsubishi A1S68B Maintenance-Ready Spare MELSEC-A Automation
The Mitsubishi Electric A1S68B is an 8-slot expansion base unit designed for the MELSEC-A Series programmable logic controller platform. As a critical structural and electrical backbone of the control cabinet, the A1S68B supports the mounting and backplane interconnection of up to eight I/O or intelligent function modules. For maintenance engineers managing aging MELSEC-A installations, securing a verified original A1S68B spare is the single most effective measure to eliminate extended downtime when a base unit fails or degrades in service.
Industrial facilities running MELSEC-A Series PLCs — including motor control centers, conveyor systems, press lines, and process control panels — depend on the A1S68B as the physical and electrical foundation of their control architecture. A failed or intermittently faulty expansion base can cause cascading I/O errors, communication faults, and unpredictable program execution, making rapid replacement with a tested original unit essential to restoring normal operation.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Model | A1S68B |
| Series | MELSEC-A (Mitsubishi Electric) |
| Slot Count | 8 expansion slots |
| Compatible CPU Units | A1SCPU, A1SHCPU, A2SCPU, A2SHCPU and compatible A-Series CPUs |
| Backplane Bus | MELSEC-A parallel bus |
| Power Supply Compatibility | A1S61PN, A1S62PN series power supply modules |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Humidity | 10% to 90% RH (non-condensing) |
| Origin | Japan |
| Unit Weight | Approx. 4,460 g |
| Mounting | DIN rail or panel mount |
| Application Environment | Industrial control cabinets, motor control centers, process automation panels |
| Maintenance Recommendation | Inspect backplane connectors and bus contacts annually; replace on first sign of intermittent I/O faults or physical damage to slot guides |
| Warranty | 12 Months |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer schedules replacement of the A1S68B expansion base, the work scope should extend beyond the base unit itself. The MELSEC-A control cabinet is an integrated system, and a base unit replacement is the optimal moment to inspect and pre-stage spares for adjacent components that share the same service interval or failure mode.
Begin with the A1S61PN or A1S62PN power supply module mounted on the base. Power supply capacitors degrade over time, and a base unit swap performed without inspecting the PSU risks a secondary failure within weeks. Measure output voltage under load and check for ripple before reinstalling.
Next, inspect all I/O modules seated in the expansion slots — including digital input modules such as the A1SX40 and A1SX80, and digital output modules such as the A1SY10 and A1SY40P. Backplane connector pins on aged modules can develop oxidation that causes intermittent read/write errors after a base unit swap disturbs the seating.
For systems using analog I/O, the A1S68AD analog input module and A1S62DA analog output module should be bench-tested after reinstallation to confirm signal accuracy within specification. Signal drift on analog channels is a common post-maintenance finding in MELSEC-A systems with more than ten years of service.
Communication infrastructure deserves equal attention. If the cabinet includes an A1SJ71UC24-R2 or A1SJ71AP23Q communication module for RS-232C or MELSEC-NET connectivity, verify link status and error counters after the base is restored. Communication modules are sensitive to backplane voltage fluctuations that can occur during a base unit fault.
Terminal blocks and wiring harnesses connected to I/O modules should be inspected for insulation cracking, loose ferrules, and correct torque on screw terminals. In high-vibration environments, terminal loosening is a leading cause of intermittent faults that are incorrectly attributed to the base unit.
If the system includes an A1SD75P1-S3 or A1SD75M3 positioning module, re-confirm axis parameters and home position data after power restoration, as some module variants require parameter re-entry following a complete power cycle.
Finally, review the fuse and surge protection components in the cabinet. Blade fuses on the 24 VDC field power rail and varistors on AC input lines should be replaced as a matter of course during any base unit maintenance event. These low-cost components are frequently overlooked and are a common root cause of repeat failures.
Site Replacement Workflow
Replacing the A1S68B in a live industrial environment requires a structured approach to minimize downtime and avoid configuration loss. Before de-energizing the cabinet, capture the current PLC program from the A-Series CPU using GX Developer or a compatible programming tool, and record all I/O module slot assignments and parameter settings. This backup step takes less than ten minutes and eliminates the risk of program loss if the CPU battery is depleted.
After confirming the system is safely de-energized and locked out, remove each module from the existing base in sequence, labeling slot positions. Inspect the backplane connector on each module for bent pins or contamination before transferring to the new A1S68B. Seat each module firmly and verify the locking tab engages before proceeding to the next slot.
Reconnect the power supply module and apply power incrementally if a variable supply is available. Confirm the CPU enters RUN mode without error LEDs before restoring field power to output modules. Run a full I/O diagnostic cycle and verify all analog channel readings against known reference values before returning the system to production.
The A1S68B is a direct form-fit-function replacement for the original unit in all standard MELSEC-A configurations. No firmware changes or parameter modifications are required at the base unit level, making it one of the most straightforward major component replacements in the MELSEC-A platform.
Spare Parts Support FAQ
Q: Is the A1S68B still available as a new original spare?
A: Yes. We supply original Mitsubishi Electric A1S68B units sourced from authorized channels. Each unit is individually inspected and function-tested prior to dispatch. A 12-month warranty is provided from the date of shipment.
Q: How do I confirm compatibility with my existing MELSEC-A CPU and I/O modules?
A: The A1S68B is compatible with all standard MELSEC-A Series CPU units and I/O modules that use the parallel backplane bus. Provide your CPU model number and current slot configuration when ordering and our technical team will confirm compatibility before shipment.
Q: What is included in the pre-shipment testing process?
A: Every A1S68B is tested for backplane bus continuity, slot connector integrity, and physical dimensional compliance before packaging. Units that do not meet original specification are rejected. A test report is available on request.
Q: Can I order multiple units for strategic spare inventory?
A: Yes. We support blanket orders and scheduled delivery for maintenance departments building strategic spare inventories. Long-term supply agreements are available for facilities managing multiple MELSEC-A installations. Contact our sales team to discuss volume pricing and lead time commitments.
